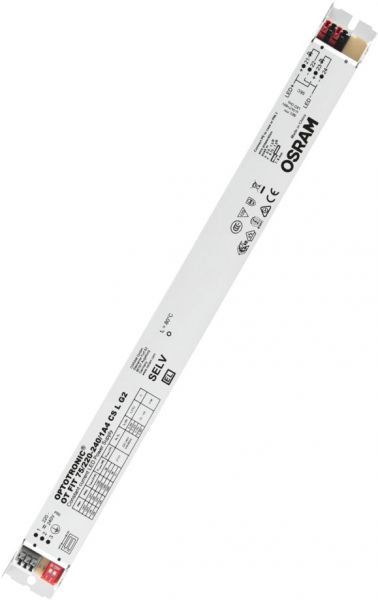

OSRAM OPTOTRONIC® FIT CS L G2 75/220…240/1A4 CS L G2
This article has been discontinued!
You can find out about possible alternatives or successor models by calling our hotline:
Item number: 101001755
EAN: 4052899522572
MPN: 4052899522572
Linear / Area Constant Current – Non dimmable. Product features: Line frequency: 0 Hz | 50 Hz... more
All information about the product:
"OSRAM OPTOTRONIC® FIT CS L G2 75/220…240/1A4 CS L G2"
Linear / Area Constant Current – Non dimmable. Product features:
- Line frequency: 0 Hz | 50 Hz | 60 Hz
- Versatile scope of application due to output power range of up to 75 W
- Supply voltage: 220 240 V
- Available with output current range: up to 1,400 mA
- SELV system
- Flexible current setting (DIPswitch ? 4 currents)
- Lifetime: up to 100,000 h (temperature at Tc = 65 °C, max. 10 % failure rate)
- High efficiency
- High quality of light thanks to low output ripple current
- Fulfill safety requirement due to overload, overtemperature, Hot Plug protection
- Linear lighting for office, education, industry, storage areas and retail
- Installation in emergency lighting systems according to IEC 61347-2-13, appendix J
- Suitable for luminaires of protection class I
| Length: | 360 mm |
| Width: | 30 mm |
| Height: | 21 mm |
| Net weight: | 290 g |
| Nominal voltage: | 240 V |
| Rated power: | 93 W |
| Energy consumption: | 93 kWh/1000 |
| Dimmable: | No |
| Material: | Metal |
| EAN: | 4052899522572 |
Further links
- Further products by Osram
-
Information about the manufacturerObligation to provide information on product safety (GPSR)Manufacturer:LEDVANCE GmbH
Parkring 1-5
DE-85748 Garching
[email protected] -
Safety instructions and warningsSafety instructions and warnings (GPSR)Specific safety instructions that apply to the product can be found in the operating instructions for the product.
