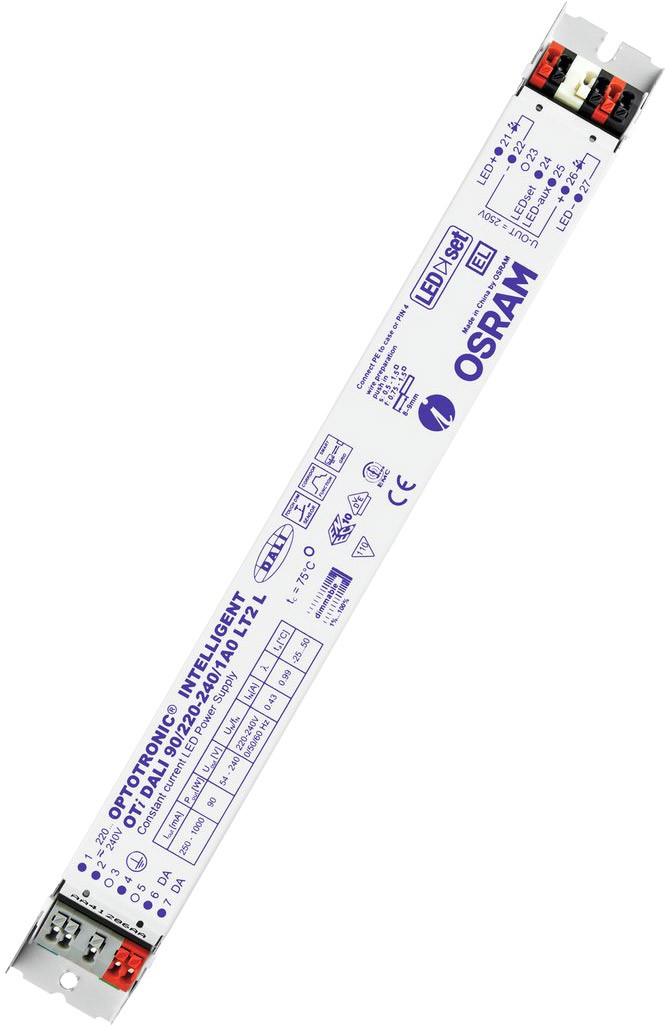

OSRAM OPTOTRONIC© Intelligent – Dimmable DALI (non-isolated) 90/220…240/1A0 LT2 L
This article has been discontinued!
You can find out about possible alternatives or successor models by calling our hotline:
Item number: 101001725
EAN: 4052899494268
MPN: 4052899494268
Constant Current - Indoor. Product features: Supply voltage: 220…240 V Line frequency: 0 Hz |... more
All information about the product:
"OSRAM OPTOTRONIC© Intelligent – Dimmable DALI (non-isolated) 90/220…240/1A0 LT2 L"
Constant Current - Indoor. Product features:
- Supply voltage: 220…240 V
- Line frequency: 0 Hz | 50 Hz | 60 Hz
- Line voltage: 198…264 V
- Safety according to EN 61347-1, 61347-2-3, 61347-2-13, 62384
- RI suppression according to EN 55015:2007+A1:2007/CDN
- Line harmonics according to EN 61000-3-2
- Immunity according to EN 61547
- Lifetime: up to 100,000 h (temperature at Tc = 65 °C, max. 10 % failure rate)
- SELV and non-isolated versions available
- Versatile DALI window driver up to 90 W due to flexible output characteristic
- Very high efficiency and reliability
- Protection of the system thanks to thermal management and Smart Control
- Installation in emergency lighting systems according to IEC 61347-2-13, appendix J
- Suitable for use in luminaires with flexible current setting (DALI, CLO, LEDset)
- Suitable for luminaires of protection class I
| Length: | 280 mm |
| Width: | 30 mm |
| Height: | 21 mm |
| Net weight: | 205 g |
| Nominal voltage: | 240 V |
| Nominal current: | 430 mA |
| Rated power: | 90 W |
| Energy consumption: | 90 kWh/1000 |
| Dimmable: | Yes |
| Material: | Metal |
| Colour: | White |
| EAN: | 4052899494268 |
