PHILIPS HF-Ri TD 4 14/24 TL5 E+ 195-240V

NEW

PHILIPS HF-Ri TD 4 14/24 TL5 E+ 195-240V

€63.90 *

incl. tax, plus shipping costs

Express delivery possible

Availability:

Delivery time: 3-5 days

Delivery time: approx. 3-5 days

Item number: 100423970

EAN: 8718291156789

MPN: 913700679166

NEW

PHILIPS HF-Ri TD 4 14/24 TL5 E+ 195-240V This intelligent high-frequency electronic dimming... more

Back to the overview

All information about the product:

"PHILIPS HF-Ri TD 4 14/24 TL5 E+ 195-240V"

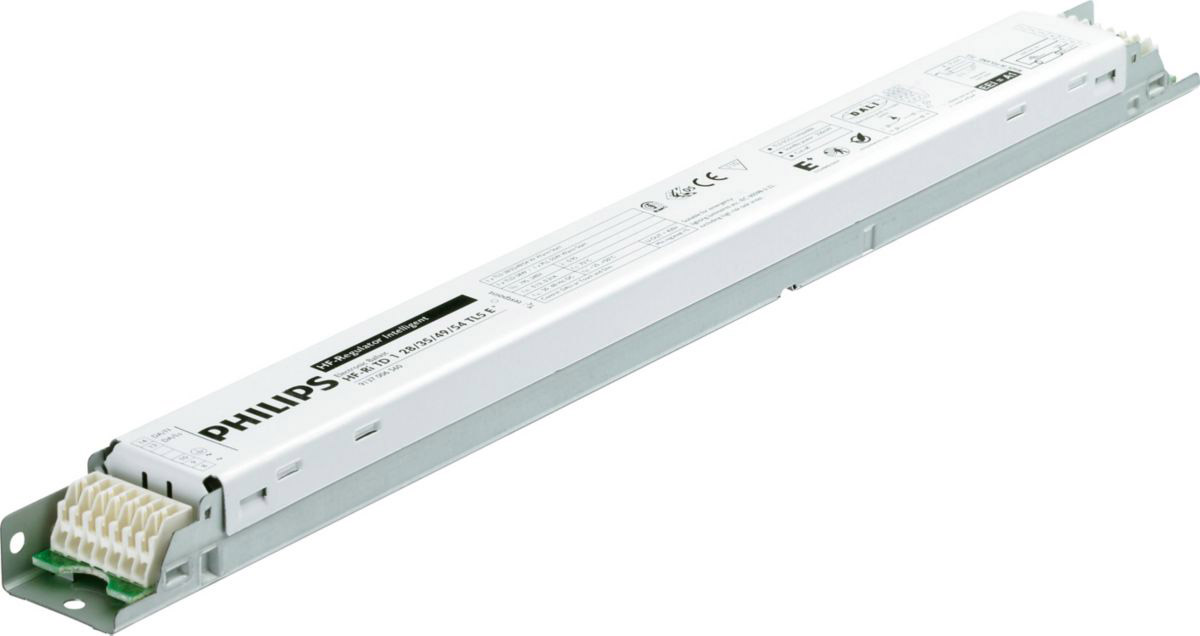

PHILIPS HF-Ri TD 4 14/24 TL5 E+ 195-240V

This intelligent high-frequency electronic dimming ballast utilizes the DALI or Touch and Dim push-button protocol for fluorescent lamps. It meets A1BAT requirements, thereby pre-empting upcoming legislation. With a special command you can retrieve the system’s mains power consumption, and with another you can find out which lamp wattage is connected. Combined with controls, additional energy savings can be achieved.

Technical data:

Length:	360 mm
Width:	30 mm
Height:	22 mm
Nominal voltage:	195-240 V
Nominal power:	24 W
Energy consumption:	24 kWh/1000
Dimmable:	Yes
Protection class:	IP20
Material:	Metal housing
Model:	Electronic
Dimming phase cut-off (trailing edge):	no
Dimming phase cut-on (leading edge):	no
Dimming Touch and Dim:	no
Dimming Zigbee:	no
Multiwatt model:	yes
For lamp type HI:	no
For lamp type HM:	no
For lamp type HS:	no
For lamp type LS:	no
For lamp type T7:	no
For lamp type T16:	yes
For lamp type T16-R:	no
For lamp type T26:	yes
For lamp type T38:	no
For lamp type T-R:	no
For lamp type T-U:	no
For lamp type TC-D:	no
For lamp type TC-DD:	no
For lamp type TC-DEL:	no
For lamp type TC-F:	no
For lamp type TC-L:	yes
For lamp type TC-QEL:	no
For lamp type TC-S:	no
For lamp type TC-SEL:	no
For lamp type TC-T:	no
For lamp type TC-TEL:	no
Suitable for lamp power (4 lamps):	24 W
Suitable for number of lamps:	4
Suitable for lamp power:	24 W
With strain relief:	no
Protection class according to IEC 61140:	None
Operation by Bluetooth:	no
Compatible with Apple HomeKit:	no
Compatible with Google Assistant:	no
Compatible with Amazon Alexa:	no
Compatible with Casambi:	no
IFTTT support available:	no
