LEDVANCE DR-V -60/220-240/24

NEW

€16.59 *

incl. tax, plus shipping costs

Availability:

Delivery time: approx. 2-3 weeks

Delivery time: approx. 2-3 weeks

Item number: 101417235

EAN: 4058075835870

MPN: 4058075835870

NEW

LEDVANCE DR-V -60/220-240/24 product advantages Optimized for operation with 24 V flexible... more

Back to the overview

All information about the product:

"LEDVANCE DR-V -60/220-240/24"

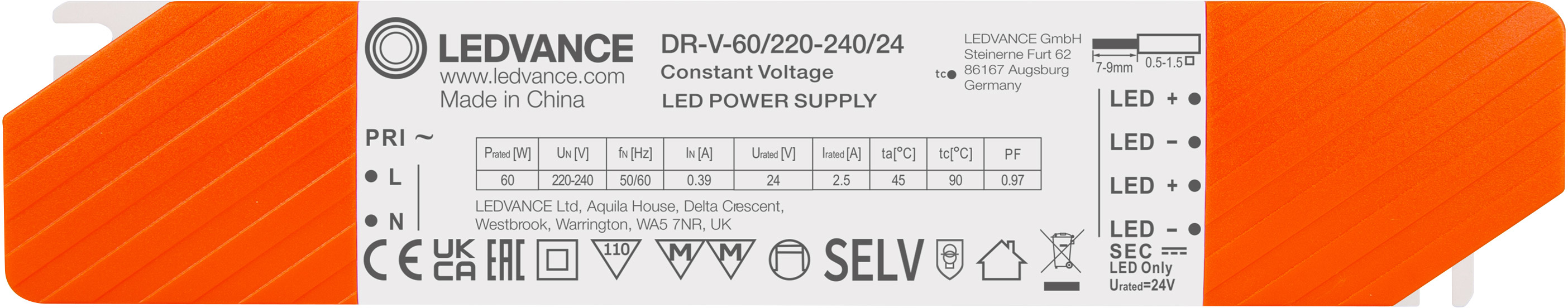

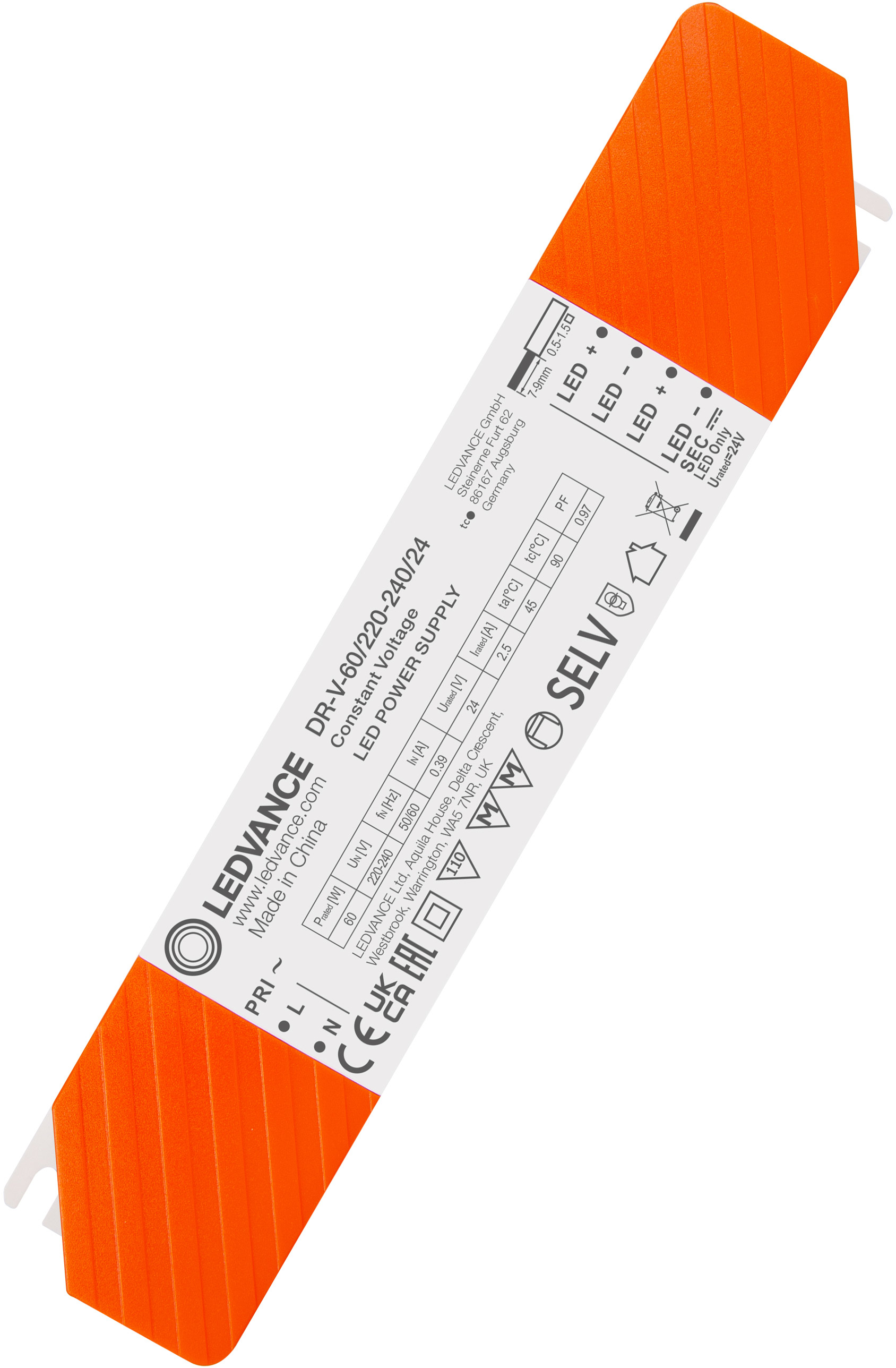

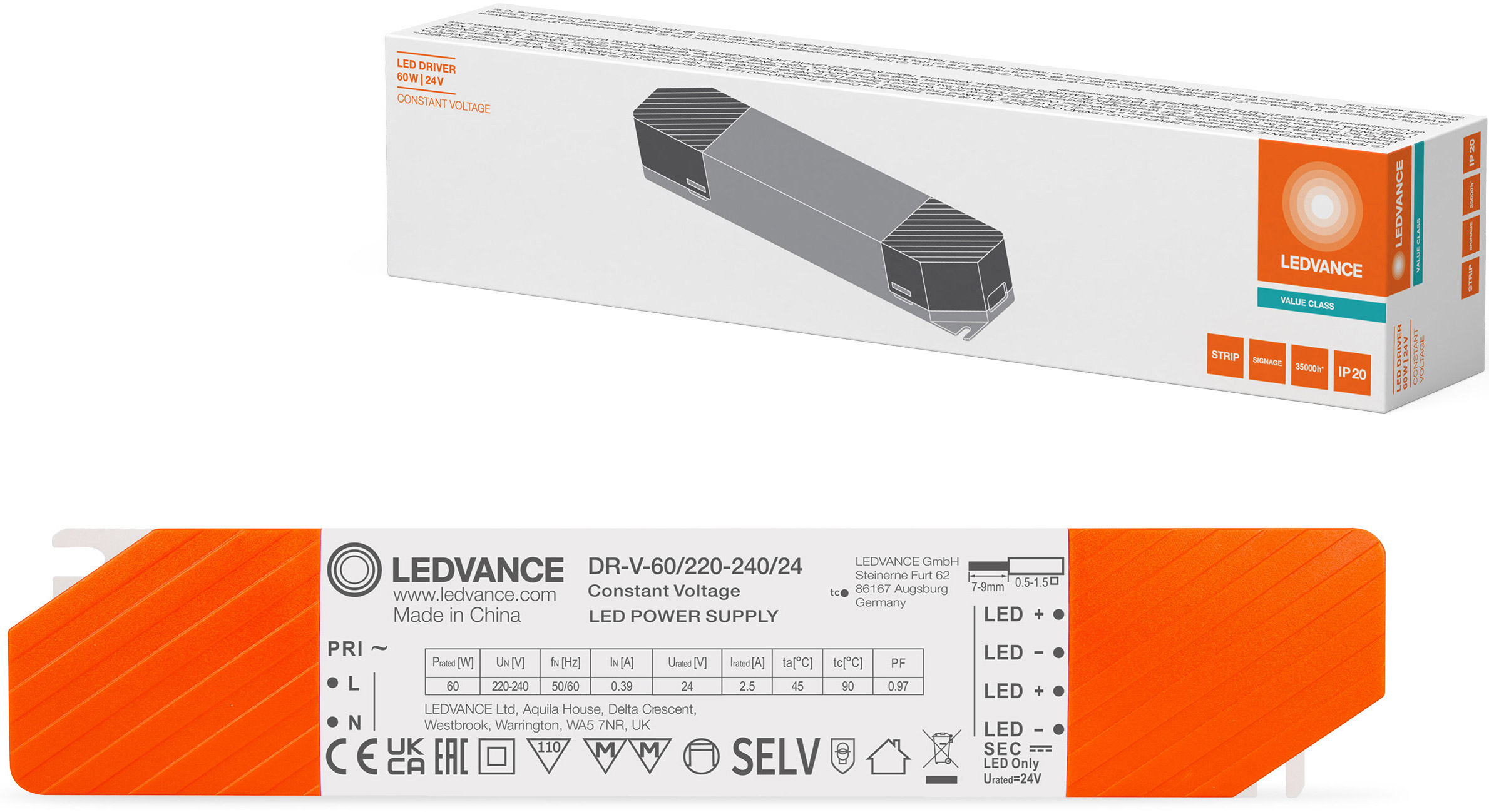

LEDVANCE DR-V -60/220-240/24

product advantages

Optimized for operation with 24 V flexible LED light strip
Excellent value for money
3-year warranty
Quick and easy installation
Good efficiency and reliability

Areas of application

Cove lighting, even in confined spaces
Wallwasher effect lighting in living rooms, dining rooms, bedrooms, entrance areas
For SELV installations indoors
Offices, shopping centers, hospitals, restaurants, hotels

product features

Available in 30 W, 60 W, 120 W, and 150 W
Integrated cable clamp for independent installation
Service life: up to 35,000 hours (at max. tc temperature)
Protection class: IP20
Supply voltage: 220–240 V
Operating frequency: 50/60 Hz
Operation with less than 60 V: Safety extra-low voltage (SELV)
Reversible overtemperature, overload, short-circuit, and operating current protection

References / References

For warranty information, please visit www.ledvance.de/garantie.

Technical data:

Length:	194 mm
Width:	40 mm
Height:	31 mm
Weight:	215 g
Nominal voltage:	240 V
Nominal power:	60 W
Nominal current:	390 mA
Energy consumption:	60 kWh/1000
Dimmable:	No
Lifetime:	35000 h
Protection class:	IP20
Material:	Plastic housing
Model:	Static
Dimming phase cut-off (trailing edge):	no
Dimming phase cut-on (leading edge):	no
Dimming Touch and Dim:	no
Dimming Zigbee:	no
Constant light output (CLO):	no
Suitable for constant current:	no
Suitable for constant voltage:	yes
Suitable for DC-voltage (primary side):	no
Protection class according to IEC 61140:	II
Operation by Bluetooth:	no
Compatible with Apple HomeKit:	no
Compatible with Google Assistant:	no
Compatible with Amazon Alexa:	no
Compatible with Casambi:	no
IFTTT support available:	yes
