LEDVANCE DR EXTERNAL DALI-P -1X7-37W 220-240

NEW

Preview: LEDVANCE DR EXTERN DALI-P -1X7-37W 220-240

LEDVANCE DR EXTERN DALI-P -1X7-37W 220-240

€34.01 *

incl. tax, plus shipping costs

Availability:

Delivery time: approx. 2-3 weeks

Delivery time: approx. 2-3 weeks

Item number: 101419700

EAN: 4099854295157

MPN: 4099854295157

NEW

LEDVANCE DR EXTERNAL DALI-P -1X7-37W 220-240 product advantages Multi-watt LED driver for... more

Back to the overview

All information about the product:

"LEDVANCE DR EXTERNAL DALI-P -1X7-37W 220-240"

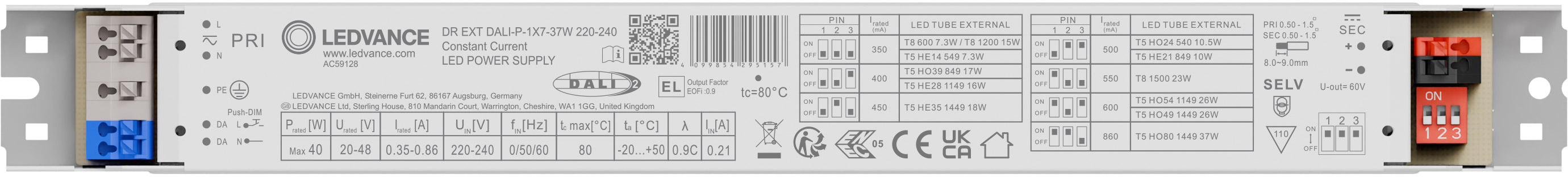

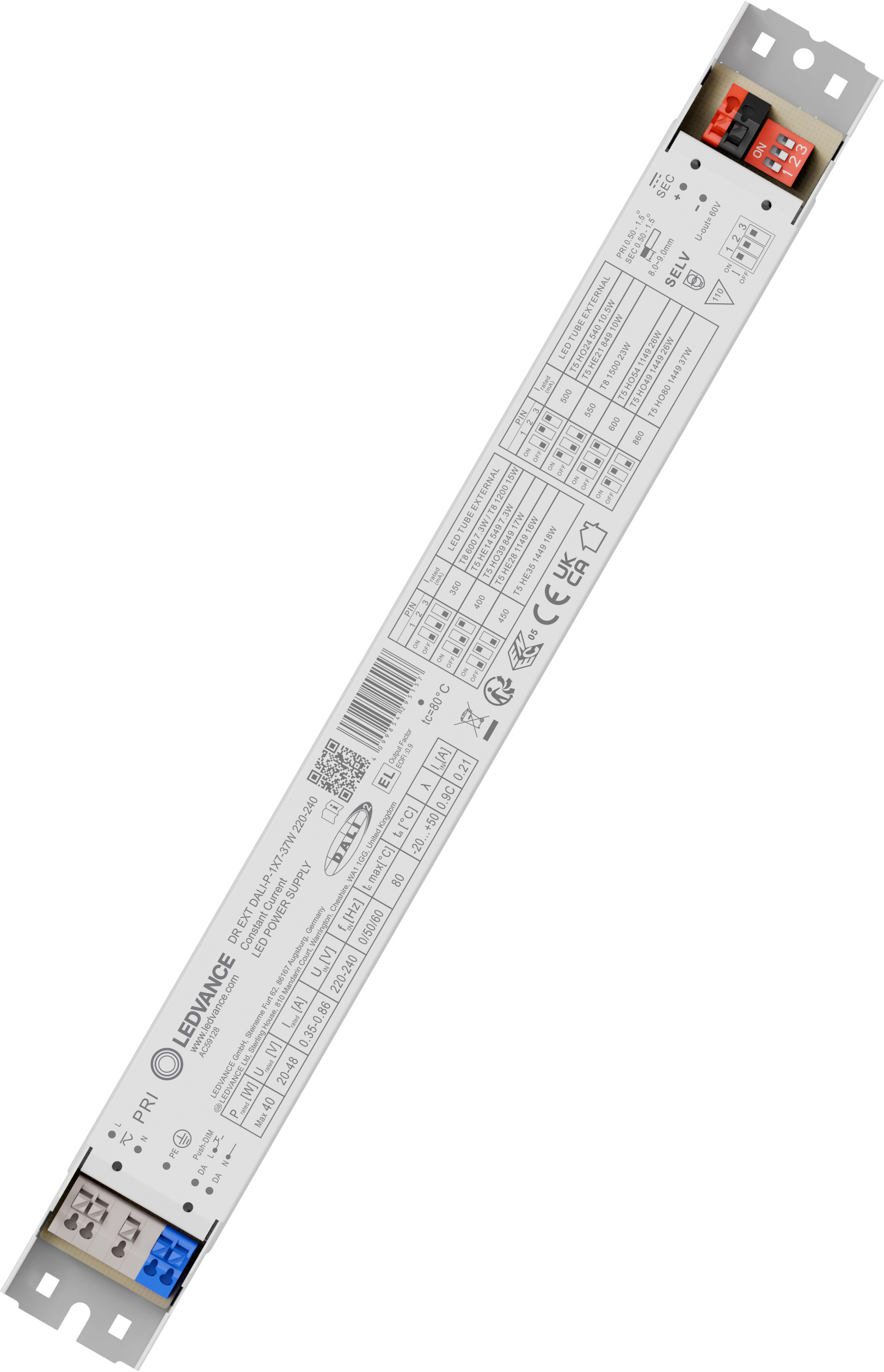

LEDVANCE DR EXTERNAL DALI-P -1X7-37W 220-240

product advantages

Multi-watt LED driver for operating LED TUBE EXTERNAL T5 and T8
DALI-2.0 interface for dimmable and sensor-controlled applications
Suitable for emergency lighting
Push DIM application for easy control
5-year warranty

Areas of application

Suitable for luminaires of protection class I
General lighting in ambient temperatures from -20 to +50°C
Linear lighting solutions for offices, educational facilities, warehouses, and retail stores
Industrial lighting (e.g., manufacturing facilities, logistics centers, warehouses)
Shops, supermarkets

product features

Flexibility thanks to adjustable output currents via DIP switches
Qualitative dimming from 1 to 100%
SELV driver with protective extra-low voltage
Service life 100,000 h (at Tc = 65 °C)
ENEC tested safety
High switching resistance

safety instructions

Can be used in outdoor applications in suitable damp-proof luminaires in accordance with the data sheet and installation instructions.
All electrical connections must only be carried out by qualified personnel.
Caution, risk of electric shock.
Disconnect the mains power supply before installation.
Do not open the housing.

References / References

For current information, see www.ledvance.de/led-roehren

Technical data:

Length:	284 mm
Width:	31 mm
Height:	21 mm
Weight:	225 g
Nominal voltage:	240 V
Nominal power:	46 W
Nominal current:	210 mA
Energy consumption:	46 kWh/1000
Dimmable:	Yes
Lifetime:	100000 h
Protection class:	IP20
Material:	Metal housing
Model:	Dynamic
Dimming phase cut-off (trailing edge):	no
Dimming phase cut-on (leading edge):	no
Dimming Touch and Dim:	yes
Dimming Zigbee:	no
Constant light output (CLO):	no
Suitable for constant current:	yes
Suitable for constant voltage:	no
Suitable for DC-voltage (primary side):	yes
Protection class according to IEC 61140:	I
Operation by Bluetooth:	no
Compatible with Apple HomeKit:	no
Compatible with Google Assistant:	no
Compatible with Amazon Alexa:	no
Compatible with Casambi:	no
IFTTT support available:	yes
