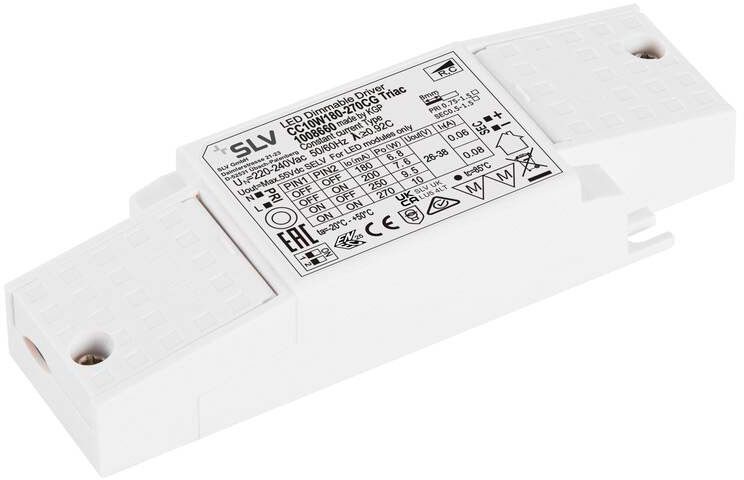

SLV LED driver 10 W 180-270 mA, PHASE

€28.00 *

incl. tax, plus shipping costs

Availability:

Delivery time: 3-5 days

Delivery time: 3-5 days

Item number: 110066440

EAN: 4024163297394

MPN: 1008660

Phase-dimmable constant current driver, 10 W, with adjustable current via DIP: 180 mA/200 mA/250... more

All information about the product:

"SLV LED driver 10 W 180-270 mA, PHASE"

Phase-dimmable constant current driver, 10 W, with adjustable current via DIP: 180 mA/200 mA/250 mA/270 mA, with strain reliefTechnical data:

Product name:	LED Treiber
Colour:	white
Material:	Plastic PC
electrical power:	14 W
Dimmable:	Yes
Dimming technology:	trailing edge
IP Code:	IP20
Shape:	rectangular
Output voltage:	26 38
Primary nominal voltage:	220-240V ~50/60 Hz
Secondary power / secondary voltage:	180-270mA
Output current:	180 270 mA
TC point (°C):	85 °C
Ambient temperature:	-25 - 50 °C
Net weight:	77 g
Weighted consumption:	14 kWh/1.000h
Independent converter:	Yes
Number of lights on LS B16A:	28 St.
Number of lights on LS C16A:	45 St.
Inrush current level:	8 A
Inrush current duration:	10 μs
Efficiency:	81 %
Rated capacity:	14 W
Output Wattage:	4.68 - 10 W
