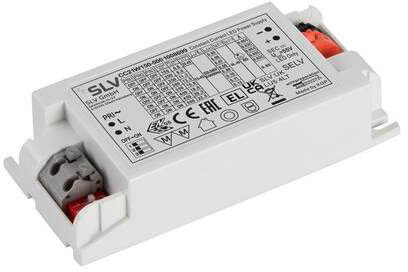

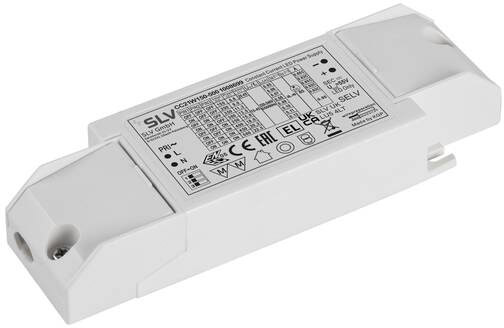

SLV LED driver, 150-200mA | 21W
€21.00 *
incl. tax,
plus shipping costs
Availability:
Delivery time: 3-5 days
Delivery time: 3-5 days
Item number: 110066445
EAN: 4024163300513
MPN: 1008699
LED driver constant current, adjustable current, 21W, 150 - 500mA, on/off. Technical data:... more
All information about the product:
"SLV LED driver, 150-200mA | 21W"
LED driver constant current, adjustable current, 21W, 150 - 500mA, on/off.Technical data:
| Product name: | LED Treiber 21W | 150-500mA |
| Colour: | white |
| Material: | Plastic PC |
| electrical power: | 25.6 W |
| Shape: | square |
| Length: | 97.5 mm |
| Width: | 44 mm |
| Height: | 23 mm |
| Output voltage: | 15 45 |
| Primary nominal voltage: | 220-240V ~50/60 Hz |
| Secondary power / secondary voltage: | 150-500mA |
| Output current: | 150 500 mA |
| Number of secondary outputs: | 1 |
| TC point (°C): | 85 °C |
| Ambient temperature: | -20 - 45 °C |
| Net weight: | 84 g |
| Weighted consumption: | 26 kWh/1.000h |
| Number of lights on LS B16A: | 50 St. |
| Number of lights on LS C16A: | 80 St. |
| Inrush current level: | 21 A |
| Inrush current duration: | 180 μs |
| Efficiency: | 88 % |
| Output Wattage: | 2.3 - 22,5 W |
| Rated capacity: | 25.6 W |
