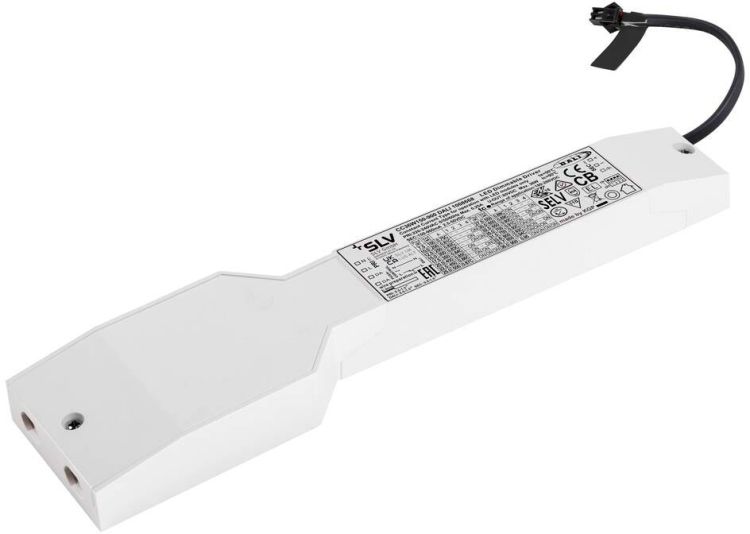

SLV LED driver, 36W, 700 mA, DALI

€60.37 *

incl. tax, plus shipping costs

Availability:

Currently not available.
Expected to be available again in 3 weeks.

Currently not available

Item number: 110071150

EAN: 4024163319959

MPN: 1010706

LED driver for NUMINOS® XL, 30W, 700mA, DALI dimming. Technical data: Product name: LED... more

All information about the product:

"SLV LED driver, 36W, 700 mA, DALI"

LED driver for NUMINOS® XL, 30W, 700mA, DALI dimming.Technical data:

Product name:	LED TREIBER
Colour:	white
Material:	Plastic PC
electrical power:	39.7 W
Dimmable:	Yes
Dimming technology:	Touch
IP Code:	IP20
Length:	235 mm
Width:	30 mm
Height:	21 mm
Output voltage:	2.5 50
Primary nominal voltage:	220-240V ~50/60 Hz
Secondary power / secondary voltage:	700 mA
Output current:	700 mA
Number of secondary outputs:	1
TC point (°C):	90 °C
Ambient temperature:	-20 - 50 °C
Net weight:	164 g
Weighted consumption:	40 kWh/1.000h
Number of lights on LS B16A:	59 St.
Number of lights on LS C16A:	94 St.
Inrush current level:	8.5 A
Inrush current duration:	16 μs
Rated capacity:	39.7 W
Output Wattage:	1.75 - 35 W
Efficiency:	88 %
