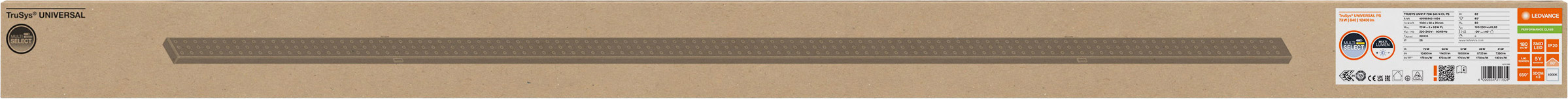

LEDVANCE TRUSYS UNIV P 73W 840 N CL PS

NEW

€109.04 *

incl. tax, free shipping to Germany
[International shipping costs]

Availability:

Near-term available
Delivery time: approx. 1 week

Delivery time: approx. 1 week

Item number: 101421490

EAN: 4099854311604

MPN: 4099854311604

NEW

LEDVANCE TRUSYS UNIV P 73W 840 N CL PS product advantages The solution for renovation –... more

Back to the overview

All information about the product:

"LEDVANCE TRUSYS UNIV P 73W 840 N CL PS"

LEDVANCE TRUSYS UNIV P 73W 840 N CL PS

product advantages

The solution for renovation – universally applicable for existing skylight systems
Easy installation, tool-free connection
Energy-saving and cost-effective
Flexible application thanks to a wide range of different lumen packages and beam angles
5-year warranty

Areas of application

Direct replacement for luminaires with fluorescent lamps

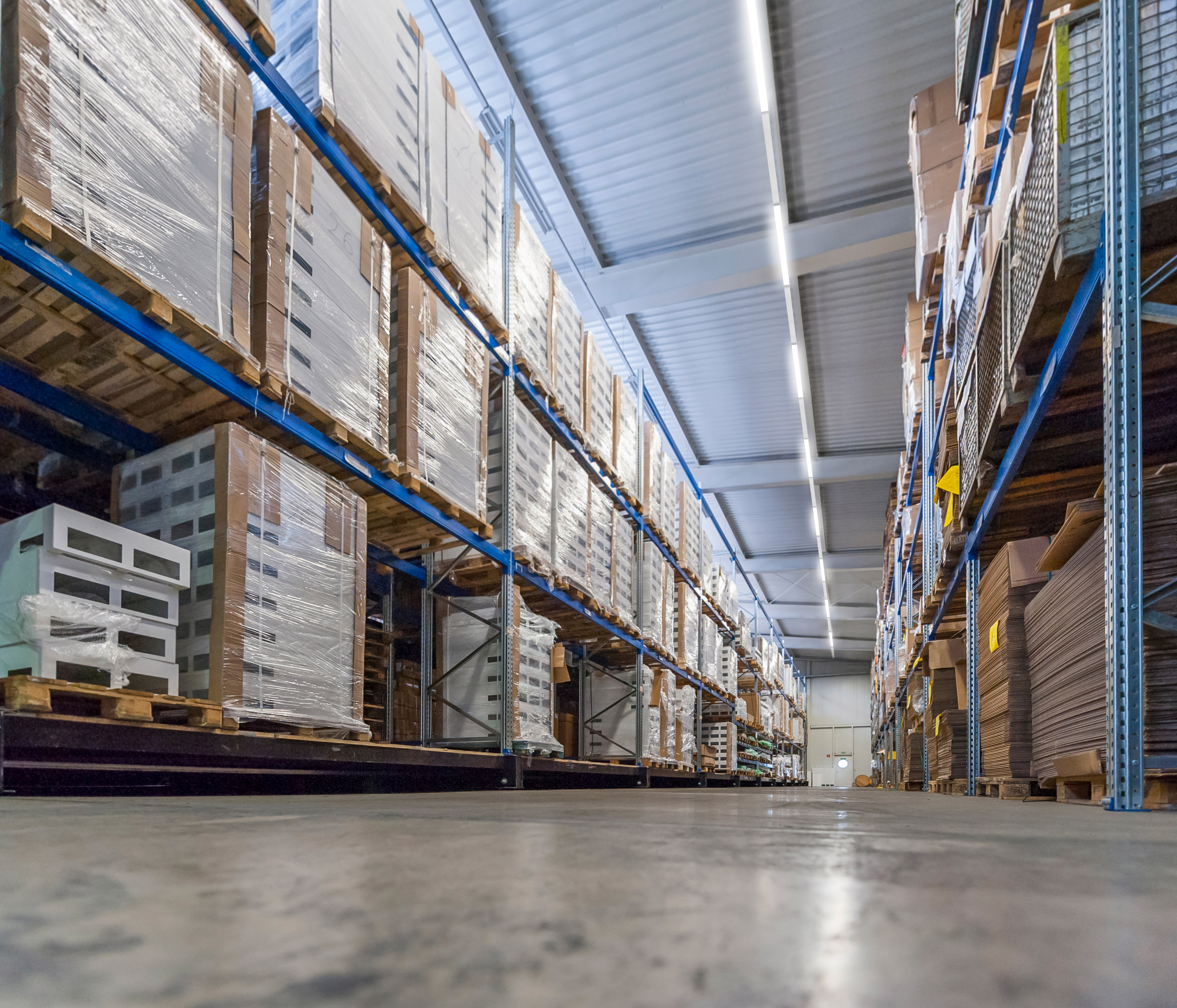

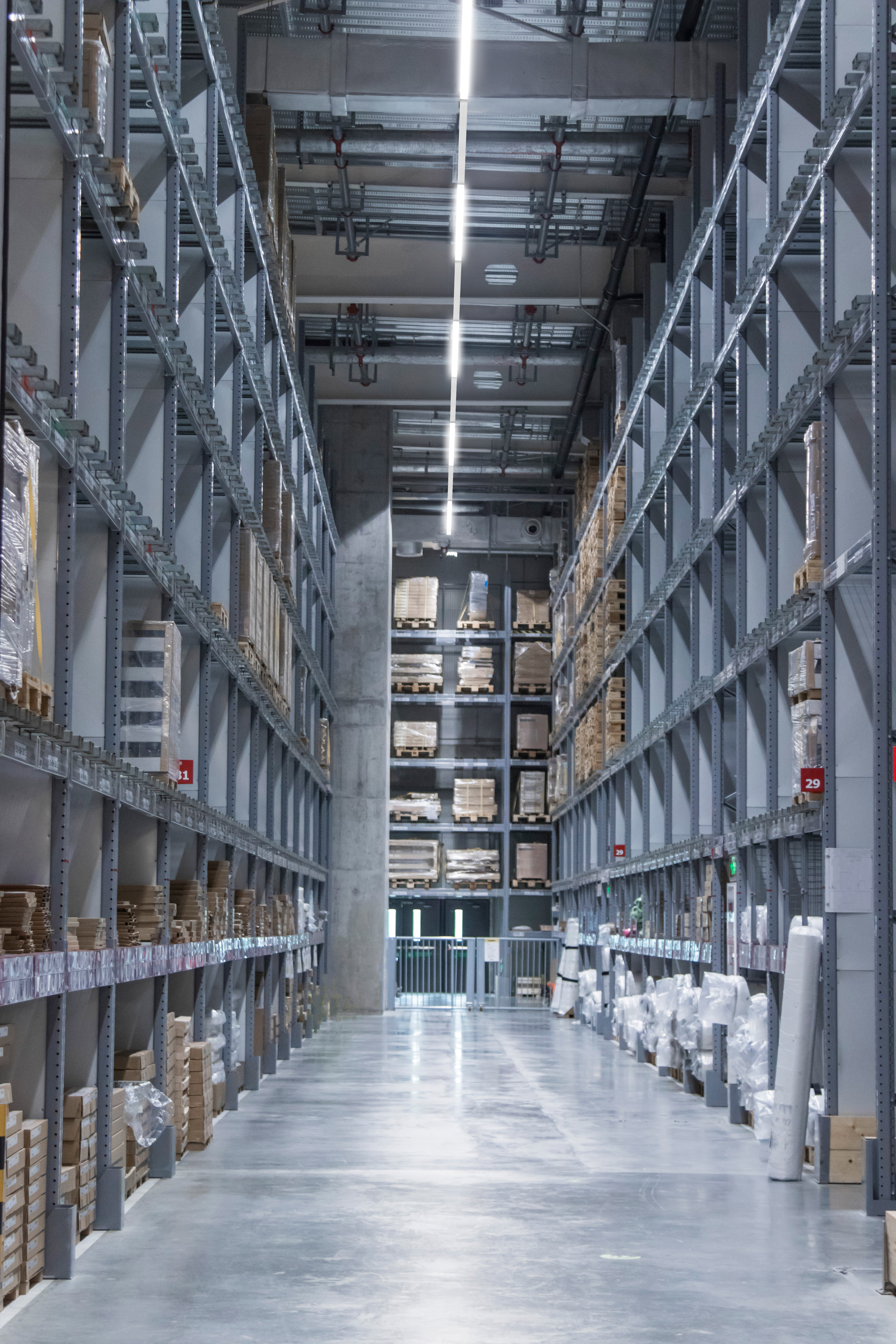

Industrial buildings, high-bay warehouses, hardware stores
Discount stores, supermarkets

product features

Multi-lumen function: selectable power levels
Beam angle: 90° (W), 60° (N), 30° (VN)
Clickable solution with push buttons
Light output: up to 180 lm/W
Service life (L80/B10): up to 100,000 hours (at 25 °C)
Initial color consistency: = 3 SDCM (threshold unit)

Technical equipment

Various accessories available

References / References

For warranty information, please visit www.ledvance.de/garantie.

Technical data:

Length:	1504 mm
Width:	68 mm
Height:	26 mm
Weight:	1695 g
Nominal voltage:	220-240 V
Nominal power:	73 W
Nominal current:	190-330 mA
Energy consumption:	73 kWh/1000
Colour temperature:	4000 K
Light colour:	White
Beam angle:	60°
Luminous flux:	12400 lm
Luminous efficacy:	170 lm/W
Colour rendering:	80-89 CRI
Dimmable:	No
Lifetime:	120000 h
Switching cycles:	50000
Protection class:	IP20
Light source type:	LED not exchangeable
Material:	Aluminium
Colour:	White
Incl. illuminant:	Yes
Lamp holder:	None
Voltage type:	AC/DC
Type of control gear:	Electronic transformer
With control gear:	yes
Exchangeable control gear:	yes
Dimming phase cut-off (trailing edge):	no
Dimming phase cut-on (leading edge):	no
Dimming Touch and Dim:	no
Dimming Zigbee:	no
Light distributor:	Focal lens
Reflector:	None
Light distribution:	Symmetric
Light outlet:	Direct
Colour consistency (McAdam ellipse):	SDCM3
Protection class according to IEC 61140:	I
Suitable for emergency lighting:	yes
Emergency power supply integrated:	no
Rated ambient temperature according to IEC 62722-2-1:	+40°C
Power factor:	0.90
Constant light output (CLO):	no
Beam angle adjustable:	No
Colour of light adjustable:	No
Luminous flux adjustable:	Positions
Type of wiring:	Suitable for loop-through wiring
Number of poles:	3
Operation by Bluetooth:	no
Compatible with Casambi:	no
Meets min. EIA lifetime criterion L90 (at 50,000 hours at tq = 25 °C):	no
