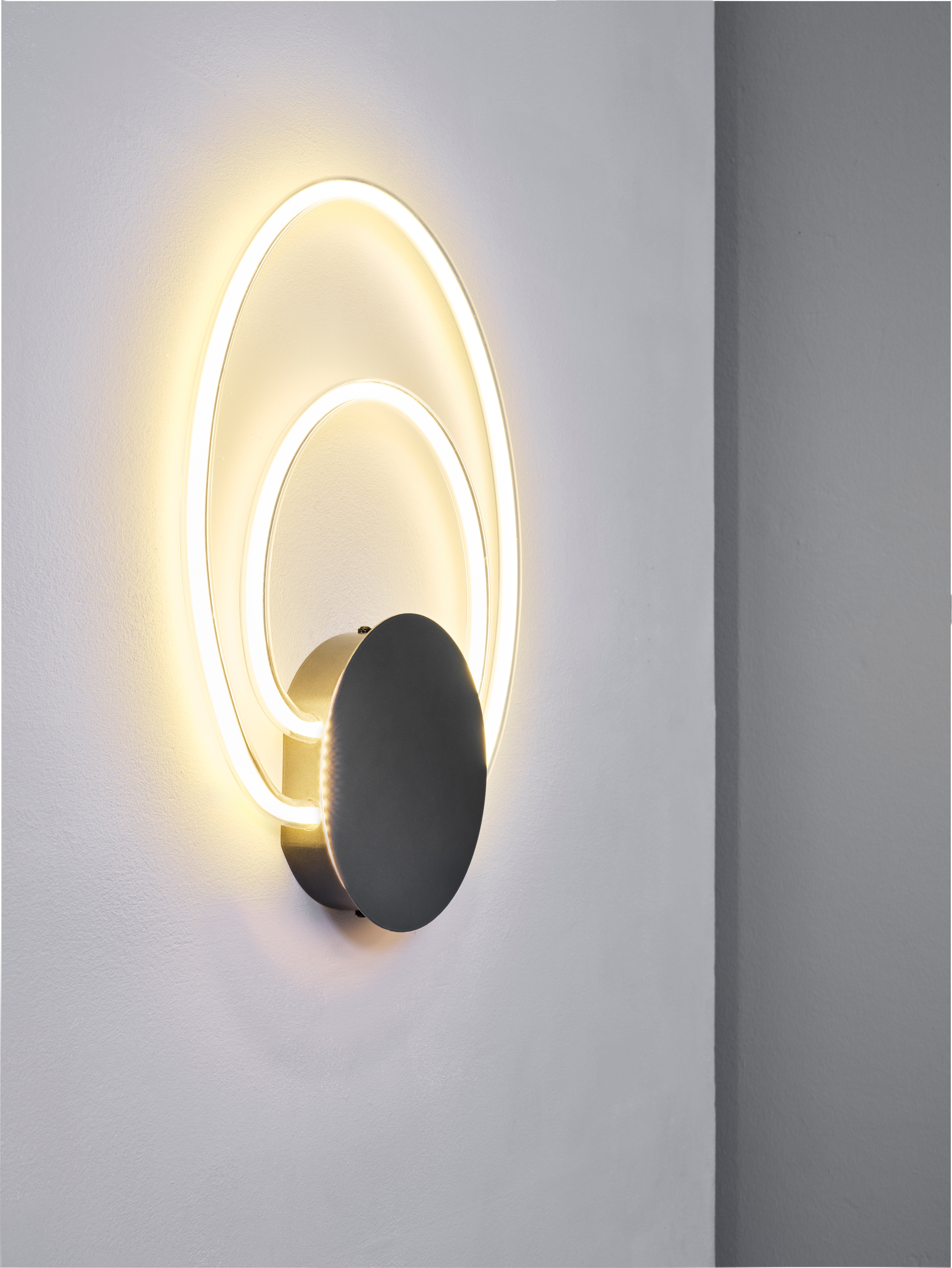

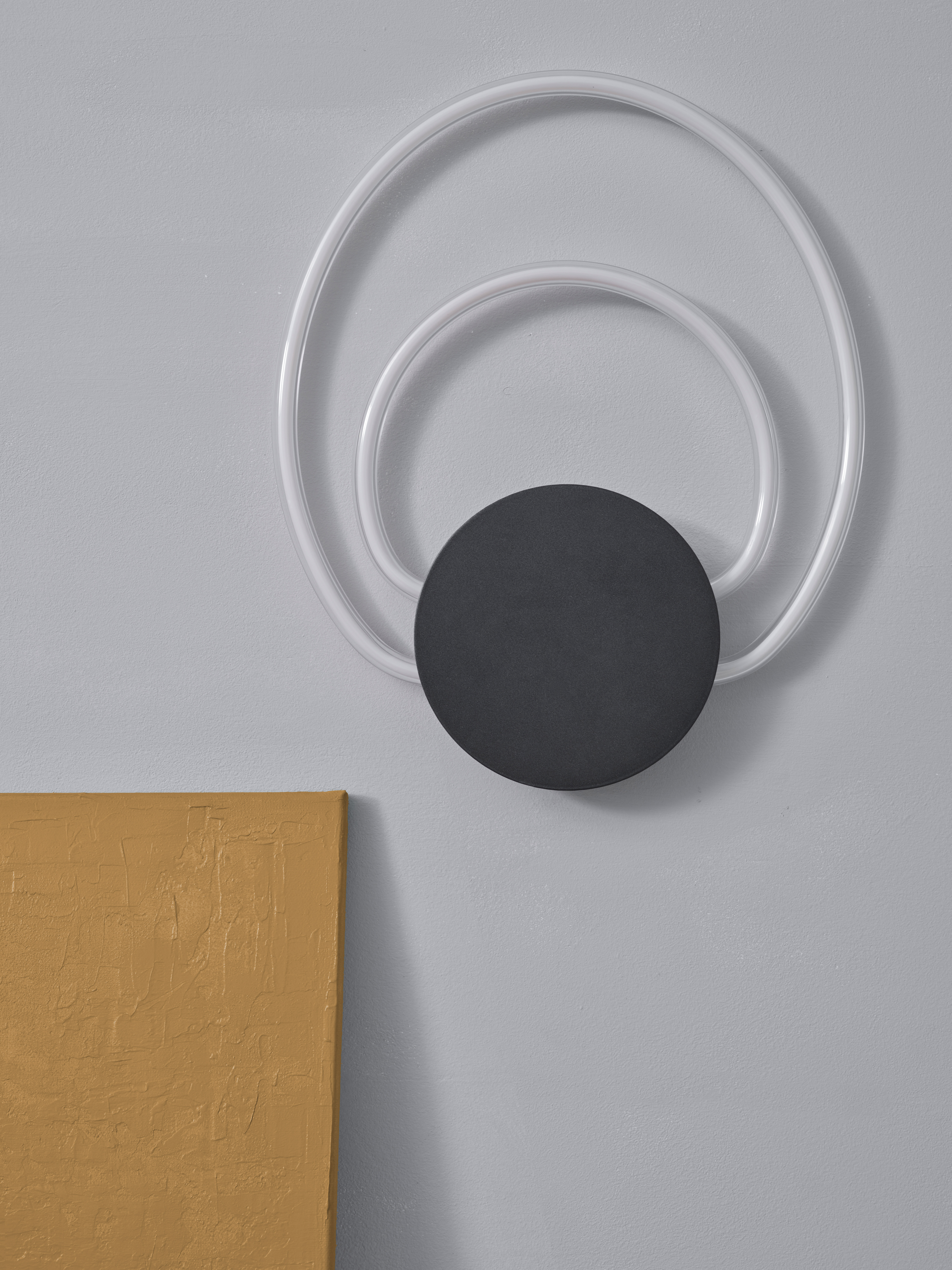

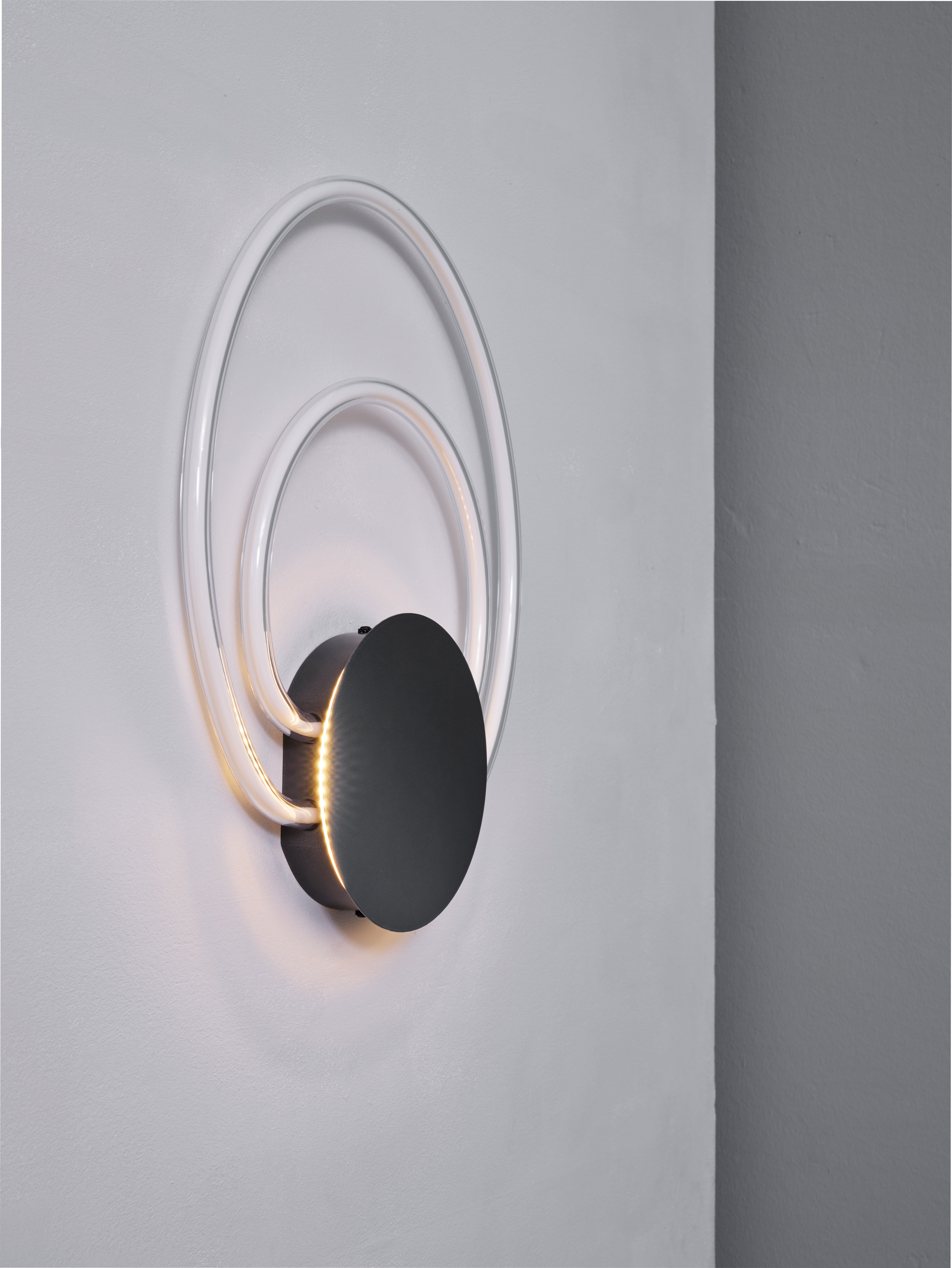

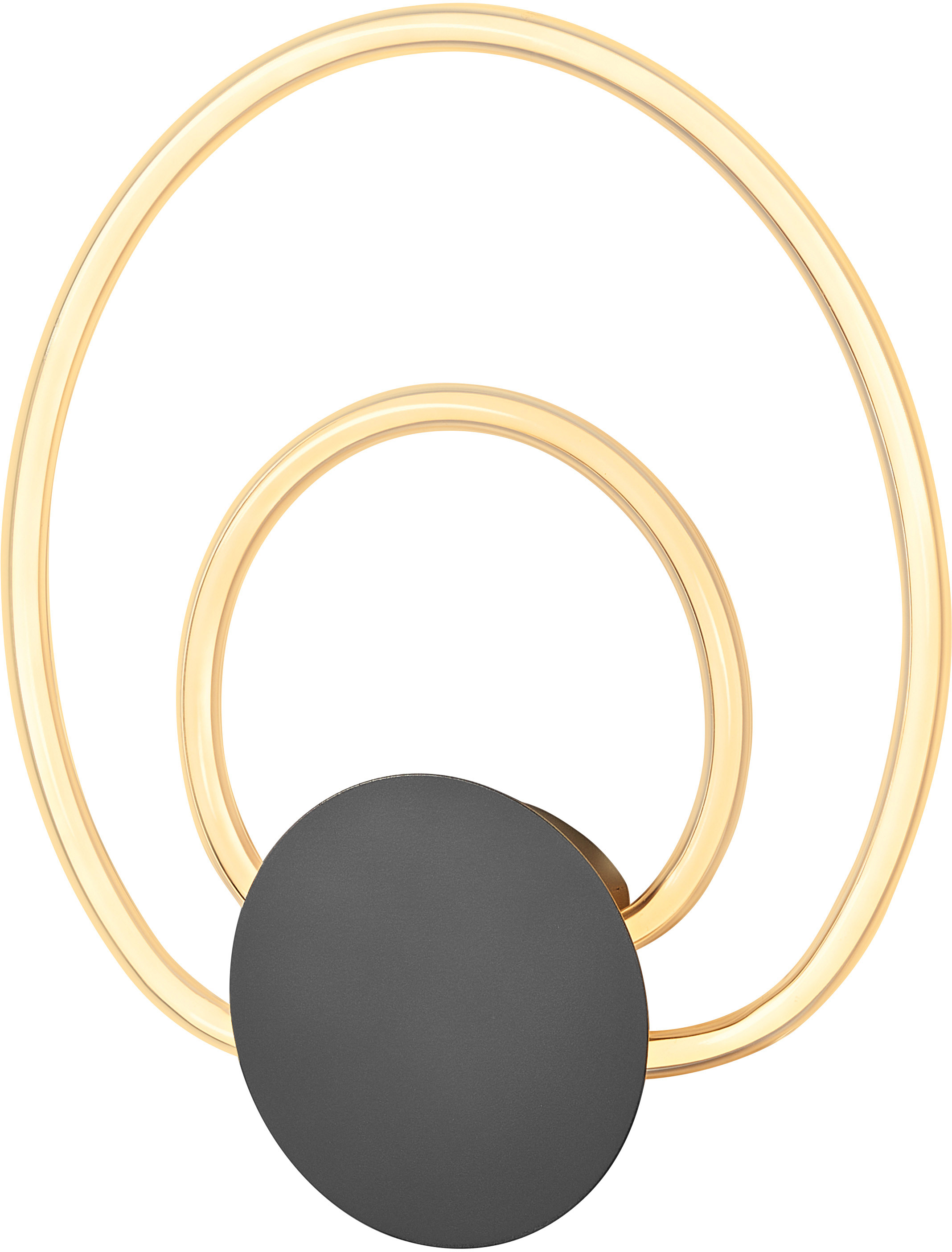

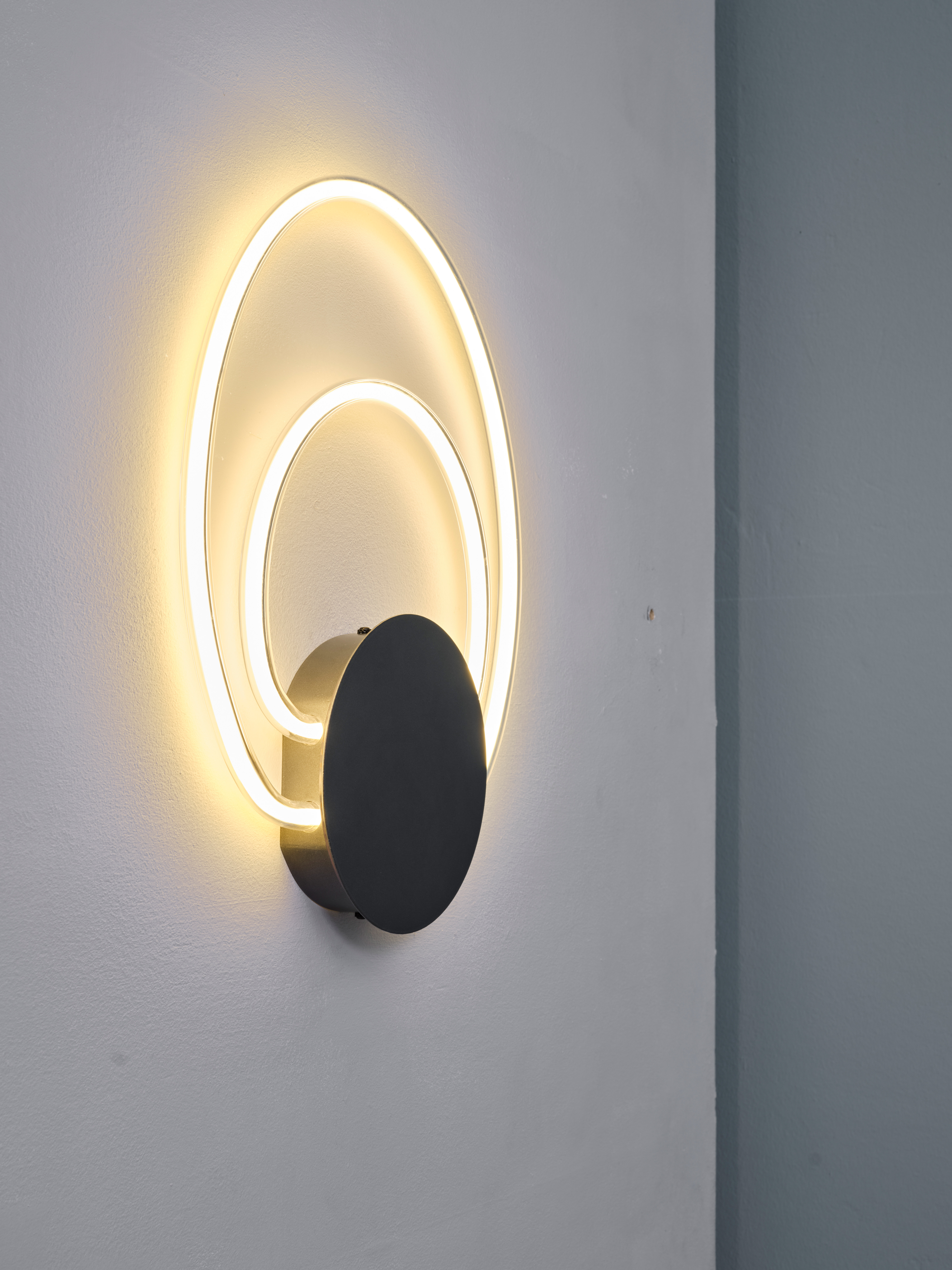

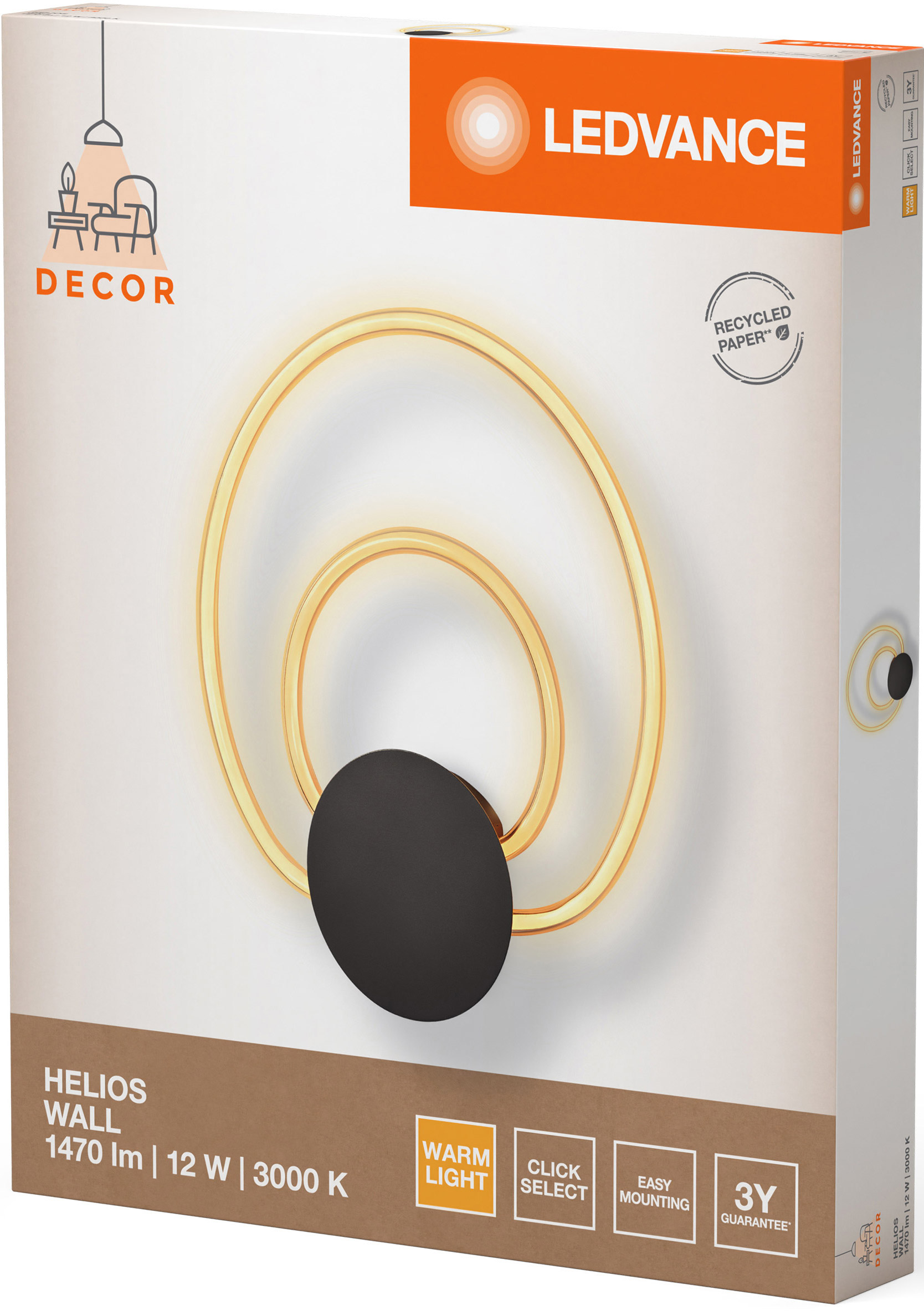

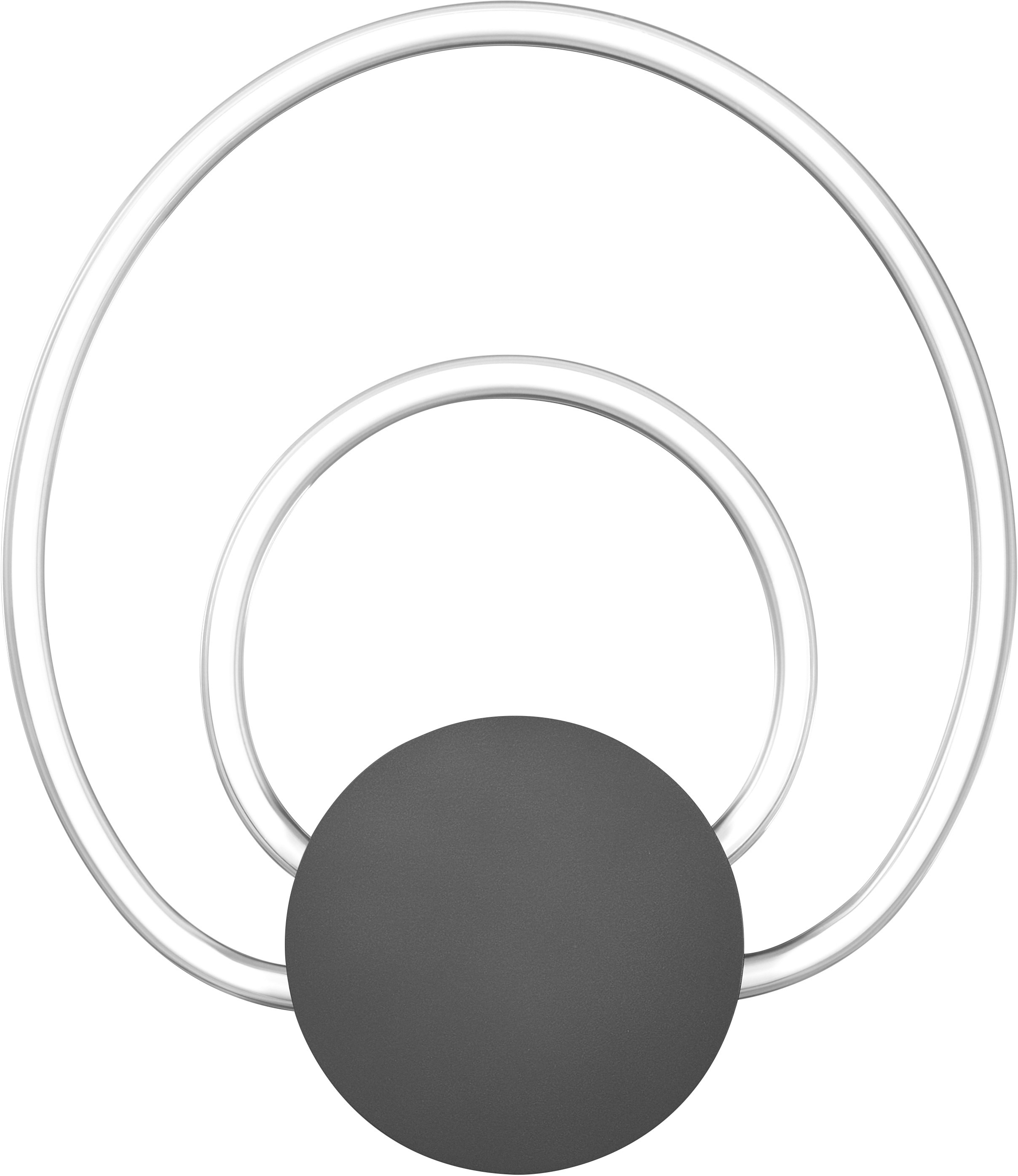

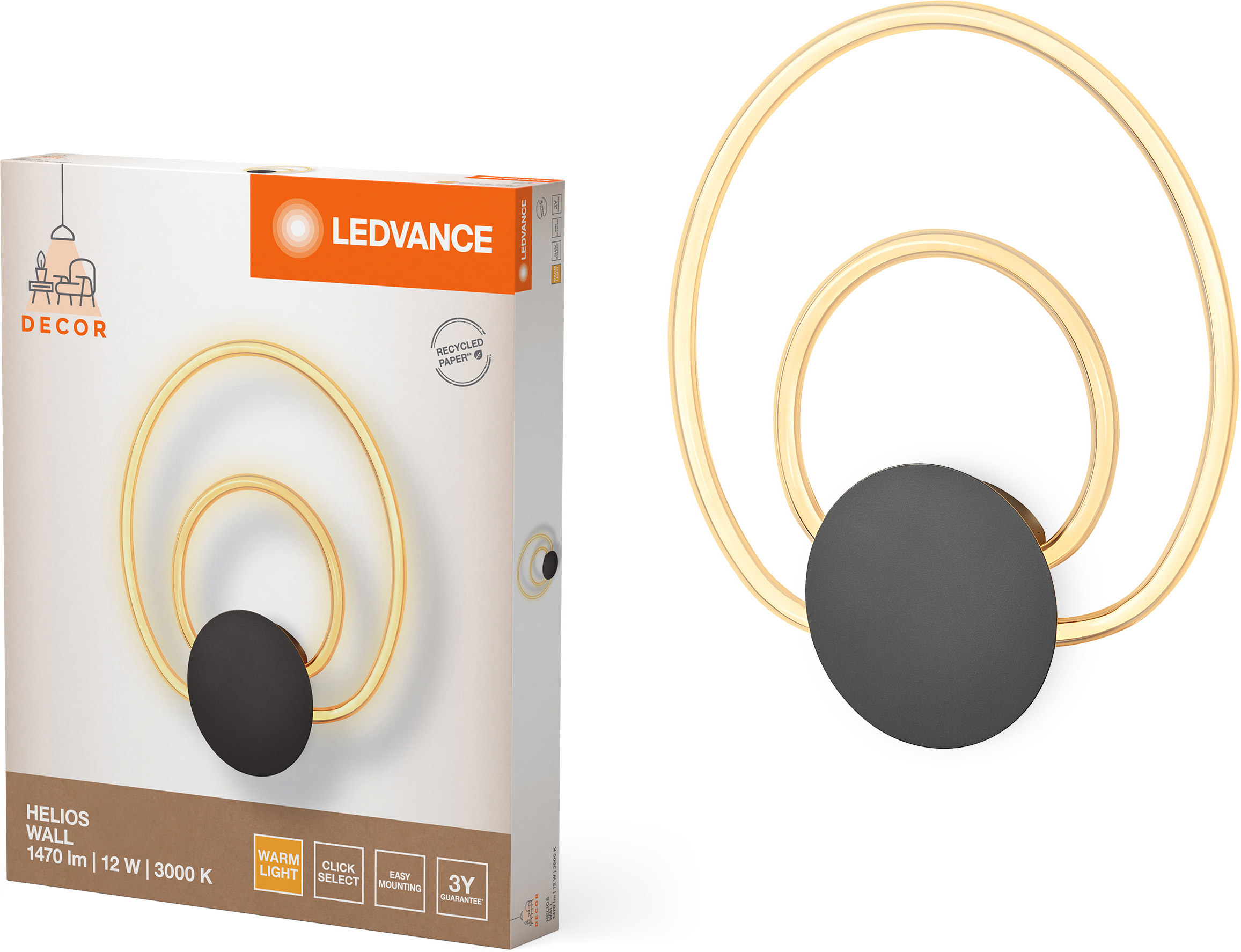

LEDVANCE Decor Helios Wall 12W 830 Click Select
NEW
€128.23 *
Availability:
Delivery time: approx. 2-3 weeks
Delivery time: approx. 2-3 weeks
Item number: 101420710
EAN: 4058075842144
MPN: 4058075842144
NEW
LEDVANCE Decor Helios Wall 12W 830 Click Select product advantages Uniform filament... more
All information about the product:
"LEDVANCE Decor Helios Wall 12W 830 Click Select"
LEDVANCE Decor Helios Wall 12W 830 Click Select
product advantages
Technical data:- Uniform filament illumination
- 3-step setting via wall switch to select indirect and direct light separately (click select)
- Minimalist style suits every room
- Easy installation
- interior applications
- Corridors, entrance areas, stairwells, living rooms, basements
- Housing material: Polycarbonate (PC)
- high-performance LED
- All electrical connections must only be carried out by qualified personnel.
- Caution, risk of electric shock.
- Product of protection class I. All electrically conductive, metallic housing parts that may become live during operation or maintenance in the event of a fault must be connected to the protective conductor throughout.
- Check the wall/ceiling to ensure it is suitable. If you are unsure, seek professional advice.
| Length: | 335 mm |
| Width: | 39 mm |
| Height: | 416 mm |
| Weight: | 900 g |
| Nominal voltage: | 220-240 V |
| Nominal power: | 12 W |
| Nominal current: | 65 mA |
| Energy consumption: | 12 kWh/1000 |
| Colour temperature: | 3000 K |
| Light colour: | White |
| Beam angle: | 360° |
| Luminous flux: | 960 lm |
| Luminous efficacy: | 80 lm/W |
| Colour rendering: | 80-89 CRI |
| Dimmable: | No |
| Lifetime: | 25000 h |
| Protection class: | IP20 |
| Light source type: | LED not exchangeable |
| Material: | Plastic |
| Colour: | Grey |
| Incl. illuminant: | Yes |
| Suitable for wall mounting: | yes |
| Suitable for suspended mounting: | no |
| Suitable for ceiling mounting: | no |
| Suitable for built-in mounting: | no |
| Suitable for surface mounting: | yes |
| Suitable for light line configuration: | no |
| Suitable for workplace according to EN 12464-1: | no |
| Material cover: | Plastic, opal |
| Type of grid: | Matt |
| Voltage type: | AC |
| Type of control gear: | Electronic ballast |
| With control gear: | yes |
| Exchangeable control gear: | no |
| Dimming phase cut-off (trailing edge): | no |
| Dimming phase cut-on (leading edge): | no |
| Dimming Touch and Dim: | no |
| Dimming Zigbee: | no |
| Light distributor: | None |
| Colour consistency (McAdam ellipse): | SDCM6 |
| Light outlet: | Direct |
| Max. number of luminaires per miniature circuit breaker B16 (MCB): | 53 |
| Max. number of luminaires per miniature circuit breaker C16 (MCB): | 71 |
| Impact strength: | IK03 |
| Protection class according to IEC 61140: | I |
| Luminaire with limited surface temperature, sign "D“ according to EN 60598-2-24: | no |
| Rated ambient temperature according to IEC 62722-2-1: | +40°C |
| Suitable for emergency lighting: | no |
| Emergency power supply integrated: | no |
| With movement sensor: | no |
| With light sensor: | no |
| Covering of the luminaire with thermally insulating material possible: | no |
| With air slots: | no |
| Power factor: | 0.5 |
| Constant light output (CLO): | no |
| Type of wiring: | Ending |
| Number of poles: | 3 |
| Connection type: | Push-in clamp |
| Photobiological safety according to EN 62471: | RG0 |
| Colour of light adjustable: | No |
| Luminous flux adjustable: | No |
| Beam angle adjustable: | No |
| Operation by Bluetooth: | no |
| Compatible with Casambi: | no |
| Compatible with Apple HomeKit: | no |
| Compatible with Google Assistant: | no |
| Compatible with Amazon Alexa: | no |
| IFTTT support available: | yes |
| Meets min. EIA lifetime criterion L90 (at 50,000 hours at tq = 25 °C): | no |
