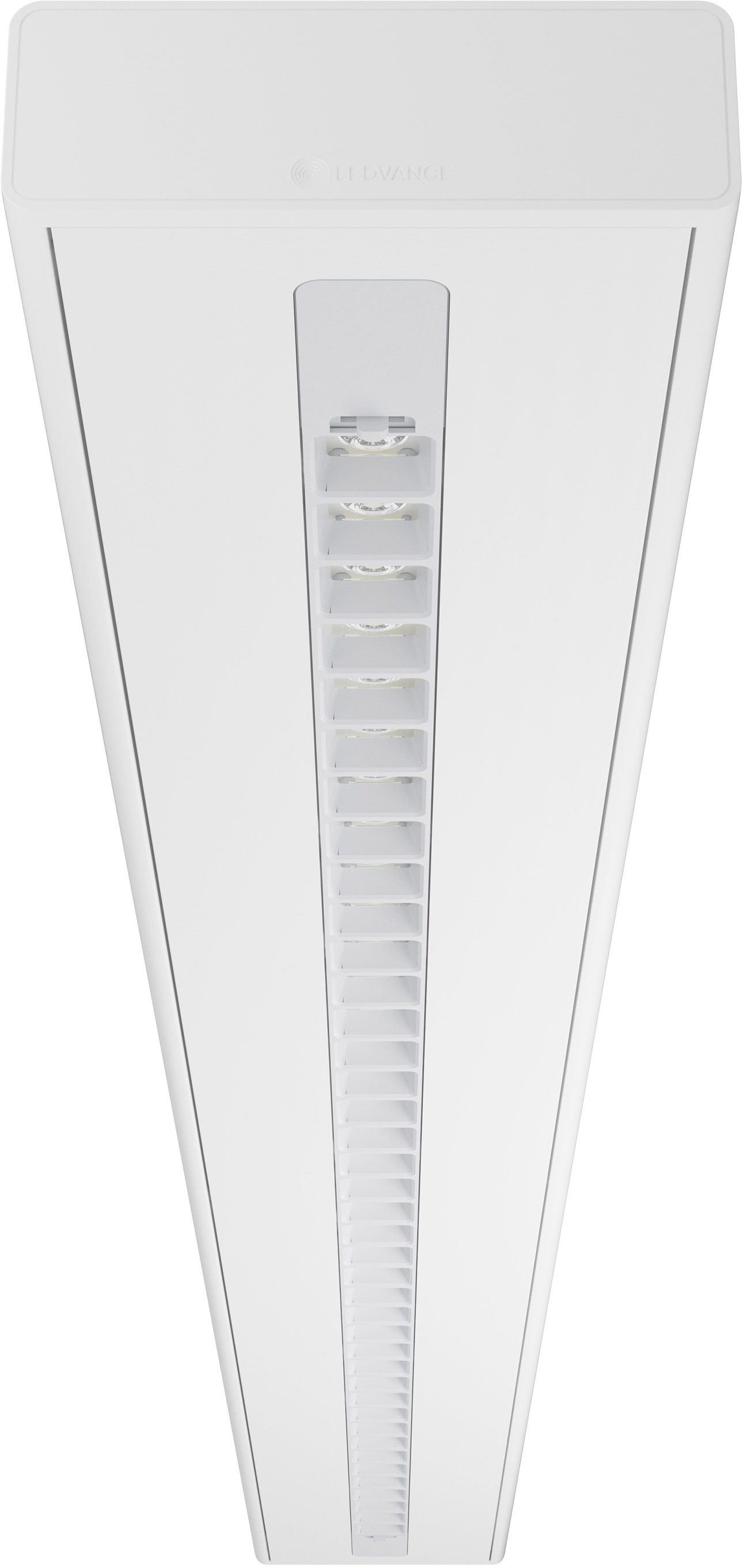

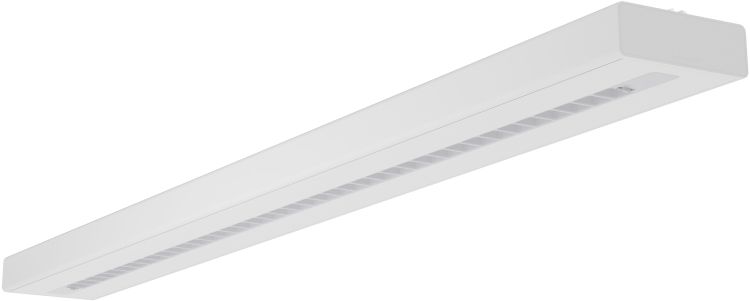

LEDVANCE LN INV D 1200 P 40W 930 DAVR WT
NEW
€265.91 *
Availability:
Delivery time: approx. 2-3 weeks
Delivery time: approx. 2-3 weeks
Item number: 101416520
EAN: 4099854135712
MPN: 4099854135712
NEW
LEDVANCE LN INV D 1200 P 40W 930 DAVR WT product advantages Easy upgradeability of light... more
All information about the product:
"LEDVANCE LN INV D 1200 P 40W 930 DAVR WT"
LEDVANCE LN INV D 1200 P 40W 930 DAVR WT
product advantages
Technical data:- Easy upgradeability of light source and driver (EVERLOOP design)
- Homogeneous light distribution and reduced glare (UGR = 19) thanks to IndiviLED® optics
- High technical performance with CRI90 and up to 131 lm/W
- IoT-enabled luminaire with DALI-2 driver suitable for VIVARES and other light management systems
- Symmetrical and asymmetrical light distribution for a wide range of applications
- Advanced services such as power consumption monitoring and remote maintenance available for DALI versions
- High color consistency with SDCM 3
- Easy installation
- Low-flicker light thanks to special electronic ballast
- Suitable for use in emergency lighting applications in accordance with EN 60598-2-22
- Various mounting options thanks to different accessories
- Direct replacement for luminaires with fluorescent lamps
- Offices, educational institutions, public institutions
- Individual application or combined as a light strip
- direct illumination
- Minimalist LEDVANCE SCALE design in an extruded aluminum housing, available in white and black
- Includes EVERLOOP: Easy replacement of light source and LED driver
- Can be connected to form a continuous light strip with accessories (surface-mounted or suspended installation)

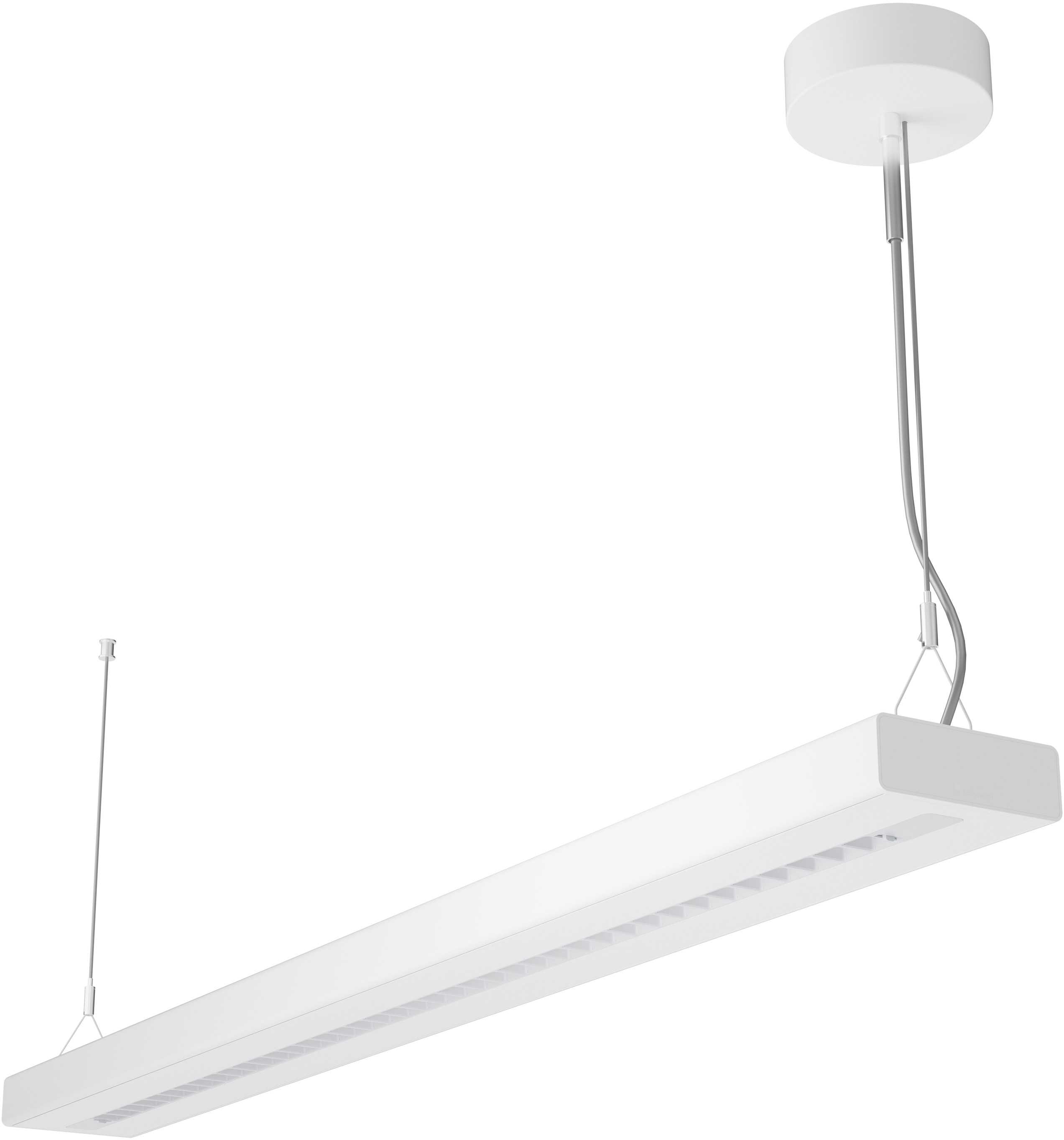

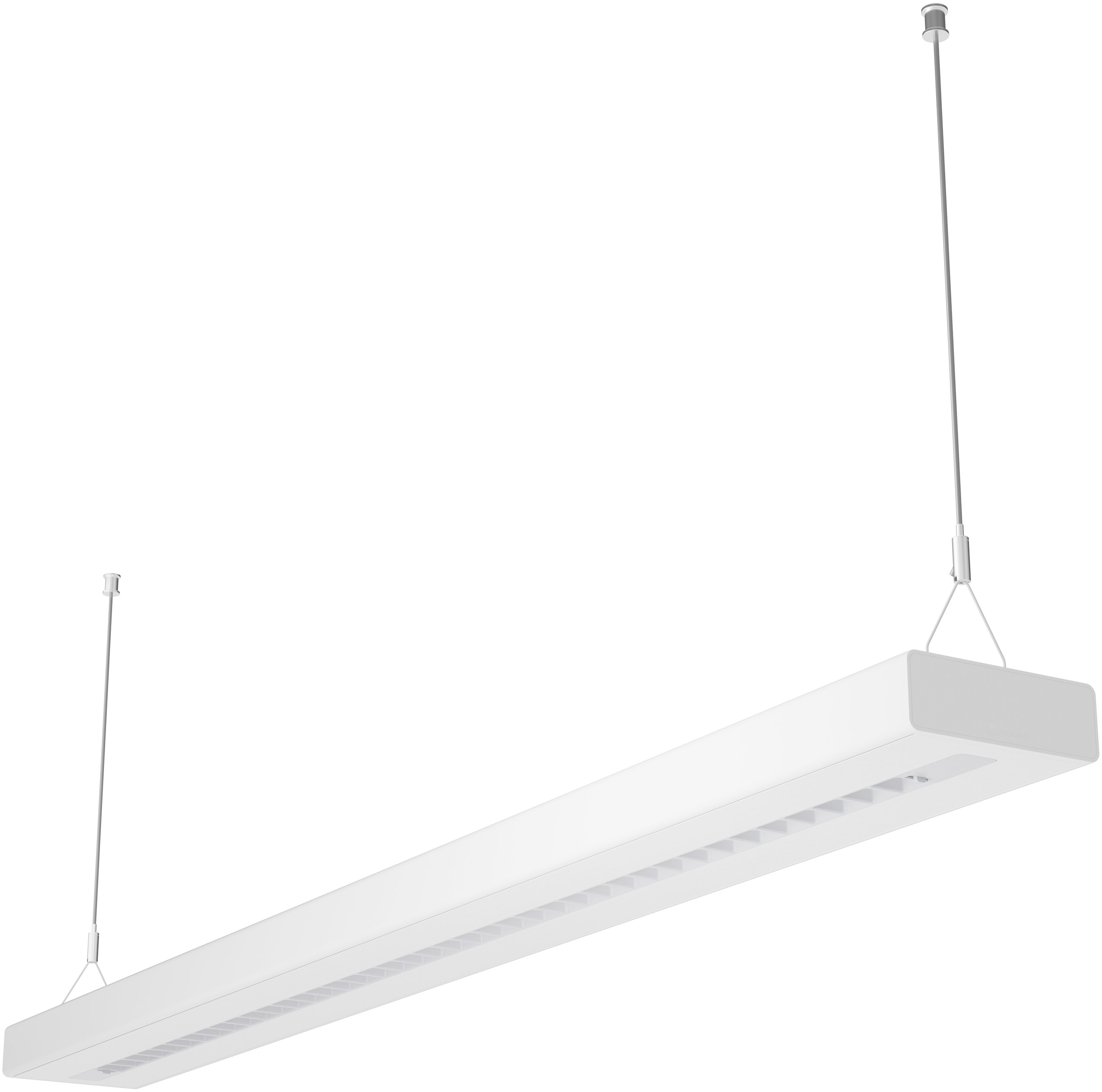

- Suspended mounting with suspension kit (to be ordered separately)
- Glow wire test according to IEC 60695-2-12: 850 °C
- 5-pin connection terminal, cable cross-section up to 5 x 2.5 mm²
- Service life (L80/B10): 70,000 hours (at 25 °C)
- Suspension kit available
- Inline, corner, and infill connectors available as separate accessories
- Through-wiring set available
- All electrical connections must only be carried out by qualified personnel.
- To avoid hazards, a damaged external flexible cable on this luminaire must only be replaced by qualified personnel.
- Caution, risk of electric shock.
- Product of protection class I. All electrically conductive, metallic housing parts that may become live during operation or maintenance in the event of a fault must be connected to the protective conductor throughout.
- For warranty information, please visit www.ledvance.de/garantie.
| Length: | 1210 mm |
| Width: | 125 mm |
| Height: | 43 mm |
| Weight: | 3260 g |
| Nominal voltage: | 220-240 V |
| Nominal power: | 40 W |
| Nominal current: | 120-177 mA |
| Energy consumption: | 40 kWh/1000 |
| Colour temperature: | 3000 K |
| Light colour: | White |
| Beam angle: | 90° |
| Luminous flux: | 4800 lm |
| Luminous efficacy: | 120 lm/W |
| Colour rendering: | 90-100 CRI |
| Dimmable: | Yes |
| Lifetime: | 100000 h |
| Switching cycles: | 25000 |
| Protection class: | IP20 |
| Material: | Aluminium |
| Colour: | White |
| Incl. illuminant: | Yes |
| Suitable for wall mounting: | no |
| Suitable for suspended mounting: | yes |
| Suitable for ceiling mounting: | yes |
| Suitable for built-in mounting: | no |
| Suitable for surface mounting: | yes |
| Suitable for light line configuration: | no |
| Suitable for workplace according to EN 12464-1: | no |
| Surface protection housing: | Powder coating |
| Voltage type: | AC |
| Type of control gear: | Electronic ballast |
| With control gear: | yes |
| Exchangeable control gear: | yes |
| Dimming phase cut-off (trailing edge): | no |
| Dimming phase cut-on (leading edge): | no |
| Dimming Touch and Dim: | no |
| Dimming Zigbee: | no |
| Light distributor: | Focal lens |
| Colour consistency (McAdam ellipse): | SDCM3 |
| Light outlet: | Direct |
| Max. number of luminaires per miniature circuit breaker B16 (MCB): | 20 |
| Max. number of luminaires per miniature circuit breaker C16 (MCB): | 32 |
| Degree of protection (NEMA): | 1 |
| Impact strength: | IK06 |
| Protection class according to IEC 61140: | I |
| Luminaire with limited surface temperature, sign "D“ according to EN 60598-2-24: | no |
| Rated ambient temperature according to IEC 62722-2-1: | +50°C |
| Suitable for emergency lighting: | yes |
| Emergency power supply integrated: | no |
| With movement sensor: | no |
| With light sensor: | no |
| Covering of the luminaire with thermally insulating material possible: | no |
| With air slots: | no |
| Power factor: | 0.90 |
| Constant light output (CLO): | no |
| Type of wiring: | Suitable for loop-through wiring |
| Number of poles: | 5 |
| Connection type: | Push-in clamp |
| Photobiological safety according to EN 62471: | RG0 |
| Unified Glare Ratio (UGR): | 19 |
| Colour of light adjustable: | No |
| Luminous flux adjustable: | Continuously variable |
| Beam angle adjustable: | No |
| Operation by Bluetooth: | no |
| Compatible with Casambi: | no |
| Compatible with Apple HomeKit: | no |
| Compatible with Google Assistant: | no |
| Compatible with Amazon Alexa: | no |
| IFTTT support available: | yes |
| Meets min. EIA lifetime criterion L90 (at 50,000 hours at tq = 25 °C): | no |
