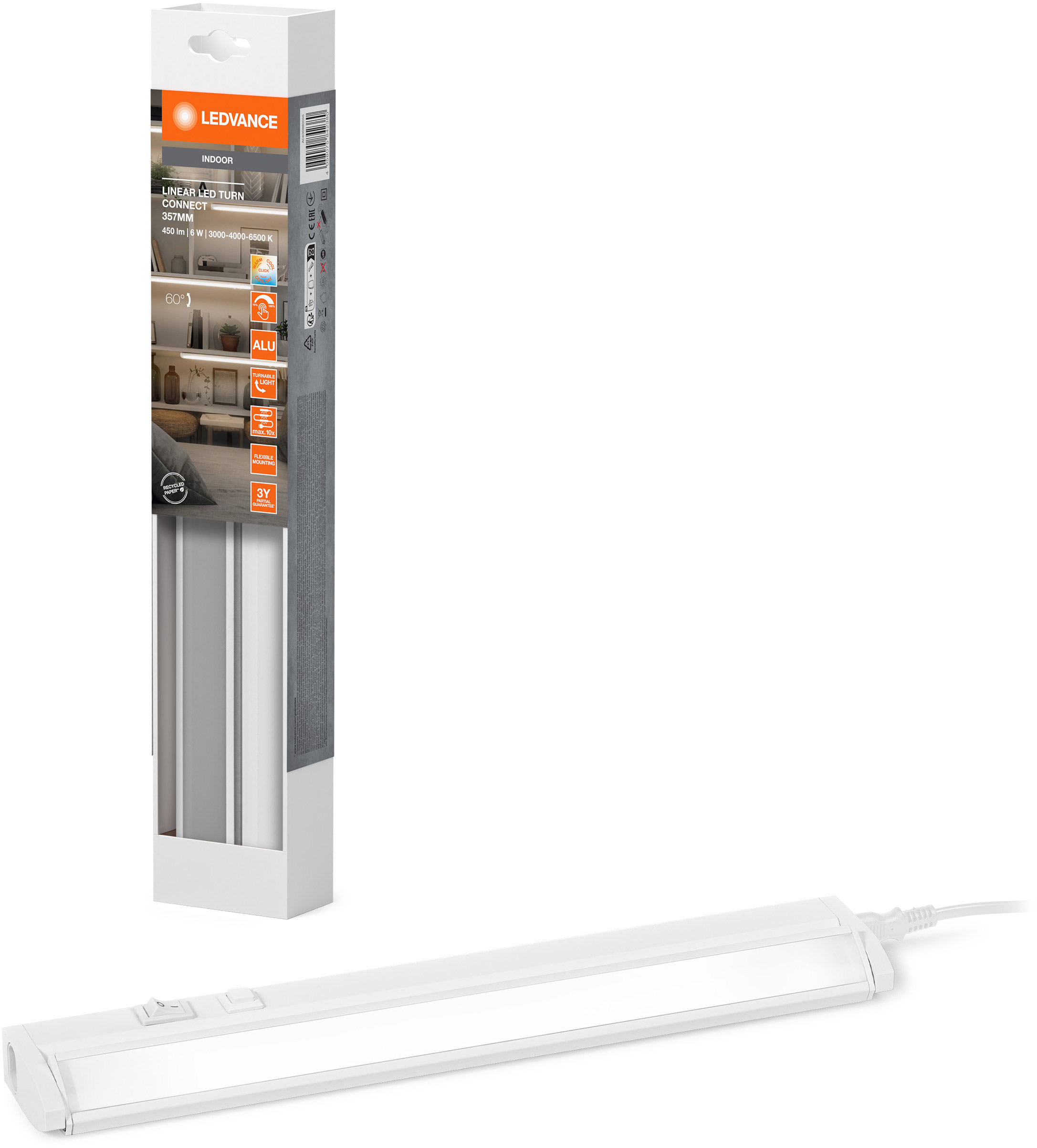

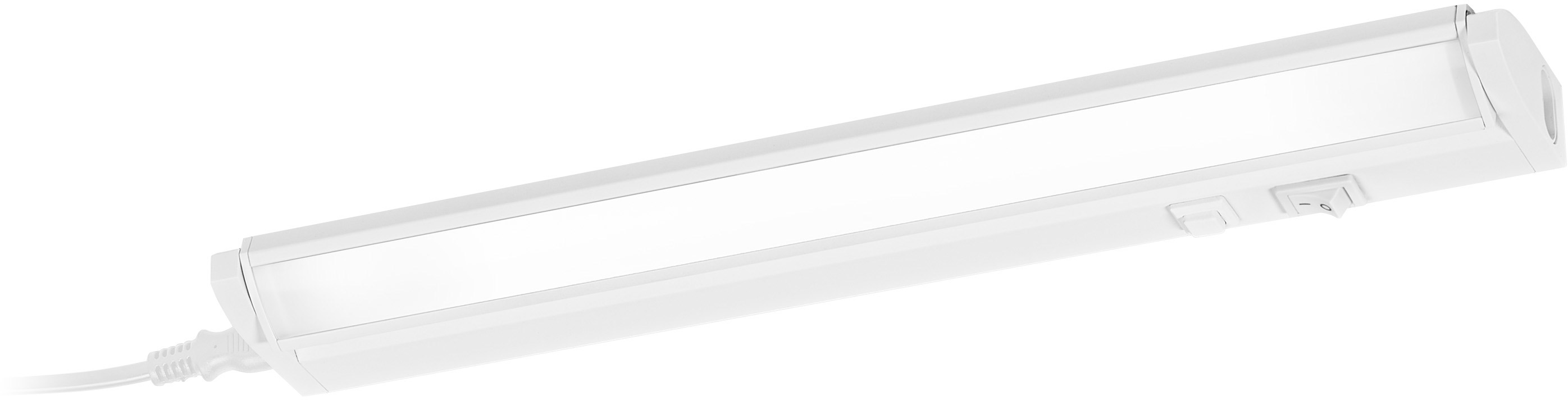

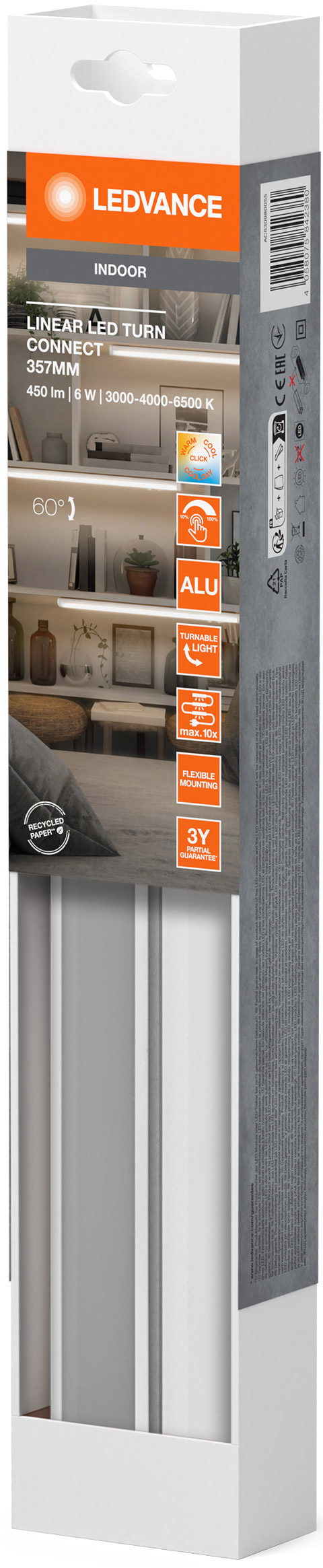

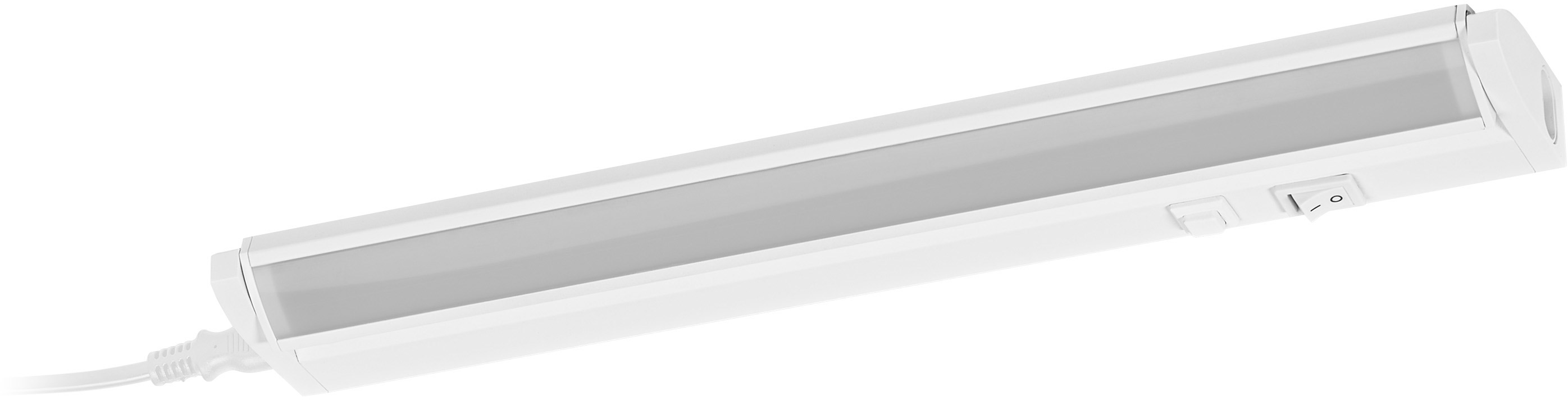

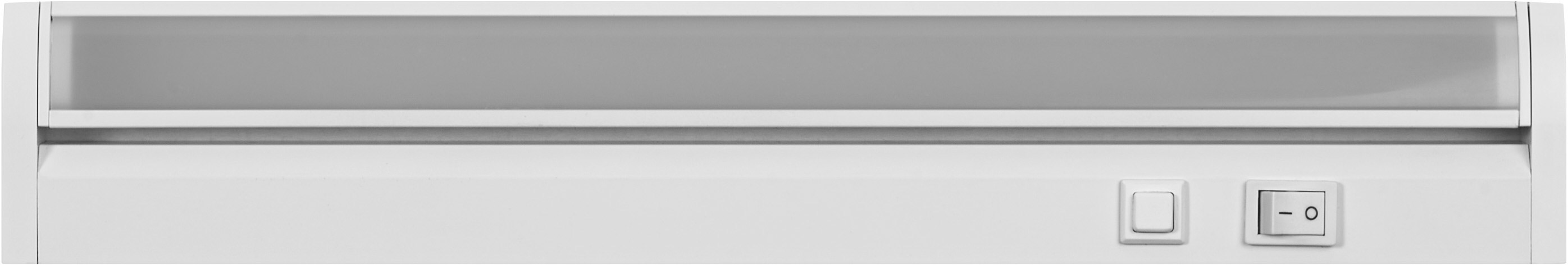

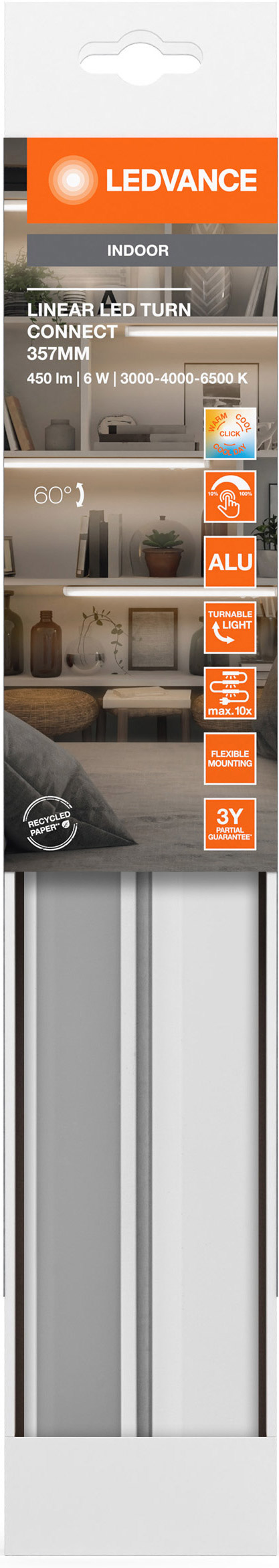

LEDVANCE Linear Turn Connect 35cm CCT DIM White
NEW
€32.03 *
incl. tax,
plus shipping costs
Availability:
Delivery time: approx. 2-3 weeks
Delivery time: approx. 2-3 weeks
Item number: 101422000
EAN: 4058075842380
MPN: 4058075842380
NEW
LEDVANCE Linear Turn Connect 35cm CCT DIM White product advantages Quick and easy alignment... more
All information about the product:
"LEDVANCE Linear Turn Connect 35cm CCT DIM White"
LEDVANCE Linear Turn Connect 35cm CCT DIM White
product advantages
Technical data:- Quick and easy alignment thanks to simple plug-in system
- Up to 10 light strips (35 cm version) and 5 lights (55 cm version) can be connected either using the included connector for seamless connection or using the included connection cable for longer distances.
- Extremely versatile thanks to selectable light color
- Homogeneous light distribution

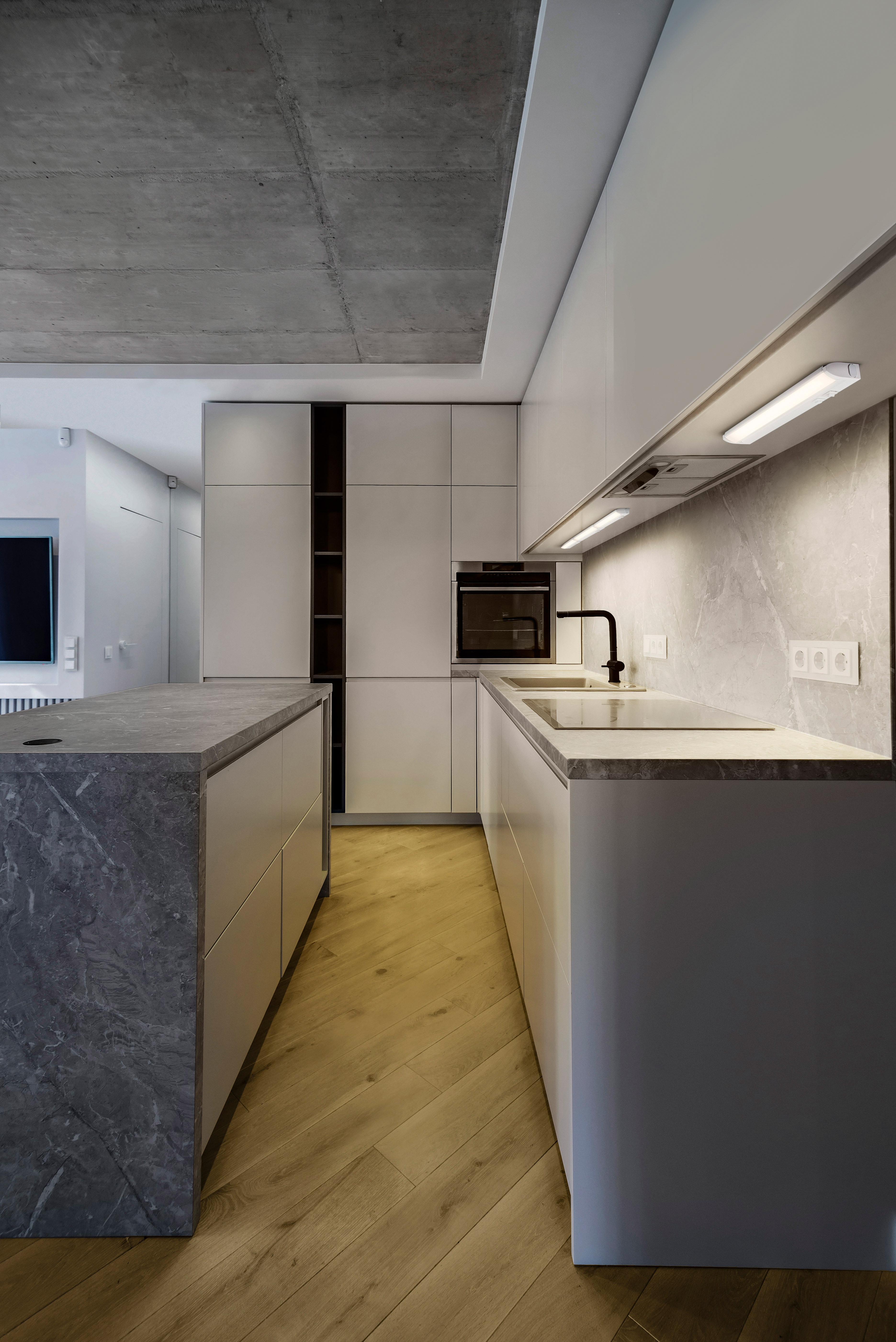

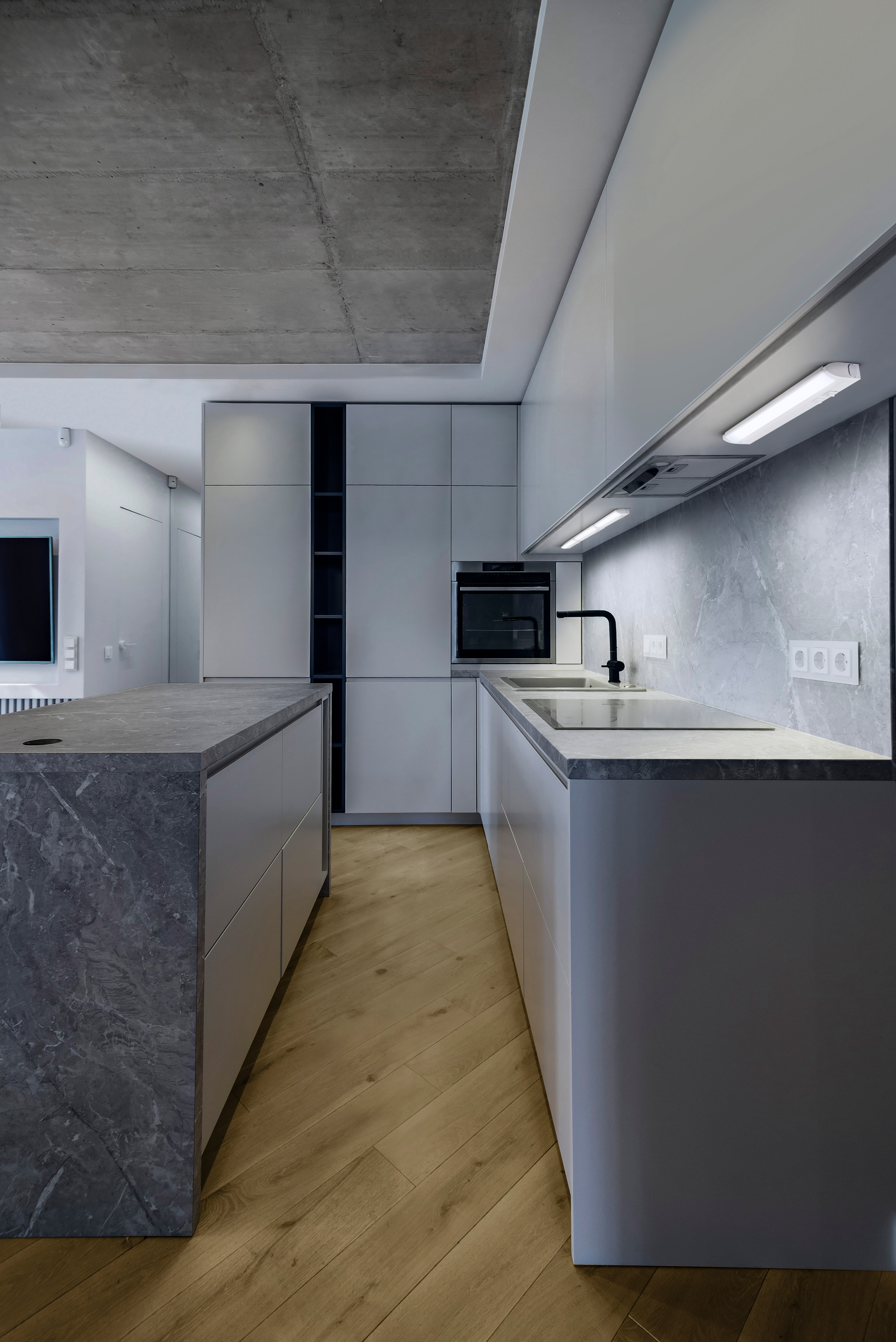

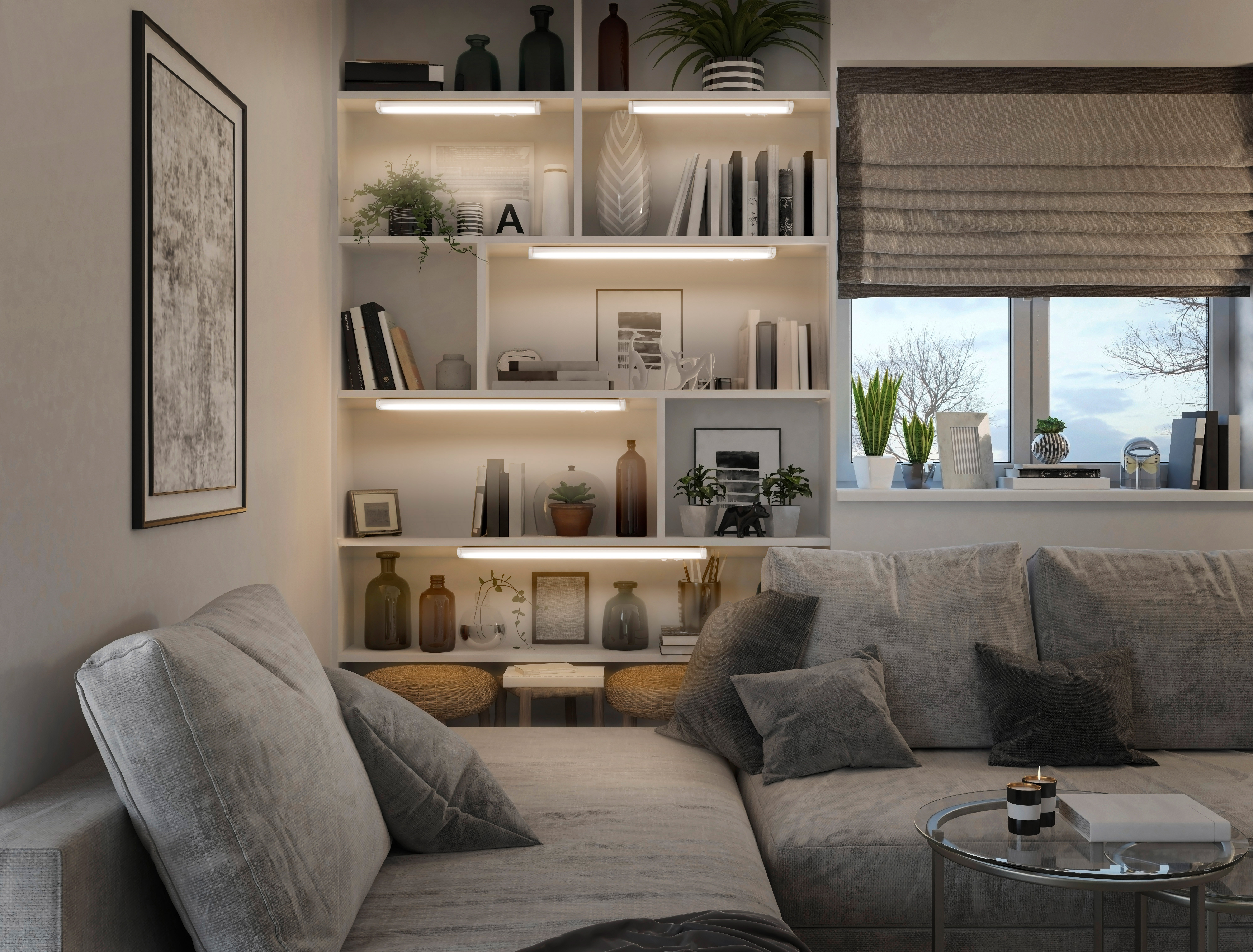

- Kitchens, living areas, shelf and under-cabinet lighting
- Tilt function (60°) for individual adjustment of the illuminated area
- Color temperature adjustable in three steps by pressing the button once
- Stepless dimming by pressing and holding the button (longer than 1 second)
- 2 different lengths available
- Service life up to 30,000 hours
- Material: aluminum (housing), polycarbonate (diffuser)
- Complete mounting and connection accessories included
- To reduce the risk of strangulation, the flexible supply cable connected to the luminaire must be mounted directly and securely to the wall if it is within arm's reach.
| Length: | 357 mm |
| Width: | 60 mm |
| Height: | 24 mm |
| Weight: | 365 g |
| Nominal voltage: | 220-240 V |
| Nominal power: | 6 W |
| Nominal current: | 49 mA |
| Energy consumption: | 6 kWh/1000 |
| Colour temperature: | 3000-4000 K |
| Beam angle: | 110° |
| Luminous flux: | 380 lm |
| Luminous efficacy: | 63 lm/W |
| Colour rendering: | 80-89 CRI |
| Dimmable: | Yes |
| Lifetime: | 30000 h |
| Switching cycles: | 15000 |
| Protection class: | IP20 |
| Light source type: | LED not exchangeable |
| Material: | Aluminium |
| Colour: | White |
| Incl. illuminant: | Yes |
| Lamp holder: | None |
| Voltage type: | AC |
| Type of control gear: | Electronic ballast |
| With control gear: | yes |
| Exchangeable control gear: | no |
| Dimming phase cut-off (trailing edge): | no |
| Dimming phase cut-on (leading edge): | no |
| Dimming Touch and Dim: | no |
| Dimming Zigbee: | no |
| Constant light output (CLO): | no |
| Protection class according to IEC 61140: | II |
| With lamp protection basket: | no |
| Luminaire with limited surface temperature, sign "D“ according to EN 60598-2-24: | no |
| Covering of the luminaire with thermally insulating material possible: | no |
| Suitable for emergency lighting: | no |
| Emergency power supply integrated: | no |
| With switch: | yes |
| With movement sensor: | no |
| Power factor: | 0.5 |
| Colour of light adjustable: | Positions |
| Luminous flux adjustable: | No |
| Beam angle adjustable: | No |
| Type of wiring: | Ending |
| Electrical connection with connector system: | yes |
| Operation by Bluetooth: | no |
| Compatible with Apple HomeKit: | no |
| Compatible with Google Assistant: | no |
| Compatible with Amazon Alexa: | no |
| Compatible with Casambi: | no |
| IFTTT support available: | yes |
