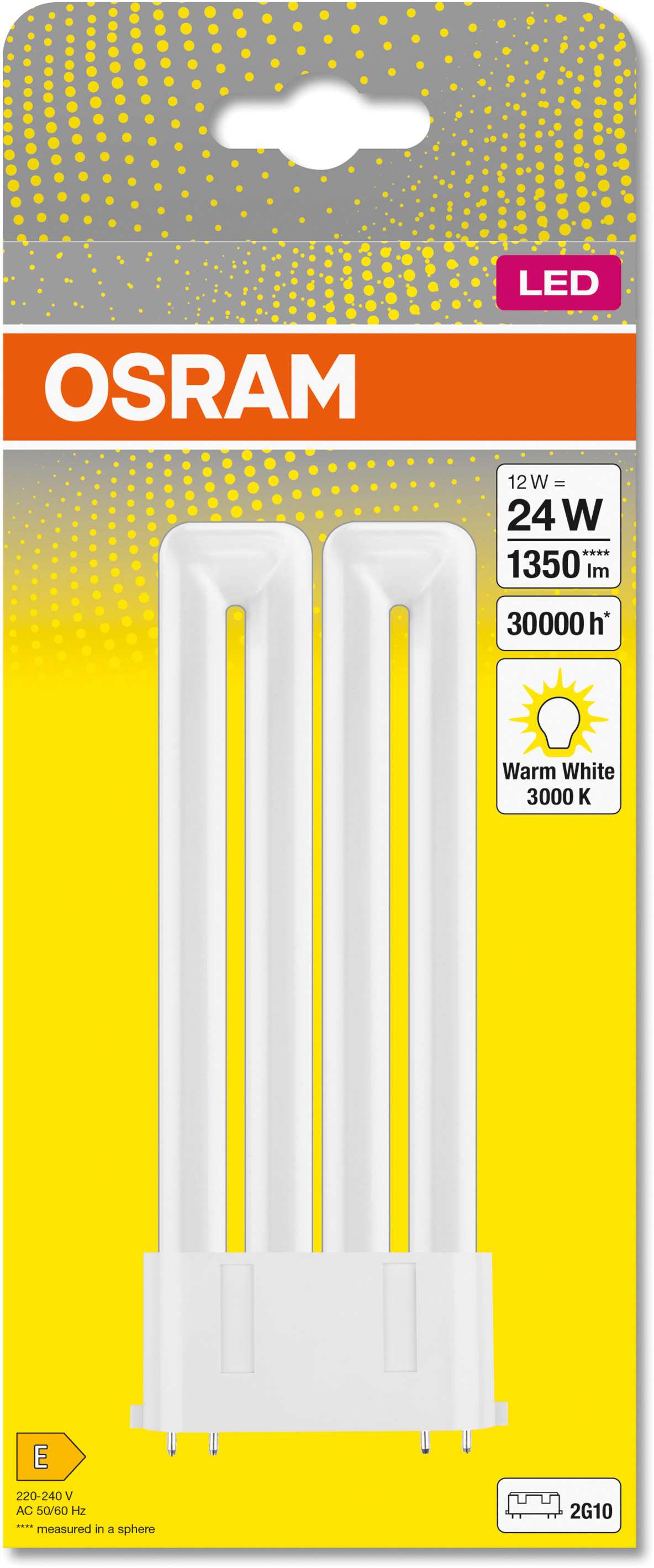

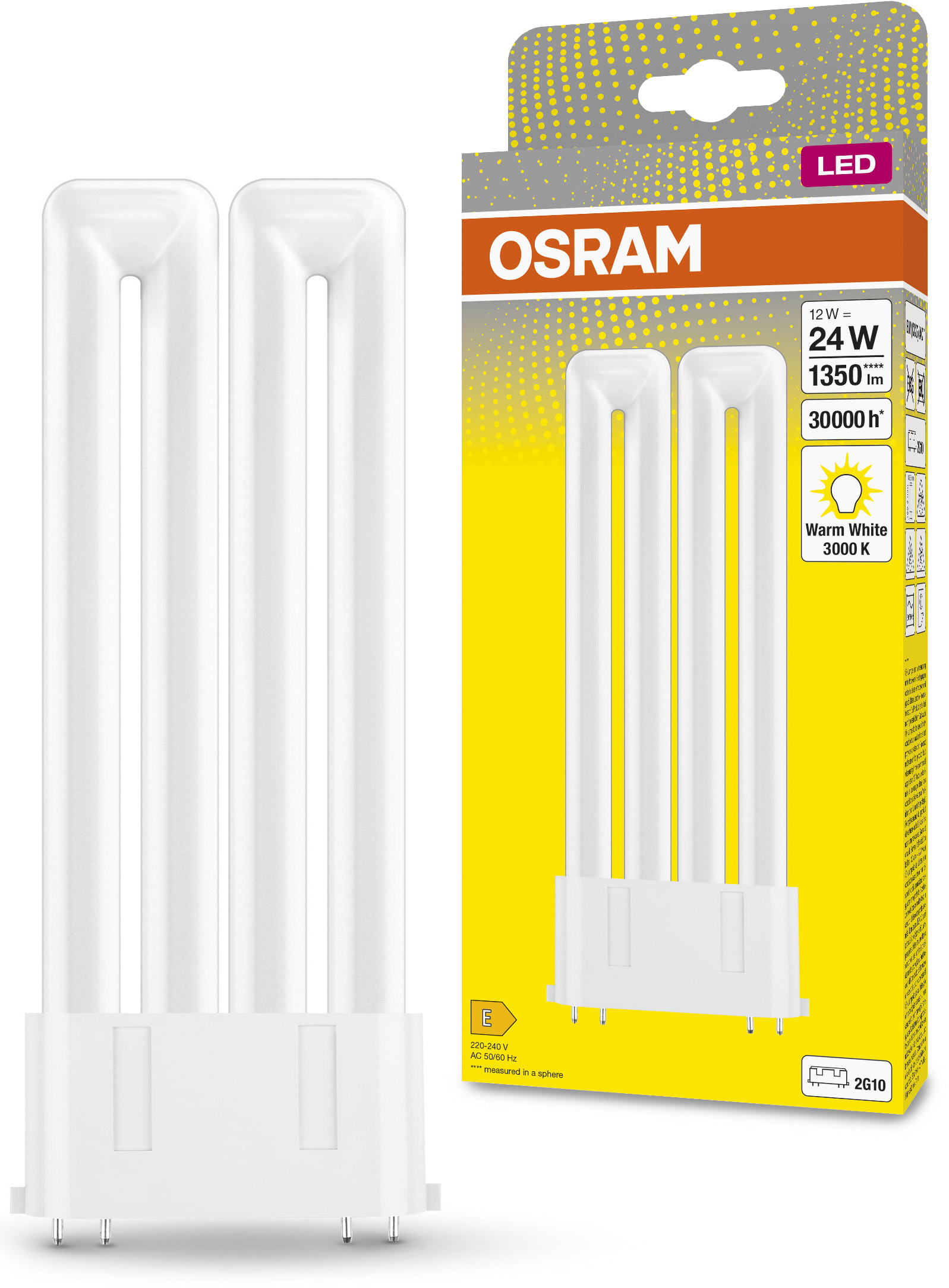

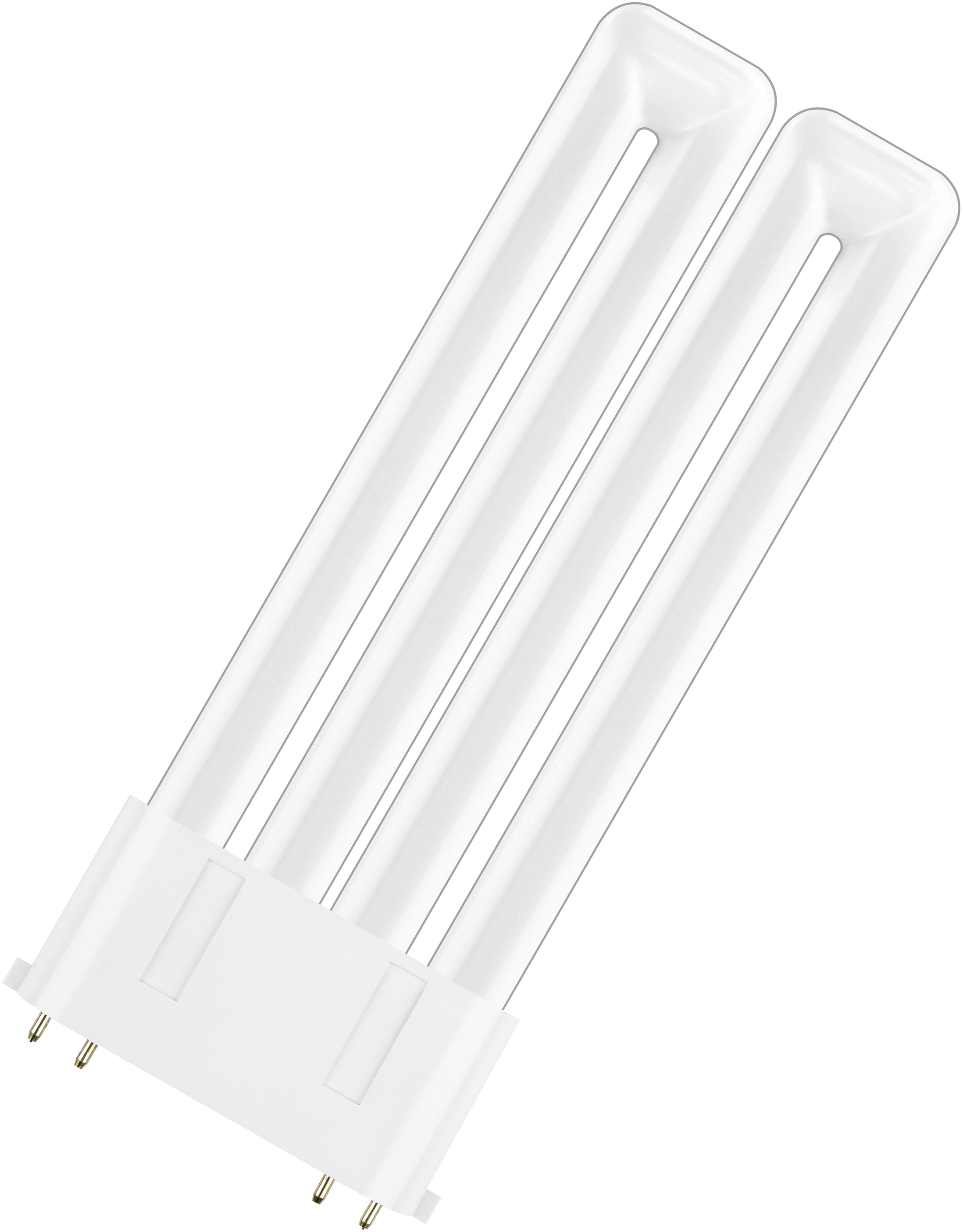

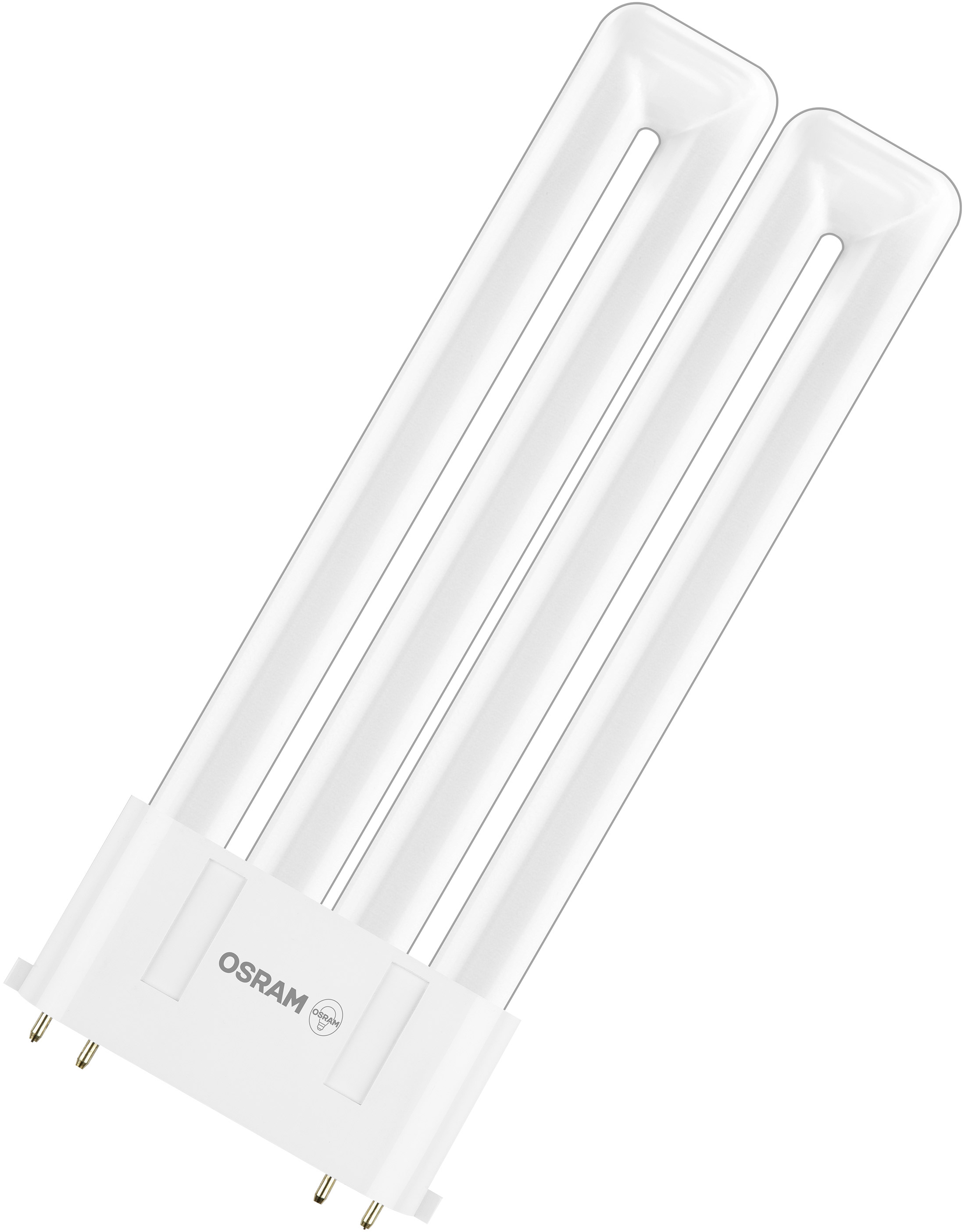

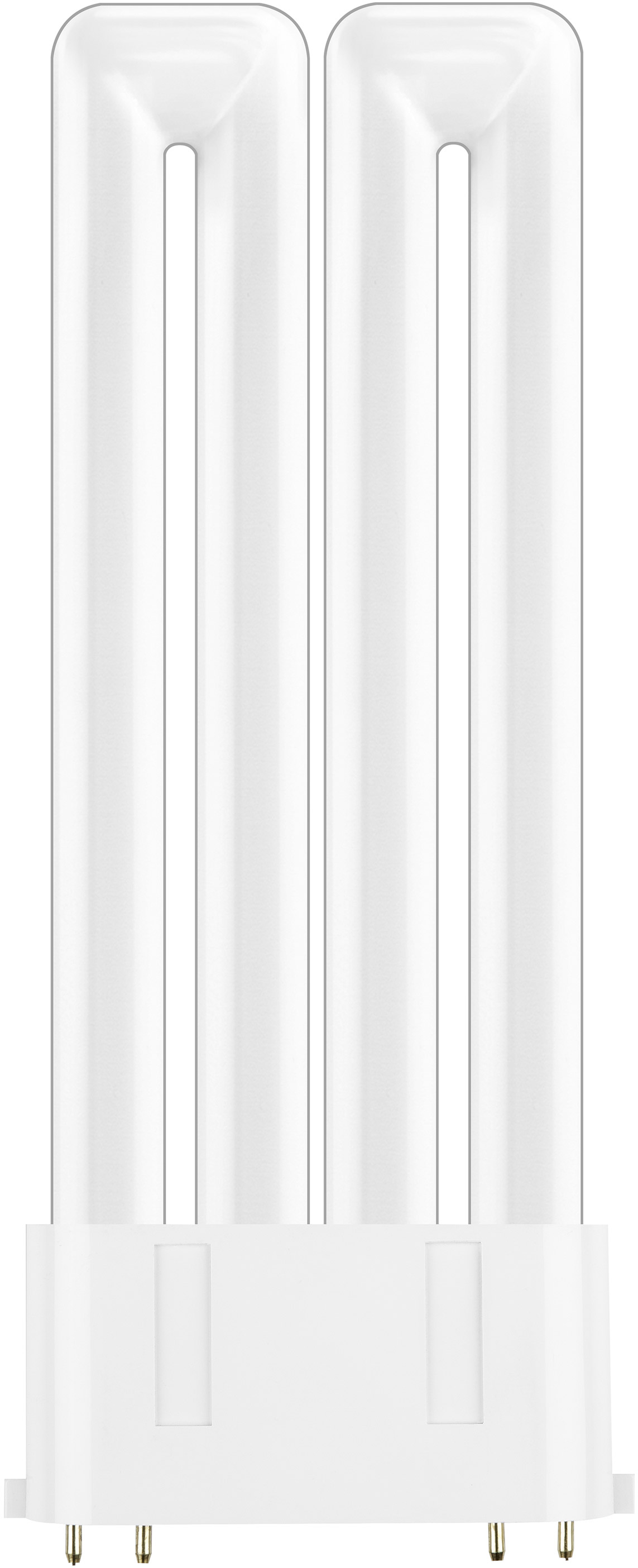

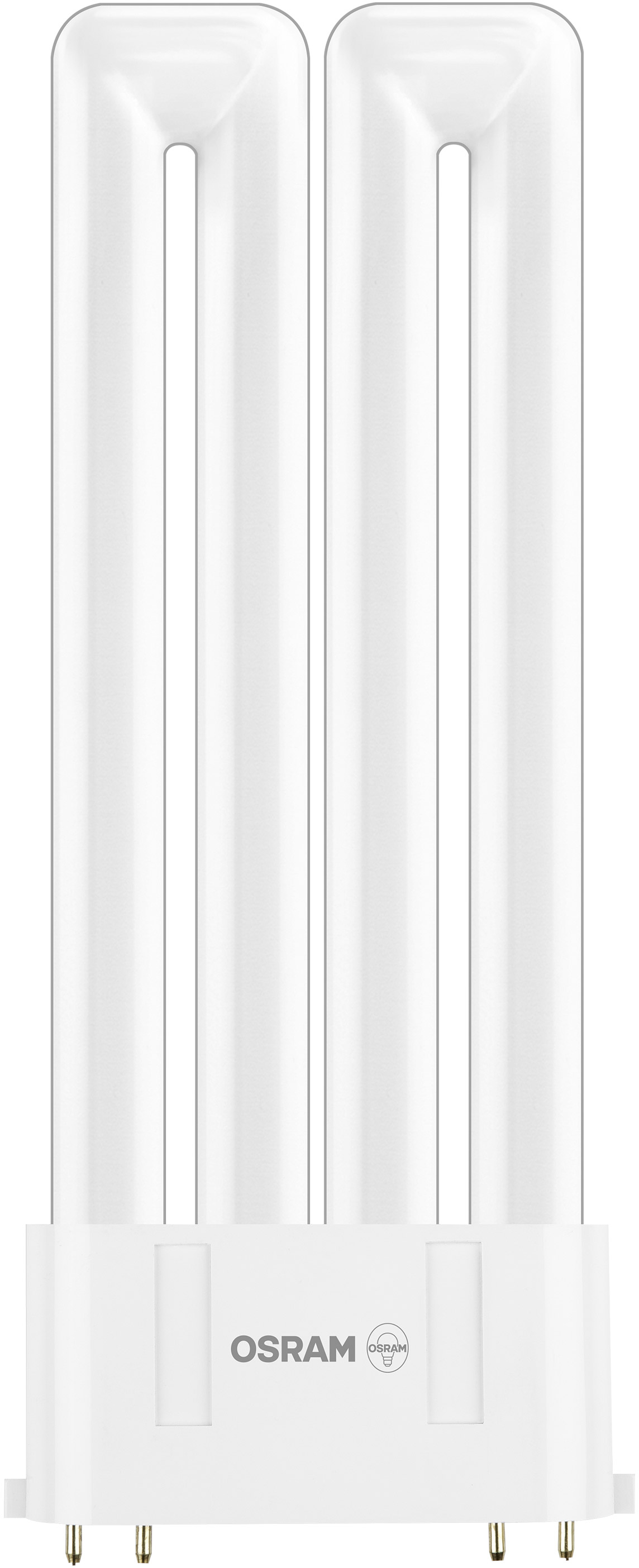

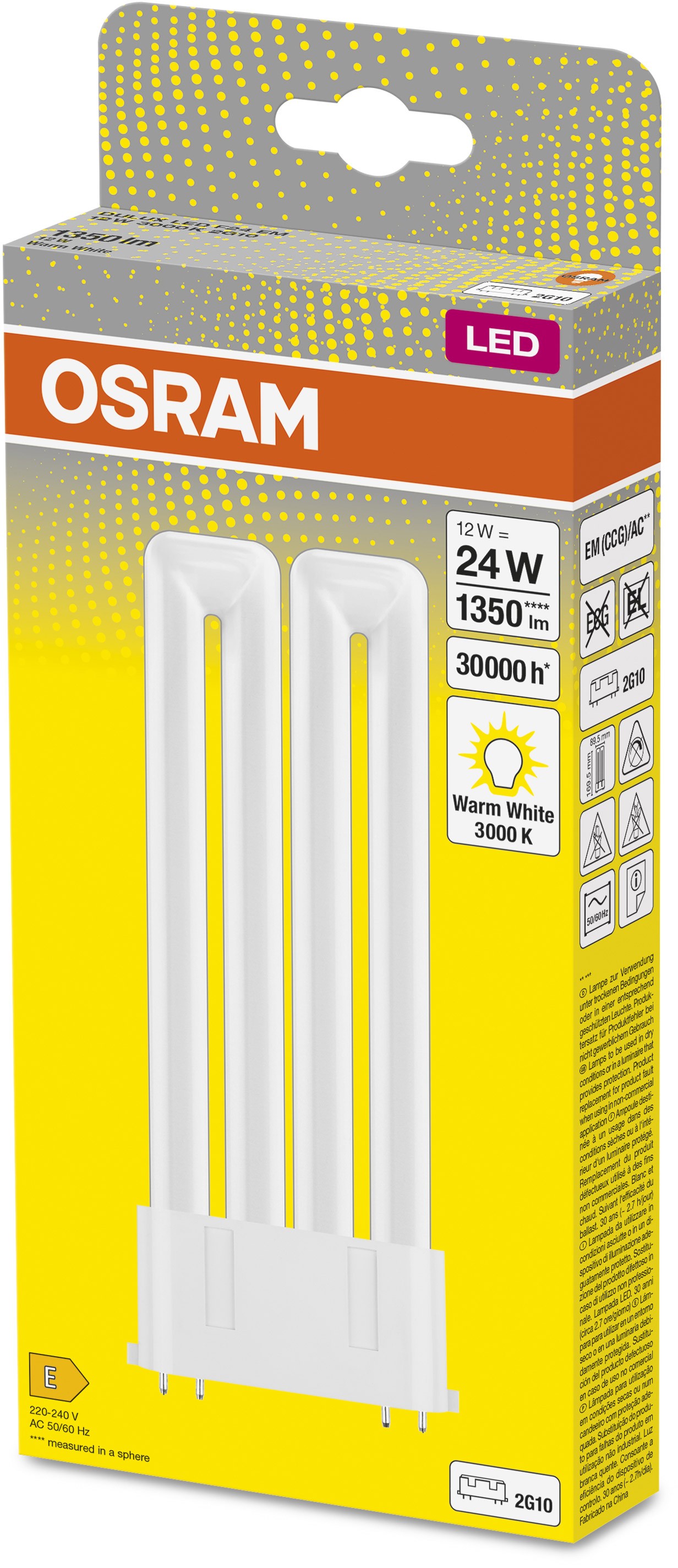

OSRAM DULUX LED F24 EM & AC MAINS 12W 830 2G10
NEW
€15.08 *
incl. tax,
plus shipping costs
Availability:
Delivery time: approx. 2-3 weeks
Delivery time: approx. 2-3 weeks
Item number: 100234215
EAN: 4058075822818
MPN: 4058075822818
NEW
OSRAM DULUX LED F24 EM & AC MAINS 12W 830 2G10 product advantages Easy installation Low... more
All information about the product:
"OSRAM DULUX LED F24 EM & AC MAINS 12W 830 2G10"
OSRAM DULUX LED F24 EM & AC MAINS 12W 830 2G10
product advantages
Technical data:- Easy installation
- Low energy consumption
- Easy lamp replacement thanks to compact design
- Can be operated directly from 230 V mains voltage
- Supermarkets and department stores
- Hallways and corridors
- Hotels, restaurants
- LED replacement for conventional compact fluorescent lamps in ballast luminaires or mains voltage
- Service life up to 30,000 hours
- Single-sided 4-pin plug socket 2G10
- Protection class: IP20
- Mercury-free lamps
- Not suitable for tandem operation.
- Not suitable for use with electronic ballasts.
- The operating temperature range of DULUX LED is limited. If you are unsure whether the product is suitable for your application, please measure the Tc temperature on the product before installation.
- All electrical connections must only be carried out by qualified personnel.
- Not suitable for emergency lighting.
- Do not touch the lamp if it is damaged.
- Do not operate with a defective outer piston.

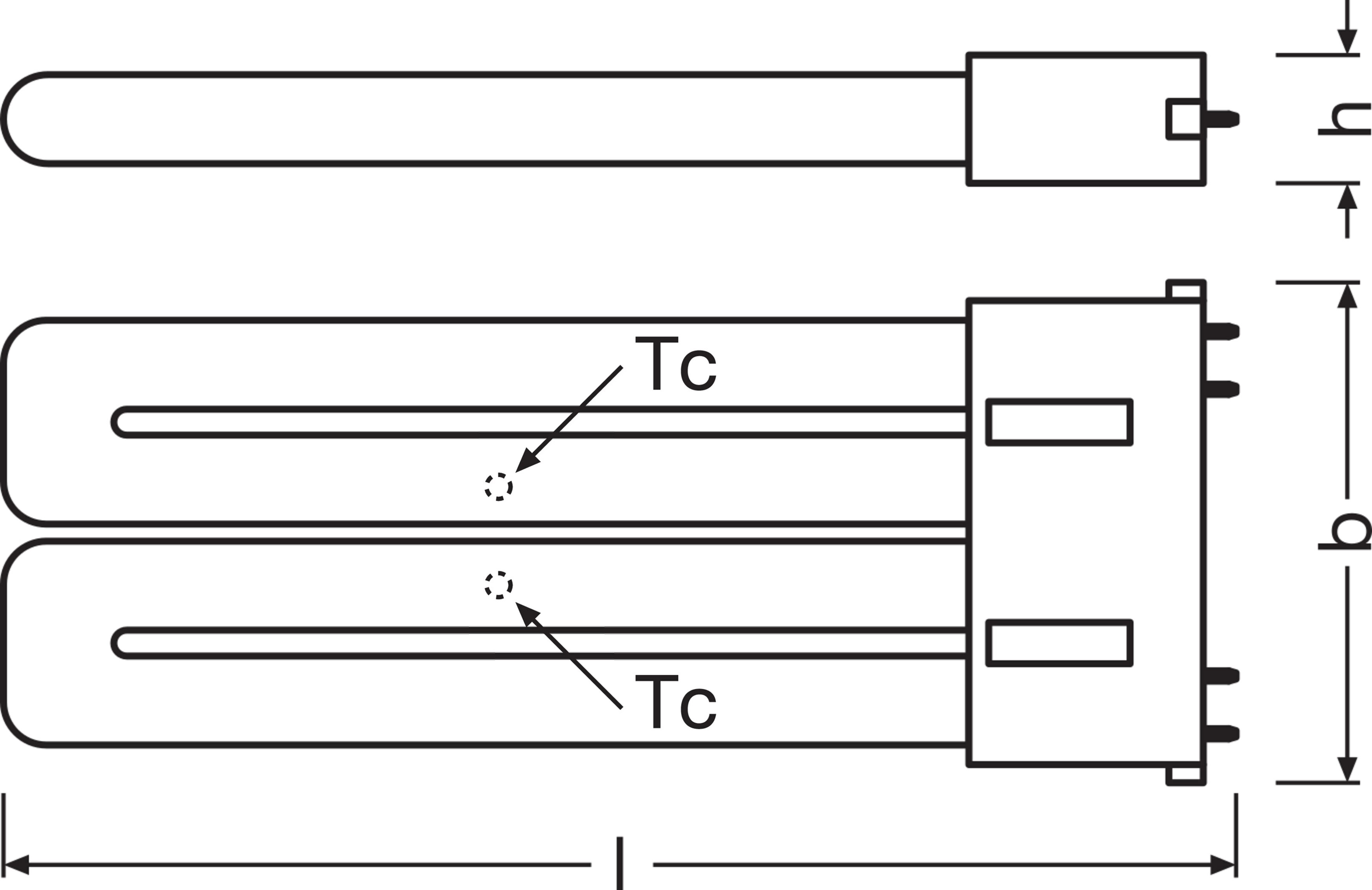

| Length: | 169,50 mm |
| Width: | 89,50 mm |
| Height: | 89,50 mm |
| Diameter: | 89,50 mm |
| Weight: | 107 g |
| Socket: | 2G10 |
| Nominal voltage: | 220-240 V |
| Nominal power: | 12 W |
| Nominal current: | 53 mA |
| Energy consumption: | 12 kWh/1000 |
| Colour temperature: | 3000 K |
| Light colour: | Warm white |
| Beam angle: | 130° |
| Luminous flux: | 1350 lm |
| Luminous efficacy: | 112 lm/W |
| Colour rendering: | 80-89 CRI |
| Dimmable: | No |
| Lifetime: | 30000 h |
| Switching cycles: | 200000 |
| Protection class: | IP20 |
| Energy efficiency class: | E |
| Colour: | White |
| Power factor: | 0.90 |
| Voltage type: | AC |
| Suitable for electronic ballast: | no |
| Suitable for magnetic ballast: | yes |
| Lamp shape: | Tube, single-ended |
| Filament lamp: | no |
| Type of glass/cover: | Frosted |
| Colour consistency (McAdam ellipse): | SDCM6 |
| Dimming phase cut-off (trailing edge): | no |
| Dimming phase cut-on (leading edge): | no |
| Dimming Touch and Dim: | no |
| Dimming Zigbee: | no |
| Dimming Bluetooth: | no |
| Dimming Wi-Fi: | no |
| Remote operation possible: | no |
| With movement sensor: | no |
| With remote control: | no |
| With twilight switch: | no |
| Photobiological safety according to EN 62471: | RG0 |
| Compatible with Apple HomeKit: | no |
| Compatible with Google Assistant: | no |
| Compatible with Amazon Alexa: | no |
| IFTTT support available: | yes |
