OSRAM DULUX LED S7 EM & AC MAINS 3.5W 840 G23

NEW

Preview: OSRAM DULUX LED S7 EM & AC NETZ 3,5 W 840 G23

OSRAM DULUX LED S7 EM & AC NETZ 3,5 W 840 G23

€6.18 *

incl. tax, plus shipping costs

Availability:

Delivery time: approx. 2-3 weeks

Delivery time: approx. 2-3 weeks

Item number: 100234210

EAN: 4058075823556

MPN: 4058075823556

Product data sheet (PDF)

NEW

OSRAM DULUX LED S7 EM & AC MAINS 3.5W 840 G23 product advantages Easy installation Low... more

Back to the overview

All information about the product:

"OSRAM DULUX LED S7 EM & AC MAINS 3.5W 840 G23"

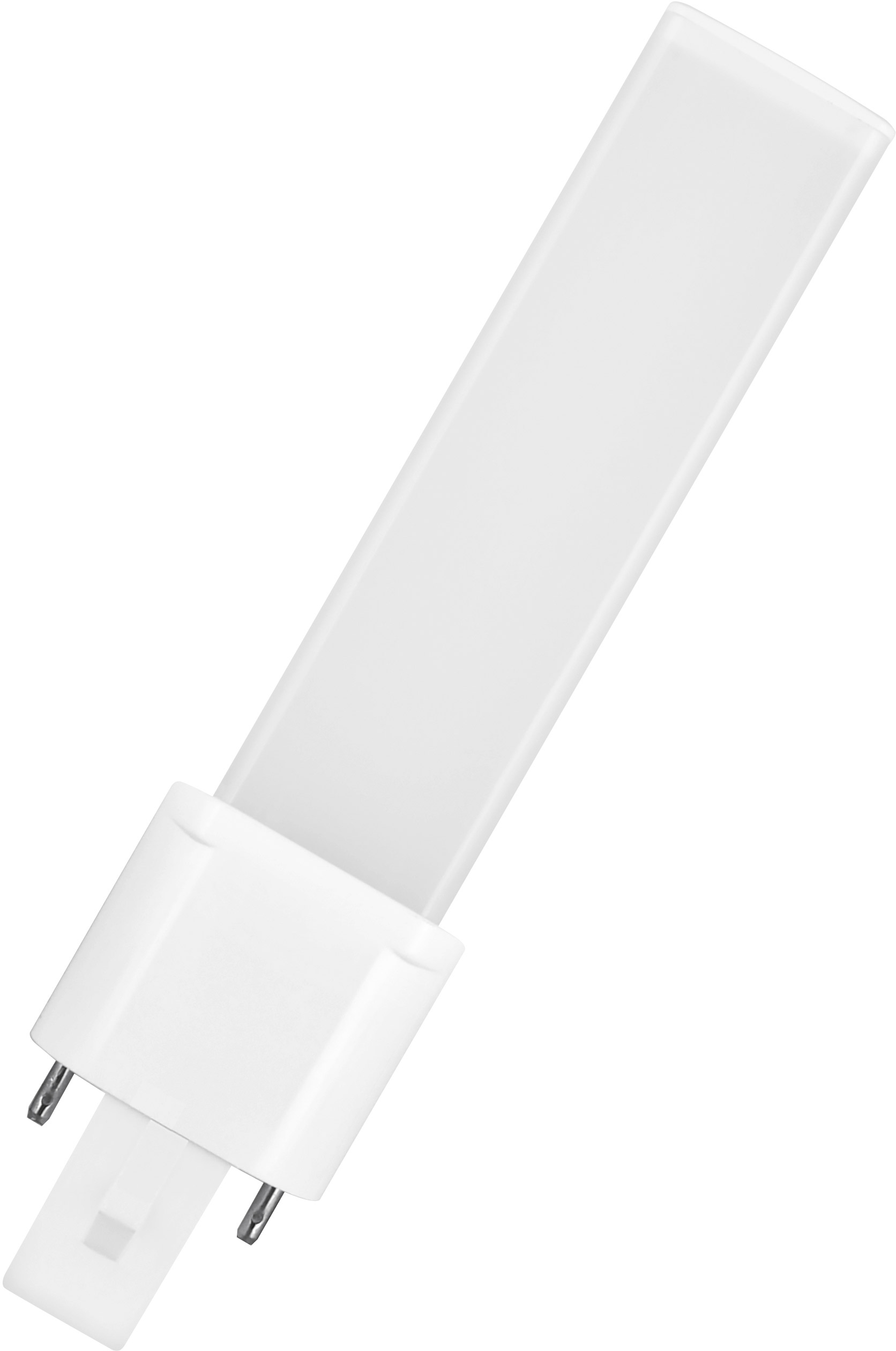

OSRAM DULUX LED S7 EM & AC MAINS 3.5W 840 G23

product advantages

Easy installation
Low energy consumption
Easy lamp replacement thanks to compact design
Can be operated directly from 230 V mains voltage

Areas of application

Supermarkets and department stores

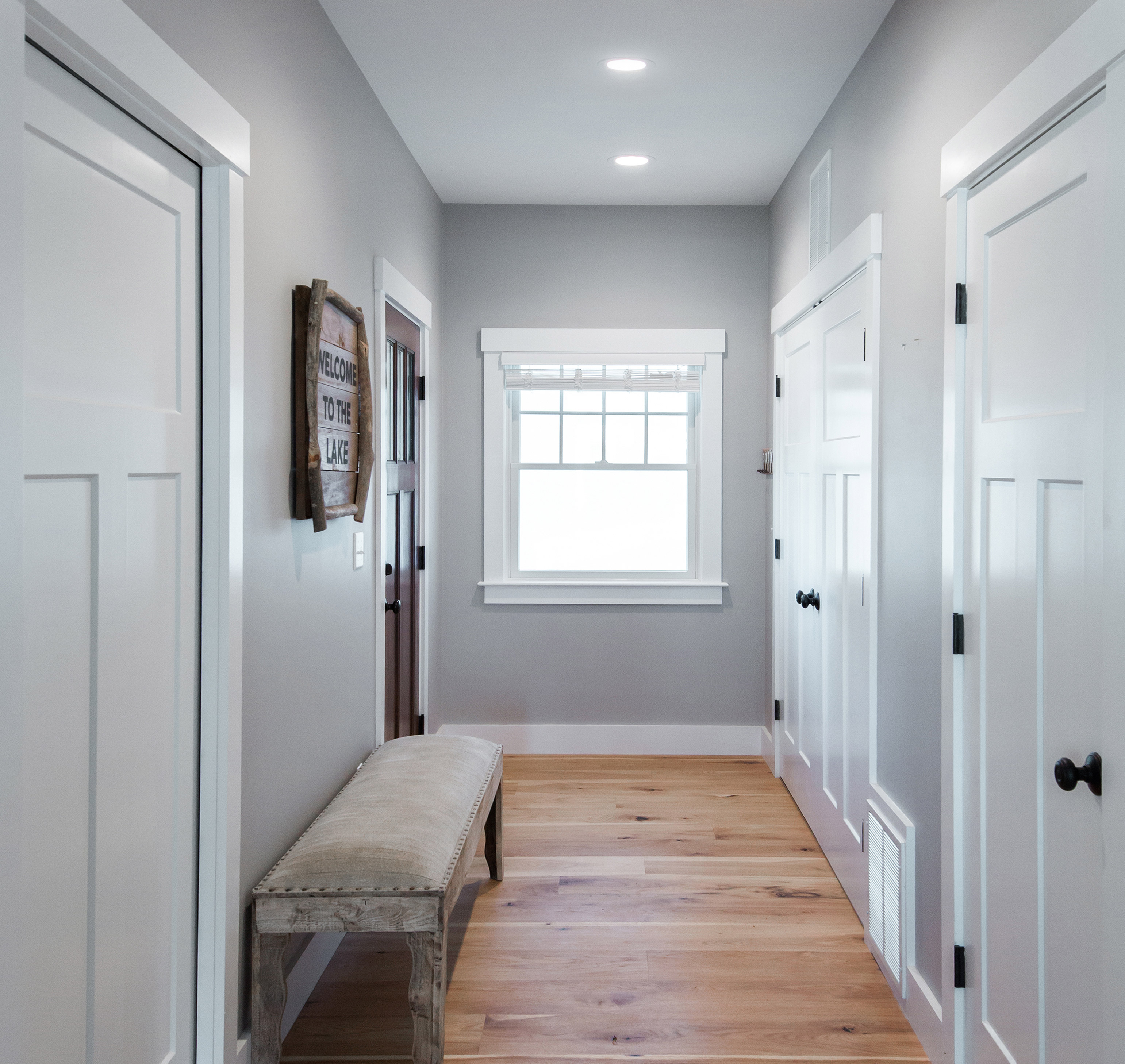

Hallways and corridors
Hotels, restaurants

product features

LED replacement for conventional compact fluorescent lamps in KVG luminaires or at mains voltage
Service life up to 30,000 hours
Single-sided 2-pin plug socket G23
Protection class: IP20
Mercury-free lamps

safety instructions

Suitable for tandem operation.
The operating temperature range of DULUX LED is limited. If you are unsure whether the product is suitable for your application, please measure the Tc temperature on the product before installation.
All electrical connections must only be carried out by qualified personnel.
Not suitable for emergency lighting.
Do not touch the lamp if it is damaged.
Do not operate with a defective outer piston.

Technical data:

Length:	135 mm
Width:	32,30 mm
Height:	32,30 mm
Diameter:	32,30 mm
Weight:	36 g
Socket:	G23
Nominal voltage:	220-240 V
Nominal power:	3,50 W
Nominal current:	16 mA
Energy consumption:	4 kWh/1000
Colour temperature:	4000 K
Light colour:	Neutral white
Beam angle:	120°
Luminous flux:	400 lm
Luminous efficacy:	114 lm/W
Colour rendering:	80-89 CRI
Dimmable:	No
Lifetime:	30000 h
Switching cycles:	200000
Protection class:	IP20
Energy efficiency class:	E
Colour:	White
Power factor:	0.90
Voltage type:	AC
Suitable for electronic ballast:	no
Suitable for magnetic ballast:	yes
Lamp shape:	Tube, single-ended
Filament lamp:	no
Type of glass/cover:	Frosted
Colour consistency (McAdam ellipse):	SDCM6
Dimming phase cut-off (trailing edge):	no
Dimming phase cut-on (leading edge):	no
Dimming Touch and Dim:	no
Dimming Zigbee:	no
Dimming Bluetooth:	no
Dimming Wi-Fi:	no
Remote operation possible:	no
With movement sensor:	no
With remote control:	no
With twilight switch:	no
Photobiological safety according to EN 62471:	RG0
Compatible with Apple HomeKit:	no
Compatible with Google Assistant:	no
Compatible with Amazon Alexa:	no
IFTTT support available:	yes
