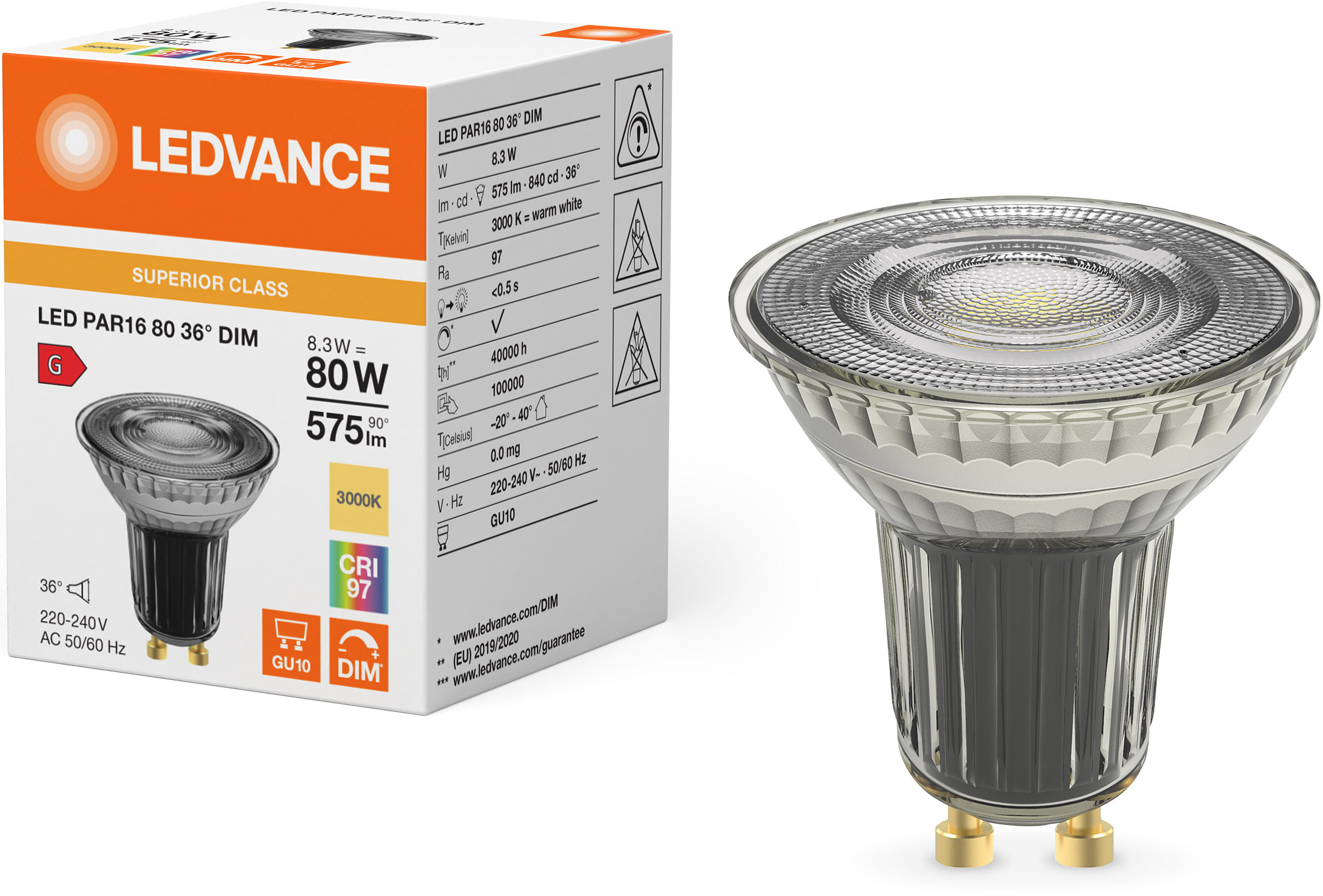

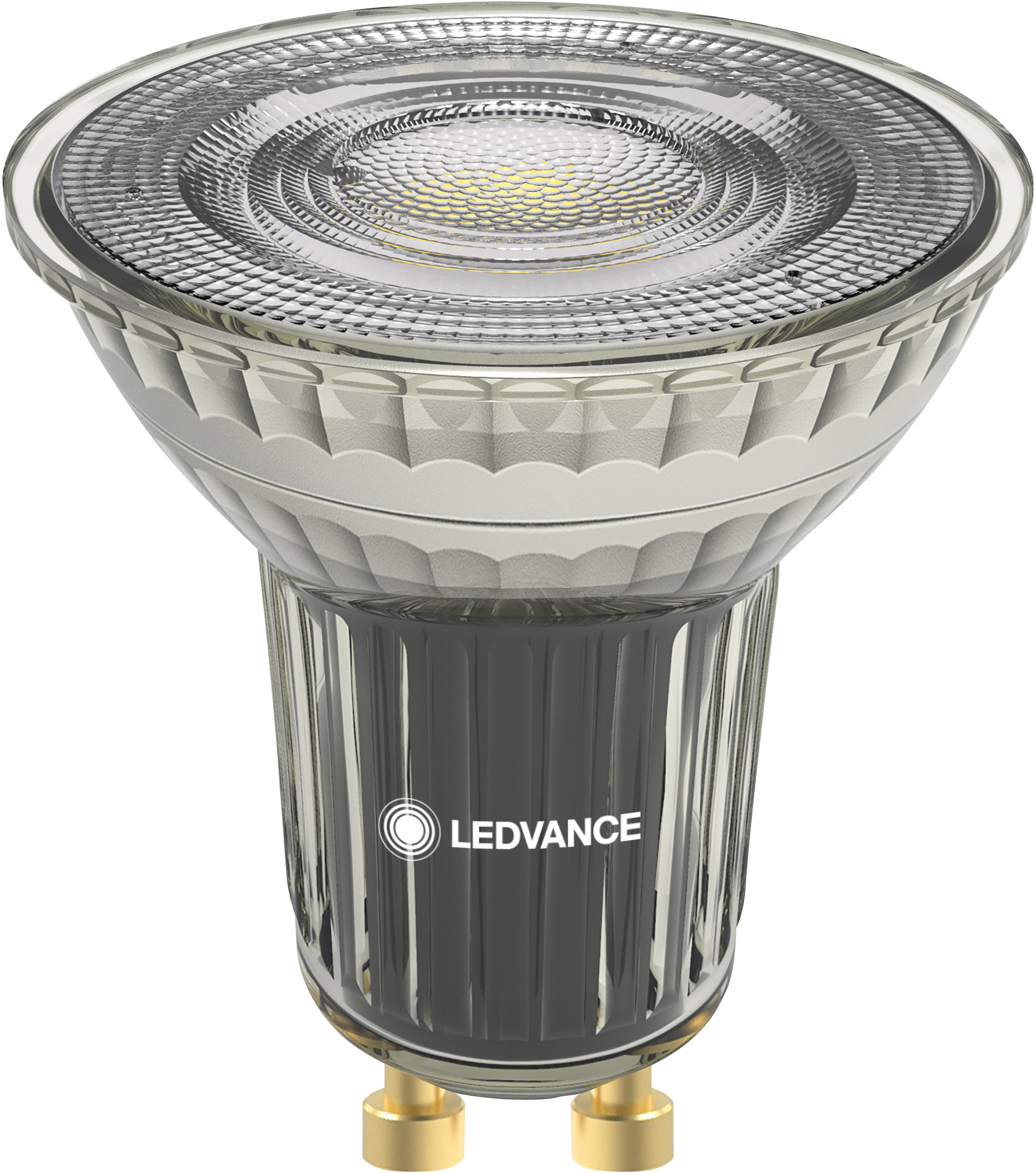

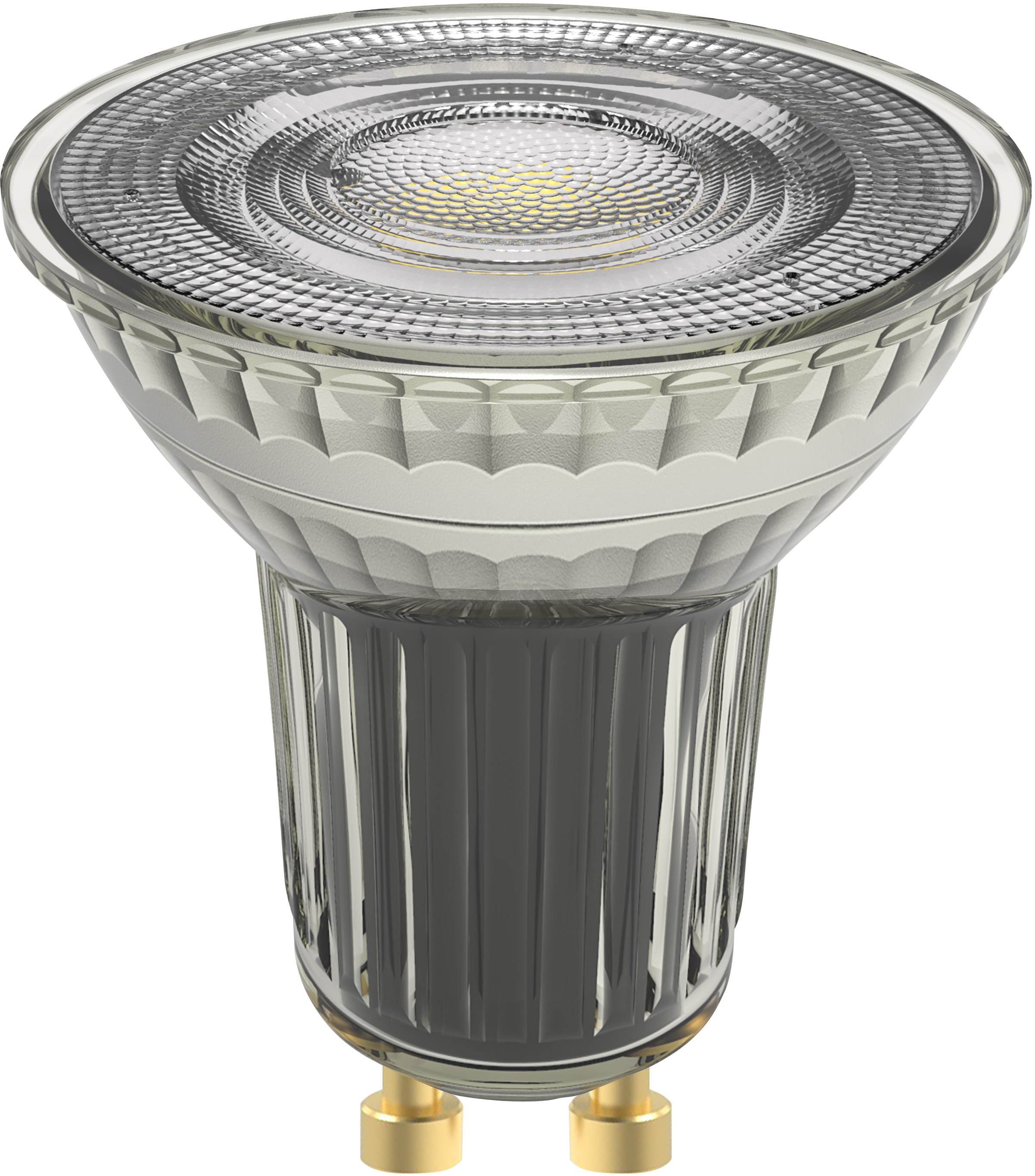

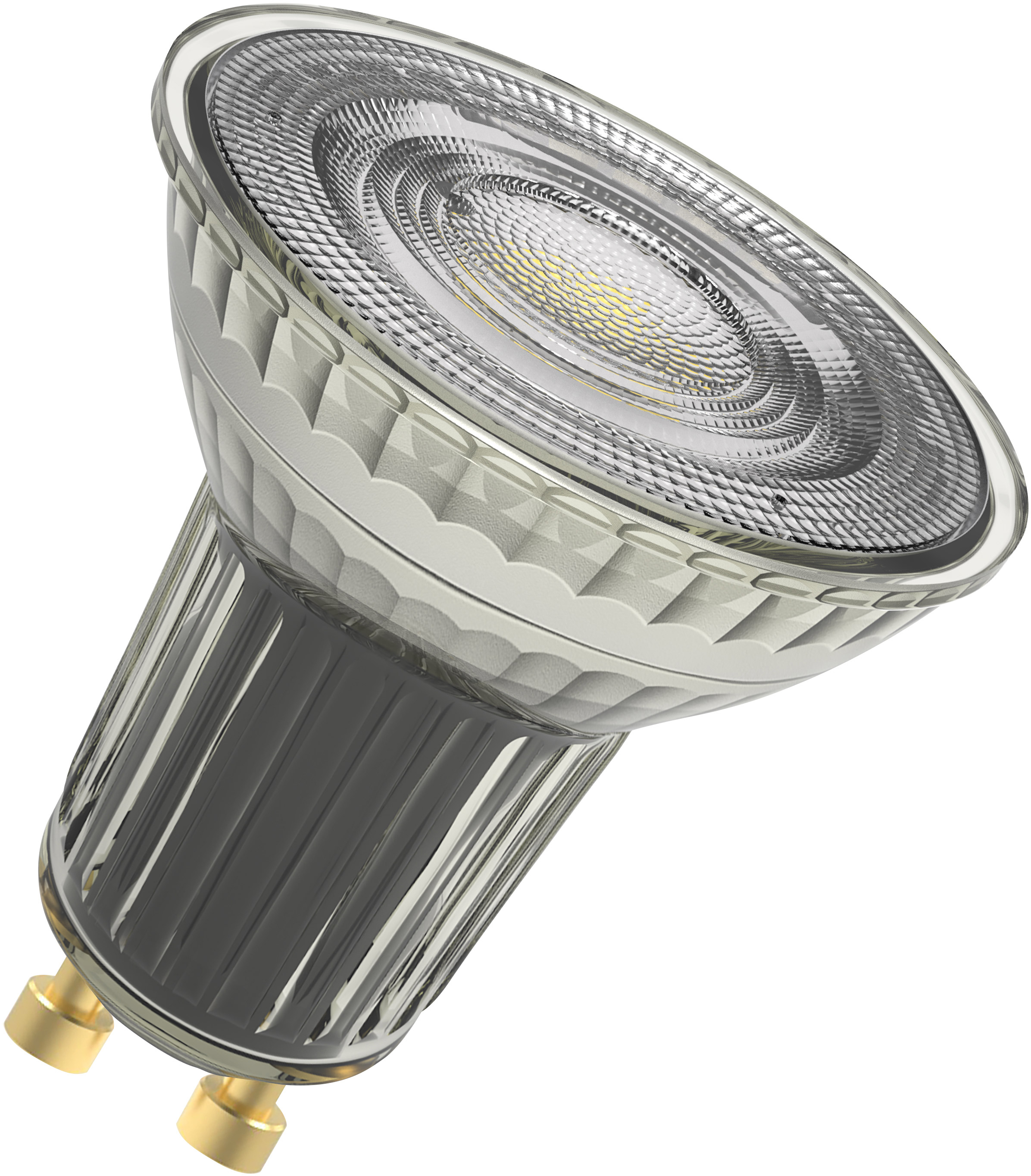

LEDVANCE LED PAR16 80 36° DIM S 8.3W 930 GU10
This article has been discontinued!
You can find out about possible alternatives or successor models by calling our hotline:
Item number: 101420045
EAN: 4099854235221
MPN: 4099854235221
LEDVANCE LED PAR16 80 36° DIM S 8.3W 930 GU10 product advantages Simpler, faster, and safer... more
All information about the product:
"LEDVANCE LED PAR16 80 36° DIM S 8.3W 930 GU10"
LEDVANCE LED PAR16 80 36° DIM S 8.3W 930 GU10
product advantages
Technical data:- Simpler, faster, and safer lamp replacement without rewiring
- Design, dimensions, and luminous flux comparable to an incandescent or halogen lamp
- Low maintenance thanks to long service life
- No UV or IR components in the light beam
- Stepless dimming
- Very high dimmer compatibility, see also www.ledvance.de/dim
- Immediate 100% light, no warm-up time
- Lower energy consumption than incandescent or halogen lamps
- Sales and exhibition rooms
- Applications in the home
- Commercial use
- accent lighting
- Outdoor use only in suitable outdoor luminaires
- LED alternative to high-voltage halogen lamps
- High color consistency: = 3 SDCM
- Dimmable
- Base: GU10
- glass lamp
- Excellent color rendering (Ra: 97)
- Service life up to 40,000 hours
- Do not touch the lamp if it is damaged.
- Operation with a defective outer piston is not permitted.
- For dimming conformity, see www.ledvance.de/dim
- For warranty information, please visit www.ledvance.de/garantie.
| Length: | 52 mm |
| Width: | 50 mm |
| Height: | 50 mm |
| Diameter: | 50 mm |
| Weight: | 57 g |
| Socket: | GU10 |
| Nominal voltage: | 220-240 V |
| Nominal power: | 8,30 W |
| Nominal current: | 49 mA |
| Energy consumption: | 9 kWh/1000 |
| Colour temperature: | 3000 K |
| Light colour: | Warm white |
| Beam angle: | 36° |
| Luminous flux: | 575 lm |
| Light intensity: | 840 cd |
| Luminous efficacy: | 69 lm/W |
| Colour rendering: | 90-100 CRI |
| Dimmable: | Yes |
| Lifetime: | 40000 h |
| Switching cycles: | 100000 |
| Protection class: | IP20 |
| Energy efficiency class: | G |
| Power factor: | 0.70 |
| Voltage type: | AC |
| Suitable for electronic ballast: | no |
| Suitable for magnetic ballast: | no |
| Lamp shape: | Reflector |
| Filament lamp: | no |
| Type of glass/cover: | Clear |
| Colour consistency (McAdam ellipse): | SDCM3 |
| Dimming phase cut-off (trailing edge): | yes |
| Dimming phase cut-on (leading edge): | yes |
| Dimming Touch and Dim: | no |
| Dimming Zigbee: | no |
| Dimming Bluetooth: | no |
| Dimming Wi-Fi: | no |
| Lamp designation: | PAR16 |
| Total harmonic distortion: | 150 |
| Remote operation possible: | no |
| With movement sensor: | no |
| With remote control: | no |
| With twilight switch: | no |
| Photobiological safety according to EN 62471: | RG1 |
| Compatible with Apple HomeKit: | no |
| Compatible with Google Assistant: | no |
| Compatible with Amazon Alexa: | no |
| IFTTT support available: | yes |
