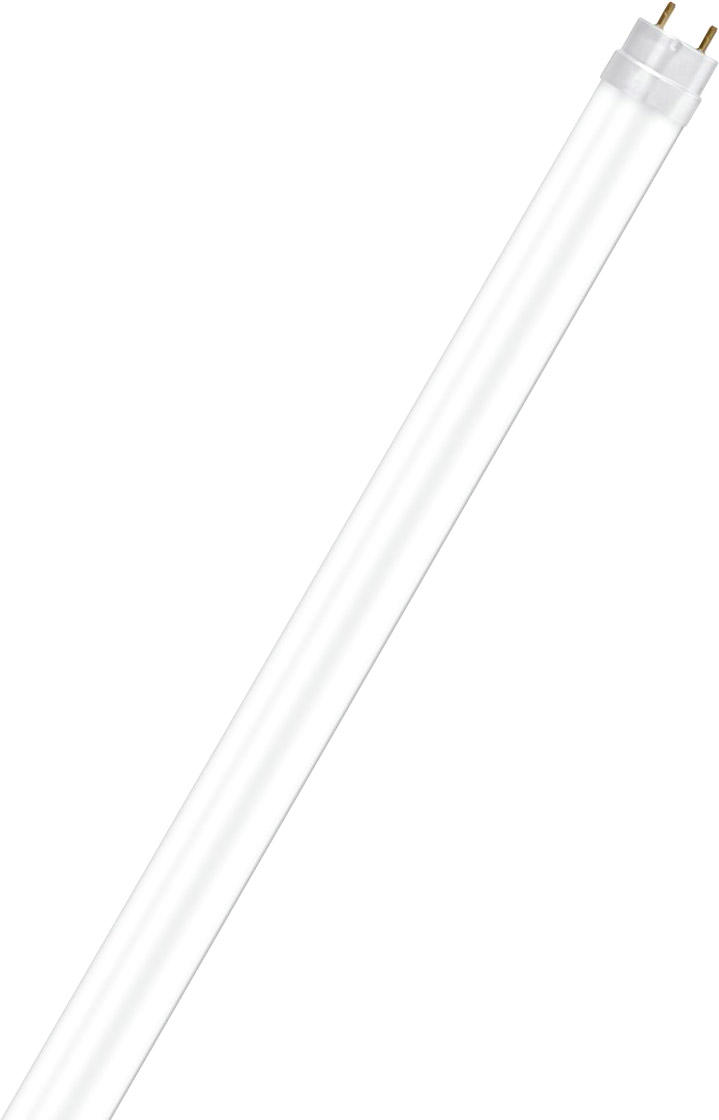

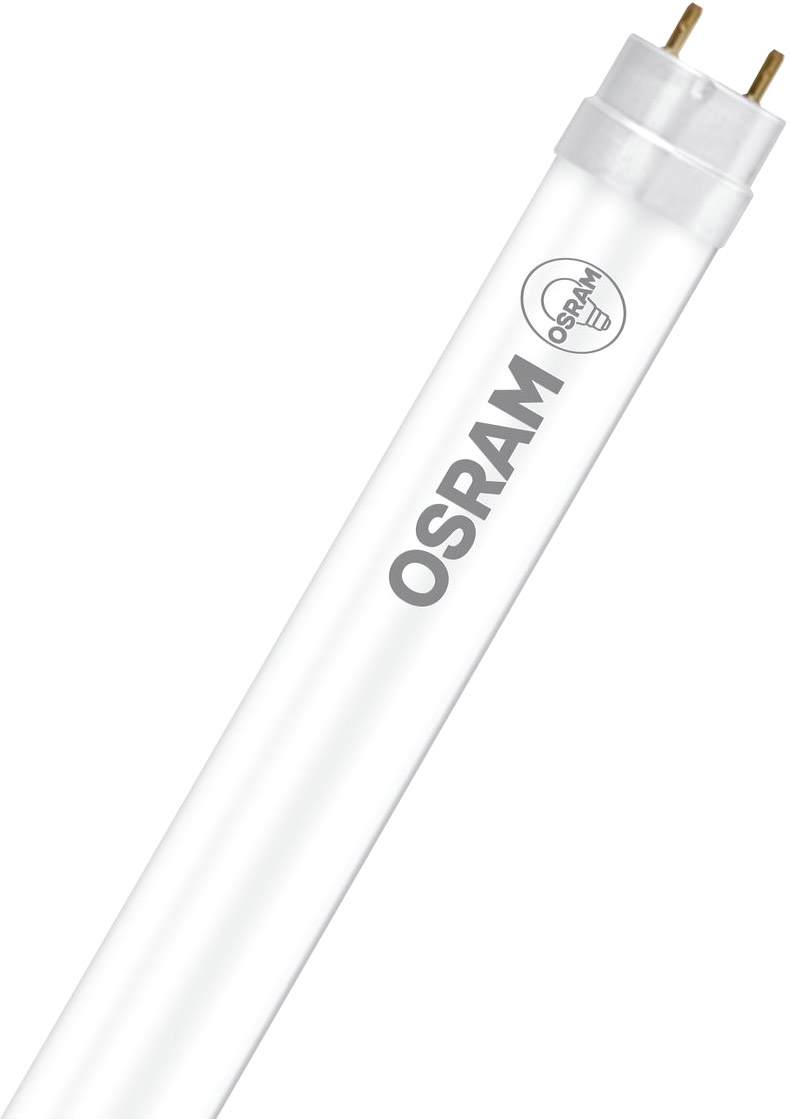

OSRAM SubstiTUBE® PRO Ultra Output EM 23.4 W/6500 K 1500 mm

€19.47 *

incl. tax, plus shipping costs

Availability:

Low stock; Delivery time: 1-3 days

Delivery time: 1-3 days

Item number: 101003955

EAN: 4058075612136

MPN: 4058075612136

High performance LED tubes for electromagnetic control gears (CCG), shatterproof. Product... more

All information about the product:

"OSRAM SubstiTUBE® PRO Ultra Output EM 23.4 W/6500 K 1500 mm"

High performance LED tubes for electromagnetic control gears (CCG), shatterproof. Product features:

LED replacement for classic T8 fluorescent lamps with G13 socket for use in CCG luminaires or on AC mains
Low flicker according to EU 2019-2020 (SVM =0,4 / PstLM = 1)
Lamp tube made of glass with splinter protection e.g
for food industry applications
VDE certified according to IEC62776
For especially uniform illumination
Lifetime: up to 75,000 h
Type of protection: IP20
Mercury-free and RoHS compliant

Product benefits:

No bending thanks to glass tube
Shatter protection thanks to special PET coating
Support the implementation of the HACCP concepts from production through to presentation
Very high resistance to switching loads
High luminous flux for sophisticated lighting tasks
Quick, simple and safe replacement without rewiring
Energy savings of up to 60 % (compared to T8 fluorescent lamp on CCG)
Instant-on light, therefore ideally suitable in combination with sensor technology
Also suitable for operation at low temperatures

Areas of application:

General illumination within ambient temperatures from -20…+50 °C
Illumination of production areas
Traffic zones and corridors
Supermarkets and department stores
Industry
Equipment / Accessories: Suitable for operation with low-loss and conventional control gears

Technical data:

Length:	1513 mm
Width:	26,70 mm
Diameter:	26,70 mm
Net weight:	267 g
Socket:	G13
Nominal voltage:	240 V
Nominal current:	110 mA
Rated power:	23,40 W
Energy consumption:	24 kWh/1000
Colour temperature:	6500 K
Light colour:	Cool Daylight
Beam angle:	190 °
Luminous flux:	4100 lm
Colour rendering:	83 CRI
Lifetime:	75000 h
Switching cycles:	200000
Energy efficiency class:	C
Dimmable:	No
Material:	Glass with shatter protection
Colour:	White
EAN:	4058075612136
