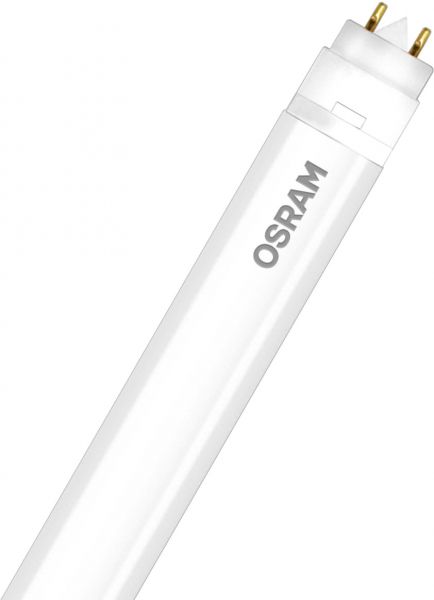

Osram ST8V-HF 17 W/830 1200 mm

Osram ST8V-HF 17 W/830 1200 mm
This article has been discontinued!
You can find out about possible alternatives or successor models by calling our hotline:
Item number: 100217720
EAN: 4052899943124
Product benefits Quick, simple and safe replacement without rewiring Instant-on light,... more
All information about the product:
"Osram ST8V-HF 17 W/830 1200 mm"
Product benefits
  • Quick, simple and safe replacement without rewiring
  • Instant-on light, therefore ideally suitable in combination with sensor technology
  • Very high resistance to switching loads
  • Also suitable for operation at low temperatures
  • Extremely break resistant thanks to aluminum heat sink and polycarbonate cover

Areas of application

  • Corridors, stairways, parking garages
  • Cooling and storage rooms
  • Domestic applications
  • Industry
  • Warehouses
  • Supermarkets and department stores

Product features
  • Bright, robust and durable
  • Uniform illumination
  • Lifetime: up to 30,000 h
  • Mercury-free and RoHS compliant
  • Type of protection: IP20
  • Integrated ECG with high power factor

Electrical data

Nominal wattage
17.0 W

Rated wattage
17.00 W

Nominal voltage
56.0 V

Nominal current
0.36 A

Type of current
AC

Power factor λ
> 0.90

Rated lamp efficacy (standard condition)
94 lm/W


Photometrical data

Light color (designation)
Warm White

Color temperature
3000 K

Nominal luminous flux
1600 lm

Rated luminous flux
1600 lm

Color rendering index Ra
>80

Standard deviation of color matching
≤6 sdcm


Light technical data

Starting time
< 0.5 s

Warm-up time (60 %)
< 2.00 s

Rated beam angle (half peak value)
160.00 °


Dimensions & weight

Overall length
1200 mm

Length with base excl. base pins/connection
1200.00 mm

Tube diameter
27.5 mm

Base diameter
25.7 mm

Product weight
232.00 g

Maximum diameter
28.0 mm


Temperatures & operating conditions

Ambient temperature range
-20…+50 °C

Temperature range in operation
-20…50 °C


Lifespan

Nominal lamp life time
30000 h

Rated lamp life time
30000 h

Lumen main.fact.at end of nom.life time
0.70

Number of switching cycles
200000


Additional product data

Base (standard designation)
G13

Mercury-free
Yes


Capabilities


Dimmable
No


Certificates & standards

Type of protection
IP20

Standards
CE

Energy efficiency class
A

Energy consumption
21 kWh/1000h
