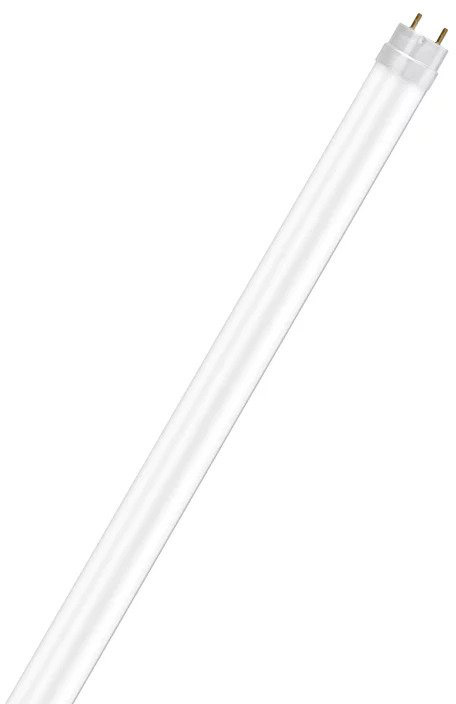

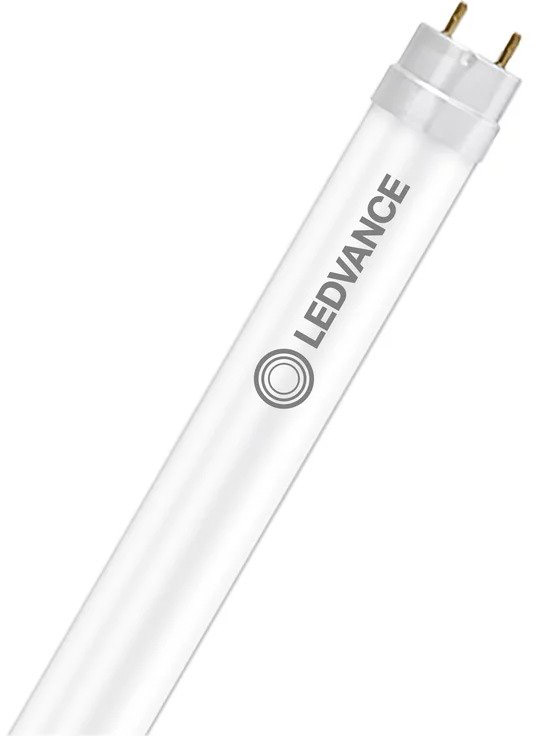

LEDVANCE LED TUBE T8 EM P 1200 mm 13.5W 865

LEDVANCE LED TUBE T8 EM P 1200 mm 13.5W 865

€8.90 *

Scale prices from: €8.50

incl. tax, plus shipping costs

Availability:

Delivery time: 3-5 days

Delivery time: approx. 3-5 days

Item number: 101408710

Quantity	Unit price	You save
From 10	€8.50 *	4.49 %

Product benefits No bending thanks to glass tube Quick, simple and safe... more

Back to the overview

All information about the product:

"LEDVANCE LED TUBE T8 EM P 1200 mm 13.5W 865"

Product benefits

No bending thanks to glass tube
Quick, simple and safe replacement without rewiring
Energy savings of up to 66 % (compared to T8 fluorescent lamp)
Instant-on light, therefore ideally suitable in combination with sensor technology
Very high resistance to switching loads
Also suitable for operation at low temperatures

Technical Data
Electrical data
Nominal wattage	13.5 W
Construction wattage	13.50 W
Nominal voltage	220…240 V
Operating mode	CCG, AC Mains
Nominal current	60 mA
Type of current	AC
Inrush current	20.6 A
Suitable for DC input	Yes
Input voltage DC	186…260 V
Operating frequency	50/60 Hz
Mains frequency	50/60 Hz
Max. lamp no. on circuit break. 10 A (B)	29
Max. lamp no. on circuit break. B10 A - CCG without compensation	50
Max. lamp no. on circuit break. B10 A - CCG with compensation	6
Max. lamp no. on circuit break. 16 A (B)	36
Max. lamp no. on circuit break. B16 A - CCG without compensation	60
Max. lamp no. on circuit break. B16 A - CCG with compensation	10
Total harmonic distortion	18 %
Power factor λ	0.90

Photometrical data
Luminous flux	2100 lm
Luminous efficacy	155 lm/W
Lumen main.fact.at end of nom.life time	0.70
Light color (designation)	Cool Daylight
Color temperature	6500 K
Color rendering index Ra	80
Light color	865
Standard deviation of color matching	≤5 sdcm
Rated LLMF at 6,000 h	0.80
Flickering metric (Pst LM)	1
Stroboscope effect metric (SVM)	0.4

Light technical data
Beam angle	190 °
Warm-up time (60 %)	‹ 0.50 s
Starting time	< 0.5 s

Dimensions & Weight
Overall length	1212.00 mm
Length with base excl. base pins/connection	1200.00 mm
Diameter	26.70 mm
Tube diameter	25.8 mm
Maximum diameter	27 mm
Product weight	190.00 g

Temperatures & operating conditions
Ambient temperature range	-20…+50 °C
Maximum temperature at tc test point	70 °C

Lifespan
Lifespan L70/B50 at 25 °C	60000 h
Number of switching cycles	200000
Lumen maintenance at end of service lifetime	0.70
Rated lamp survival factor at 6,000 h	≥ 0.90

Additional product data
Base (standard designation)	G13
Mercury content	0.0 mg
Mercury-free	Yes

Capabilities
Dimmable	No

Certificates & Standards
Energy efficiency class	D ¹⁾
Energy consumption	14.00 kWh/1000h
Type of protection	IP20
Standards	CE, EAC, UKCA
Photobiological safety group acc. to EN62778	RG0

Country-specific categorizations
Order reference	LEDTUBE T8 EM P

LOGISTICAL DATA
Temperature range at storage	-20…+80 °C

Energy labelling regulation data acc EU 2019/2015
Lighting technology used	LED
Non-directional or directional	NDLS
Mains or non-mains	MLS
Light source cap-type (or other electric interface)	G13
Connected light source (CLS)	No
Color-tuneable light source	No
Envelope	No
High luminance light source	No
Anti-glare shield	No
Correlated colour temperature type	SINGLE_VALUE
Standby power	<0.5 W
Claim of equivalent power	No
Length	1212.00 mm
Height	26.70 mm
Width	26.70 mm
Chromaticity coordinate x	0.,4339
Chromaticity coordinate y	0.4033
R9 Colour rendering index	0.00
Beam angle correspondence	SPHERE_360
Survival factor	0.9
Displacement factor	0.9
LED light source replaces a fluorescent light source	No
EPREL ID	1334070,1529724
Model number	AC45369,AC51579
