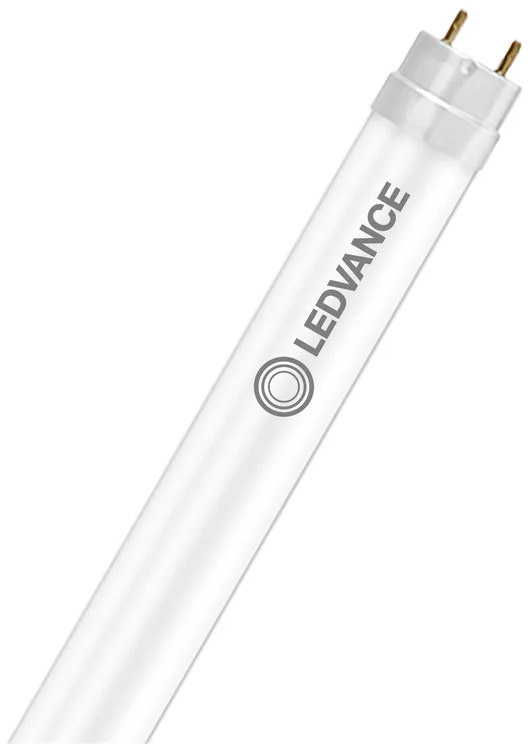

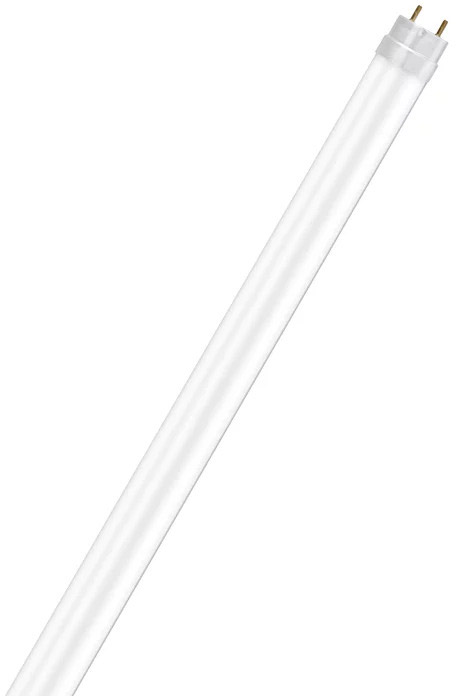

Ledvance LED TUBE T8 EM ULTRA OUTPUT S 1500 mm 22.1W 840

Ledvance LED TUBE T8 EM ULTRA OUTPUT S 1500 mm 22.1W 840

€15.60 *

incl. tax, plus shipping costs

Express delivery possible

Availability:

Delivery time: 3-5 days

Delivery time: approx. 3-5 days

Item number: 101408740

Product benefits No bending thanks to glass tube Shatter protection thanks to... more

Back to the overview

All information about the product:

"Ledvance LED TUBE T8 EM ULTRA OUTPUT S 1500 mm 22.1W 840"

Product benefits

No bending thanks to glass tube
Shatter protection thanks to special PET coating
Support the implementation of the HACCP concepts from production through to presentation
Very high resistance to switching loads
High luminous flux for sophisticated lighting tasks
Quick, simple and safe replacement without rewiring
Energy savings of up to 62 % (compared to T8 fluorescent lamp)
Instant-on light, therefore ideally suitable in combination with sensor technology
Also suitable for operation at low temperatures

Technical Data
Electrical data
Nominal wattage	22.1 W
Construction wattage	22.10 W
Nominal voltage	220…240 V
Operating mode	CCG, AC Mains
Nominal current	100 mA
Type of current	AC
Inrush current	5.4 A
Suitable for DC input	Yes
Input voltage DC	186…260 V
Operating frequency	50/60 Hz
Mains frequency	50/60 Hz
Max. lamp no. on circuit break. 10 A (B)	80
Max. lamp no. on circuit break. B10 A - CCG without compensation	25
Max. lamp no. on circuit break. B10 A - CCG with compensation	6
Max. lamp no. on circuit break. 16 A (B)	112
Max. lamp no. on circuit break. B16 A - CCG without compensation	41
Max. lamp no. on circuit break. B16 A - CCG with compensation	8
Total harmonic distortion	< 20 %
Power factor λ	0.90

Photometrical data
Luminous flux	4100 lm
Luminous efficacy	185 lm/W
Lumen main.fact.at end of nom.life time	0.70
Light color (designation)	Cool White
Color temperature	4000 K
Color rendering index Ra	80
Light color	840
Standard deviation of color matching	≤5 sdcm
Rated LLMF at 6,000 h	0.80
Flickering metric (Pst LM)	1
Stroboscope effect metric (SVM)	0.4

Light technical data
Beam angle	190 °
Warm-up time (60 %)	‹ 0.50 s
Starting time	< 0.5 s

Dimensions & Weight
Overall length	1513.00 mm
Length with base excl. base pins/connection	1500.00 mm
Diameter	26.70 mm
Tube diameter	25.8 mm
Maximum diameter	27 mm
Product weight	264.00 g

Temperatures & operating conditions
Ambient temperature range	-20…+50 °C
Maximum temperature at tc test point	75 °C

Lifespan
Lifespan L70/B50 at 25 °C	75000 h
Number of switching cycles	200000
Lumen maintenance at end of service lifetime	0.70
Rated lamp survival factor at 6,000 h	≥ 0.90

Additional product data
Base (standard designation)	G13
Mercury content	0.0 mg
Mercury-free	Yes

Capabilities
Dimmable	No

Certificates & Standards
Energy efficiency class	B ¹⁾
Energy consumption	23.00 kWh/1000h
Type of protection	IP20
Standards	CE, UKCA, VDE, ENEC, EAC
Photobiological safety group acc. to EN62778	RG0

Country-specific categorizations
Order reference	LEDTUBE T8 EM U

LOGISTICAL DATA
Temperature range at storage	-20…+80 °C

Energy labelling regulation data acc EU 2019/2015
Lighting technology used	LED
Non-directional or directional	NDLS
Mains or non-mains	MLS
Light source cap-type (or other electric interface)	G13
Connected light source (CLS)	No
Color-tuneable light source	No
Envelope	No
High luminance light source	No
Anti-glare shield	No
Correlated colour temperature type	SINGLE_VALUE
Standby power	<0.5 W
Claim of equivalent power	No
Length	1513.00 mm
Height	26.70 mm
Width	26.70 mm
Chromaticity coordinate x	0.3818
Chromaticity coordinate y	0.3797
R9 Colour rendering index	0.00
Beam angle correspondence	SPHERE_360
Survival factor	0.9
Displacement factor	0.9
LED light source replaces a fluorescent light source	No
EPREL ID	1334046,1529760
Model number	AC45335,AC51546
