LEDVANCE SubstiTUBE T8 UNIVERSAL 1500 mm 24W 830
€20.53 *
incl. tax,
plus shipping costs
Availability:
Delivery time: approx. 2-3 weeks
Delivery time: approx. 2-3 weeks
Item number: 101416005
EAN: 4099854033209
MPN: 4099854033209
LEDVANCE SubstiTUBE T8 UNIVERSAL 1500 mm 24W 830 LED tubes for electronic and electromagnetic... more
All information about the product:
"LEDVANCE SubstiTUBE T8 UNIVERSAL 1500 mm 24W 830"

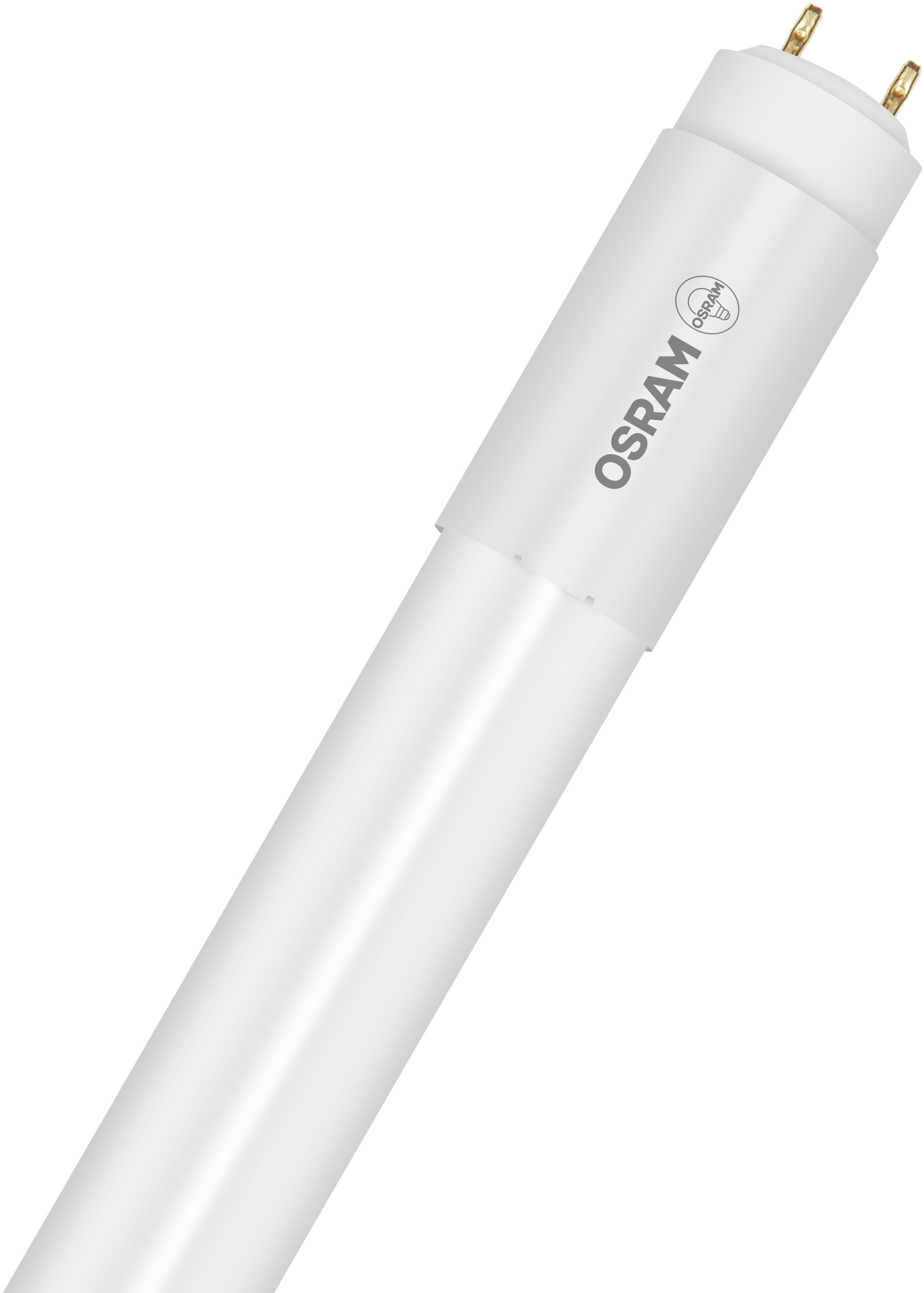

LEDVANCE SubstiTUBE T8 UNIVERSAL 1500 mm 24W 830
LED tubes for electronic and electromagnetic control gears. Product features: LED replacement for classic T8 fluorescent lamps with G13 socket for use in CCG luminaires and many common ECG luminaires (see compatibility list) or on AC mains. T8 LED tube made of glass with G13 base. Low flicker according to EU 2019-2020 (SVM =0,4 / PstLM = 1). Mercury-free and RoHS compliant. Type of protection: IP20. Product benefits: High color homogeneity. Energy savings of up to 59 % (compared to T8 fluorescent lamp). Instant flickerfree starting. Areas of application: General illumination within ambient temperatures from -20…+45 °C. Corridors, stairways, parking garages. Domestic applications.

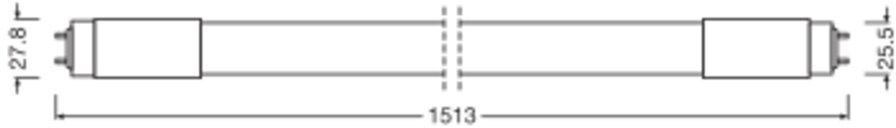

Technical data:| Length: | 1513 mm |
| Width: | 27,80 mm |
| Height: | 27,80 mm |
| Diameter: | 27,80 mm |
| Weight: | 307 g |
| Socket: | G13 |
| Nominal voltage: | 220 V |
| Nominal power: | 24 W |
| Nominal current: | 110 mA |
| Energy consumption: | 24 kWh/1000 |
| Colour temperature: | 3000 K |
| Light colour: | Warm white |

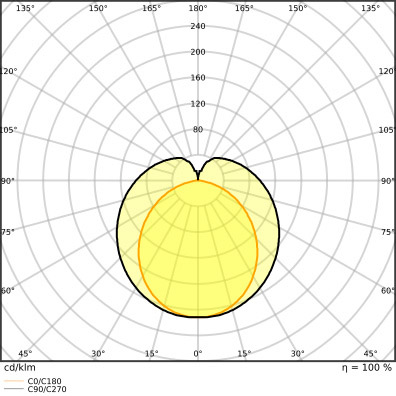

| Beam angle: | 190° |
| Luminous flux: | 2550 lm |
| Luminous efficacy: | 106 lm/W |
| Colour rendering: | 80-89 CRI |
| Dimmable: | No |
| Lifetime: | 30000 h |
| Switching cycles: | 200000 |
| Protection class: | IP20 |
| Energy efficiency class: | F |
| Power factor: | 0.90 |
| Voltage type: | AC |
| Lamp shape: | Tube, double-ended |
| Filament lamp: | no |
| Type of glass/cover: | Frosted |
| Colour consistency (McAdam ellipse): | SDCM5 |
| Dimming phase cut-off (trailing edge): | no |
| Dimming phase cut-on (leading edge): | no |
| Dimming Touch and Dim: | no |
| Dimming Zigbee: | no |
| Dimming Bluetooth: | no |
| Dimming Wi-Fi: | no |
| Lamp designation: | T8 |
| Remote operation possible: | no |
| With movement sensor: | no |
| With remote control: | no |
| Photobiological safety according to EN 62471: | RG0 |
| Compatible with Apple HomeKit: | no |
| Compatible with Google Assistant: | no |
| Compatible with Amazon Alexa: | no |
| IFTTT support available: | yes |
