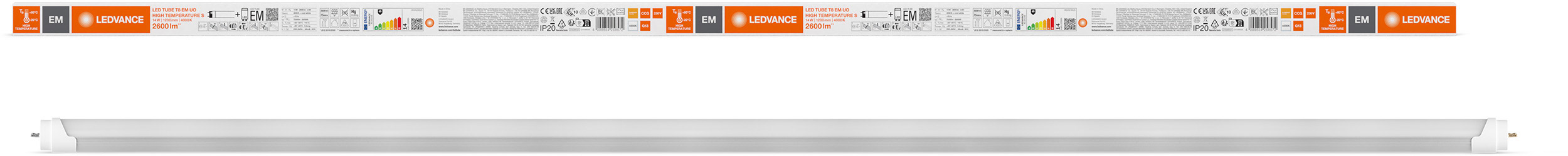

LEDVANCE LED TUBE T8 EM ULTRA OUTPUT HIGH TEMPERATURE S 1200 mm 14W 840
NEW
€42.94 *
incl. tax,
plus shipping costs
Availability:
Delivery time: approx. 2-3 weeks
Delivery time: approx. 2-3 weeks
Item number: 101418780
EAN: 4099854258572
MPN: 4099854258572
NEW
LEDVANCE LED TUBE T8 EM ULTRA OUTPUT HIGH TEMPERATURE S 1200 mm 14W 840 product advantages... more
All information about the product:
"LEDVANCE LED TUBE T8 EM ULTRA OUTPUT HIGH TEMPERATURE S 1200 mm 14W 840"
LEDVANCE LED TUBE T8 EM ULTRA OUTPUT HIGH TEMPERATURE S 1200 mm 14W 840
product advantages
Technical data:- Suitable for high ambient temperatures of up to +80 °C
- Very high switching resistance
- High luminous flux for demanding lighting tasks
- Simpler, faster, and safer lamp replacement without rewiring
- Energy savings of up to 62% (compared to T8 fluorescent lamps)
- Full brightness without warm-up phase, therefore ideal in combination with sensor technology
- Also suitable for operation at low temperatures
- General lighting in ambient temperatures from -20 to +80°C
- Lighting in industrial manufacturing
- industry
- LED replacement for conventional T8 fluorescent lamps with G13 base in magnetic ballast luminaires or at mains voltage
- Very wide ambient temperature range: -20…+80 °C
- Low flicker according to EU 2019/2020 (SVM = 0.4 / PstLM = 1)
- Service life at 25 °C ambient temperature up to 75,000 h
- Service life at 80 °C ambient temperature up to 17,500 h
- Protection class: IP20
- ENEC 10 VDE mark
- Mercury-free and RoHS compliant
- Replacement starters for LED tubes
- When replacing with a T8 fluorescent lamp, the overall energy efficiency and light distribution depend on the design of the system.
- Before installation, it is recommended to check that the light fixture and, in particular, the sockets are in good condition and suitable for supporting the weight of the lamp.
- Only suitable for temperatures up to 80 °C inside the luminaire.
- Not suitable for use with electronic ballasts.
- Can be used in outdoor applications in suitable damp-proof luminaires in accordance with the data sheet and installation instructions.
- Not suitable for emergency lighting.
- Disconnect the mains power supply before installation.
- For current information, see www.ledvance.de/led-roehren
| Length: | 1213 mm |
| Width: | 28 mm |
| Height: | 28 mm |
| Diameter: | 28 mm |
| Weight: | 365 g |
| Socket: | G13 |
| Nominal voltage: | 220-240 V |
| Nominal power: | 14 W |
| Nominal current: | 66 mA |
| Energy consumption: | 14 kWh/1000 |
| Colour temperature: | 4000 K |
| Light colour: | Neutral white |
| Beam angle: | 120° |
| Luminous flux: | 2600 lm |
| Luminous efficacy: | 185 lm/W |
| Colour rendering: | 80-89 CRI |
| Dimmable: | No |
| Lifetime: | 75000 h |
| Switching cycles: | 200000 |
| Protection class: | IP20 |
| Energy efficiency class: | B |
| Colour: | White |
| Power factor: | 0.90 |
| Voltage type: | AC |
| Suitable for electronic ballast: | no |
| Suitable for magnetic ballast: | yes |
| Lamp shape: | Tube, double-ended |
| Filament lamp: | no |
| Type of glass/cover: | Frosted |
| Colour consistency (McAdam ellipse): | SDCM5 |
| Dimming phase cut-off (trailing edge): | no |
| Dimming phase cut-on (leading edge): | no |
| Dimming Touch and Dim: | no |
| Dimming Zigbee: | no |
| Dimming Bluetooth: | no |
| Dimming Wi-Fi: | no |
| Lamp designation: | T8 |
| Total harmonic distortion: | 14 |
| Remote operation possible: | no |
| With movement sensor: | no |
| With remote control: | no |
| With twilight switch: | no |
| Photobiological safety according to EN 62471: | RG0 |
| Compatible with Apple HomeKit: | no |
| Compatible with Google Assistant: | no |
| Compatible with Amazon Alexa: | no |
| IFTTT support available: | yes |
