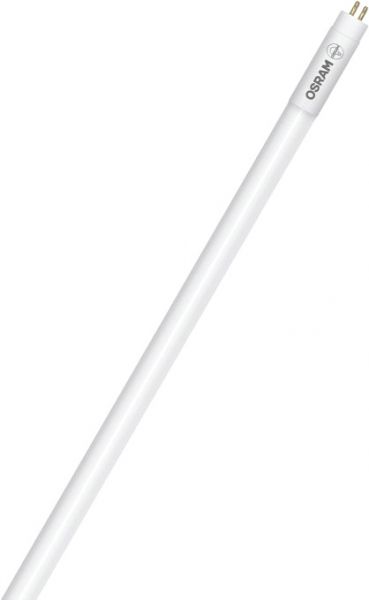

Osram SubstiTUBE T5 HE AC 16 W/865 1149 mm

Osram SubstiTUBE T5 HE AC 16 W/865 1149 mm
This article has been discontinued!
You can find out about possible alternatives or successor models by calling our hotline:
Item number: 100222955
EAN: 4058075060531
Technical Data Electrical data Nominal wattage: 16.00 W Rated wattage:... more
All information about the product:
"Osram SubstiTUBE T5 HE AC 16 W/865 1149 mm"

Technical Data

Electrical data

Nominal wattage:

16.00 W

Rated wattage:

16.00 W

Nominal voltage:

220.240 V

Operating frequency:

50.60 Hz

Nominal current:

0.075 A

Type of current:

AC

Power factor ?:

> 0.90

Photometrical data

Light color (designation):

Cool Daylight

Rated color temperature:

6500 K

Nominal luminous flux:

2400 lm

Rated luminous flux:

2400 lm

Color rendering index Ra:

?80

Lumen main.fact.at end of nom.life time:

0.70

Standard deviation of color matching:

?4 sdcm

Light technical data

Starting time:

< 0.5 s

Warm-up time (60 %):

< 2.00 s

Rated beam angle (half peak value):

160.00 °

Dimensions & weight

Length with base excl. base pins/connection:

1135.00 mm

Tube diameter:

15.0 mm

Base diameter:

15.0 mm

Product weight:

150.00 g

Overall length:

1149 mm

Temperatures & operating conditions

Ambient temperature range:

-20.+50 °C

Lifespan

Lifespan:

50000 h

Nominal lamp life time:

50000 h

Rated lamp life time:

50000 h

Number of switching cycles:

200000

Additional product data

Base (standard designation):

G5

Mercury-free:

Yes

Capabilities

Dimmable:

No

Certificates & standards

Type of protection:

IP20

Standards:

CE

Energy efficiency class:

A++

Energy consumption:

18 kWh/1000h

Logistical data

Temperature range at storage:

-20.80 °C
