ISOLED LED interference suppression, discharge and compensation module, extinguishing element

€5.90 *

incl. tax, plus shipping costs

Availability:

Delivery time: 1-3 days

Delivery time: 1-3 days

Item number: 111007090

EAN: 9009377069505

MPN: 114039

LED interference suppression, discharge and compensation module, extinguishing element... more

All information about the product:

"ISOLED LED interference suppression, discharge and compensation module, extinguishing element"

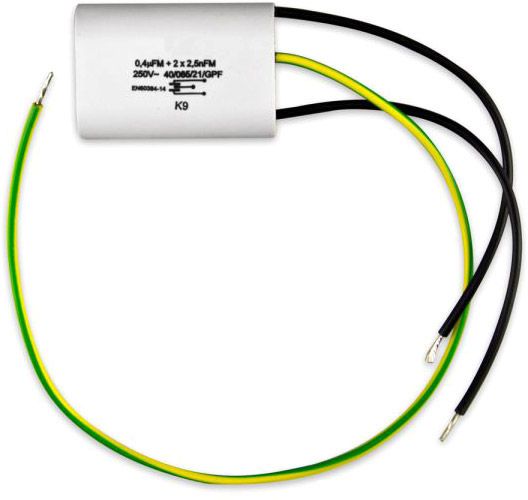

LED interference suppression, discharge and compensation module, extinguishing element

Length:	44mm
Width:	16mm
Height:	30mm
Net weight:	32g
Nominal voltage:	250V AC
Lifetime:	25000h
Protection class:	IP20
Dimmable:	Yes A dimming actuator can be positioned upstream. This compensation module helps to prevent problems which occur due to minimum loads required by the (bus-) dimming actuators.
Material:	Plastic
Incl. illuminant:	No

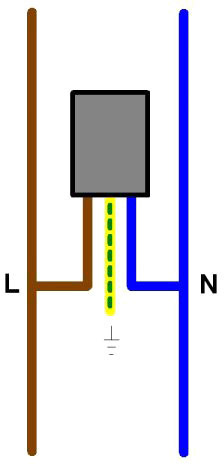

Special features:	Prevents afterglow and flashing due to induced or residual voltages. Can reduce interference with other electrical devices. Class X2Y2 safety condenser according to EN 60384-14, capacitance L-N: 0.4µF \| L-PE: 2x2.5nF the connection is done in parallel as close to the LED light as possible. Conductor ends tin-plated.
