LEDVANCE M 550 P 72 LM-SF-F7-0.3M
NEW
€155.37 *
incl. tax,
plus forwarding agency costs
Bulky goods
Availability:
Delivery time: approx. 2-3 weeks
Delivery time: approx. 2-3 weeks
Bulky goods
Item number: 101419320
EAN: 4099854230813
MPN: 4099854230813
NEW
LEDVANCE M 550 P 72 LM-SF-F7-0.3M product advantages 12-year product warranty, 25-year... more
All information about the product:
"LEDVANCE M 550 P 72 LM-SF-F7-0.3M"

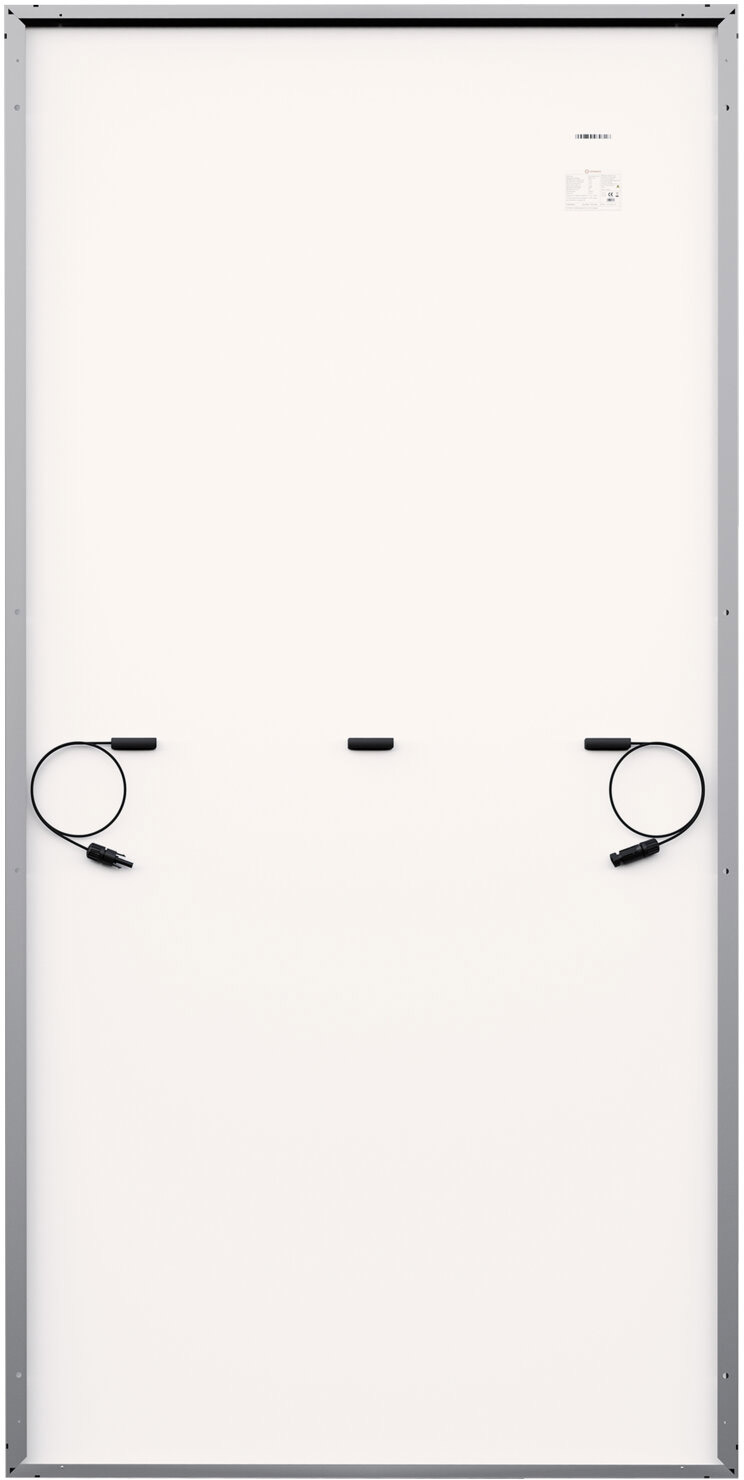

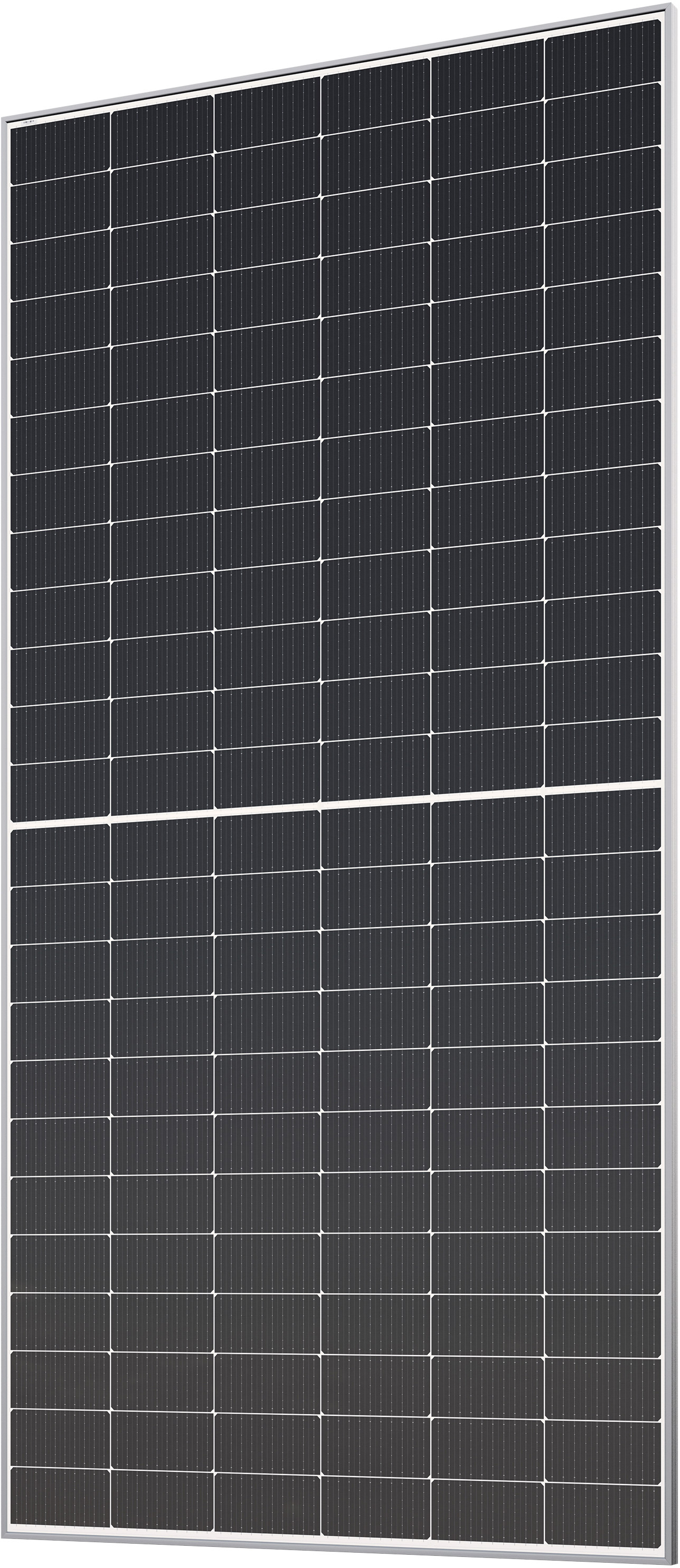

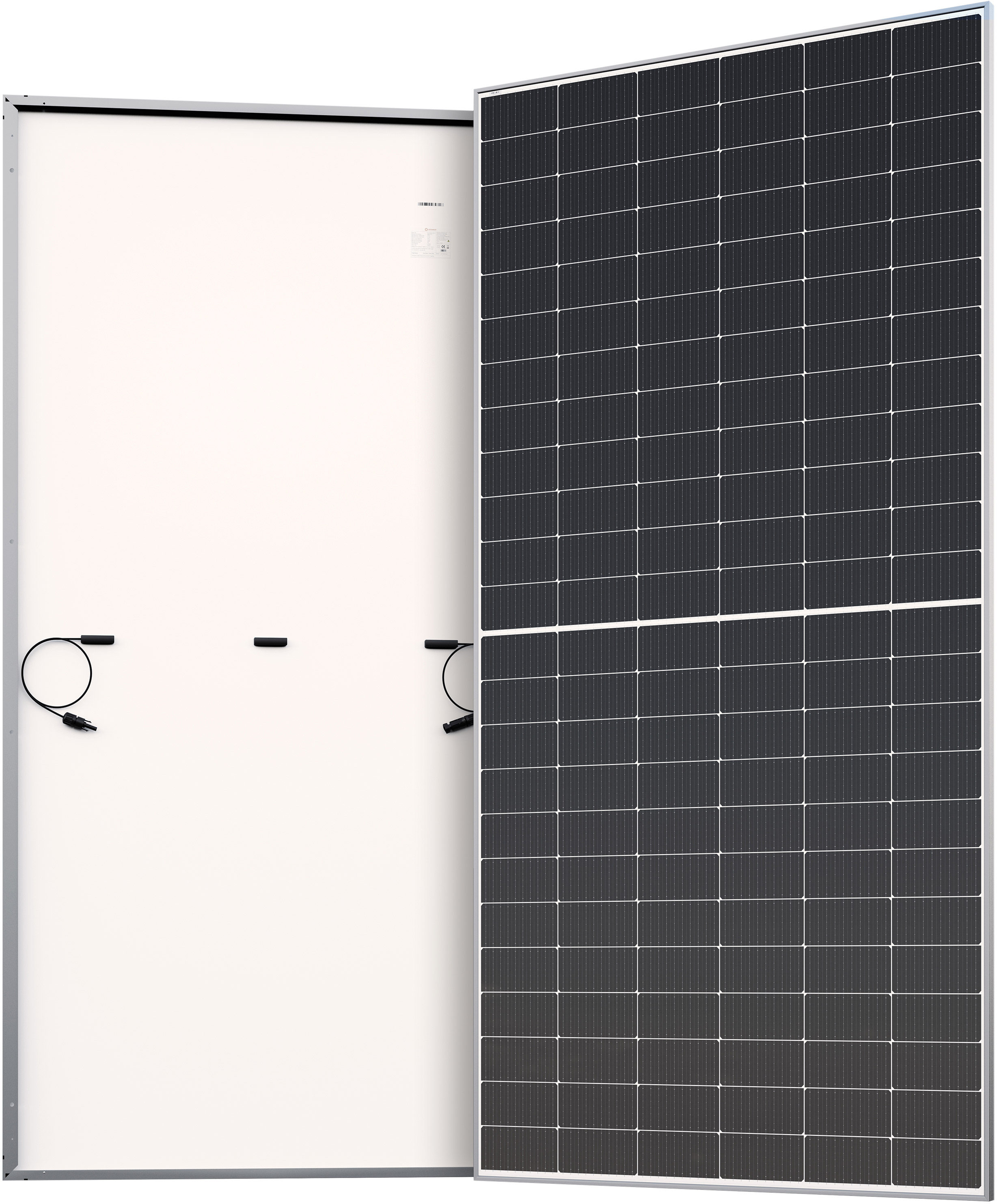

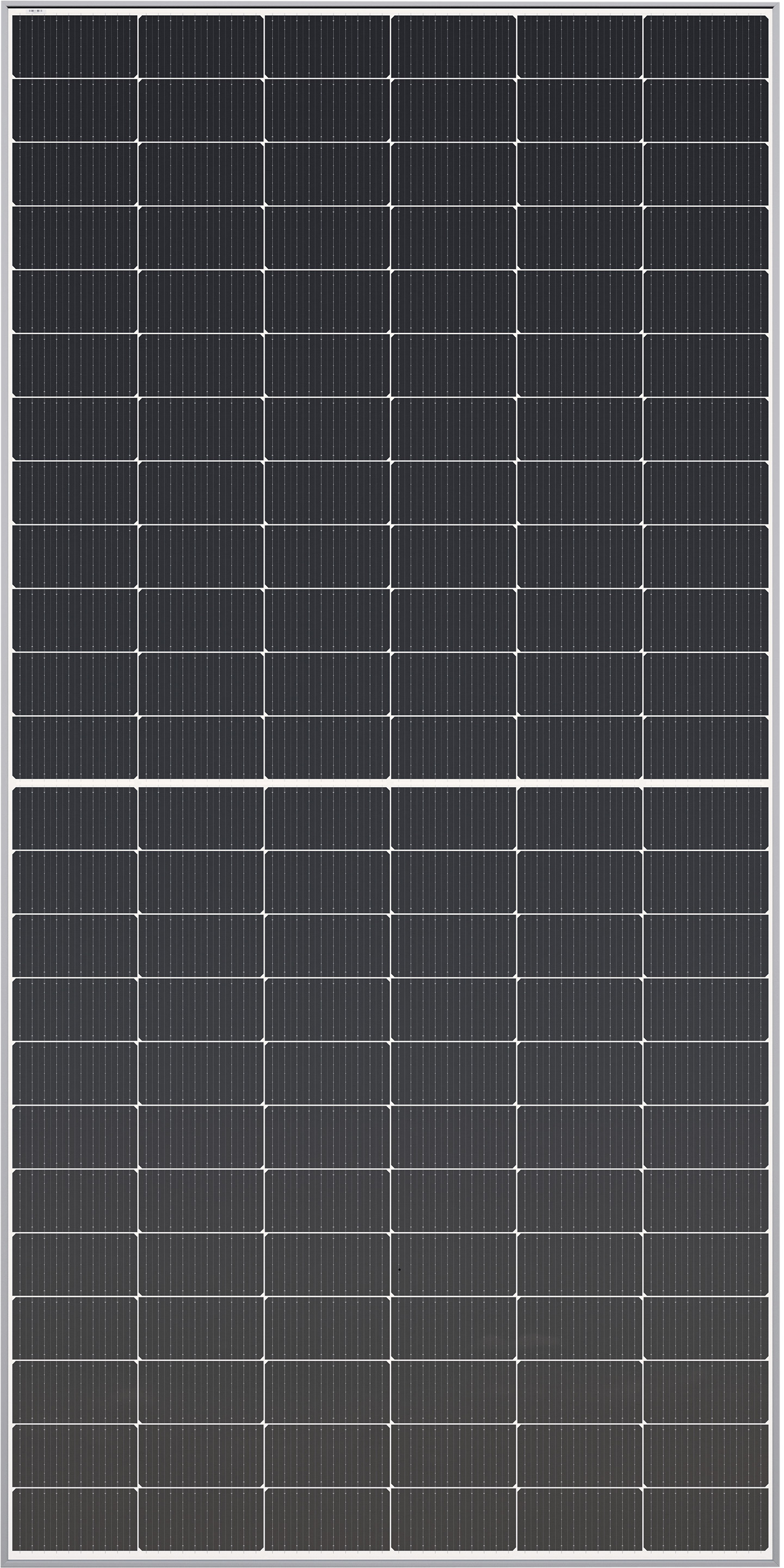

LEDVANCE M 550 P 72 LM-SF-F7-0.3M
product advantages
Technical data:- 12-year product warranty, 25-year linear performance warranty
- Limited PID effect (potentially induced degradation) thanks to strict quality control in the production process
- Very low annual degradation of cells thanks to improved resistance to high temperatures
- Durable construction and the highest production standards guarantee operational reliability and quality.
- open space facility
- Commercial and industrial facilities
- Installations on residential buildings
- Original Stäubli MC4 EVO 2 connector
- Available in a version with a long cable
- Frame made of anodized aluminum alloy
- Multi-Busbar Technology (MBB)
- Maximum static load up to 5400 Pa
- The product is delivered as a whole, no assembly required by the customer.
- The modules are equipped with MC4 EVO 2 connectors.
- 3 bypass diodes are already installed in the module
| Length: | 2278 mm |
| Width: | 1134 mm |
| Height: | 35 mm |
| Weight: | 27500 g |
| Nominal voltage: | 39 V |
| Cell material: | Mono crystalline |
| Number of cells: | 144 |
| MPP power by STC: | 550Wp |
| MPP-voltage: | 41.97V |
| Open circuit voltage: | 49.91V |
| MPP-current: | 13.10A |
| Short-circuit current: | 14.02A |
| Power tolerance: | 3% |
| Module efficiency factor (STC): | 21.30% |
| Temperature coefficient Pmpp: | -0.335%/K |
| Temperature coefficient Uoc: | -0.265%/K |
| Temperature coefficient Isc: | 0.045%/K |
| Weight: | 27,5 kg |
| With frame: | yes |
| Colour frame: | Silver |
| Colour cells: | Blue |
| Colour backsheet: | White |
| With connection cable: | yes |
| Cable length: | 300 mm |
| Number of bypass diodes: | 3 |
| Operating temperature: | +85°C |
| Reverse current load: | 25A |
| Suitable for vertical/overhead glazing: | no |
| Glass with anti-reflection coating: | yes |
