LEDVANCE M 470 N 60 LM -SF-F3

NEW

€137.06 *

incl. tax, plus forwarding agency costs

Bulky goods

Availability:

Delivery time: approx. 2-3 weeks

Delivery time: approx. 2-3 weeks

Bulky goods

Item number: 101419330

EAN: 4099854137266

MPN: 4099854137266

NEW

LEDVANCE M 470 N 60 LM -SF-F3 product advantages TopCon technology offers higher efficiency... more

Back to the overview

All information about the product:

"LEDVANCE M 470 N 60 LM -SF-F3"

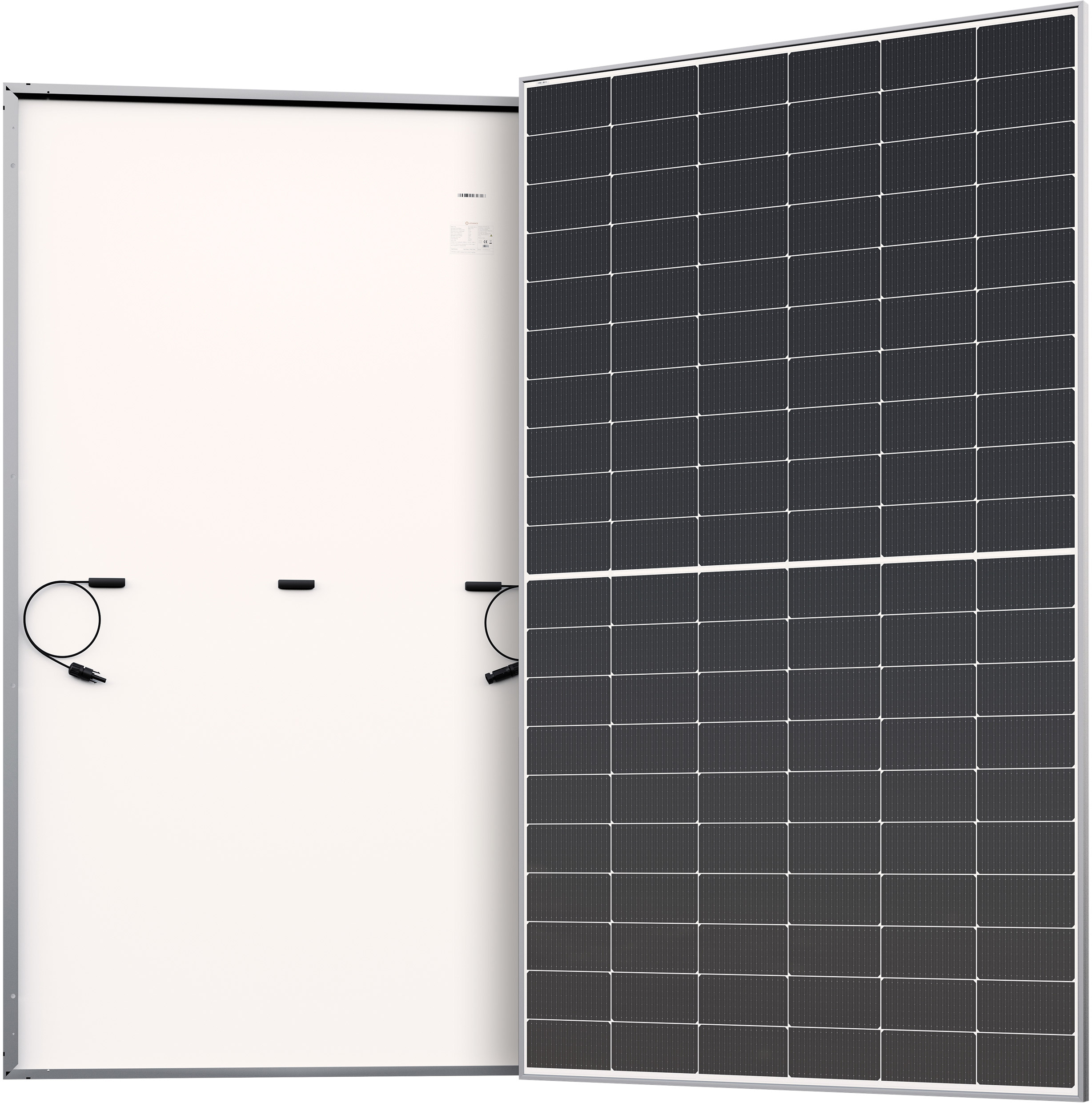

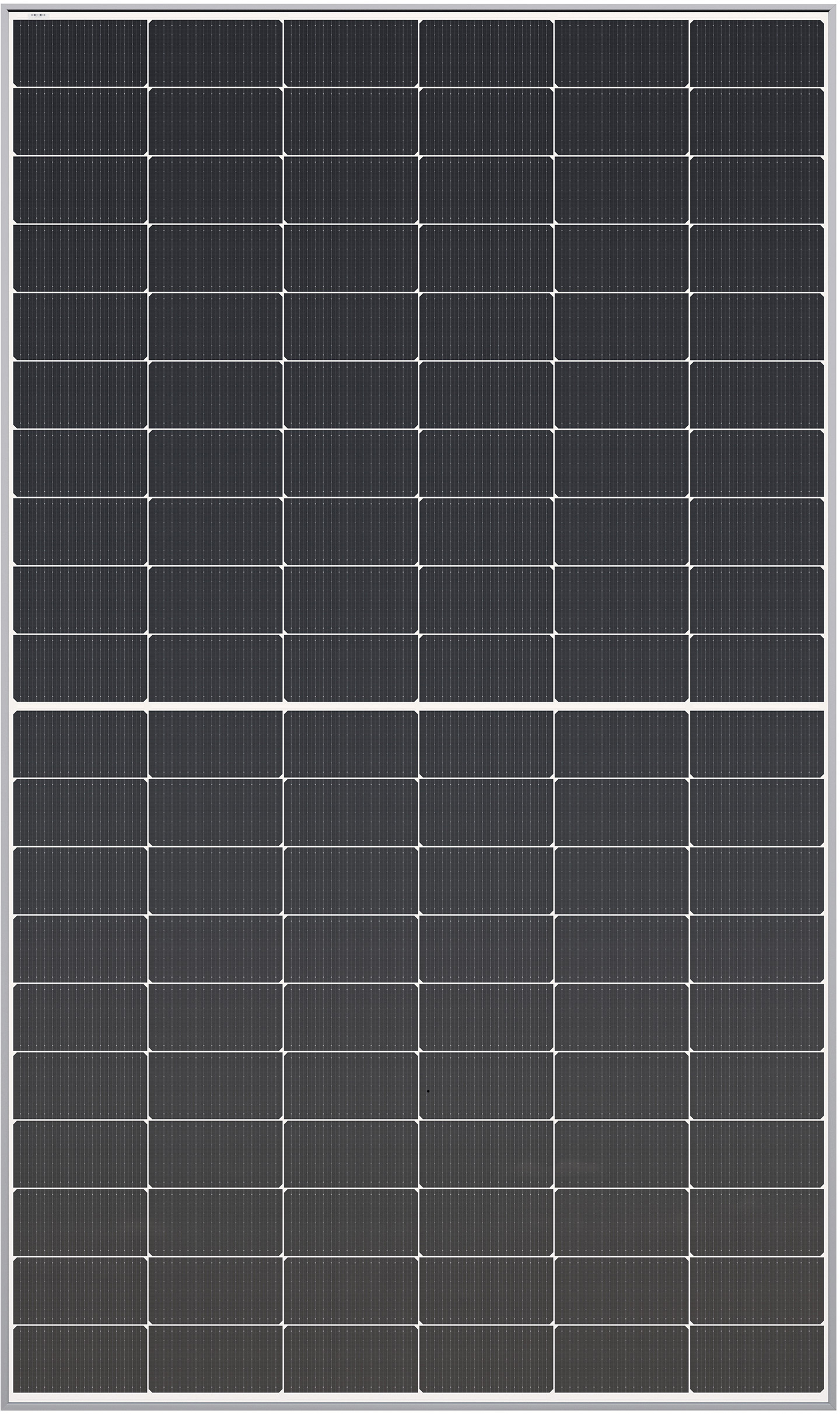

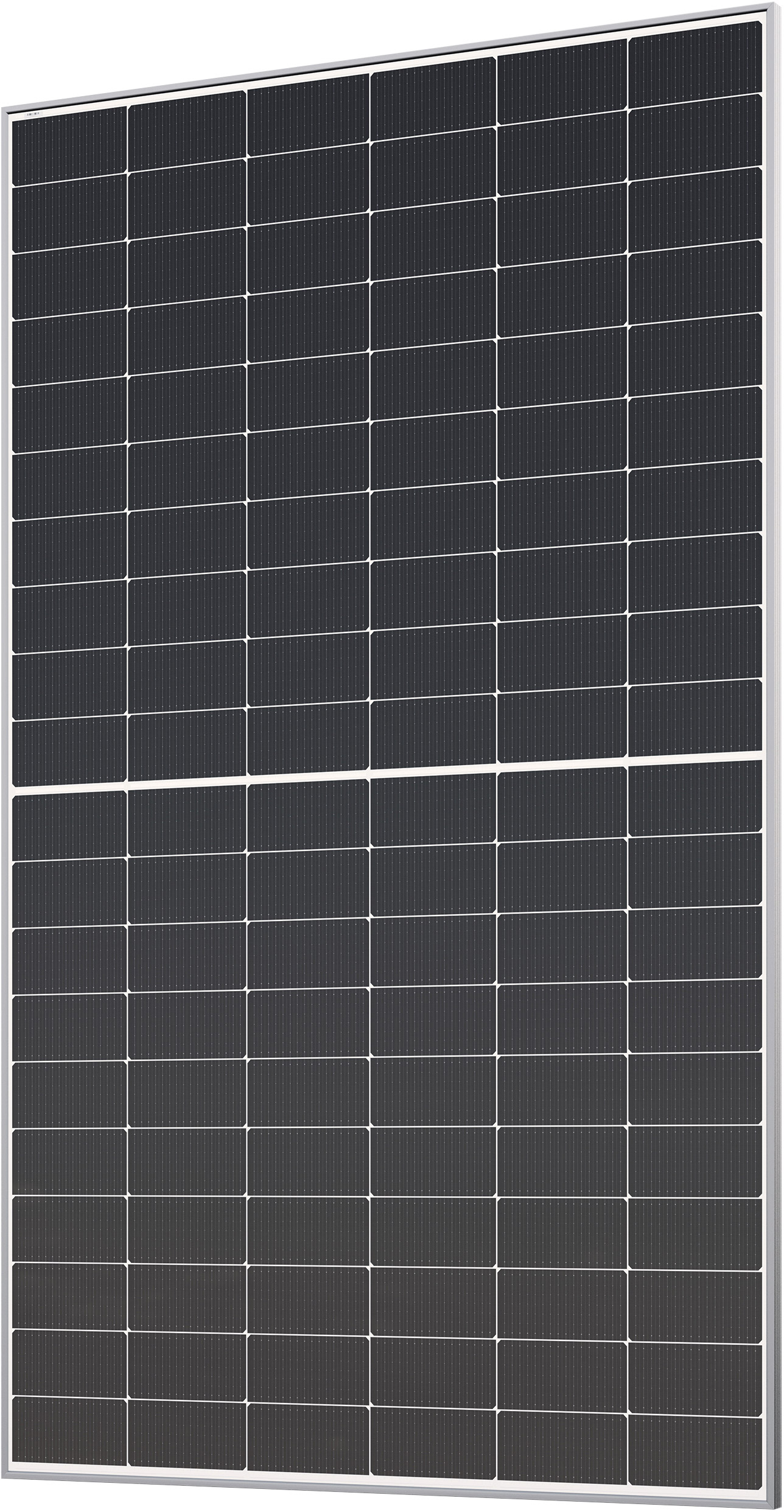

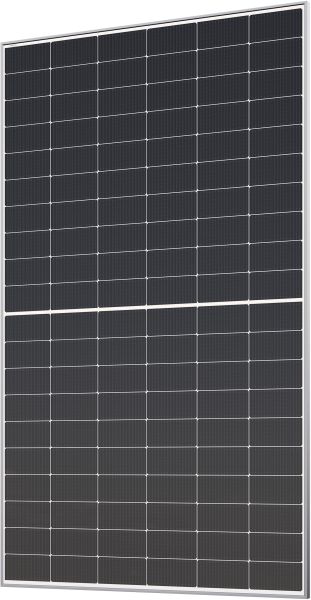

LEDVANCE M 470 N 60 LM -SF-F3

product advantages

TopCon technology offers higher efficiency because it converts sunlight better than a standard panel.
15-year product warranty, 30-year linear performance warranty
Limited PID effect (potentially induced degradation) thanks to strict quality control in the production process
Very low annual degradation of cells thanks to improved resistance to high temperatures
Durable construction and the highest production standards guarantee operational reliability and quality.

Areas of application

open space facility
Commercial and industrial facilities
Installations on residential buildings

product features

Original Stäubli MC4 EVO 2 connector
Available in a version with a long cable
Frame made of anodized aluminum alloy
Multi-Busbar Technology (MBB)
Maximum static load up to 5400 Pa

Technical equipment

The product is delivered as a whole, no assembly required by the customer.

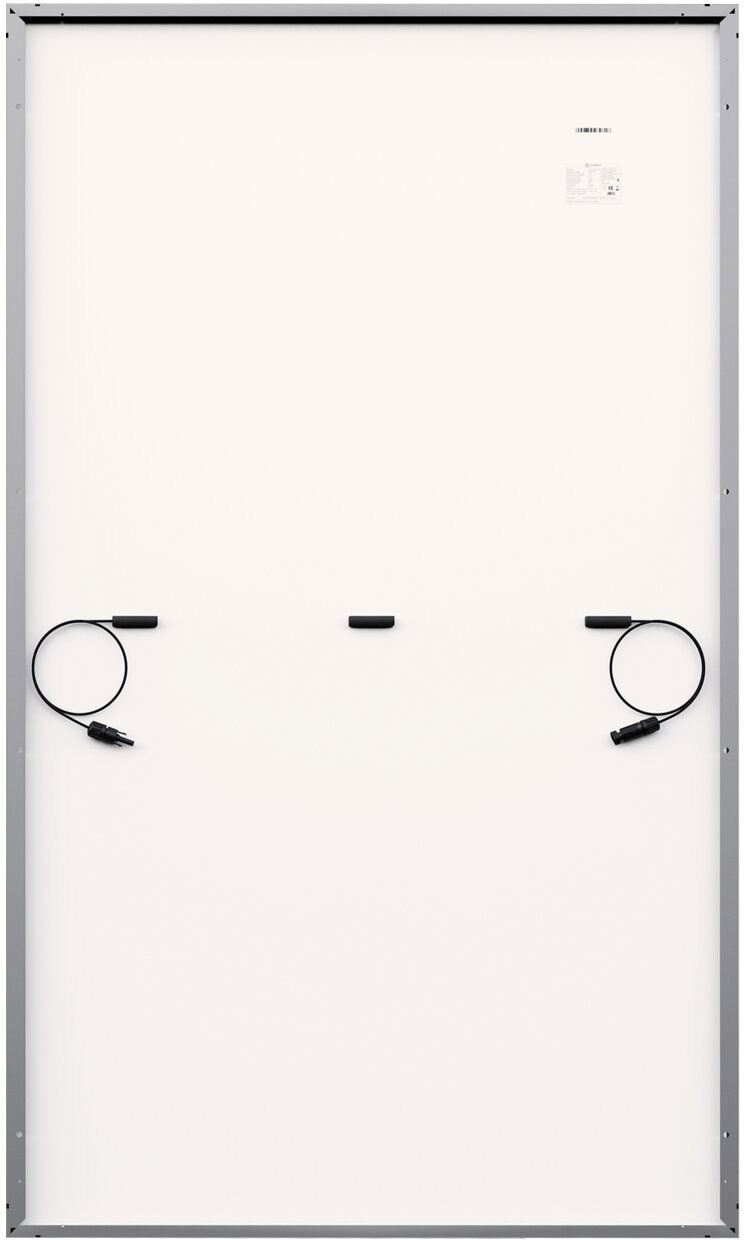

The modules are equipped with MC4 EVO 2 connectors.
3 bypass diodes are already installed in the module

Technical data:

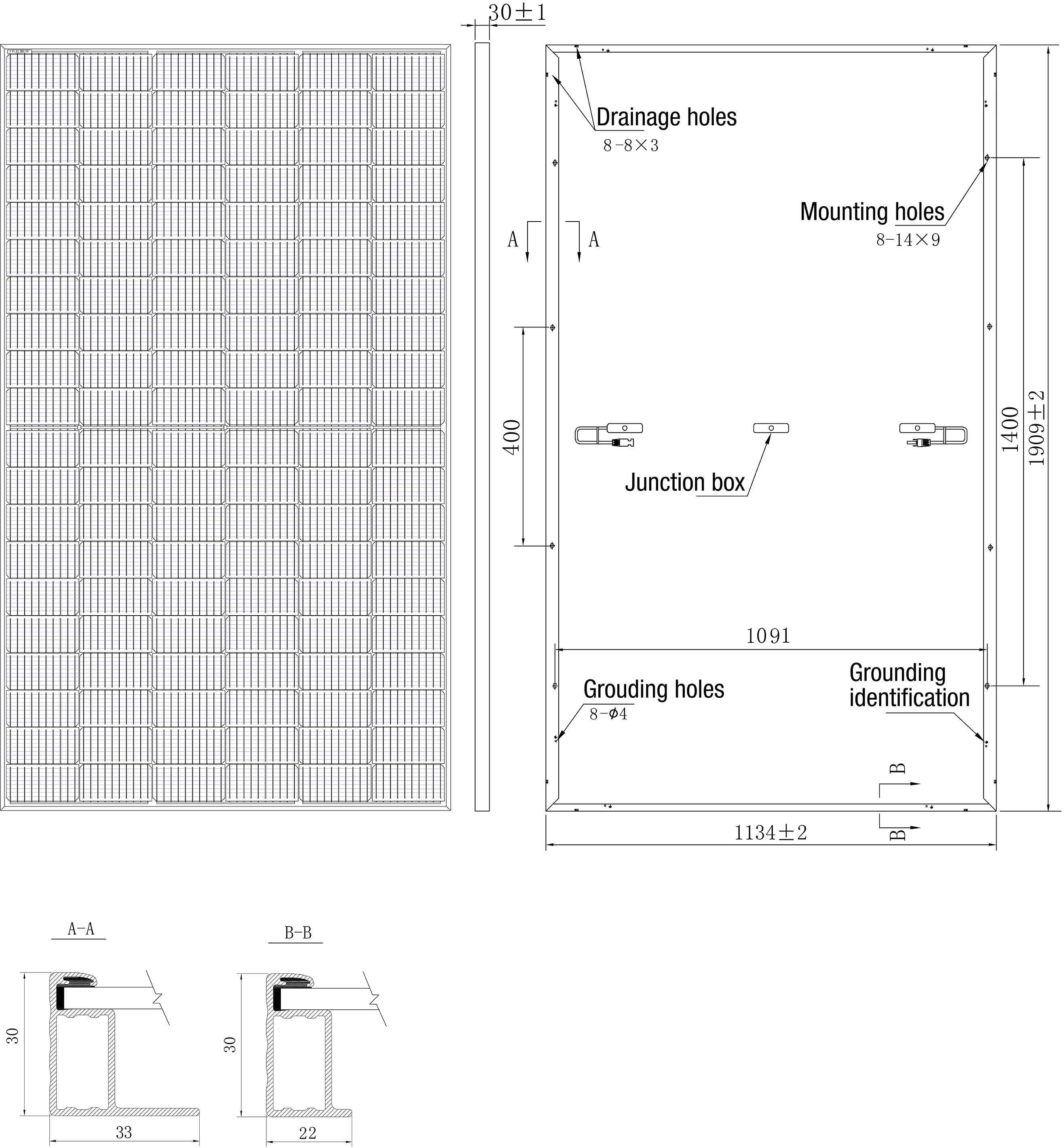

Length:	1909 mm
Width:	1134 mm
Height:	30 mm
Weight:	22300 g
Nominal voltage:	32 V
Cell material:	Mono crystalline
Number of cells:	120
MPP power by STC:	470Wp
MPP-voltage:	34.98V
Open circuit voltage:	42.63V
MPP-current:	13.44A
Short-circuit current:	14.16A
Power tolerance:	3%
Module efficiency factor (STC):	21.71%
Temperature coefficient Pmpp:	-0.300%/K
Temperature coefficient Uoc:	-0.250%/K
Temperature coefficient Isc:	0.046%/K
Weight:	22,3 kg
With frame:	yes
Colour frame:	Silver
Colour cells:	Blue
Colour backsheet:	White
With connection cable:	yes
Cable length:	1200 mm
Number of bypass diodes:	3
Operating temperature:	+85°C
Reverse current load:	25A
Suitable for vertical/overhead glazing:	no
Glass with anti-reflection coating:	yes
