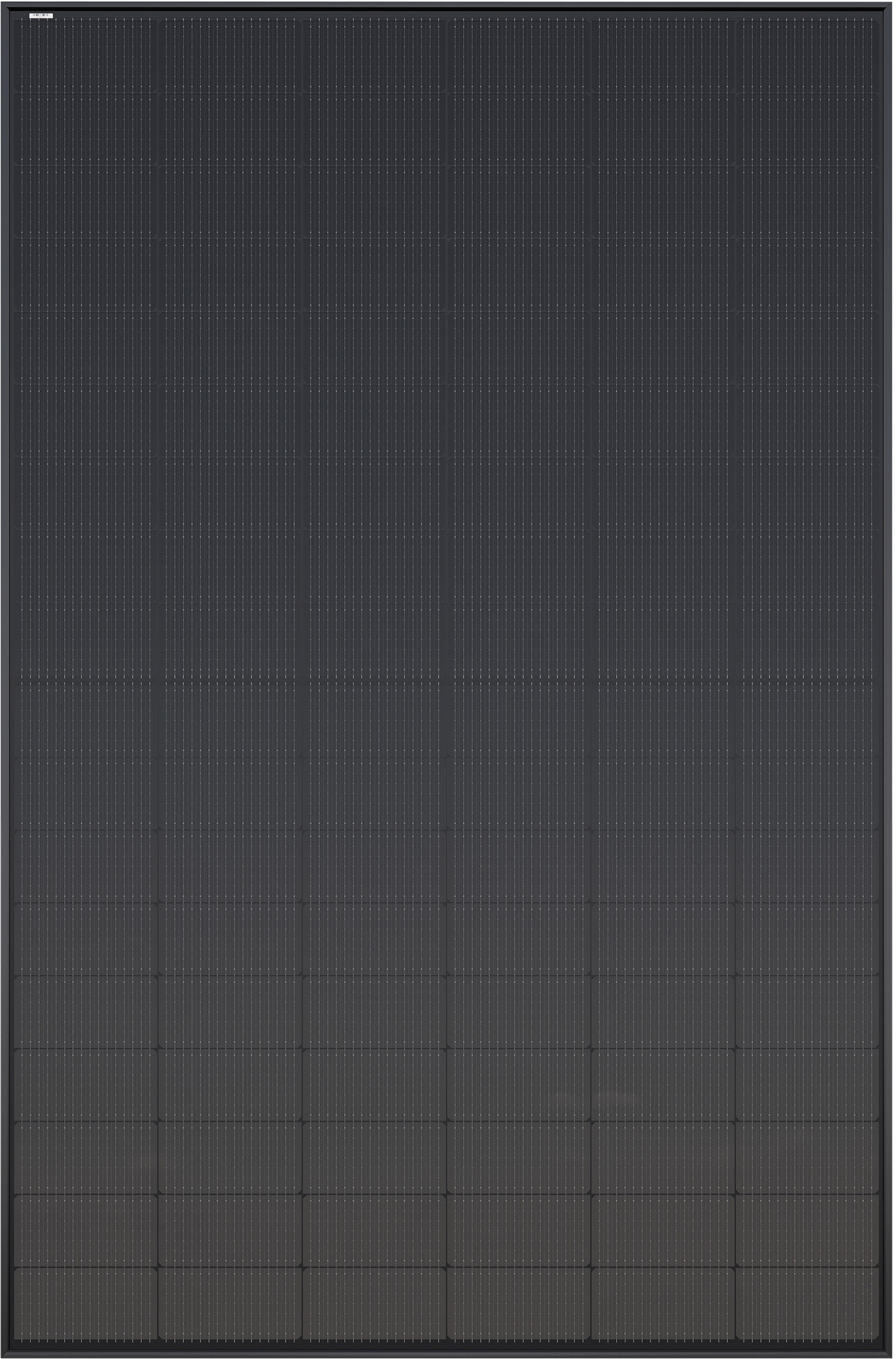

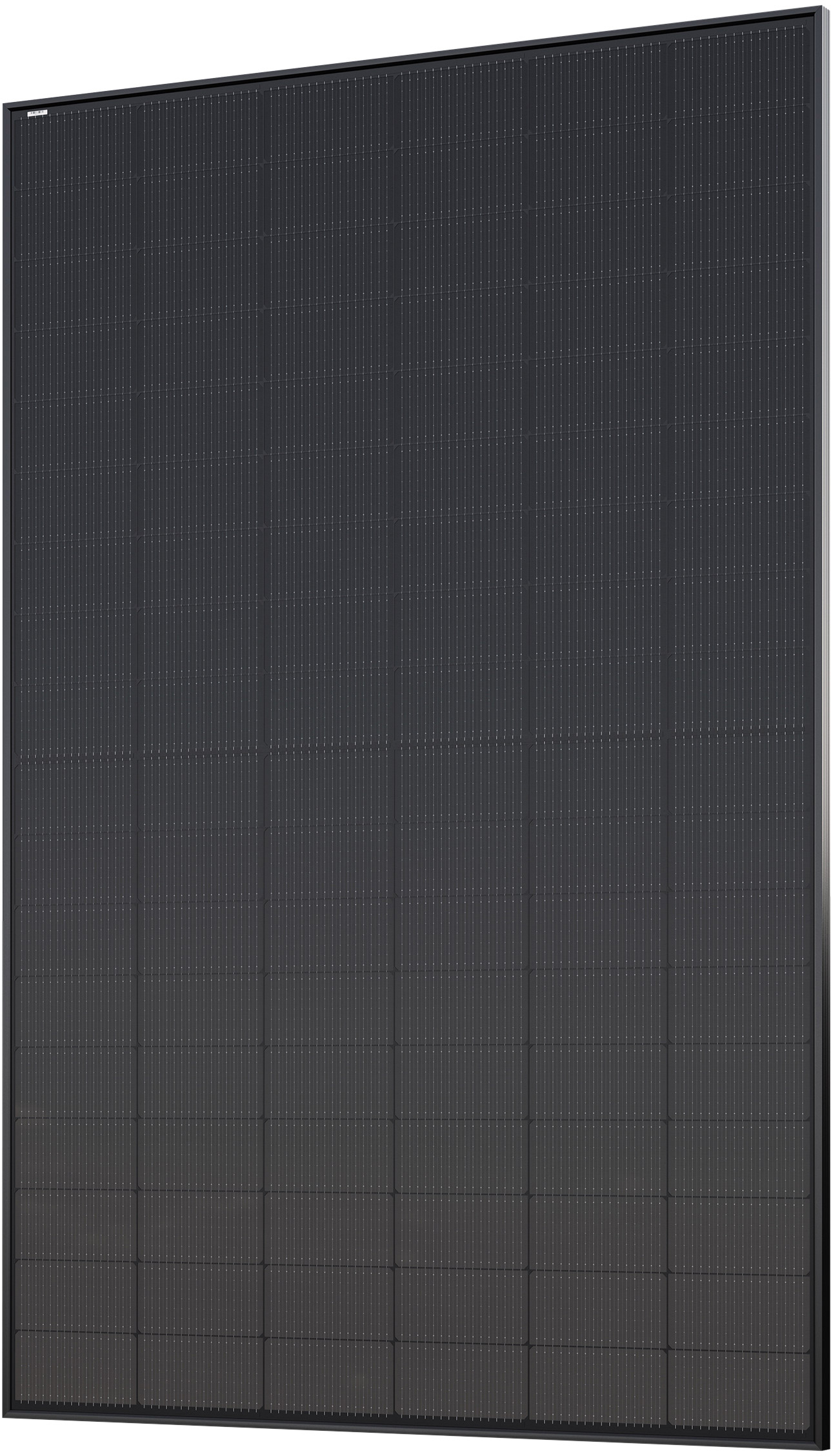

LEDVANCE M 420 N 54 LB -BB-F7-0.3M

NEW
€137.57 *
incl. tax, plus forwarding agency costs
Availability:
Delivery time: approx. 2-3 weeks
Delivery time: approx. 2-3 weeks

Bulky goods

Item number: 101419445
EAN: 4099854277283
MPN: 4099854277283
NEW
LEDVANCE M 420 N 54 LB -BB-F7-0.3M product advantages TopCon technology offers higher... more
All information about the product:
"LEDVANCE M 420 N 54 LB -BB-F7-0.3M"
LEDVANCE M 420 N 54 LB -BB-F7-0.3M

product advantages
  • TopCon technology offers higher efficiency because it converts sunlight better than a standard panel.
  • Glass-glass modules offer improved protection against moisture, mechanical stress, and fire.
  • 25-year product warranty, 30-year linear performance warranty
  • Limited PID effect (potentially induced degradation) thanks to strict quality control in the production process
  • Very low annual degradation of cells thanks to improved resistance to high temperatures
  • Durable construction and the highest production standards guarantee operational reliability and quality.
Areas of application
  • Commercial and industrial facilities
  • Installations on residential buildings
product features
  • Bifacial – both sides of the module absorb light
  • Original Stäubli MC4 EVO 2 connector
  • Available in a version with a long cable
  • Frame made of anodized aluminum alloy
  • Multi-busbar technology (MBB)
  • Maximum static load up to 5400 Pa
Technical equipment
  • The product is delivered as a whole, no assembly required by the customer.
  • The modules are equipped with MC4 EVO 2 connectors.
  • 3 bypass diodes are already installed in the module
References / References
  • For warranty information, please visit www.ledvance.de/garantie.
Technical data:
Length:1722 mm
Width:1134 mm
Height:30 mm
Weight:24000 g
Nominal voltage:29 V
Cell material:Mono crystalline
Number of cells:108
MPP power by STC:420Wp
MPP-voltage:31.85V
Open circuit voltage:37.89V
MPP-current:13.19A
Short-circuit current:13.99A
Power tolerance:3%
Module efficiency factor (STC):21.51%
Temperature coefficient Pmpp:-0.300%/K
Temperature coefficient Uoc:-0.250%/K
Temperature coefficient Isc:0.046%/K
Weight:24 kg
With frame:yes
Colour frame:Black
Colour cells:Blue
With connection cable:yes
Cable length:1200 mm
Number of bypass diodes:3
Operating temperature:+85°C
Reverse current load:30A
Suitable for vertical/overhead glazing:no
Glass with anti-reflection coating:yes
