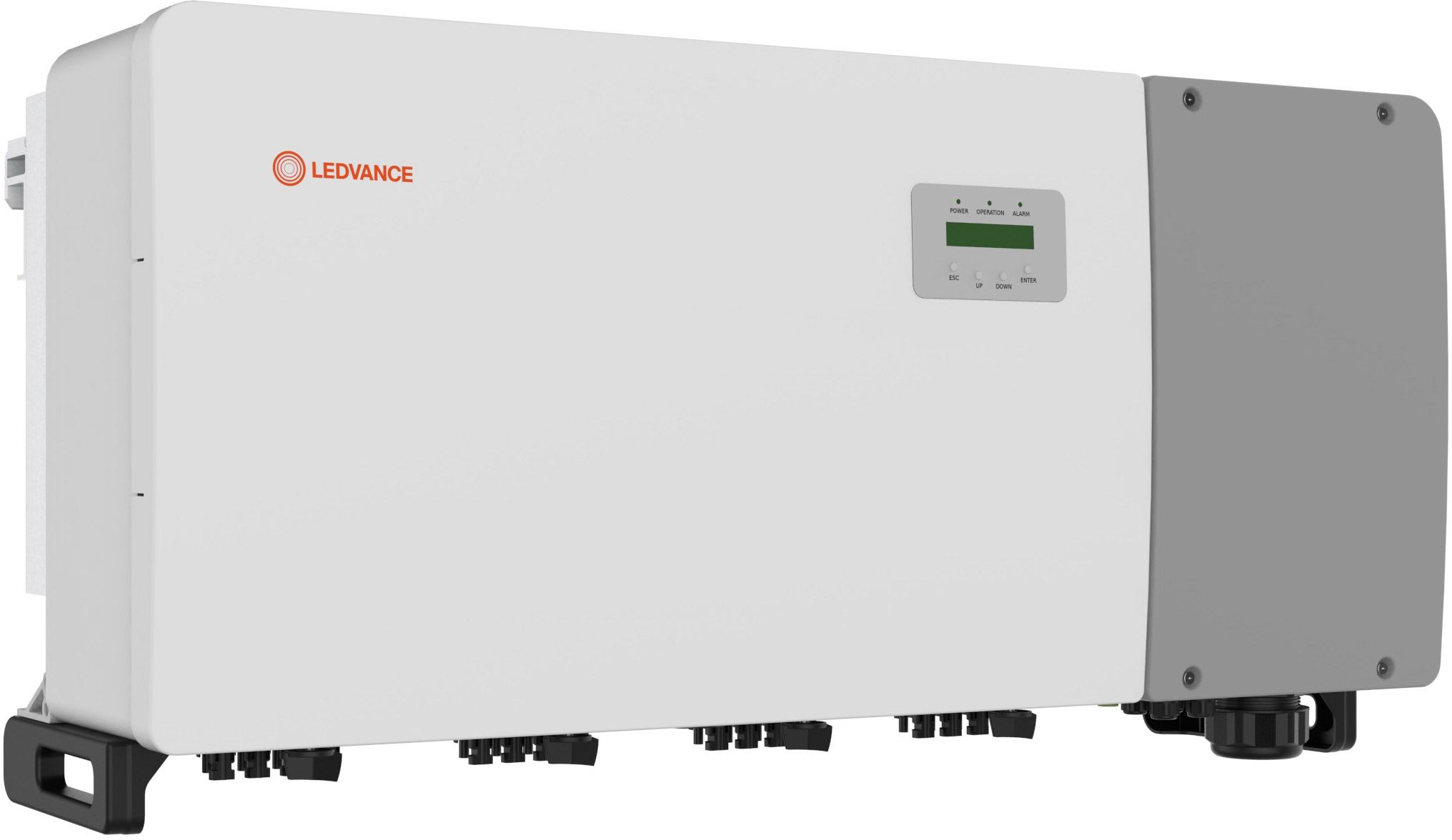

LEDVANCE LT 100K F2-DC-AFCI-PID-WIET
NEW
€7,901.15 *
incl. tax,
plus forwarding agency costs
Bulky goods
Availability:
Delivery time: approx. 2-3 weeks
Delivery time: approx. 2-3 weeks
Bulky goods
Item number: 101419455
EAN: 4099854168024
MPN: 4099854168024
NEW
LEDVANCE LT 100K F2-DC-AFCI-PID-WIET product advantages 10-year product warranty Built-in... more
All information about the product:
"LEDVANCE LT 100K F2-DC-AFCI-PID-WIET"
LEDVANCE LT 100K F2-DC-AFCI-PID-WIET
product advantages
Technical data:- 10-year product warranty
- Built-in LCD display
- Wide voltage range and low switch-on voltage
- AFCI protection, proactively reduces fire risk
- Versions with PID available
- Level II surge protection on AC and DC side
- Technology for automatic voltage stabilization in poor network conditions
- Easy installation
- Commercial and industrial facilities
- open space facility
- Intelligent fan cooling
- Integrated DC switch
- Protection class: IP66
- Original Stäubli MC4 connectors
- Carrying handle included
- Data loggers include
- Delivery with user manual
- Additional DC connections for the inverter sockets
- Fastening screws included
- For warranty information, please visit www.ledvance.de/garantie.
| Length: | 585 mm |
| Width: | 363 mm |
| Height: | 585 mm |
| Weight: | 77000 g |
| Nominal voltage: | 600 V |
| Protection class: | IP66 |
| Max. input power DC: | 150000 W |
| Max. input voltage DC: | 600V |
| Max. input current DC: | 40A |
| Max. input current DC per MPP tracker: | 40A |
| Max. input current DC per string input: | 20A |
| Rated MPP-voltage: | 1000V |
| Voltage type (supply voltage): | AC |
| Nominal output power AC: | 100000 W |
| Max. short circuit current per MPPT: | 50A |
| Number of independent MPPT inputs: | 8 |
| Max. efficiency: | 98.50% |
| European efficiency: | 98.00% |
| With transformer: | no |
| Output phases: | 3-phase |
| Integrated DC switch: | yes |
| With data logging: | yes |
| Display: | Standard |
| Ethernet: | yes |
| Wireless: | yes |
| Built-in battery: | no |
| Suitable for emergency power: | no |
| Suitable for outdoor mounting: | no |
| Weight: | 77 kg |
