LEDVANCE BIOLUX HCL CONTROL UNIT S ZB
NEW
€873.89 *
Availability:
Delivery time: approx. 2-3 weeks
Delivery time: approx. 2-3 weeks
Item number: 101416625
EAN: 4058075724624
MPN: 4058075724624
NEW
LEDVANCE BIOLUX HCL CONTROL UNIT S ZB product advantages Quick and easy installation of the... more
All information about the product:
"LEDVANCE BIOLUX HCL CONTROL UNIT S ZB"
LEDVANCE BIOLUX HCL CONTROL UNIT S ZB
product advantages
Technical data:- Quick and easy installation of the BIOLUX HCL lighting system (BIOLUX HCL CONTROL UNIT in combination with BIOLUX HCL luminaire(s) / BIOLUX HCL LED strips / VIVARES motion sensor) thanks to wireless Zigbee 3.0 technology.
- Automated commissioning and setup via the LEDVANCE BIOLUX app, no programming, registration, or cloud required
- Intuitive control of BIOLUX HCL luminaires / BIOLUX HCL LED strips via the control unit
- Easy selection of the right lighting scenes for different work situations
- Orientation light in the control unit when the lights are switched off
- 5-year BIOLUX HCL system warranty when used in a BIOLUX HCL system (BIOLUX HCL CONTROL UNIT in combination with BIOLUX HCL lamp(s) / BIOLUX HCL LED strips / VIVARES motion sensor)
- Lighting solution for up to 48 BIOLUX HCL products (luminaires / LED strips / VIVARES motion sensor)
- Meeting and conference rooms
- Hotel and office spaces with little daylight
- Retirement and nursing homes
- hospitals
- High-quality product designed by LEDVANCE

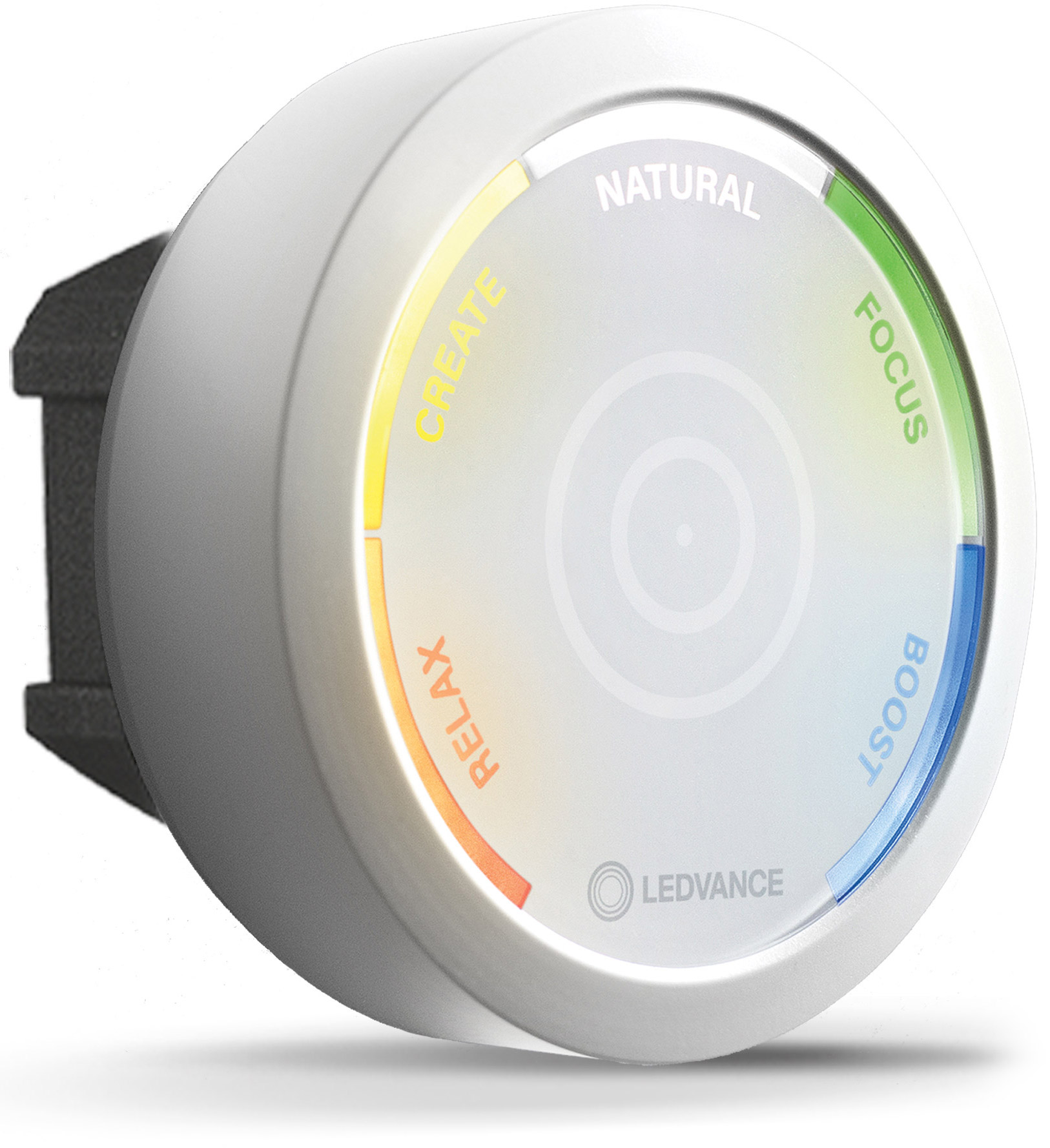

- 6 pre-programmed lighting scenes can be selected intuitively: RELAX, CREATE, NATURAL, FOCUS, BOOST, and ON/OFF
- Selected lighting scene is shown on the control unit display
- Schedule function in the BIOLUX app for individual date and time settings for the 6 light scenes for automated operation
- Switching the light on and off using the control unit and/or optional VIVARES motion sensor
- BIOLUX app with installation instructions and FAQ information for quick help during installation

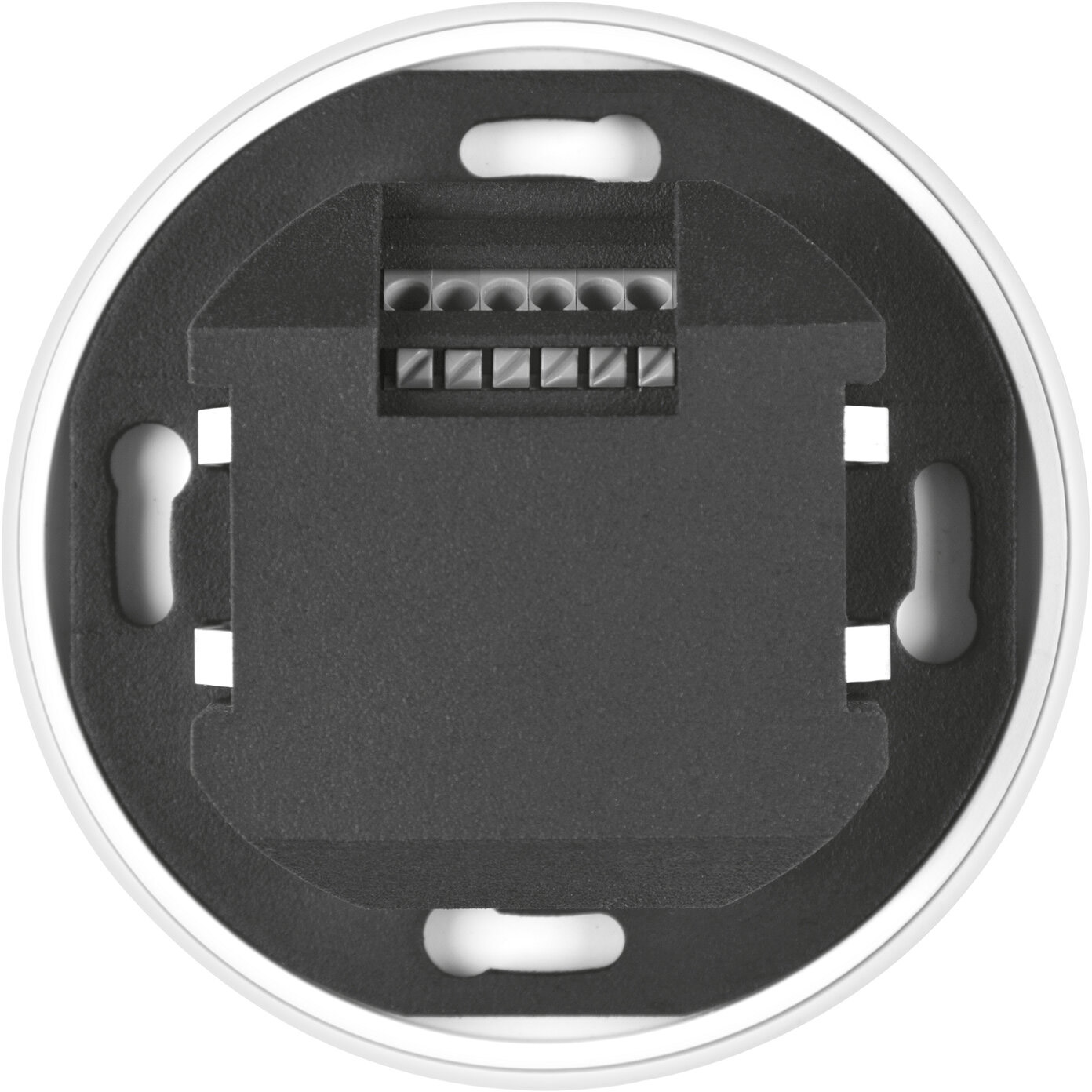

- Installation in standard flush-mounted boxes that are also used for light switches and sockets
- LEDVANCE BIOLUX app for commissioning (startup) and for additional functions: schedule / sensor setting / NATURAL function test required (available for Android and iOS)
- Use of the LEDVANCE BIOLUX app is subject exclusively to the LEDVANCE BIOLUX app terms of use, which are displayed when the app is installed and are available in the app.
- Important operating information and disclaimer: This product is intended exclusively for use in a BIOLUX HCL system (BIOLUX HCL CONTROL UNIT in conjunction with BIOLUX HCL luminaire(s), LED strips and VIVARES motion sensor, including integrated or supplied firmware/software). LEDVANCE GmbH accepts no responsibility, liability, warranty, or guarantee for the operation of the product in combination or connection with third-party products or other products that are not BIOLUX HCL system products.
- Important operating instruction: The BIOLUX HCL CONTROL UNIT must not be rotated more than 7,200° (equivalent to 20 complete 360° rotations) per day in or against the direction of clockwise rotation, taking all operating procedures into account.
- For warranty information, please visit www.ledvance.de/garantie.
- For reference projects, see https://www.ledvance.de/professional/lichtloesungen/beleuchtungsprojekte
| Length: | 54 mm |
| Height: | 54 mm |
| Diameter: | 84 mm |
| Weight: | 226 g |
| Nominal voltage: | 240 V |
| Nominal power: | 1 W |
| Energy consumption: | 1 kWh/1000 |
| Dimmable: | No |
| Protection class: | IP20 |
| Material: | Polycarbonate|Methacrylate butadiene styrol|Polymethylmethacrylat |
| Type of power supply: | AC |
| Operation by Bluetooth: | no |
| IFTTT support available: | yes |
