ISOLED LED CRI930 Linear flex stripe, 24V, 10W, IP20, warm white

€86.47 *
incl. tax, free shipping to Germany
[International shipping costs]
Availability:
Not in stock
Delivery time: approx. 2 weeks
Delivery time: approx. 2 weeks
Item number: 111003310

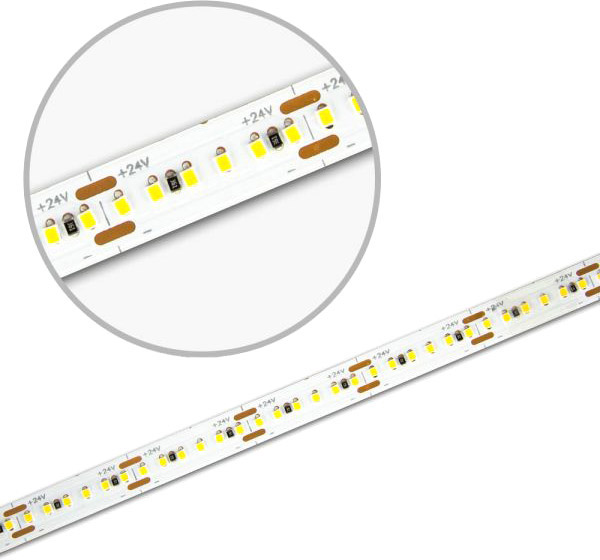

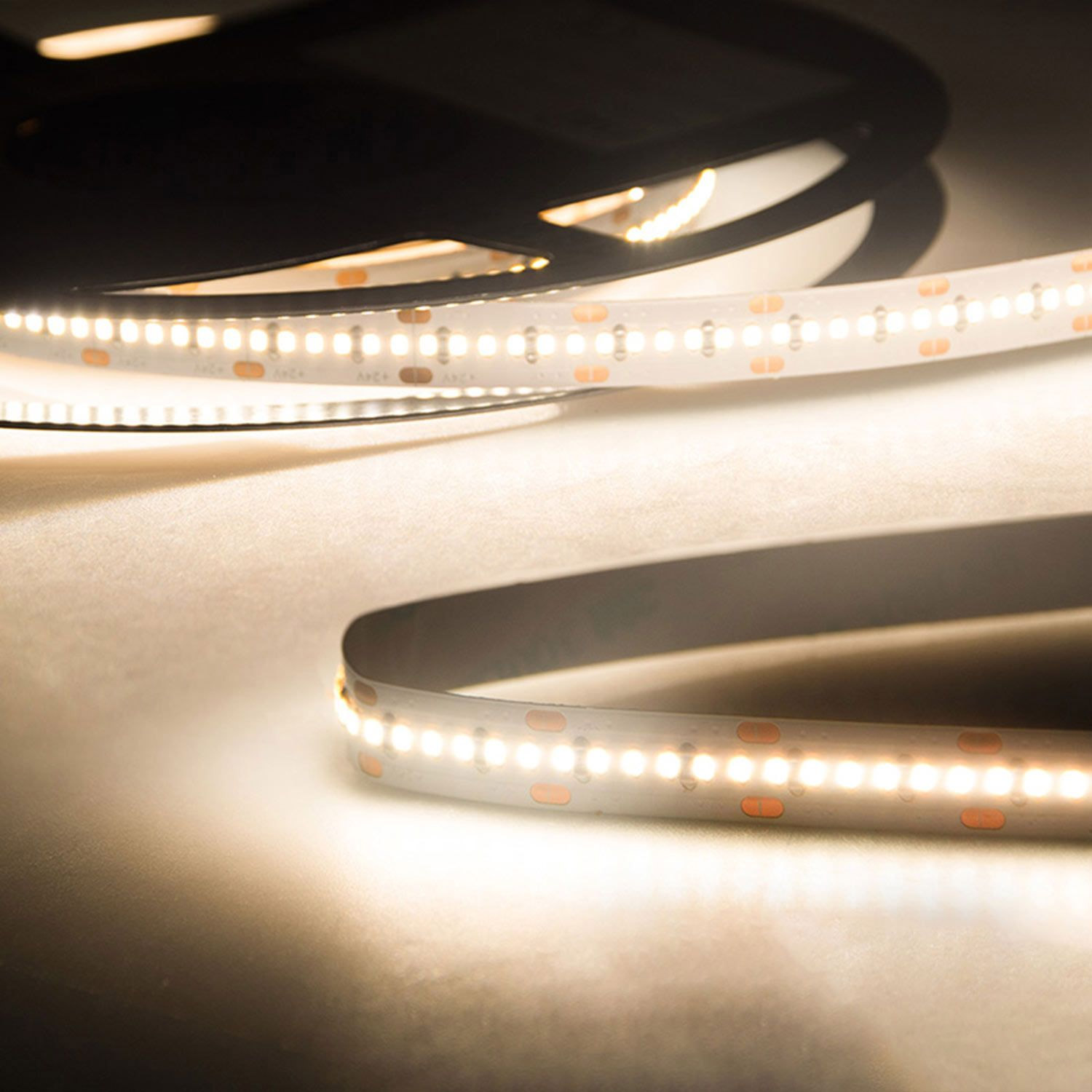

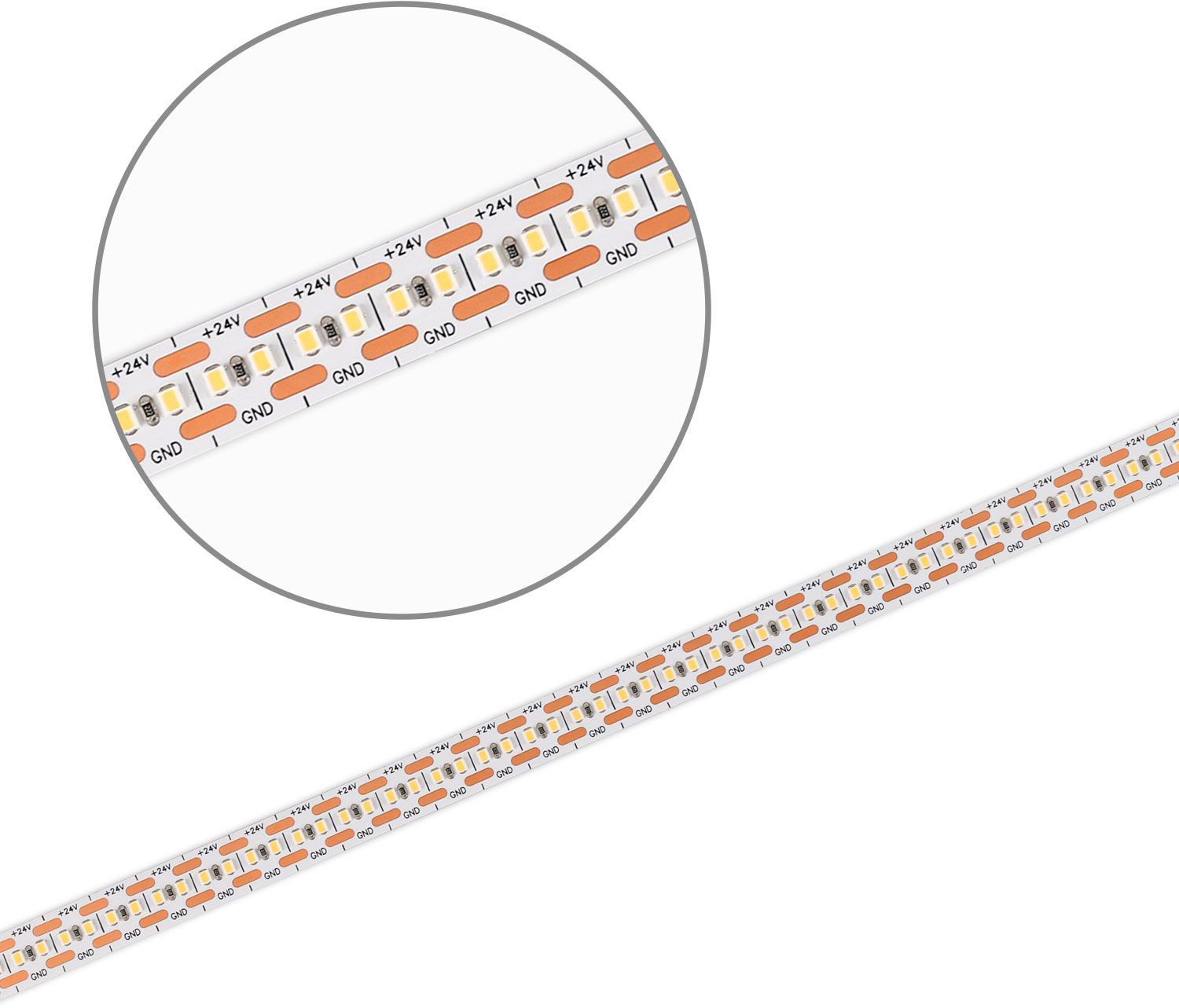

LED CRI930 Linear flex stripe, 24V, 10W, IP20, warm white Length: 5000mm Width: 10mm... more
All information about the product:
"ISOLED LED CRI930 Linear flex stripe, 24V, 10W, IP20, warm white"
LED CRI930 Linear flex stripe, 24V, 10W, IP20, warm white

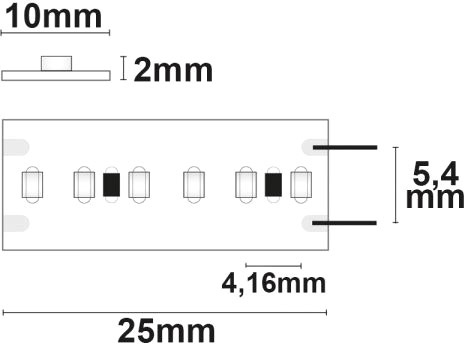

Length:5000mm
Width:10mm
Height:2mm
Net weight:96g
LED type:1200xSMD2115
Nominal voltage:24V DC
Rated power:10 W/m
Colour temperature:3000K

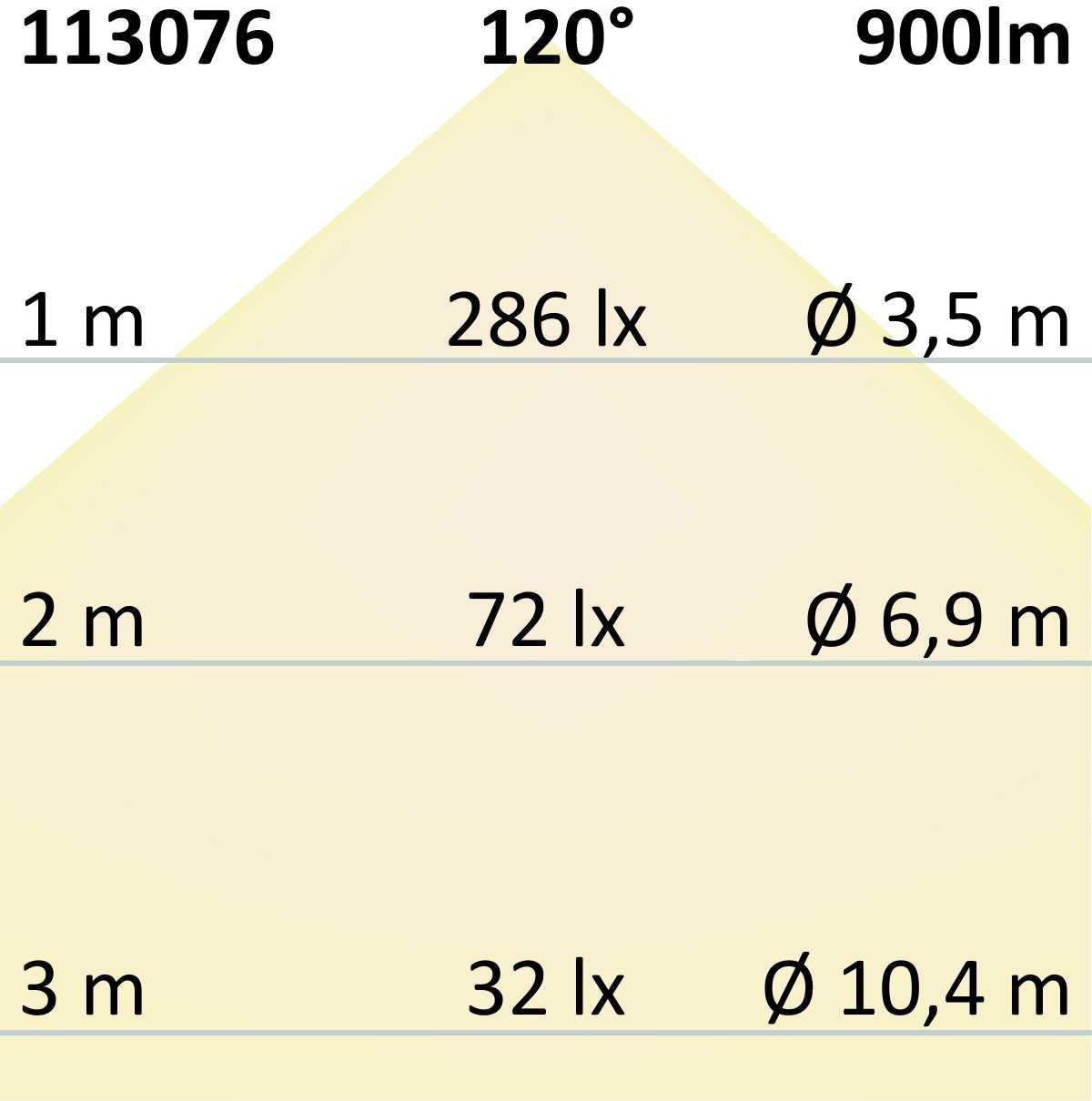

Beam angle:120°
Colour rendering:> 93 CRI
Lifetime:50000h
Switching cycles:30000
Protection class:IP20
Energy efficiency class:A+
Dimmable: Yes
dimmable via voltage drop or pulse-width or pulse frequency modulated DC power supply from a suitable controller/sequencer, dimming actuator or transformer
Material:PCB copper/white
Incl. illuminant:No
Special features:Separation point: 25mm | Pitch (chip center-center): 4.16mm | 1 roll= 5m | Length Tolerance 1% | max. flex belt length per feed-in: 7.5m | Clean and degrease the substrate before gluing! Do not replace again! | Cooling profile required!
Further links
We will be happy to advise you!
You can reach us:
Mon-Fri: 08:00 am – 05:00 pm
You can find answers to frequently asked questions here: Service & help
Including buyer protection
Verified identity
Protection of personal data
Learn more about us! Take a look behind the scenes at the LTT Group for an insight into our company.
Downloads for the product:
"ISOLED LED CRI930 Linear flex stripe, 24V, 10W, IP20, warm white"
Document type File size
EPREL-Product data sheet
(0.25 MB)
0.25 MB
