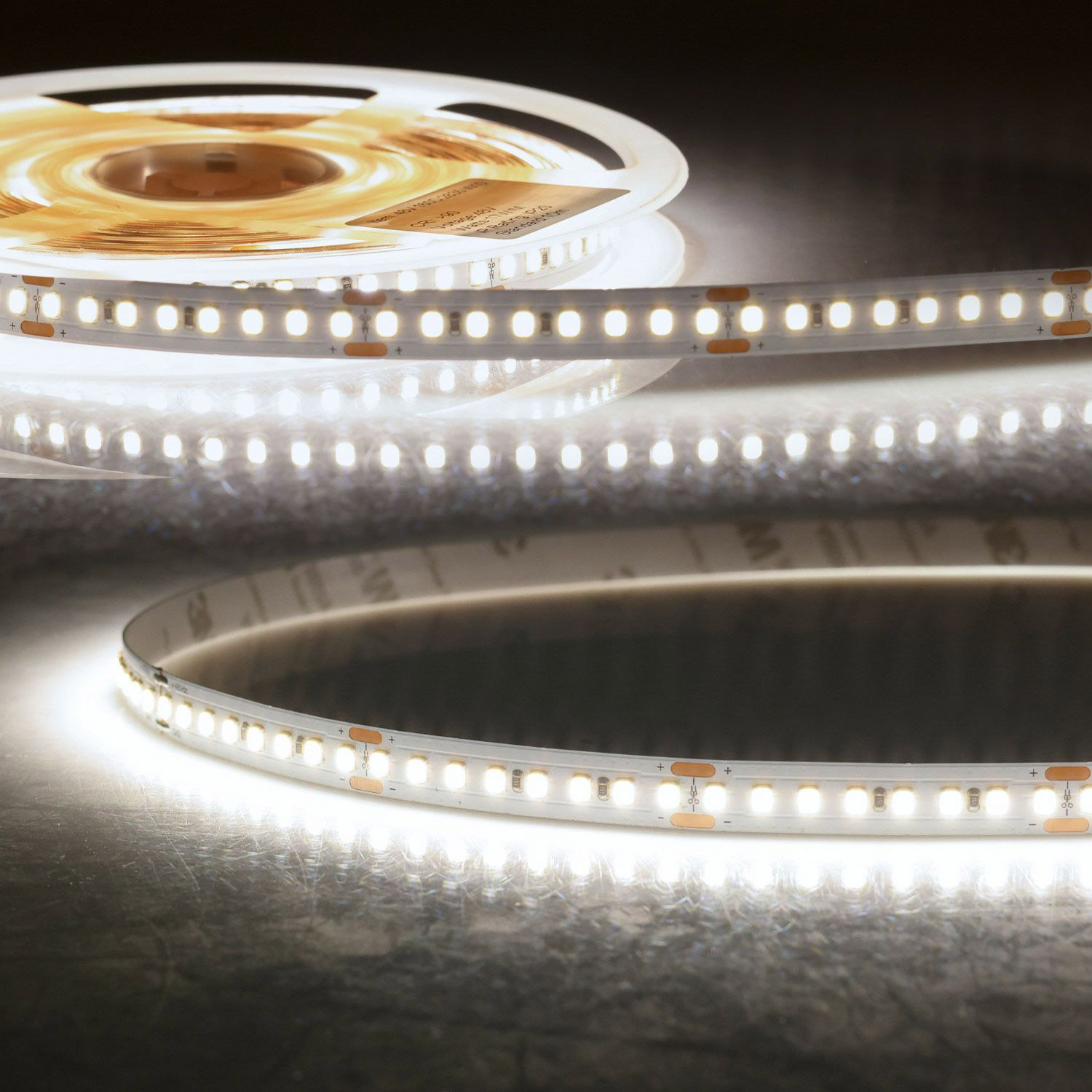

ISOLED LED HEQ940 flex stripe High Bright, 48V DC, 22W, IP20, 4000K, 140lm/W, 5m roll, 240 LED/m

€97.40 *

incl. tax, free shipping to Germany
[International shipping costs]

Availability:

Currently not available.
Expected to be available again in 5 weeks.

Currently not available

Item number: 111016670

EAN: 9009377155338

MPN: 116143

ISOLED LED HEQ940 flex stripe High Bright, 48V DC, 22W, IP20, 4000K, 140lm/W, 5m roll, 240 LED/m... more

All information about the product:

"ISOLED LED HEQ940 flex stripe High Bright, 48V DC, 22W, IP20, 4000K, 140lm/W, 5m roll, 240 LED/m"

ISOLED LED HEQ940 flex stripe High Bright, 48V DC, 22W, IP20, 4000K, 140lm/W, 5m roll, 240 LED/mTechnical data:

Length:	5000 mm
Width:	10 mm
Height:	2 mm
LED type:	SMD2835
Nominal voltage:	48 V
Nominal power:	22 W
Rated power:	22 W
Colour temperature:	4000K

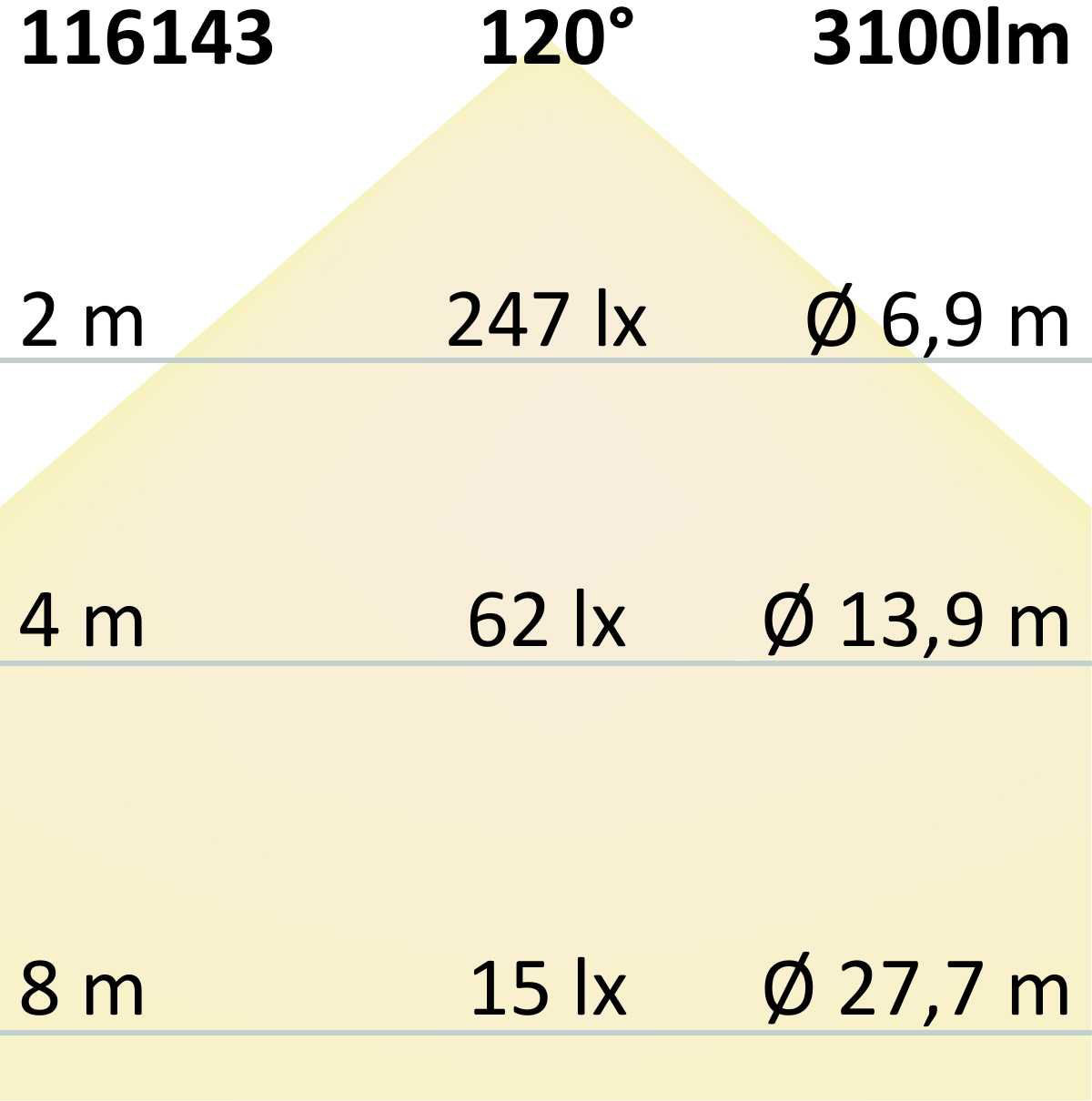

Beam angle:	120°
Luminous flux:	3100 lm
Light intensity:	987 cd
Colour rendering:	90 CRI
Lifetime:	53000 h
Protection class:	IP20
Energy efficiency class:	D
Incl. illuminant:	No
Special features:	Separation point: 33,33mm with 8 SMD each \| Pitch (light point center-center): 4.17mm \| 1 unit (roll) = 5m \| max. flex stripe length per feed: 10m \| length tolerance + thermal expansion: 1% \| required cooling mass min. 280 gr/m \| incl. 3M 300LSE adhesive tape \| Clean and degrease substrate before sticking! Do not peel off again! \| Connectors of the group: C2-210 / K1-210 / K2-210 are suitable\| SPECIAL FEATURE: Connector cable on both sides
