ISOLED LED NEON930 flex stripe Twist+Bend B16H16, 24V DC, 10W, IP67, 2700K, 5m, 140 LEDs/m
€215.88 *
Availability:
Not in stock
Delivery time: approx. 2 weeks
Delivery time: approx. 2 weeks
Delivery time: approx. 2 weeks
Item number: 111021781
EAN: 9009377179952
MPN: 117684
ISOLED LED NEON930 flex stripe Twist+Bend B16H16, 24V DC, 10W, IP67, 2700K, 5m, 140 LEDs/m,... more
All information about the product:
"ISOLED LED NEON930 flex stripe Twist+Bend B16H16, 24V DC, 10W, IP67, 2700K, 5m, 140 LEDs/m"
ISOLED LED NEON930 flex stripe Twist+Bend B16H16, 24V DC, 10W, IP67, 2700K, 5m, 140 LEDs/m, incl.Technical data:
| Length: | 5000 mm |
| Width: | 16 mm |
| Height: | 16 mm |
| Weight: | 1330 g |
| Nominal voltage: | 24 V |
| Nominal power: | 10 W |
| Rated power: | 10 W |
| Colour temperature: | 2700K |
| Beam angle: | 120° |
| Luminous flux: | 500 lm |
| Light intensity: | 159 cd |
| Colour rendering: | 90 CRI |
| Dimmable: | Yes |
| Lifetime: | 38000 h |
| Protection class: | IP67 |
| Energy efficiency class: | G |
| LED type: | SMD2835 |
| Material: | Silicone |
| Indoor and outdoor: | Yes |
| Incl. illuminant: | No |

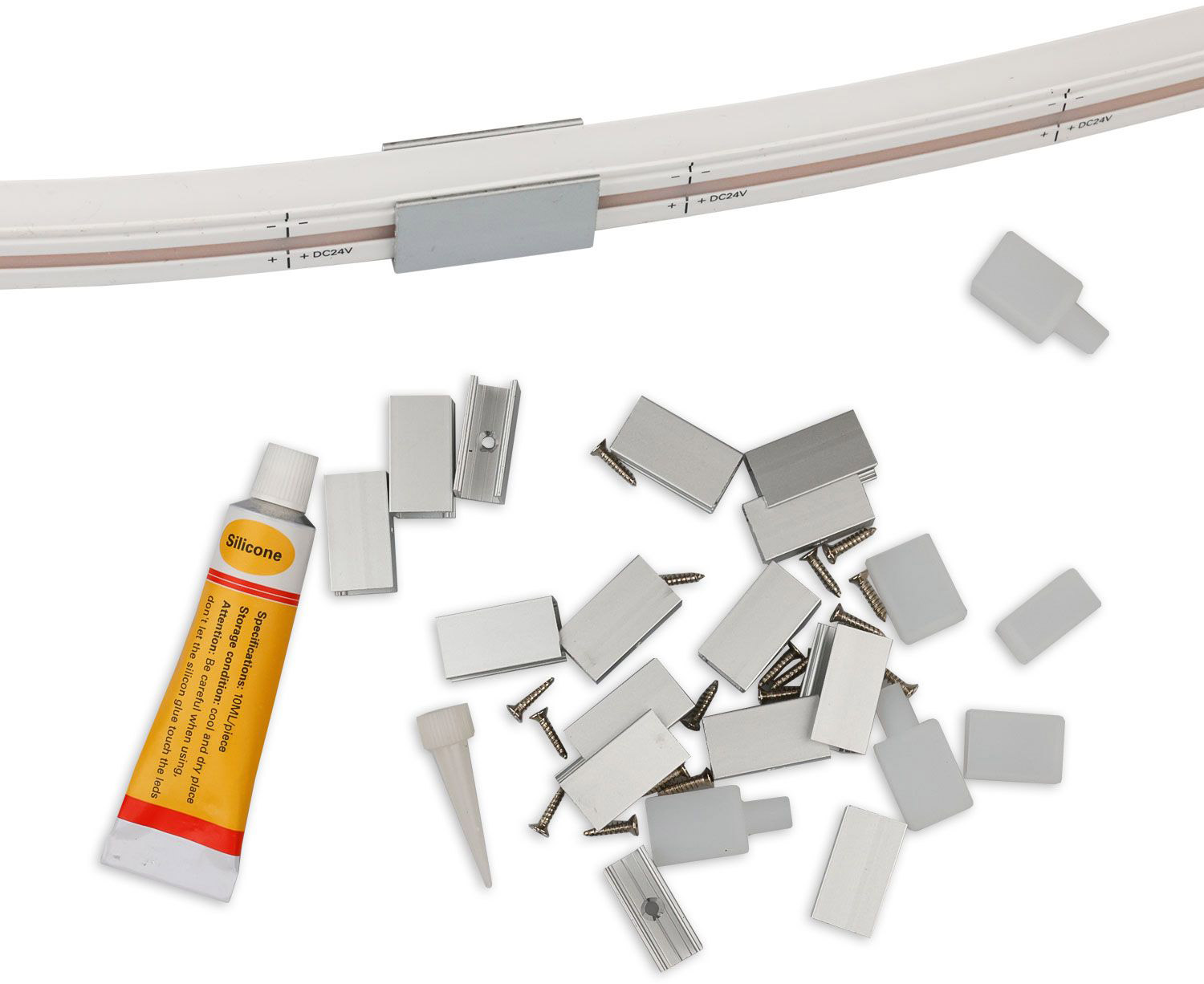

| Special features: | Separation point: 50 mm with 7 SMDs each | Pitch (light point center- center): 7.14 mm | 1 unit (roll) = 5 m | max. flex stripe length per infeed: 5 m | Length tolerance + thermal expansion: 1% | No cooling profile required | No adhesive tape! | Silicone encapsulation | Special feature: 30 cm 2-pole sheathed cable on both sides, white, connection at the front, open stranded wire | NOTE: End caps flush with width and height, can be bent vertically and horizontally (bending radius min. 60 mm) | Flame retardant and flame resistant (IEC 60695-11-5), IK08 (IEC 62262), salt spray resistant (IEC 60068-2-11:2021), UV resistant (ASTM G154-2016) |
