SHOWTEC Spectral PC 1200Z 120 W PC RGBW LED Array Spot - IP65

The Showtec Spectral series offers reliable and durable spots that meet the high quality and functionalities required by festivals and fixed venues. All Spectral spots offer high output, accurate colour temperature, silent operation and a sturdy, compact design. The Spectral fixtures differ greatly in properties, from a Warm White LED Spot with a fixed beam angle to an RGBW LED Spot with a wide motorised beam angle and 2-section control. That is why you will probably see them at every festival!

Some Spectral luminaires are intended for indoor locations while other models are built with an IP65 rating, suitable for outdoor use. Thanks to a dimmer and strobe function, most Spectral luminaires are ideal for colour-mixing on stage, from punchy to white and pastel colours. A suitable solution can be devised for every setting.

Each projector offers multiple control options and is equipped with optional accessories to expand and improve functionalities. Contact us now for free advice and receive an offer you cannot refuse or check out our product pages for more information.

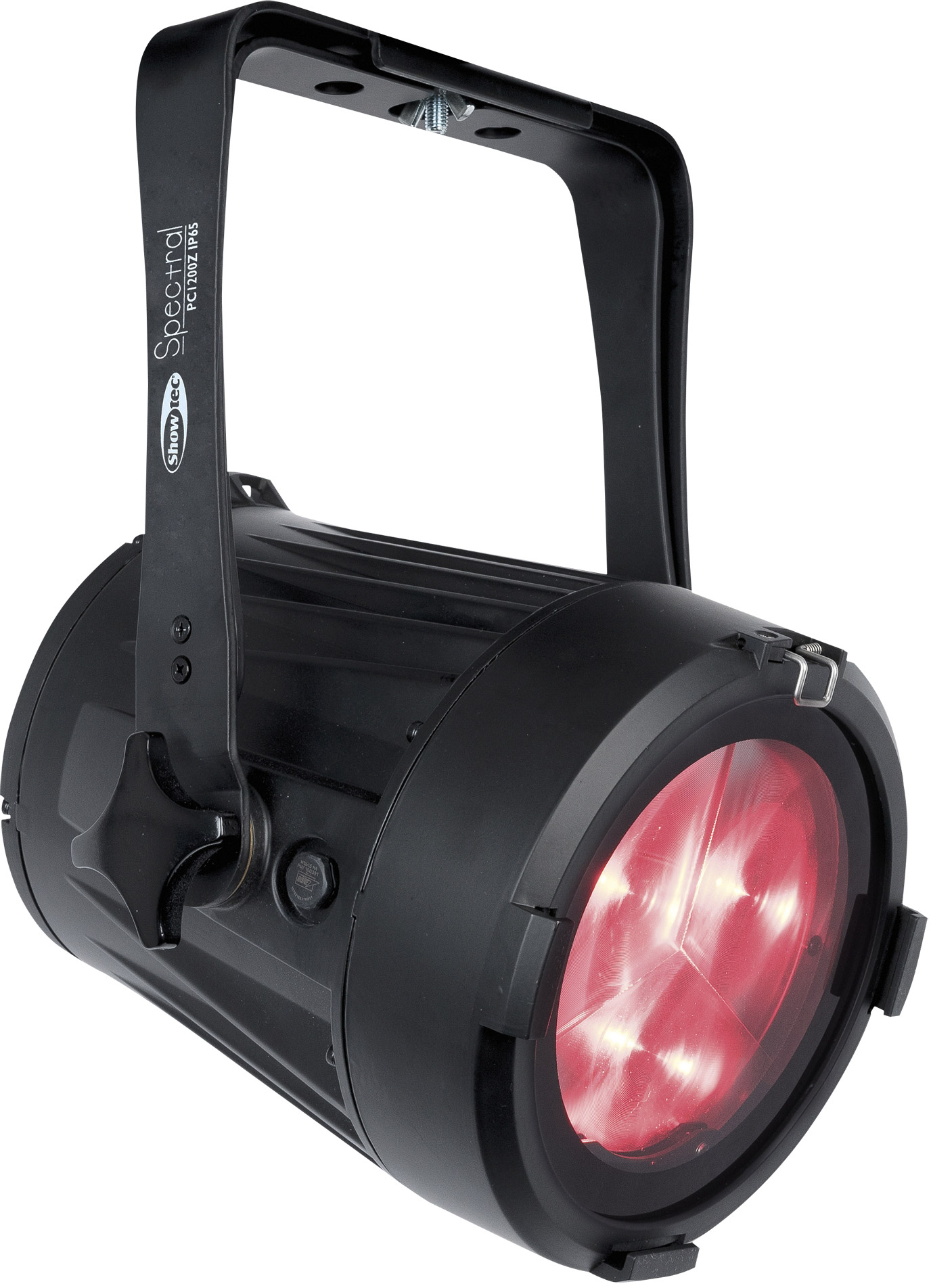

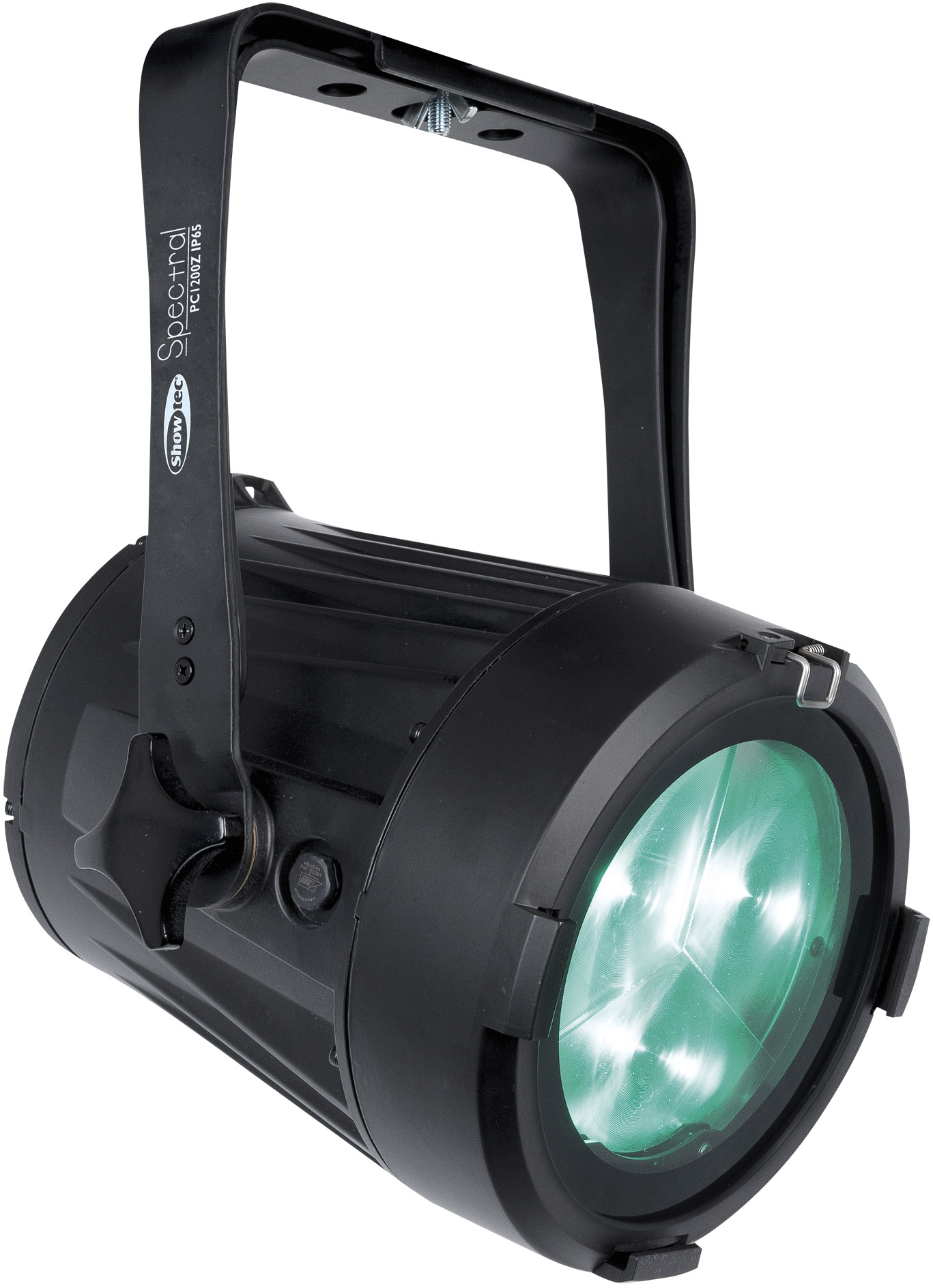

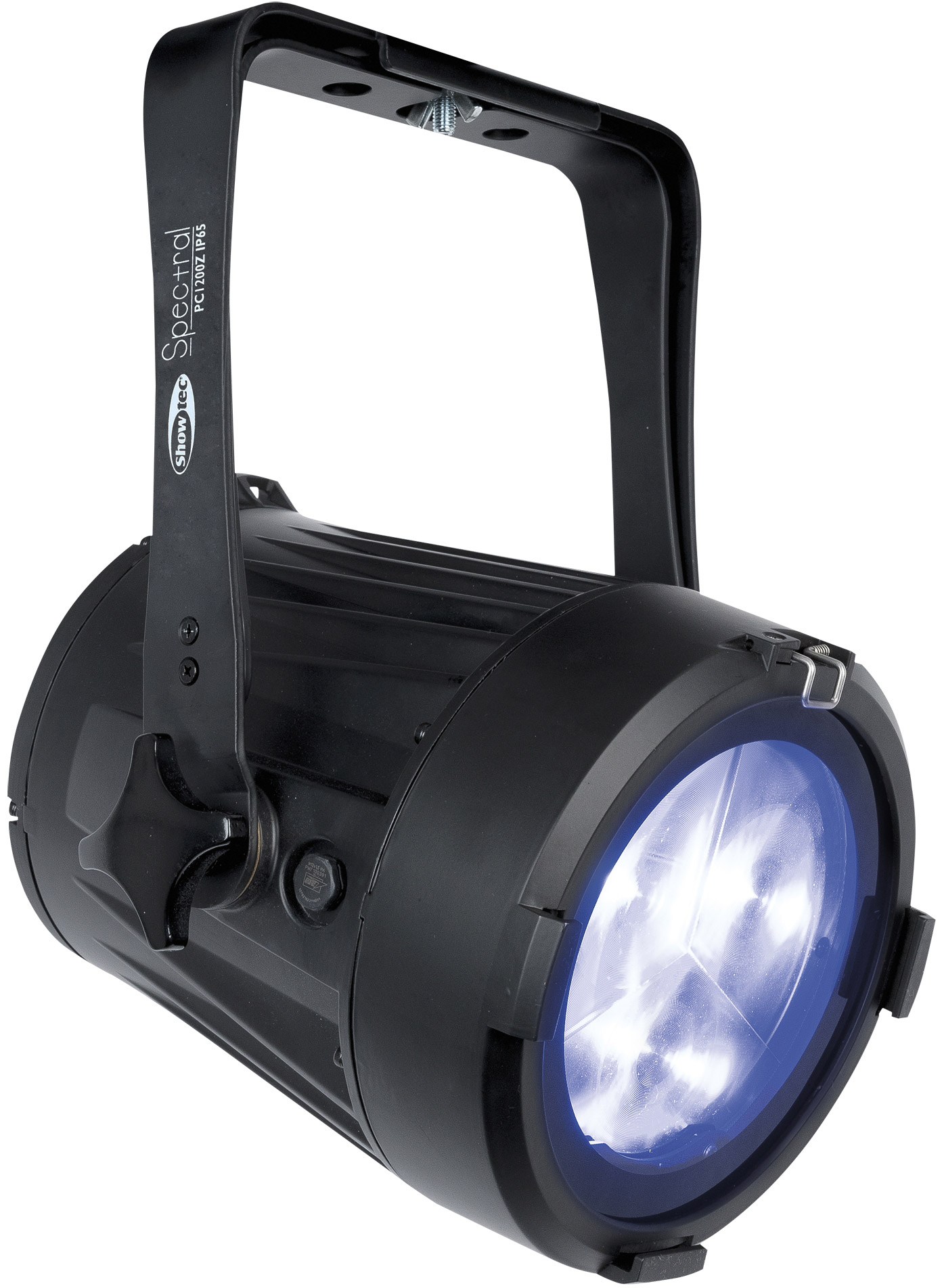

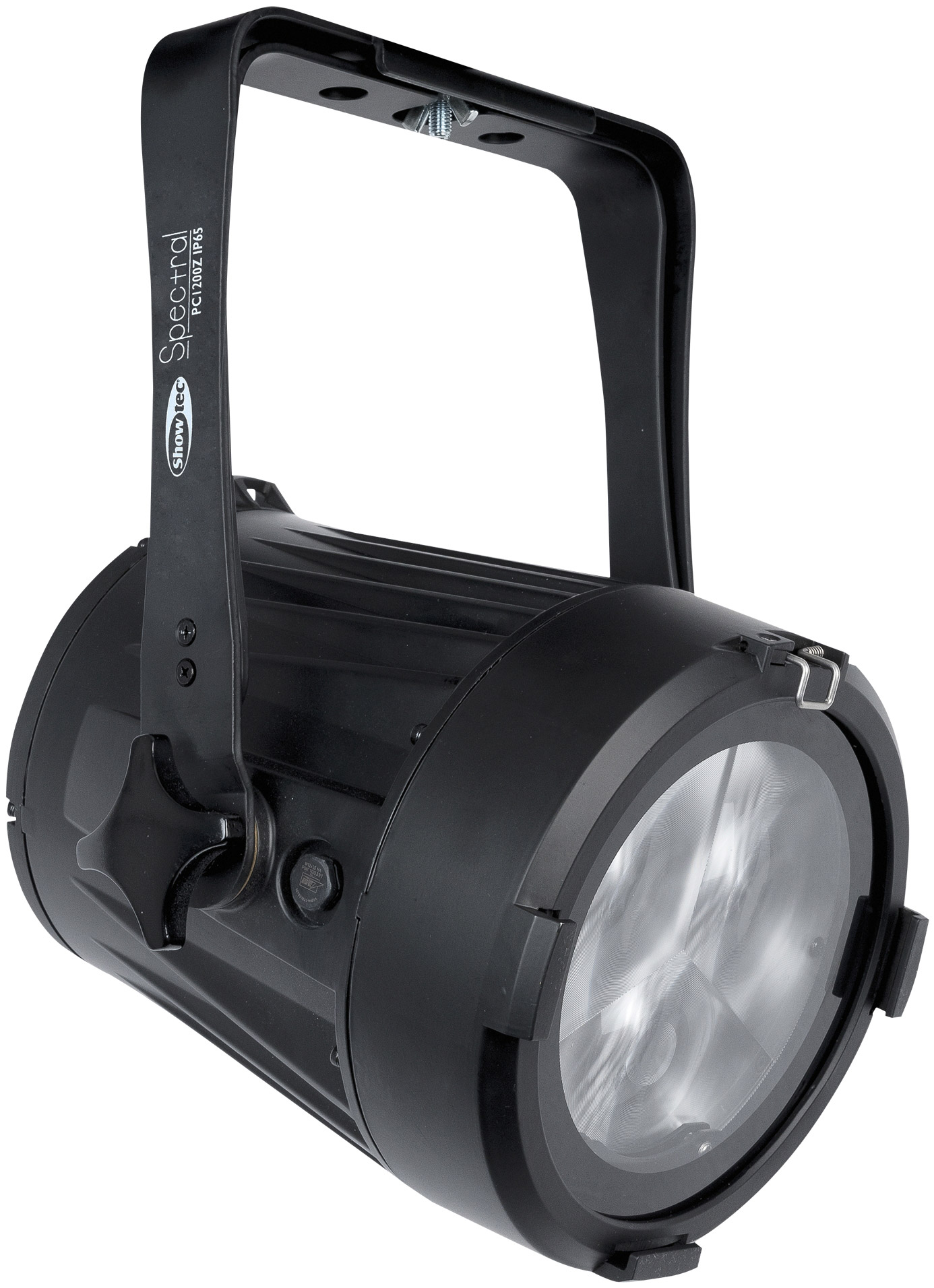

The Showtec Spectral PC 1200Z is a 120 watt RGBW LED Array spot to wash Parcan with a fast and wide 4.5° - 36° motorised zoom range, suitable for in- and outdoor applications. Each function, including its 0 - 100 % dimmer, 0 - 25 Hz strobe and colour mixing engine, is controllable via DMX and Master/Slave in either Manual and Auto run mode. The compact and lightweight 7.5 kg design, with IP65 rating and -10~40 °C operating temperature range, makes the Spectral PC 1200Z fit for almost any environment.Technical data:

Light Source Type:	LED
Light Source Quantity:	1
Light Source Power:	120 W
LED Colour Type:	RGBW
Drive Current:	2.5 A
Refresh Rate (Max.):	25000 kHz
Luminous Flux (Total):	1693 lm
Luminous Flux (Red):	351 lm
Luminous Flux (Green):	524 lm
Luminous Flux (Blue):	200 lm
Luminous Flux (White):	853 lm
Minimum CCT:	2700 K
Maximum CCT:	10000 K
Beam Angle Minimum (Circular):	4.5°
Beam Angle Maximum (Circular):	36°
Zoom Type:	Motorised
Zoom Ratio:	1:10
Zoom Minimum:	4.5°
Zoom Maximum:	36°
Control Mode:	Auto / Built-in Program / DMX / Manual
DMX Channels:	9 / 12 / 17
Protocols:	DMX / RDM
Display:	LCD
Dimmer:	0-100 %
Strobe:	0-25 Hz
Power Supply:	100-240 V AC 50/60 Hz
Power Consumption:	130 W

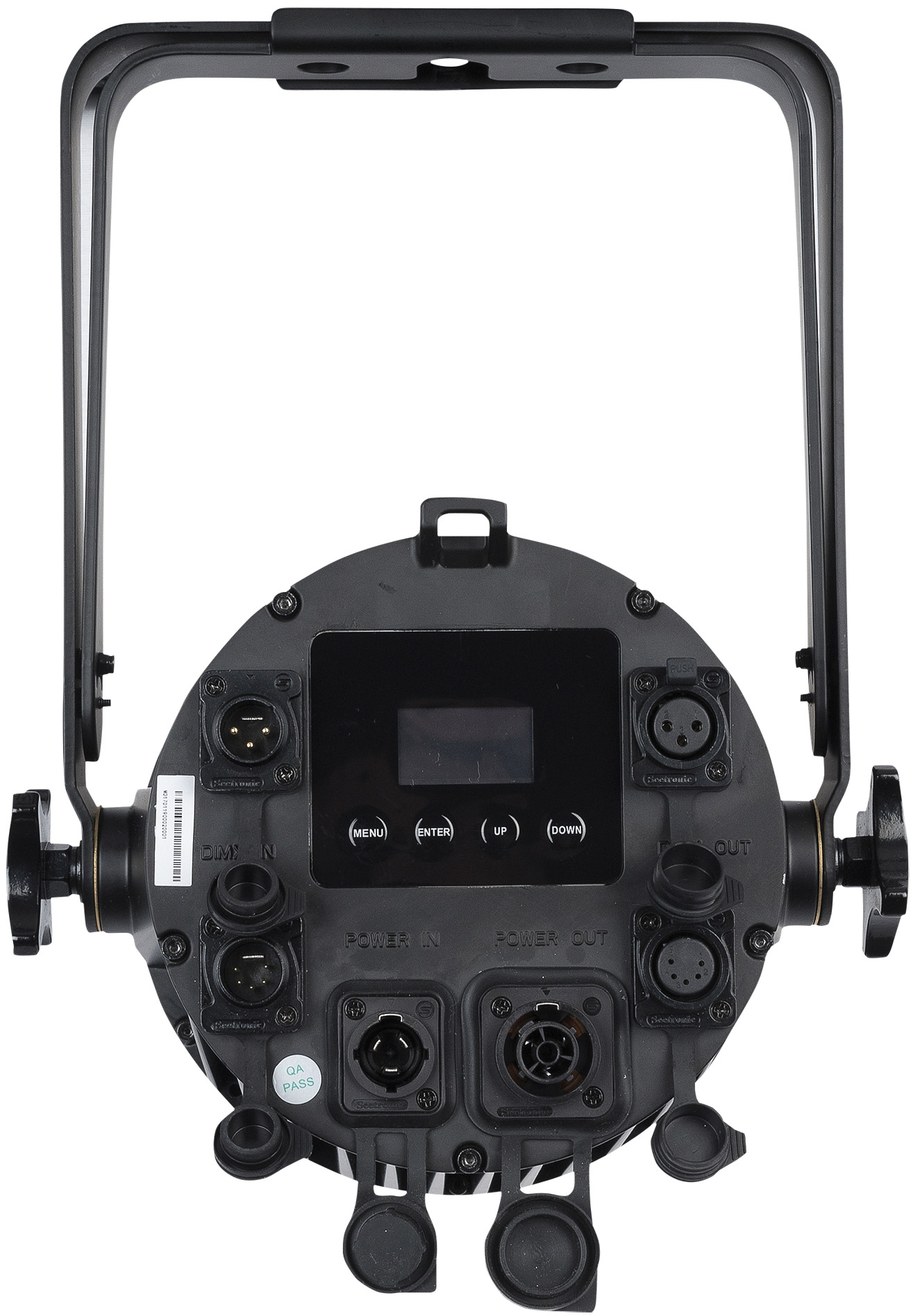

Power Connector In:	powerCON TRUE1
Power Connector Out:	powerCON TRUE1
DMX Connector:	Dedicated 3P IP65 In/Out / Dedicated 5P IP65 In/Out
DMX Connector In:	Dedicated 3P IP65 / Dedicated 5P IP65
DMX Connector Out:	Dedicated 3P IP65 / Dedicated 5P IP65
Cable Length:	1.5 m
Length (mm):	265 mm
Width (mm):	200 mm
Height (mm):	385 mm
Weight:	7.3 kg
IP Rating:	IP65
Housing:	Aluminium die-cast
Colour:	Black
Cooling:	Convection
Mounting Options:	Clamp / Surface
Safety Attachment:	Yes
Maximum Ambient Temperature:	45 °C
Minimum Operating Temperature:	-10 °C
Included Cables:	powerCON TRUE1 cable
Included Rigging:	Bracket / Safety Cable
