SHOWTEC Spectral M800 Q4 IP65 14x 5 W RGBW LED Spot - IP65

The Showtec Spectral series offers reliable and durable spots that meet the high quality and functionalities required by festivals and fixed venues. All Spectral spots offer high output, accurate colour temperature, silent operation and a sturdy, compact design. The Spectral fixtures differ greatly in properties, from a Warm White LED Spot with a fixed beam angle to an RGBW LED Spot with a wide motorised beam angle and 2-section control. That is why you will probably see them at every festival!

Some Spectral luminaires are intended for indoor locations while other models are built with an IP65 rating, suitable for outdoor use. Thanks to a dimmer and strobe function, most Spectral luminaires are ideal for colour-mixing on stage, from punchy to white and pastel colours. A suitable solution can be devised for every setting.

Each projector offers multiple control options and is equipped with optional accessories to expand and improve functionalities. Contact us now for free advice and receive an offer you cannot refuse or check out our product pages for more information.

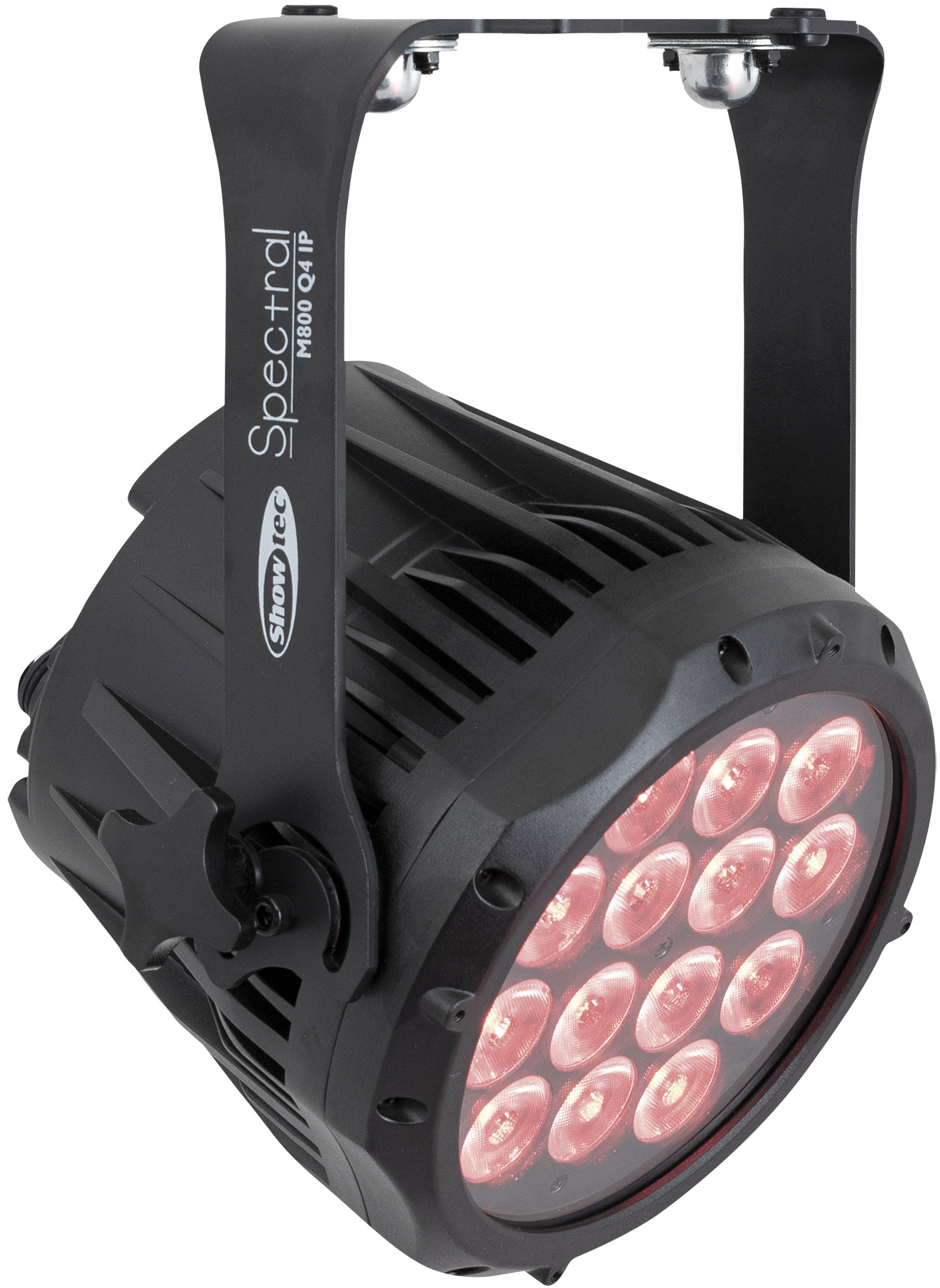

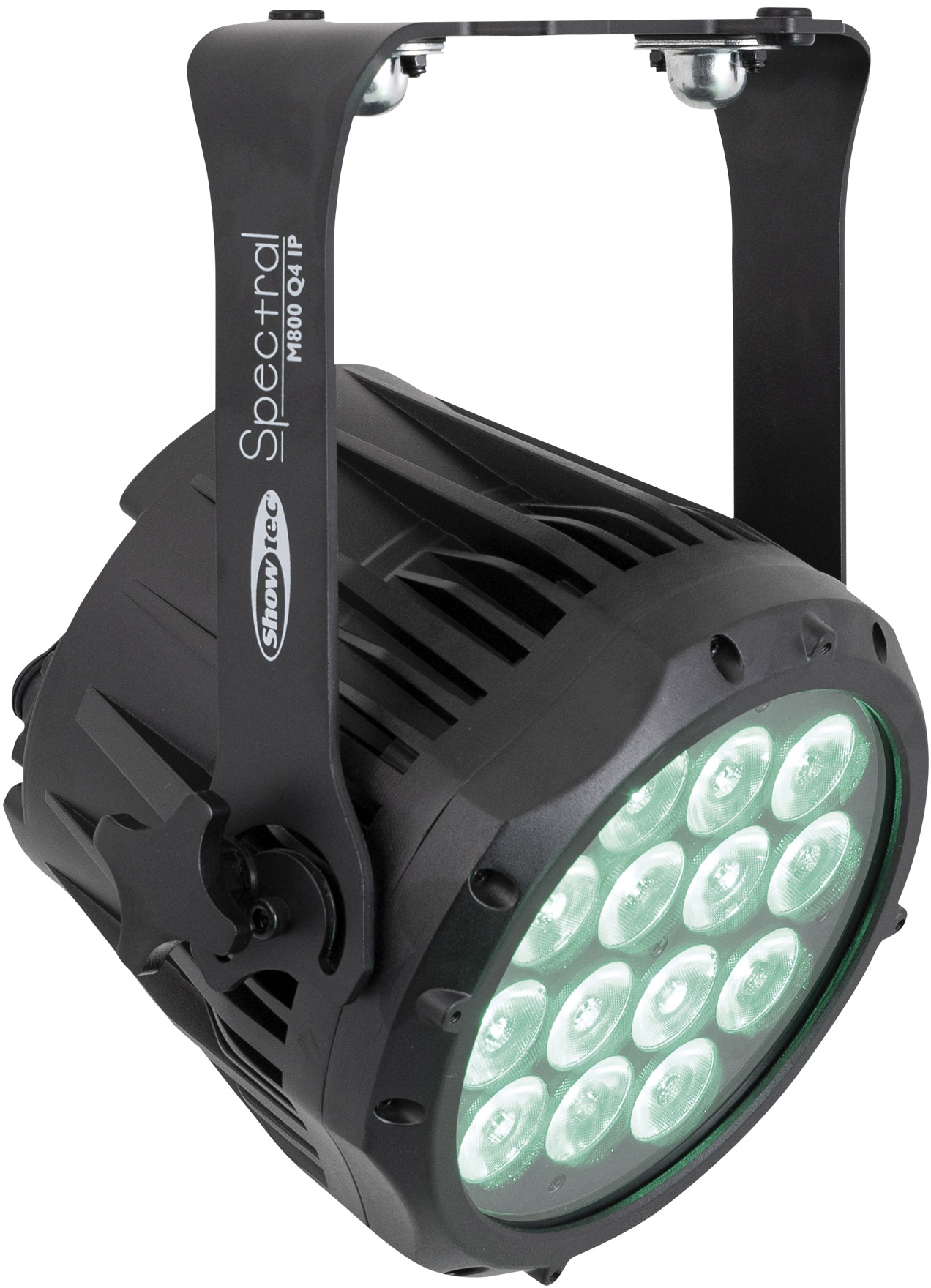

The Showtec Spectral M800 Q4 IP65 is a solid and reliable 14x 5 watt RGBW LED Spot suitable for outdoor venues. Each function and effect, including its 0 - 100 % dimmer, 0 - 20 Hz strobe function and colour mixing engine, is controllable via DMX and Master/Slave in either Manual and Auto run mode. The Spectral M800 Q4 IP65 projects a bright, soft field of coloured light with a 16° fixed beam angle. Its silent, fanless operation and strong 4.8 kg design makes it a very popular Spot, added at almost every lightshow and at any event or festival in Europe.Technical data:

Light Source Type:	LED
Light Source Quantity:	14
Light Source Power:	5 W
LED Colour Type:	RGBW
Refresh Rate (Max.):	25 kHz
Illuminance @ 2 m:	8047 lx
Illuminance @ 3 m:	3576 lx
Illuminance @ 5 m:	1288 lx
Luminous Flux (Total):	2638 lm
CRI:	70
Beam Angle (Circular):	16°

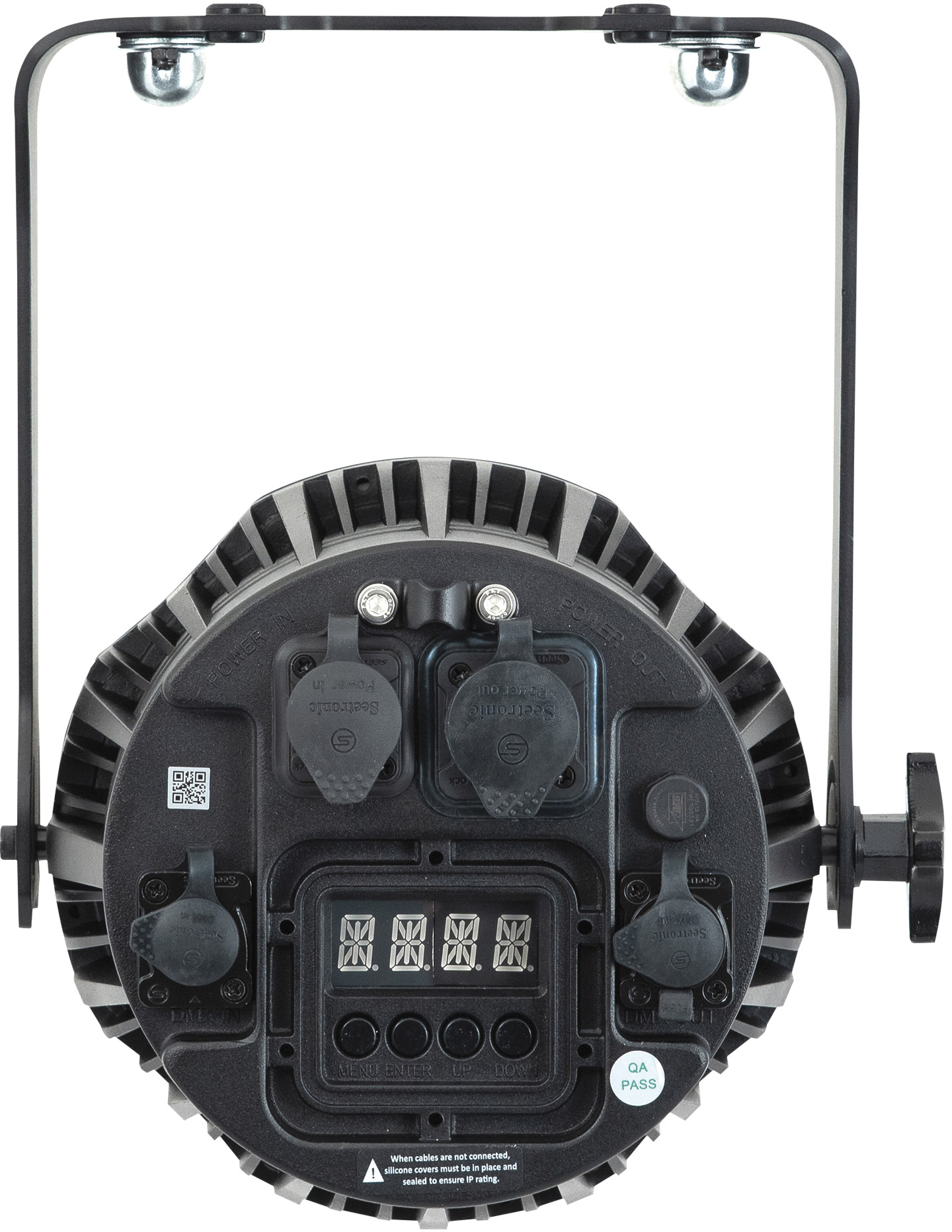

Control Mode:	Auto / Built-in Program / DMX / Manual / Master Slave
DMX Channels:	4 / 5 / 6 / 7 / 9 / 10 / 13 / 15
Protocols:	DMX / RDM
Display:	7-segment
Dimmer:	0-100 %
Strobe:	0-20 Hz
Power Supply:	100-240 V AC 50/60 Hz
Power Consumption:	65 W
Power Connector In:	powerCON TRUE1
Power Connector Out:	powerCON TRUE1
DMX Connector:	Dedicated 3P IP65 In/Out
DMX Connector In:	Dedicated 3P IP65
DMX Connector Out:	Dedicated 3P IP65
Cable Length:	1.5 m
Length (mm):	180 mm
Width (mm):	235 mm
Height (mm):	320 mm
Weight:	5.2 kg
IP Rating:	IP65
Housing:	Aluminium die-cast
Colour:	Black
Cooling:	Convection
Thread:	M12
Mounting Options:	Clamp / Surface
Safety Attachment:	Yes
Maximum Ambient Temperature:	40 °C
Minimum Operating Temperature:	-10 °C
Included Cables:	powerCON TRUE1 cable
Included Rigging:	Bracket / Safety Cable
