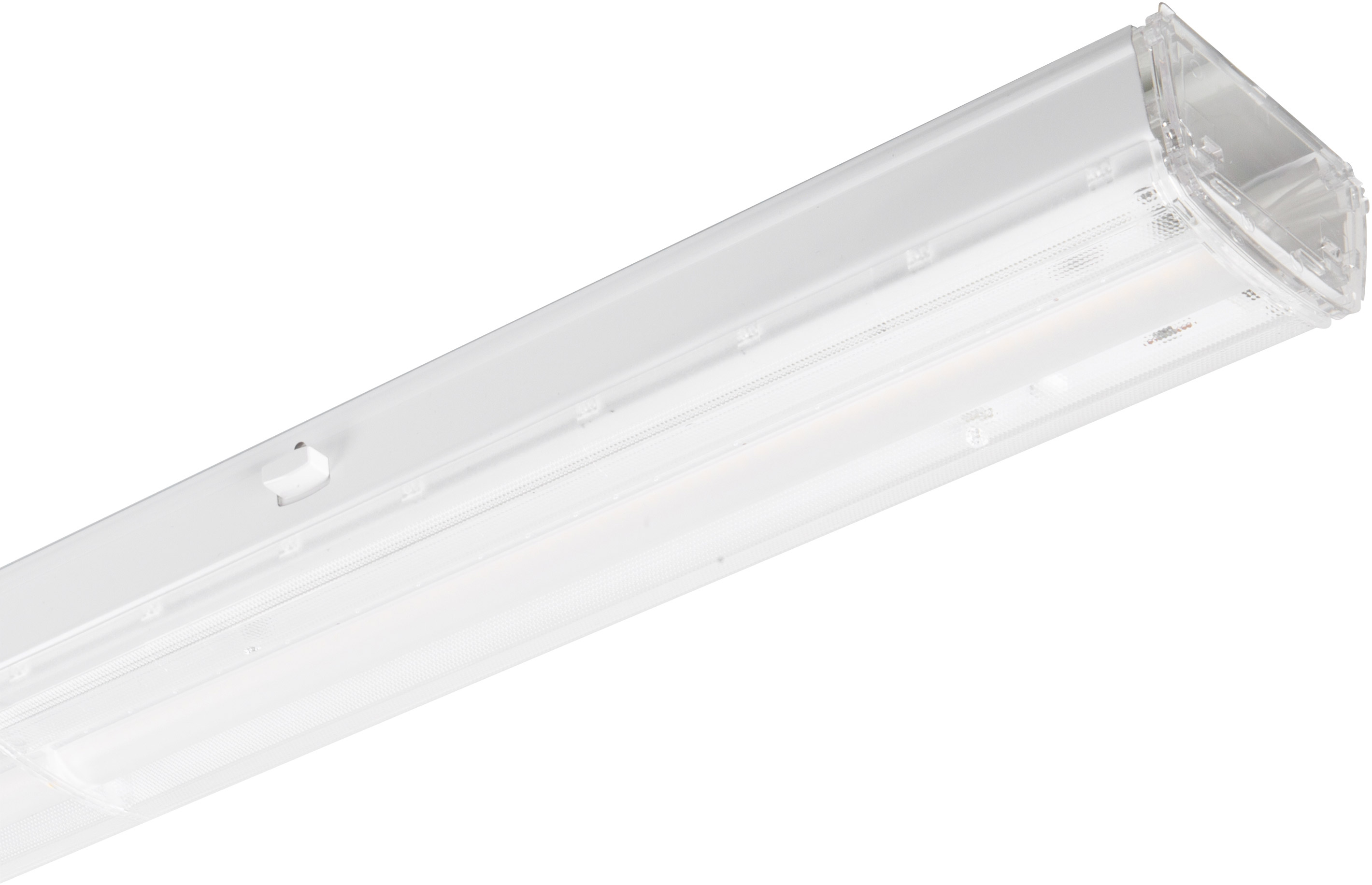

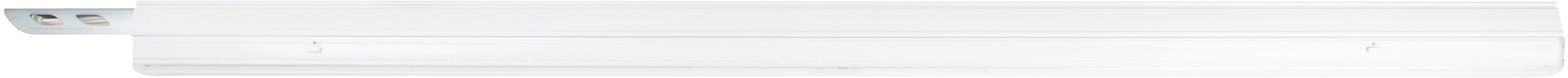

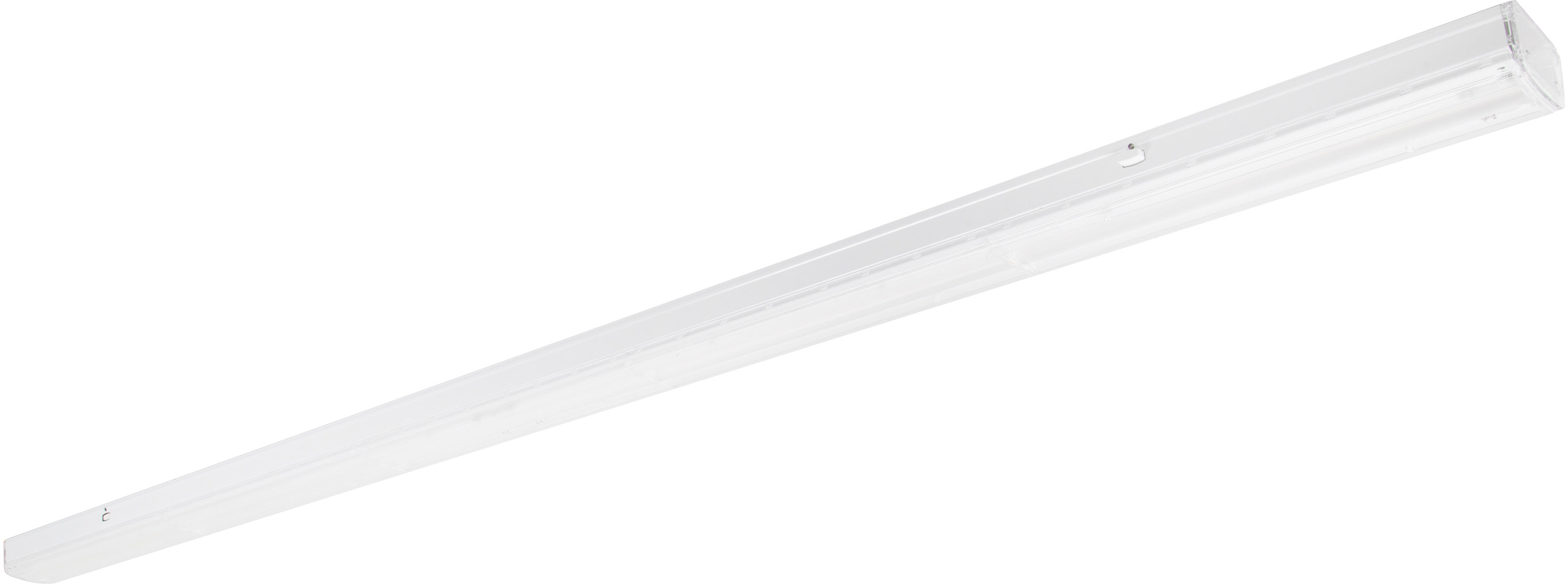

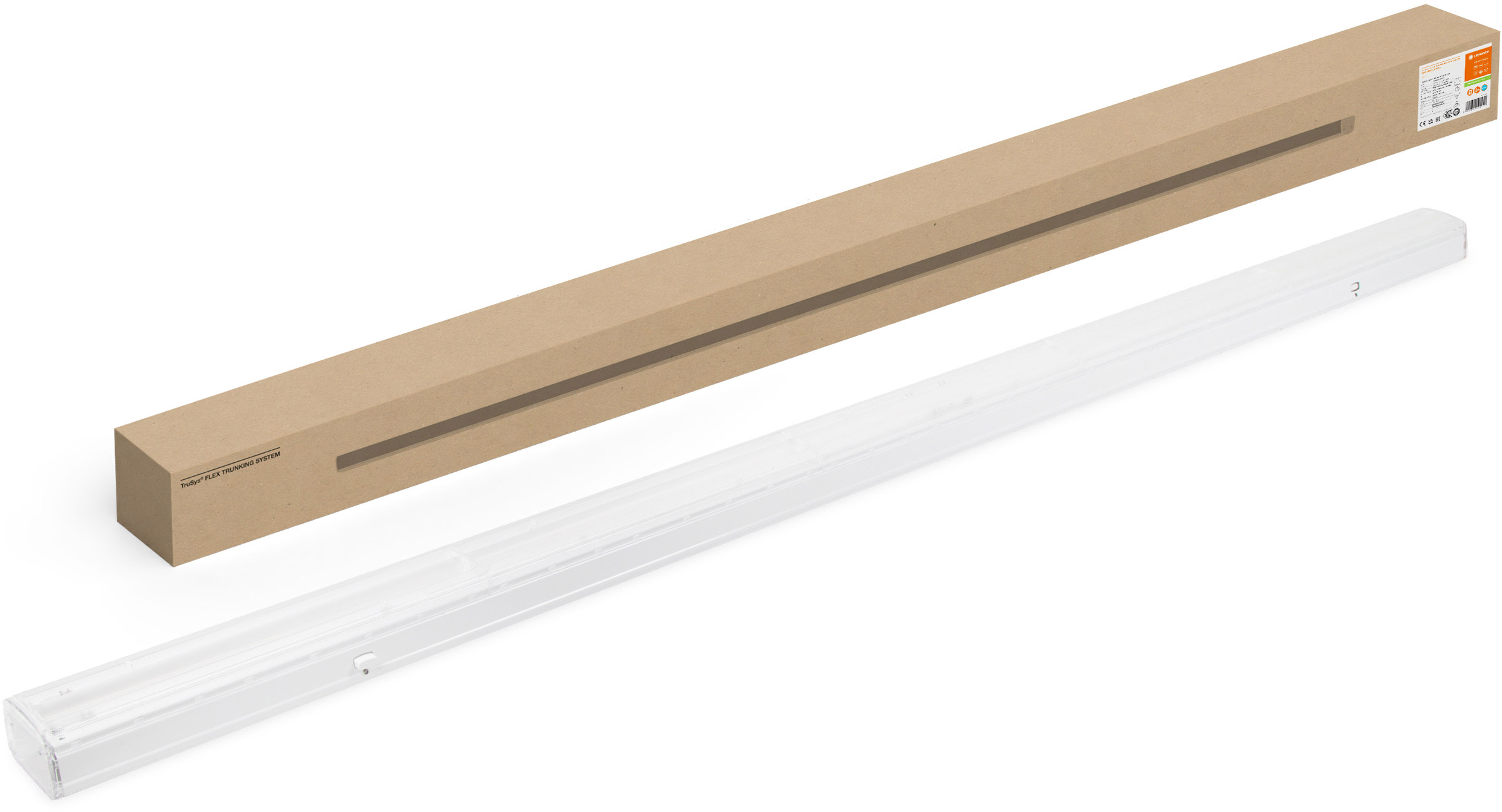

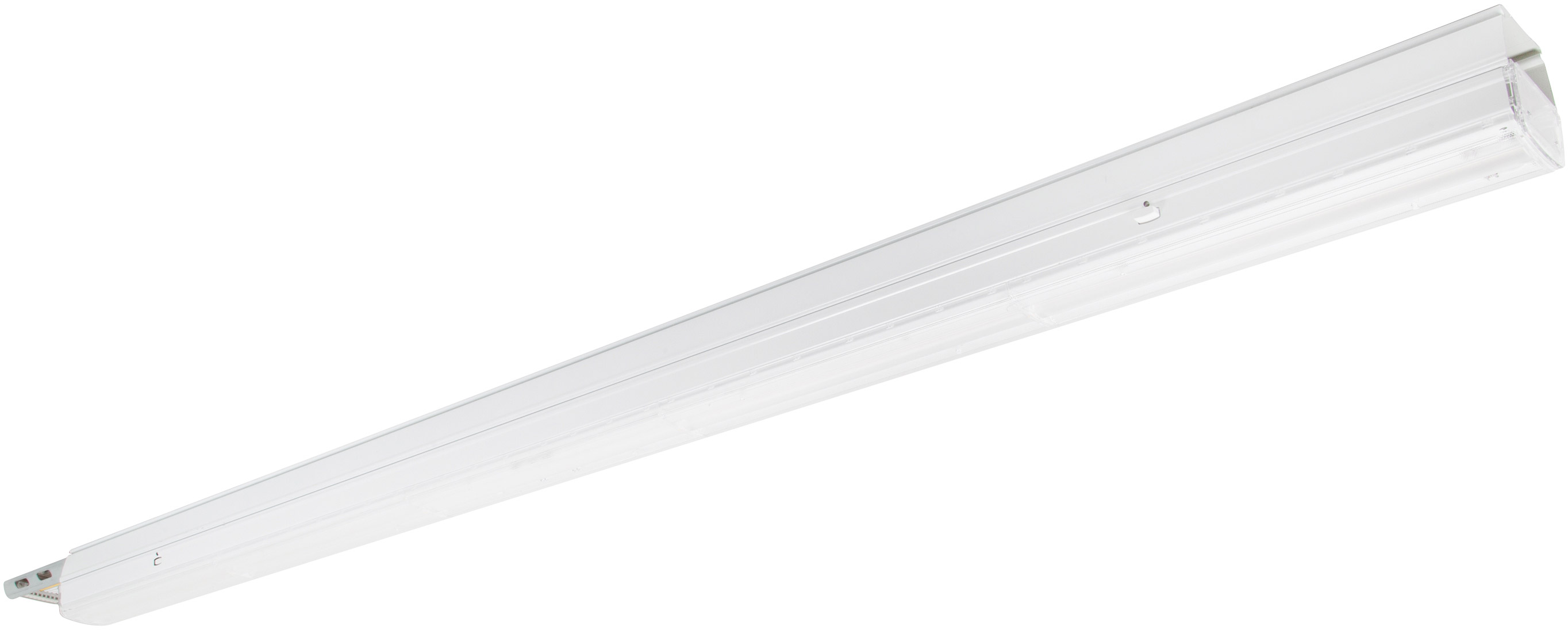

LEDVANCE TRUSYS FLEX P 70W 865 VW CL WT EM

NEW

LEDVANCE TRUSYS FLEX P 70W 865 VW CL WT EM

€249.62 *

incl. tax, free shipping to Germany
[International shipping costs]

Availability:

Delivery time: approx. 2-3 weeks

Delivery time: approx. 2-3 weeks

Item number: 101417985

EAN: 4099854190414

MPN: 4099854190414

NEW

LEDVANCE TRUSYS FLEX P 70W 865 VW CL WT EM product advantages Seamless integration of... more

Back to the overview

All information about the product:

"LEDVANCE TRUSYS FLEX P 70W 865 VW CL WT EM"

LEDVANCE TRUSYS FLEX P 70W 865 VW CL WT EM

product advantages

Seamless integration of luminaires with safety lighting function into general lighting
Easy wiring thanks to the included pre-wired driver and battery for the safety lighting function
Easy testing of the safety lighting function thanks to integrated automatic test function
Convenient visualization of the results of the automatic test with included control LED
Operation of the safety lighting function with long-life LiFePO4 battery with 3h operating discharge time
High light output in normal operation
3-year warranty
Very wide light distribution for area illumination
Easy installation, tool-free connection
Energy-saving and cost-effective
Flexible application thanks to a wide range of different lumen packages and beam angles

Areas of application

Safety lighting for escape routes
anti-panic lighting
Buildings requiring safety lighting for 3 hours
Direct replacement for luminaires with compact fluorescent lamps

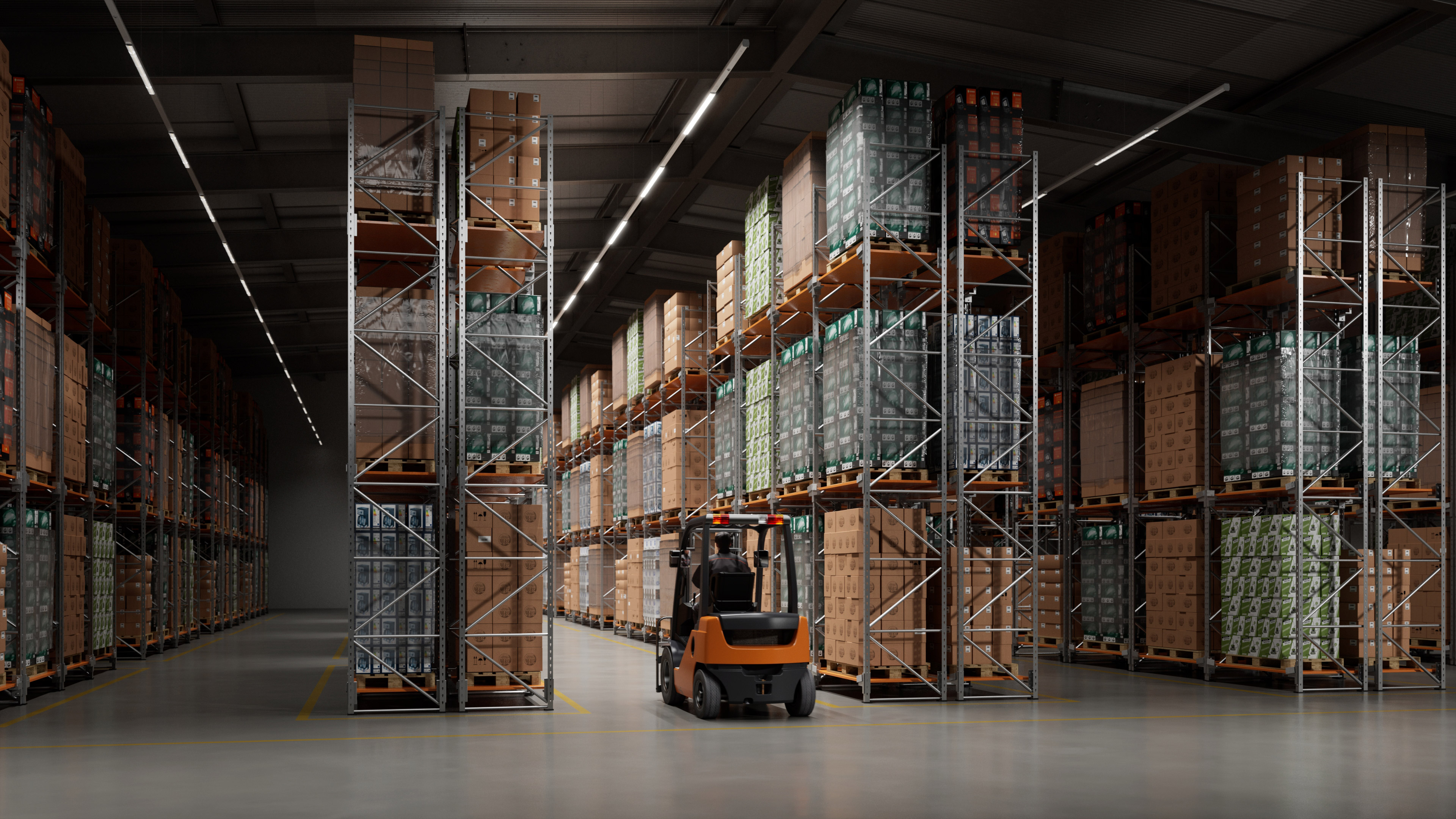

Industrial buildings, high-bay warehouses, hardware stores

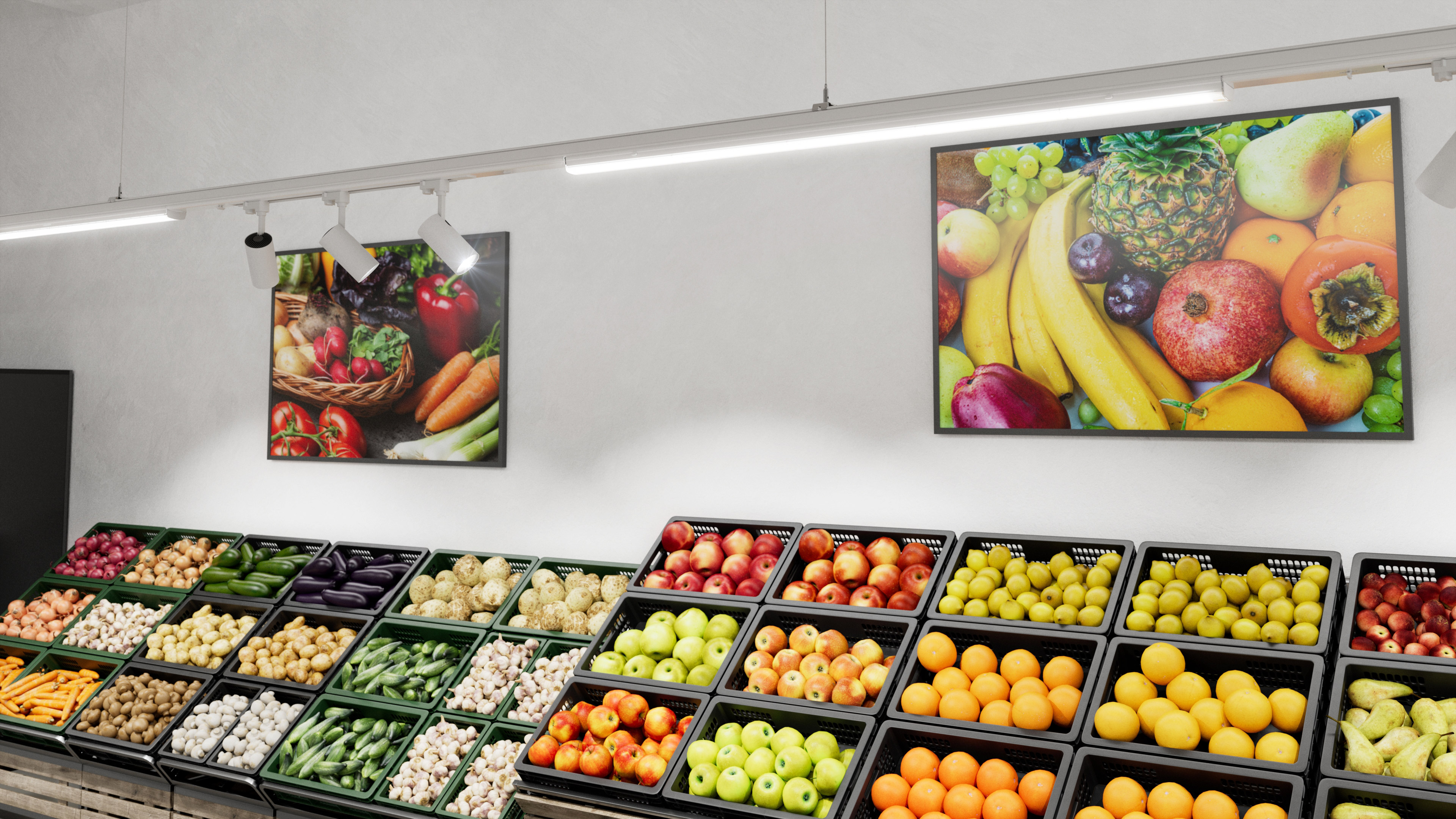

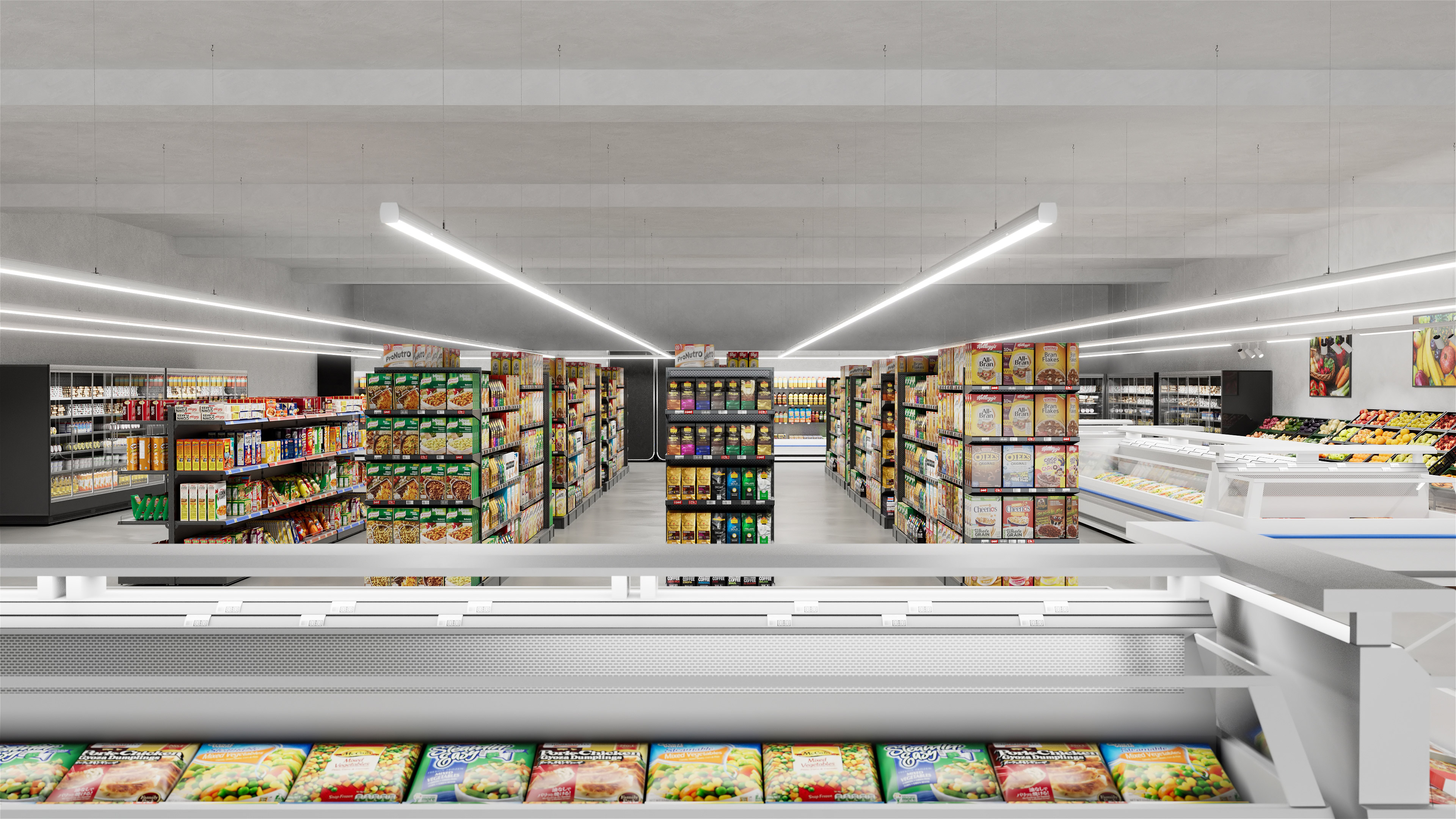

Discount stores, supermarkets

product features

Certified according to European standards (EN 60598-1:2015; EN 60598-2-22:2014)
Lighting fixture suitable for general lighting and safety lighting
Single battery lights
Safety lighting function: Battery discharge time 3 h
Function test of safety lighting: automatic (AT)
Battery technology: LiFePO4
Very wide beam angle: 120°
Clickable solution with push buttons
Fixed luminaire terminals
steel sheet housing

Technical equipment

Carrying rail with permanently integrated 8-pin cable harness

References / References

For warranty information, please visit www.ledvance.de/garantie.

Technical data:

Length:	1500 mm
Width:	77,70 mm
Height:	39,40 mm
Weight:	2360 g
Nominal voltage:	220-240 V
Nominal power:	70 W
Nominal current:	320 mA
Energy consumption:	70 kWh/1000
Colour temperature:	6500 K
Beam angle:	120°
Luminous flux:	12100 lm
Luminous efficacy:	175 lm/W
Colour rendering:	80-89 CRI
Dimmable:	No
Lifetime:	100000 h
Switching cycles:	100000
Protection class:	IP40
Light source type:	LED not exchangeable
Material:	Stahl
Colour:	White
Incl. illuminant:	Yes
Lamp holder:	None
Voltage type:	AC/DC
Type of control gear:	Electronic transformer
With control gear:	yes
Exchangeable control gear:	no
Dimming phase cut-off (trailing edge):	no
Dimming phase cut-on (leading edge):	no
Dimming Touch and Dim:	no
Dimming Zigbee:	no
Light distributor:	Focal lens
Reflector:	None
Light distribution:	Symmetric
Light outlet:	Direct
Colour consistency (McAdam ellipse):	SDCM3
Protection class according to IEC 61140:	I
Suitable for emergency lighting:	yes
Emergency power supply integrated:	yes
Rated ambient temperature according to IEC 62722-2-1:	+40°C
Power factor:	0.95
Constant light output (CLO):	no
Beam angle adjustable:	No
Colour of light adjustable:	No
Luminous flux adjustable:	No
Type of wiring:	Suitable for loop-through wiring
Number of poles:	2
Operation by Bluetooth:	no
Compatible with Casambi:	no
Meets min. EIA lifetime criterion L90 (at 50,000 hours at tq = 25 °C):	yes
