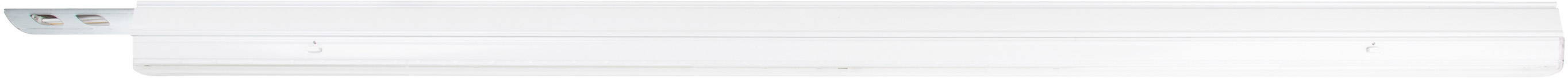

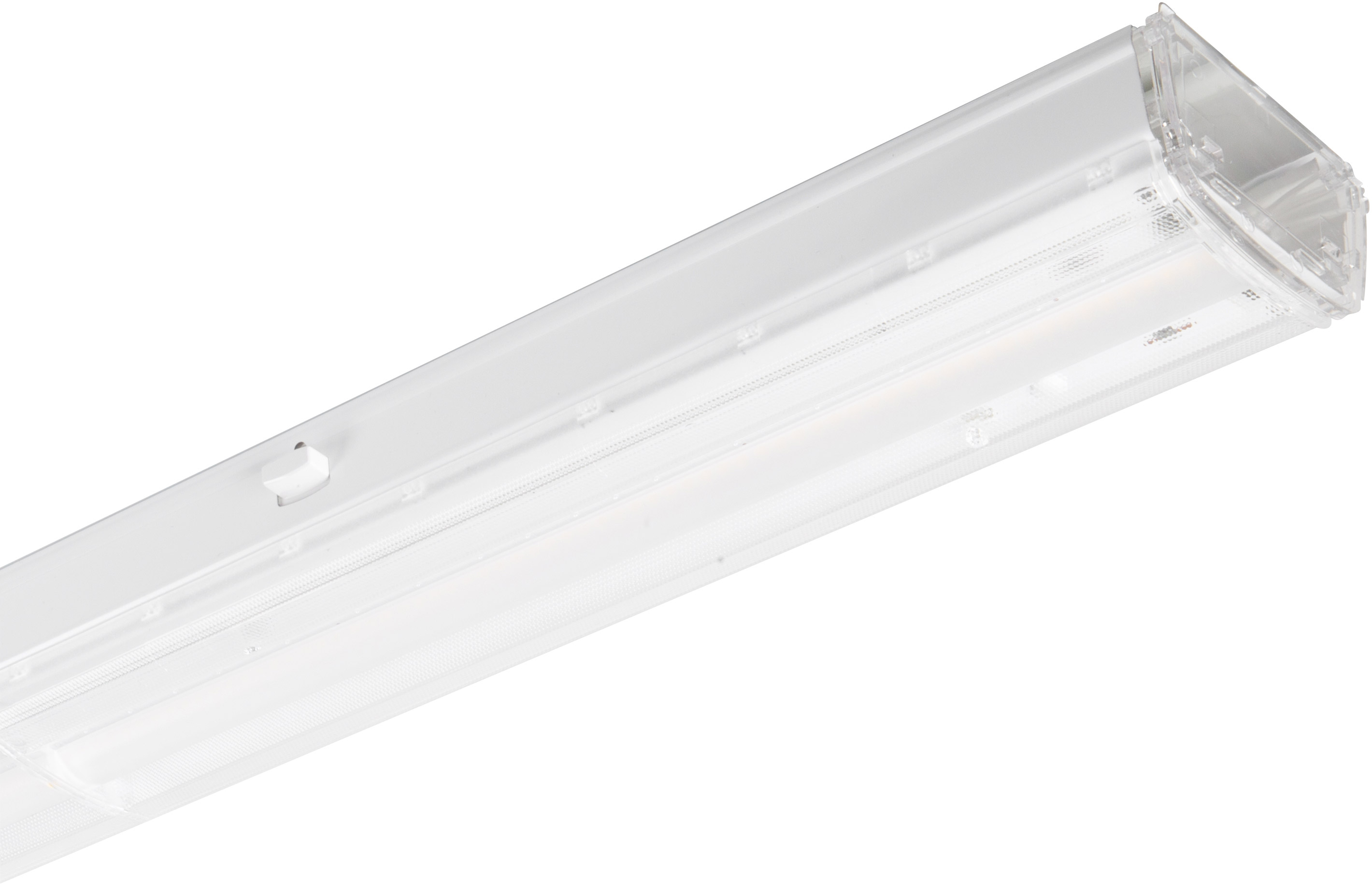

LEDVANCE TRUSYS FLEX P 50W 865 VW CL WT

NEW

LEDVANCE TRUSYS FLEX P 50 W 865 VW CL WT

€126.49 *

incl. tax, free shipping to Germany
[International shipping costs]

Availability:

Delivery time: approx. 2-3 weeks

Delivery time: approx. 2-3 weeks

Item number: 101418030

EAN: 4099854190650

MPN: 4099854190650

NEW

LEDVANCE TRUSYS FLEX P 50W 865 VW CL WT product advantages Very wide light distribution for... more

Back to the overview

All information about the product:

"LEDVANCE TRUSYS FLEX P 50W 865 VW CL WT"

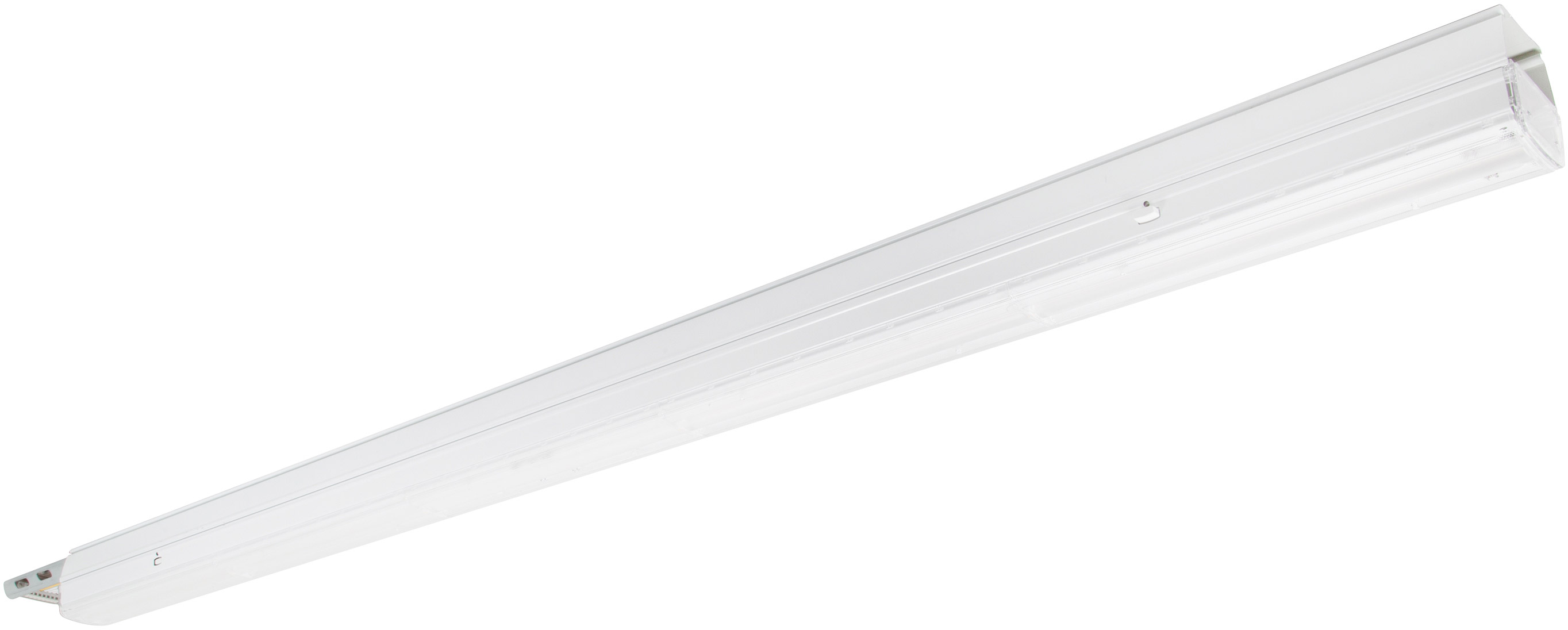

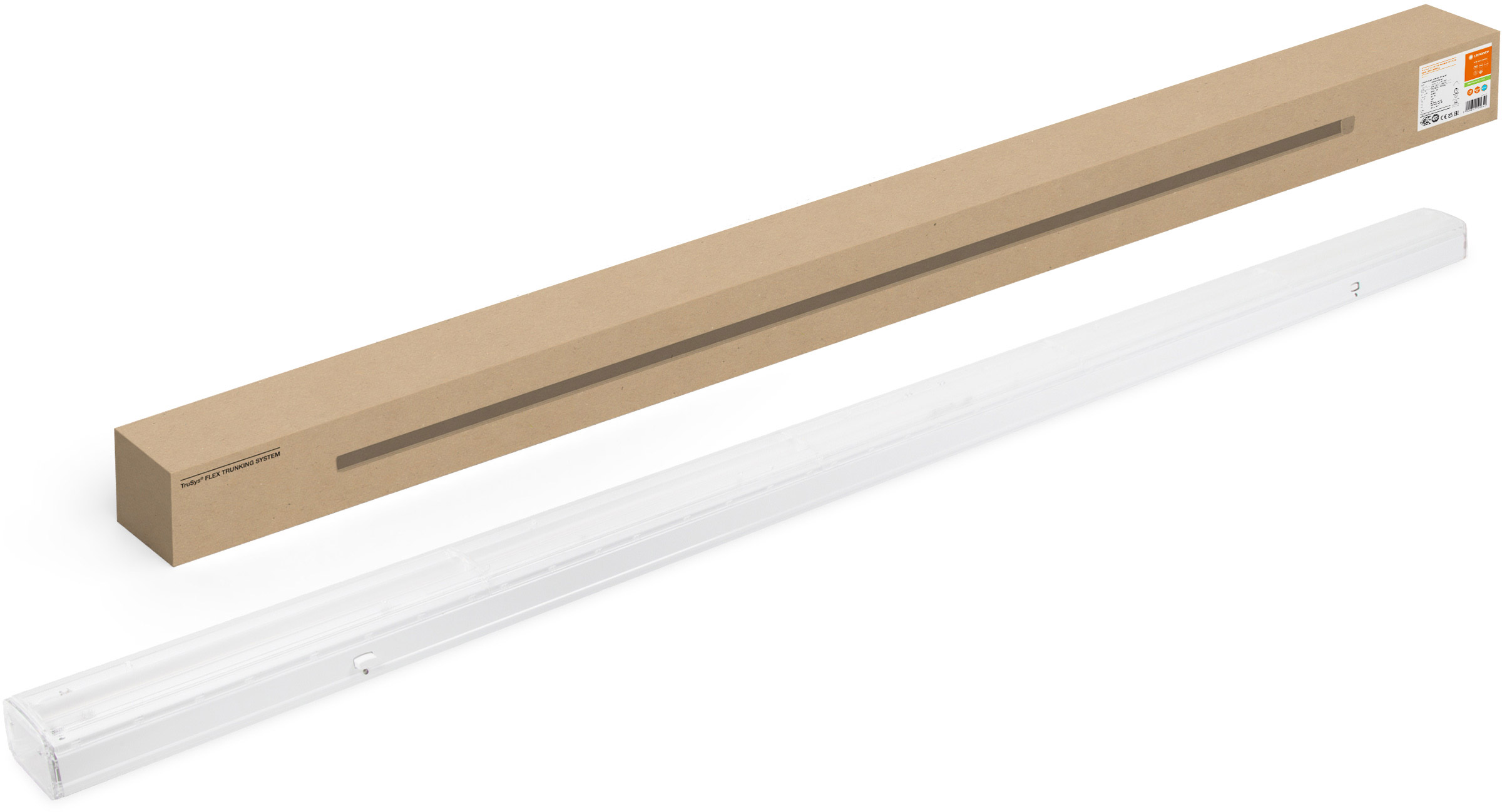

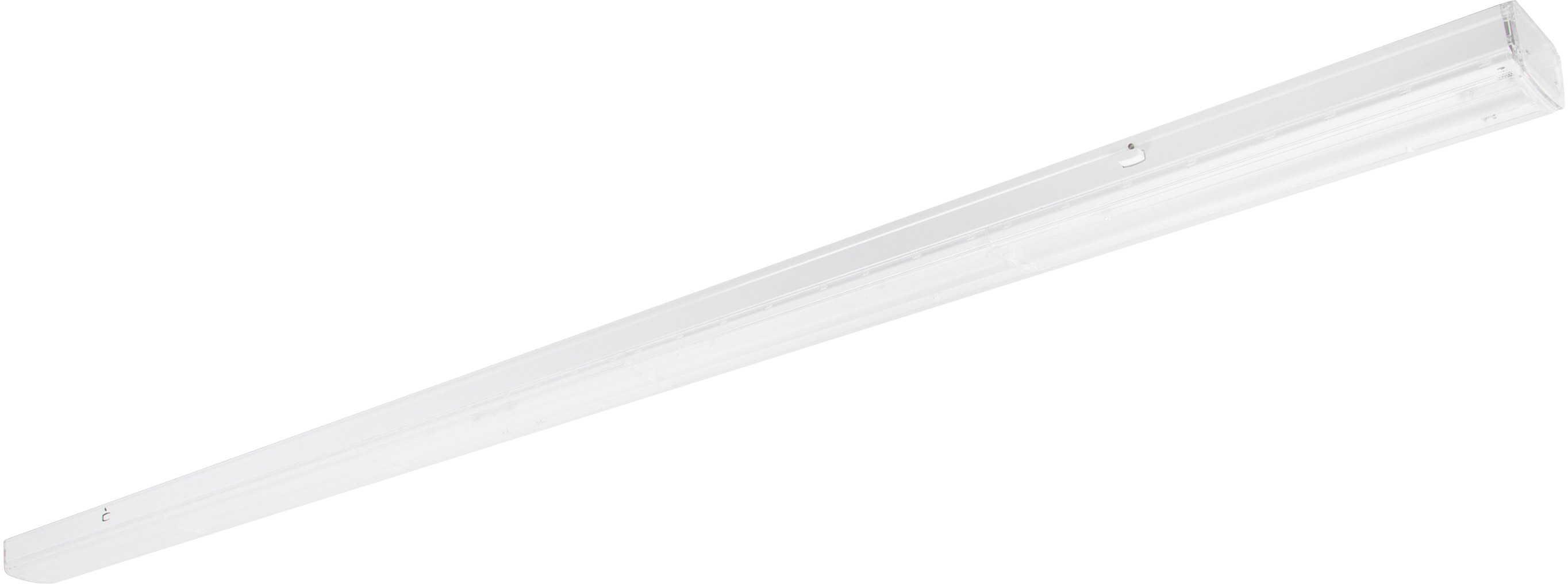

LEDVANCE TRUSYS FLEX P 50W 865 VW CL WT

product advantages

Very wide light distribution for area illumination
Easy installation, tool-free connection
Energy-saving and cost-effective
Flexible application thanks to a wide range of different lumen packages and beam angles
5-year warranty

Areas of application

Direct replacement for luminaires with fluorescent lamps

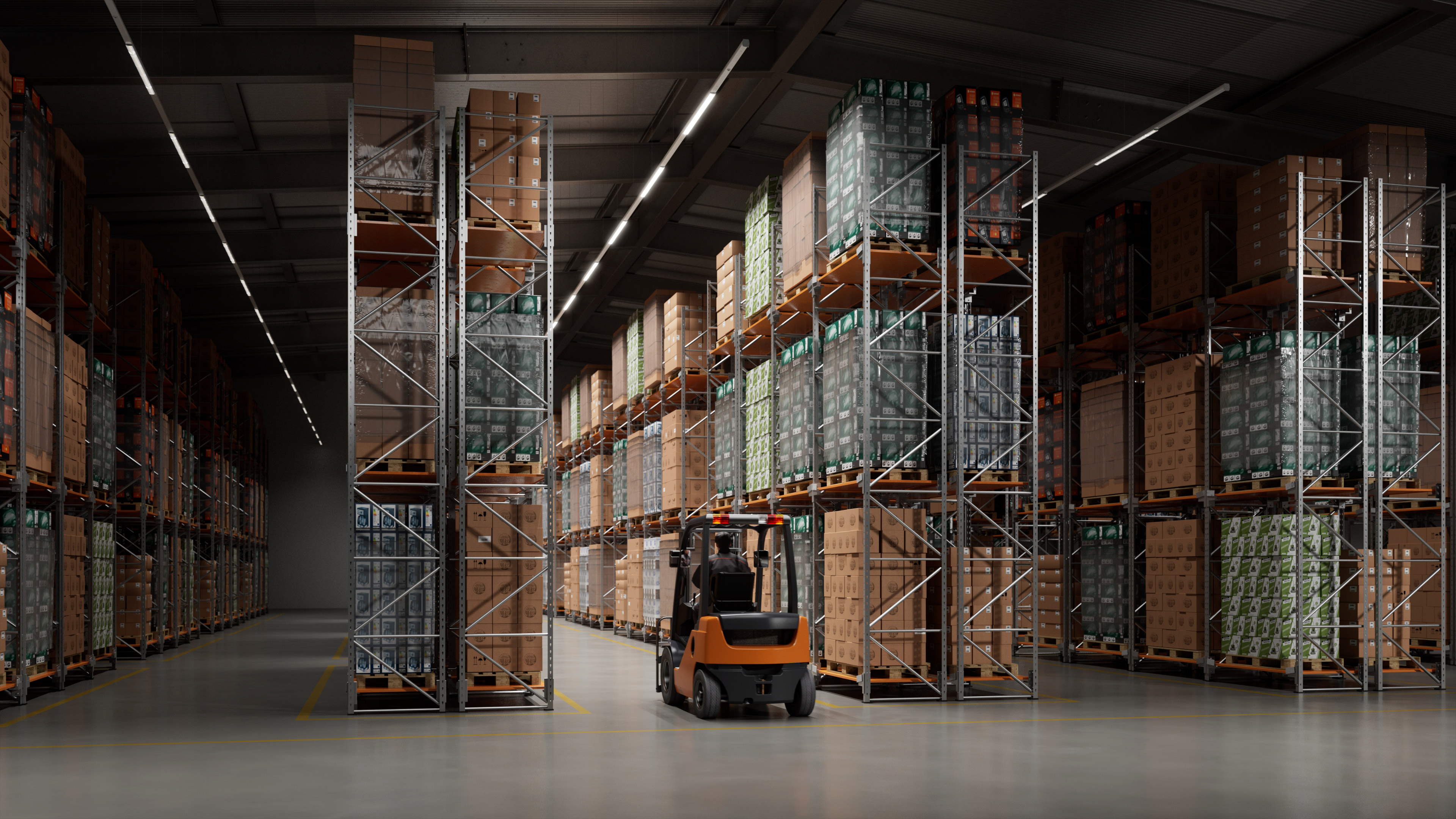

Industrial buildings, high-bay warehouses, hardware stores

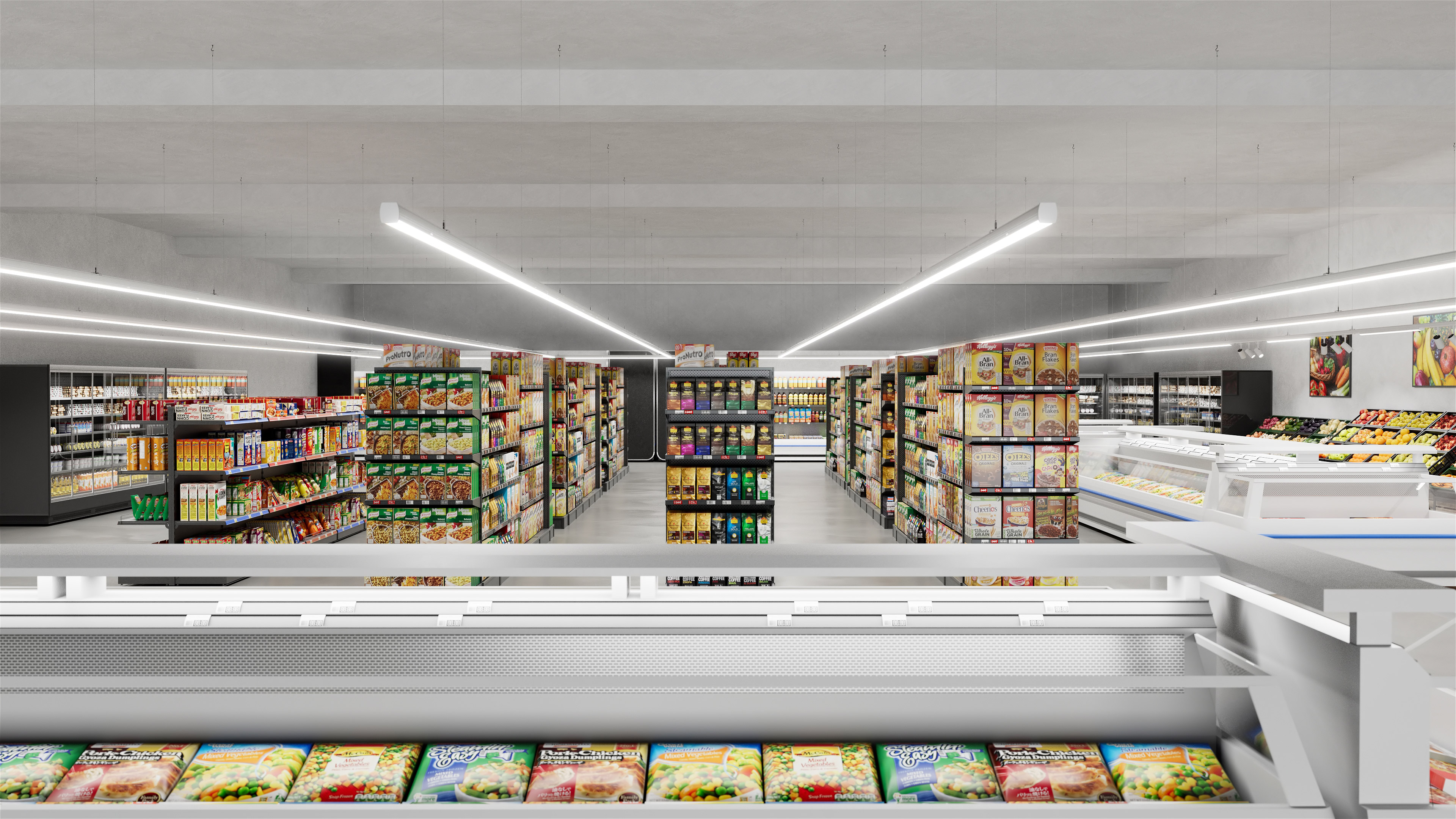

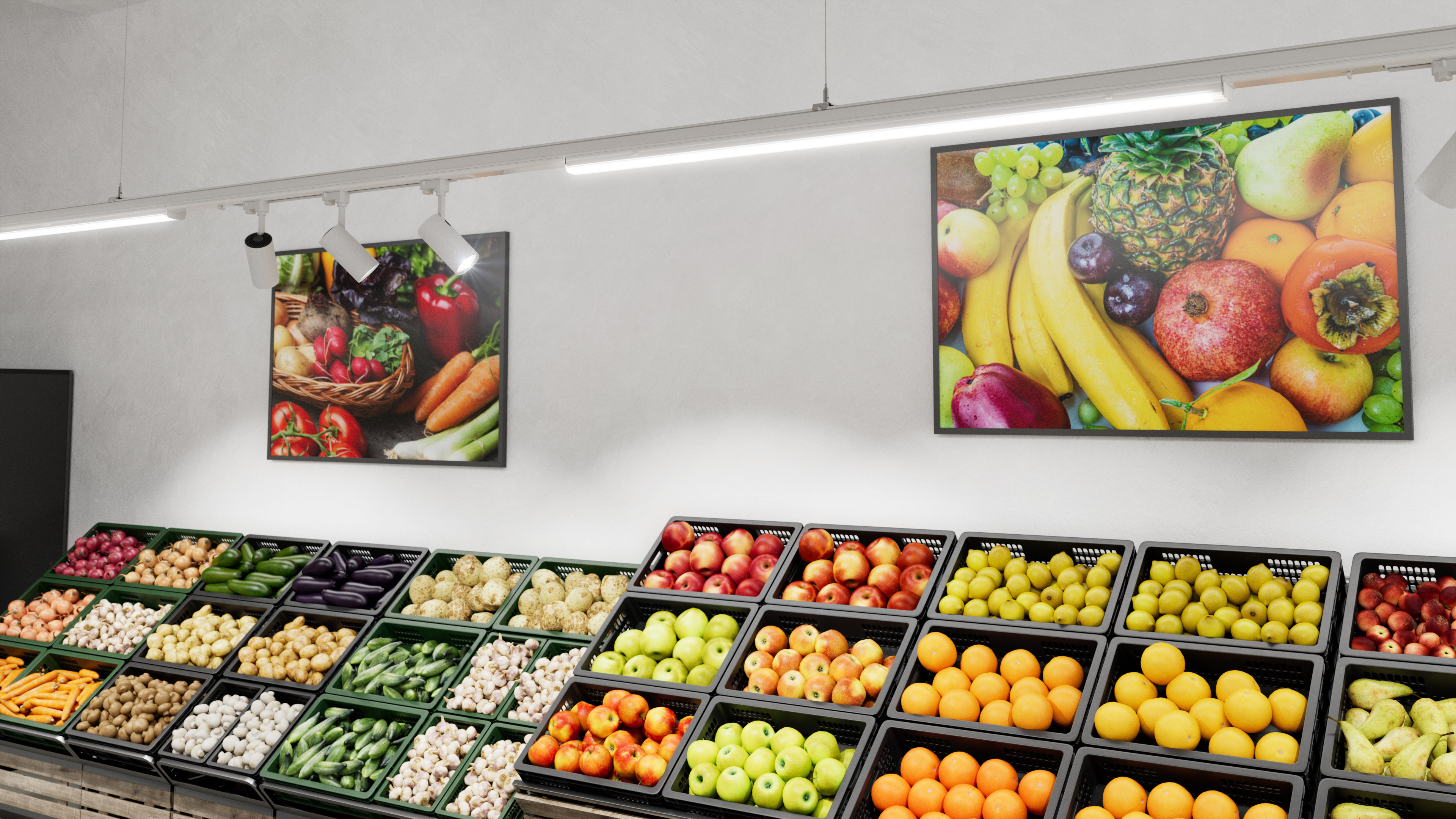

Discount stores, supermarkets

product features

Very wide beam angle: 120°
Clickable solution with push buttons
Light output: up to 175 lm/W
Fixed luminaire terminals
Lighting versions available with on/off or IoT-enabled DALI-2 driver
steel sheet housing
Lens material: PMMA
Protection class: IP40

Technical equipment

Carrying rail with permanently integrated 5- and 8-pin cable harness

References / References

For warranty information, please visit www.ledvance.de/garantie.

Technical data:

Length:	1500 mm
Width:	77,70 mm
Height:	39,40 mm
Weight:	1700 g
Nominal voltage:	220-240 V
Nominal power:	50 W
Nominal current:	230 mA
Energy consumption:	50 kWh/1000
Colour temperature:	6500 K
Beam angle:	120°
Luminous flux:	8600 lm
Luminous efficacy:	175 lm/W
Colour rendering:	80-89 CRI
Dimmable:	No
Lifetime:	100000 h
Switching cycles:	100000
Protection class:	IP40
Light source type:	LED not exchangeable
Material:	Stahl
Colour:	White
Incl. illuminant:	Yes
Lamp holder:	None
Voltage type:	AC
Type of control gear:	Electronic transformer
With control gear:	yes
Exchangeable control gear:	yes
Dimming phase cut-off (trailing edge):	no
Dimming phase cut-on (leading edge):	no
Dimming Touch and Dim:	no
Dimming Zigbee:	no
Light distributor:	Focal lens
Reflector:	None
Light distribution:	Symmetric
Light outlet:	Direct
Colour consistency (McAdam ellipse):	SDCM3
Protection class according to IEC 61140:	I
Suitable for emergency lighting:	no
Emergency power supply integrated:	no
Rated ambient temperature according to IEC 62722-2-1:	+40°C
Power factor:	0.95
Constant light output (CLO):	no
Beam angle adjustable:	No
Colour of light adjustable:	No
Luminous flux adjustable:	No
Type of wiring:	Suitable for loop-through wiring
Number of poles:	2
Operation by Bluetooth:	no
Compatible with Casambi:	no
Meets min. EIA lifetime criterion L90 (at 50,000 hours at tq = 25 °C):	yes
