LEDVANCE LB FLEX 1500 DALI P 73W 840 VW

NEW

€219.84 *

incl. tax, free shipping to Germany
[International shipping costs]

Availability:

Delivery time: approx. 2-3 weeks

Delivery time: approx. 2-3 weeks

Item number: 101417825

EAN: 4099854163814

MPN: 4099854163814

NEW

LEDVANCE LB FLEX 1500 DALI P 73W 840 VW product advantages High compatibility thanks to... more

Back to the overview

All information about the product:

"LEDVANCE LB FLEX 1500 DALI P 73W 840 VW"

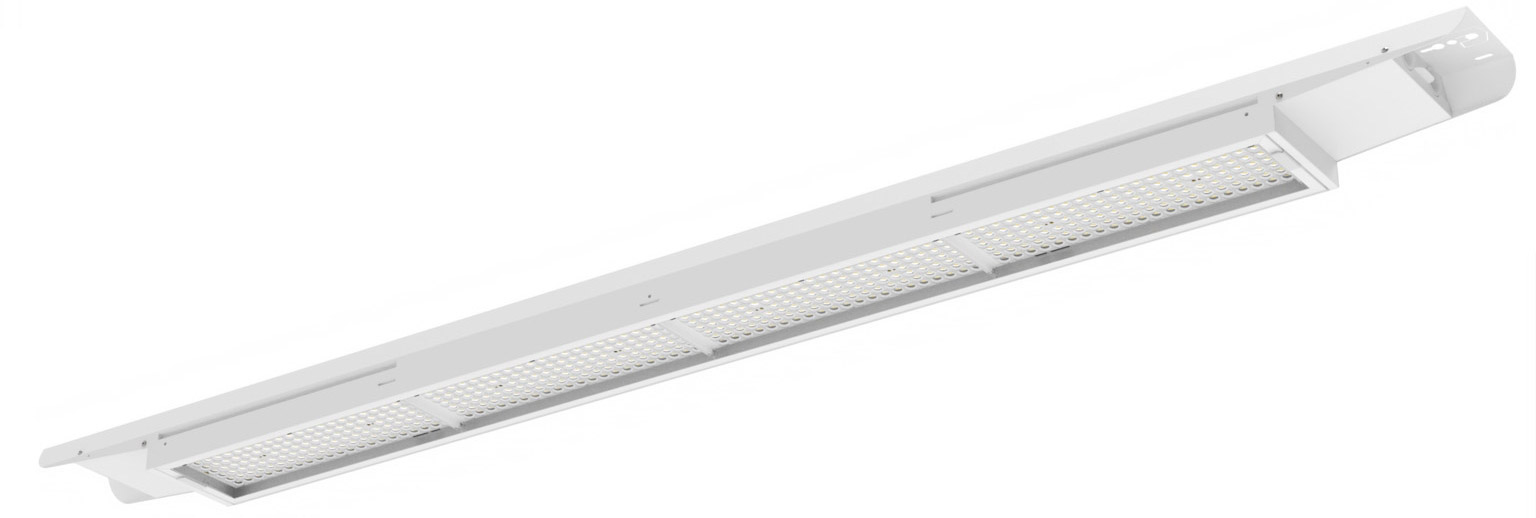

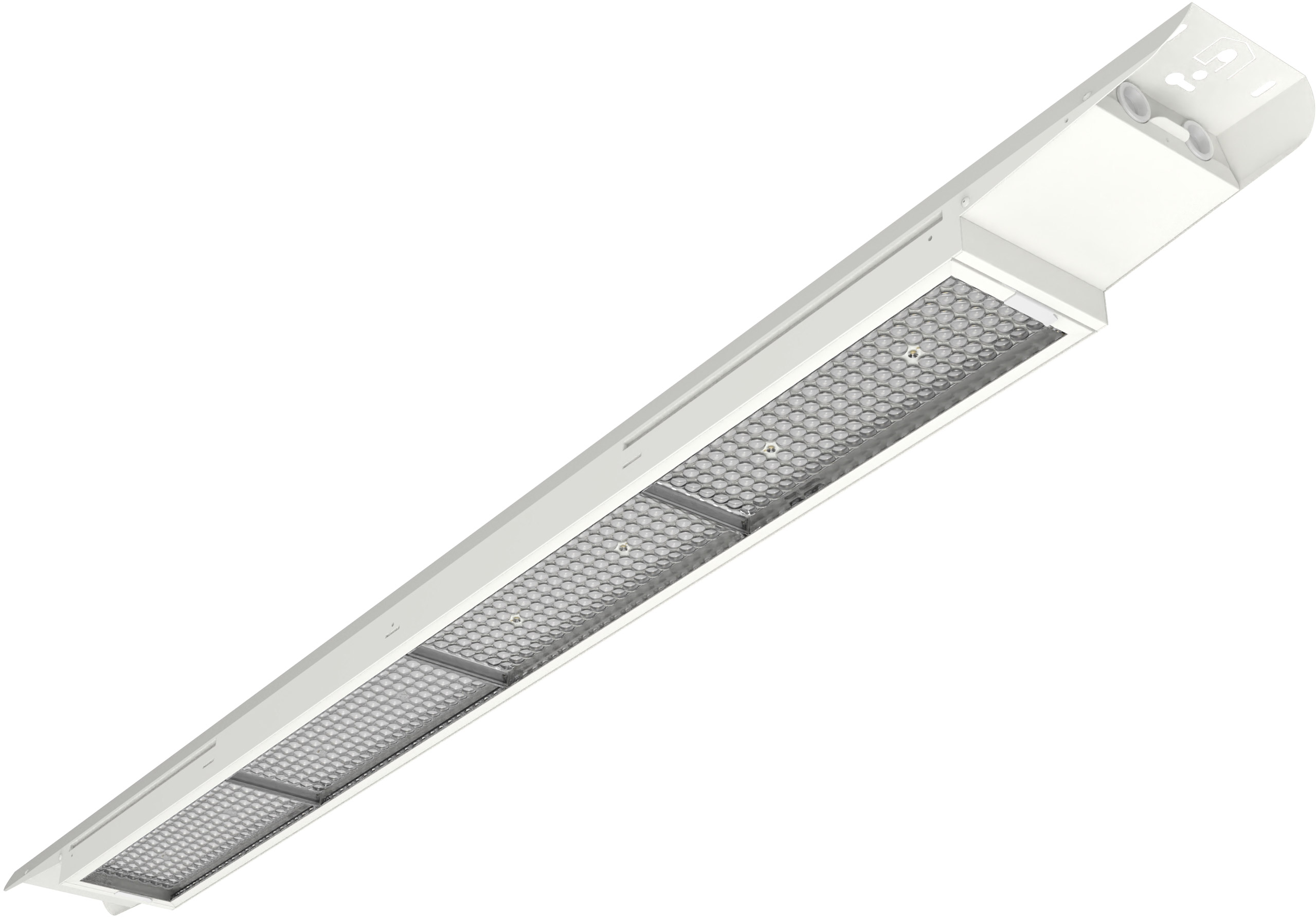

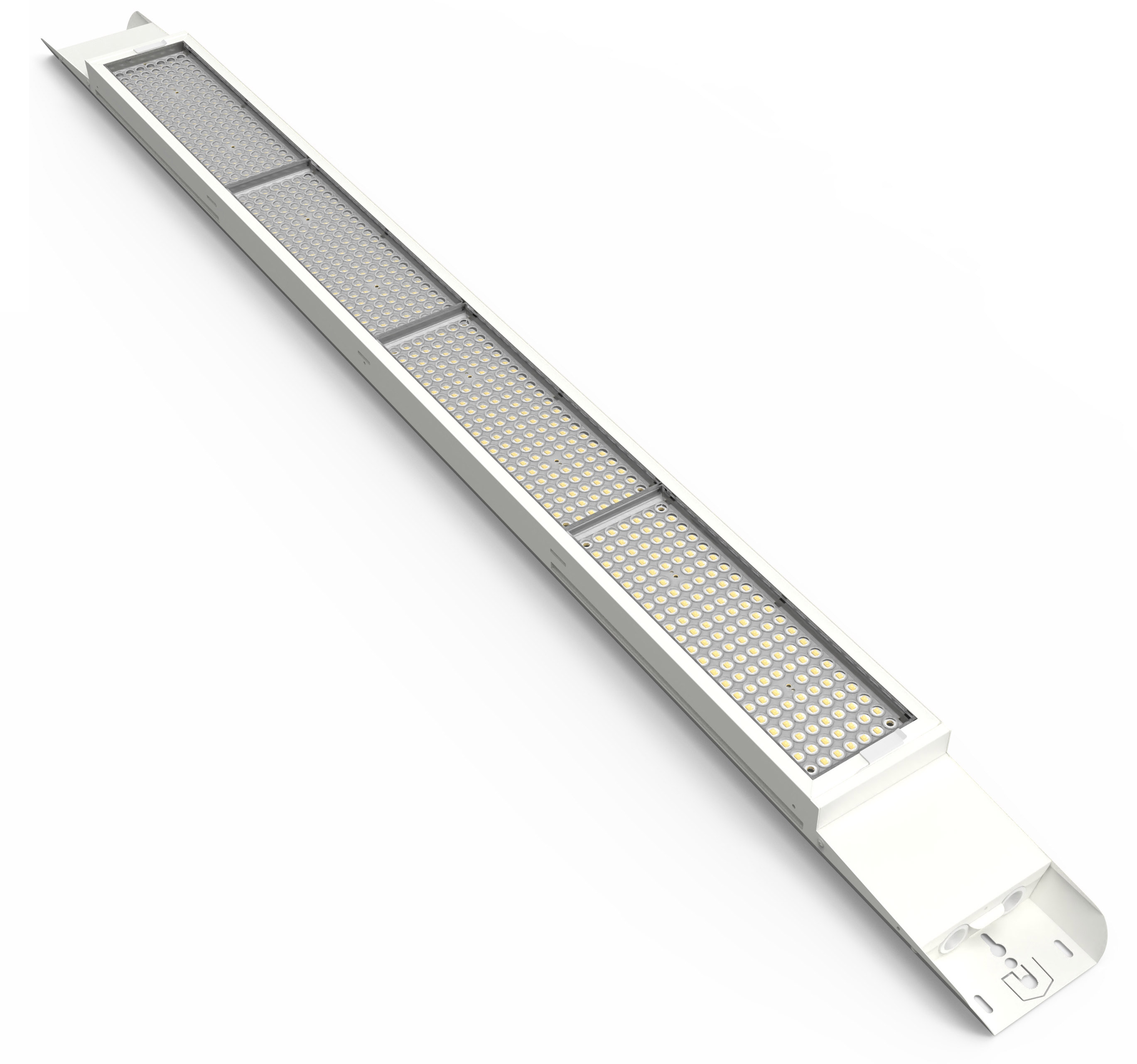

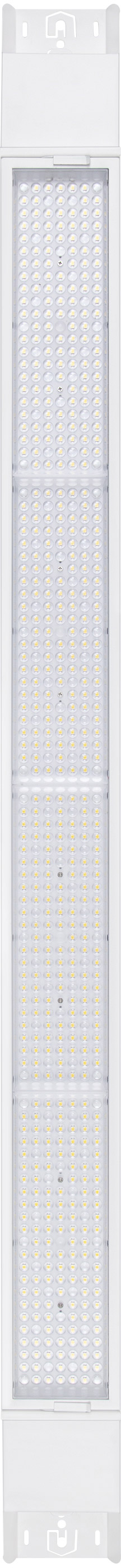

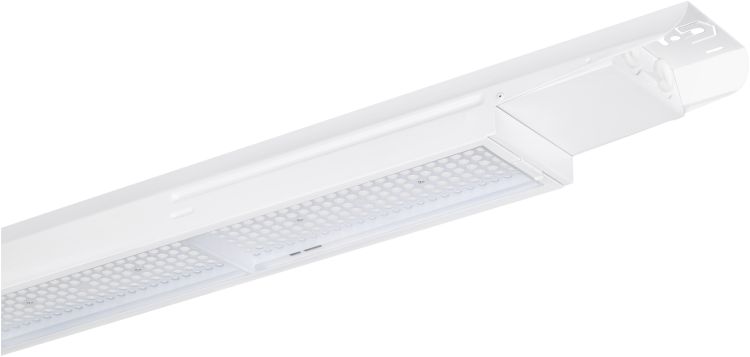

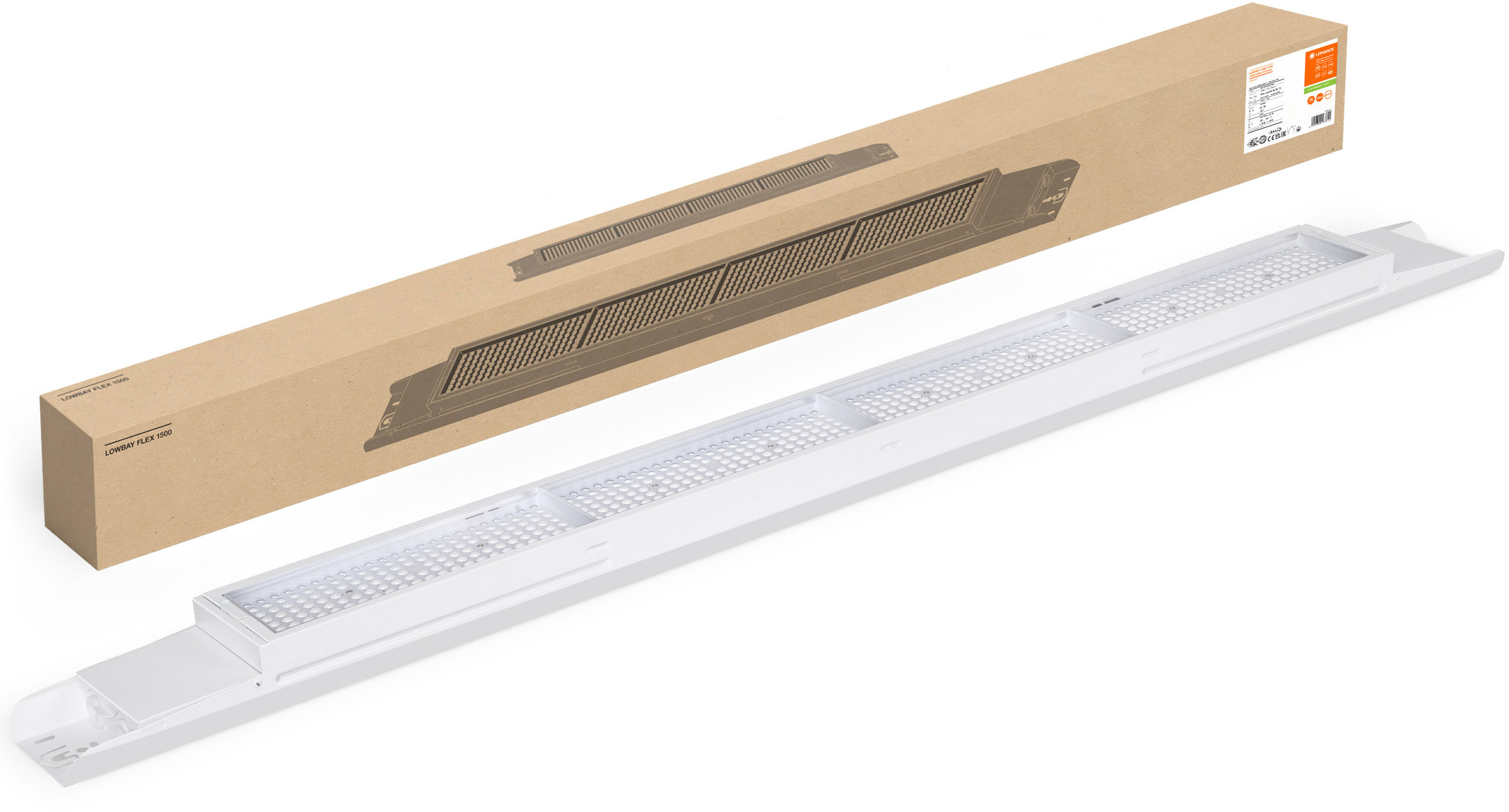

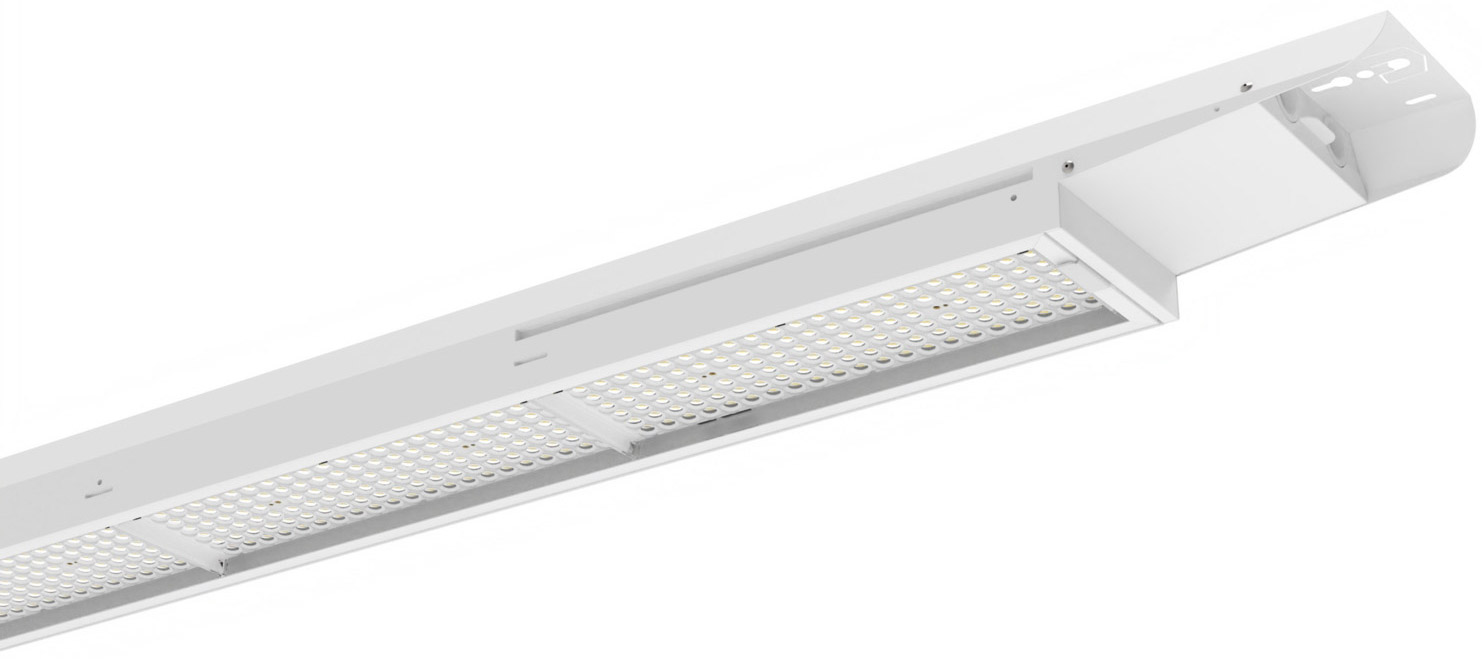

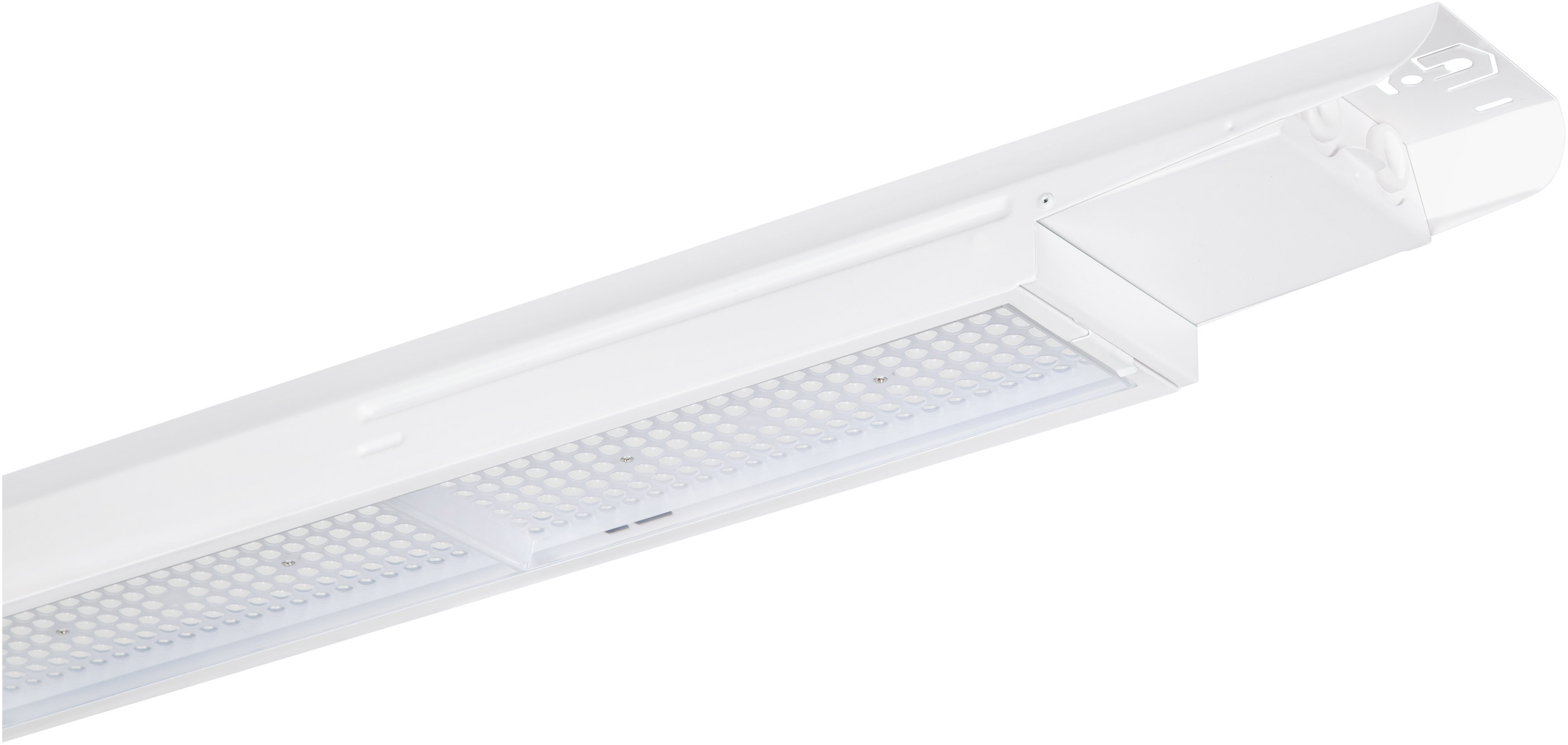

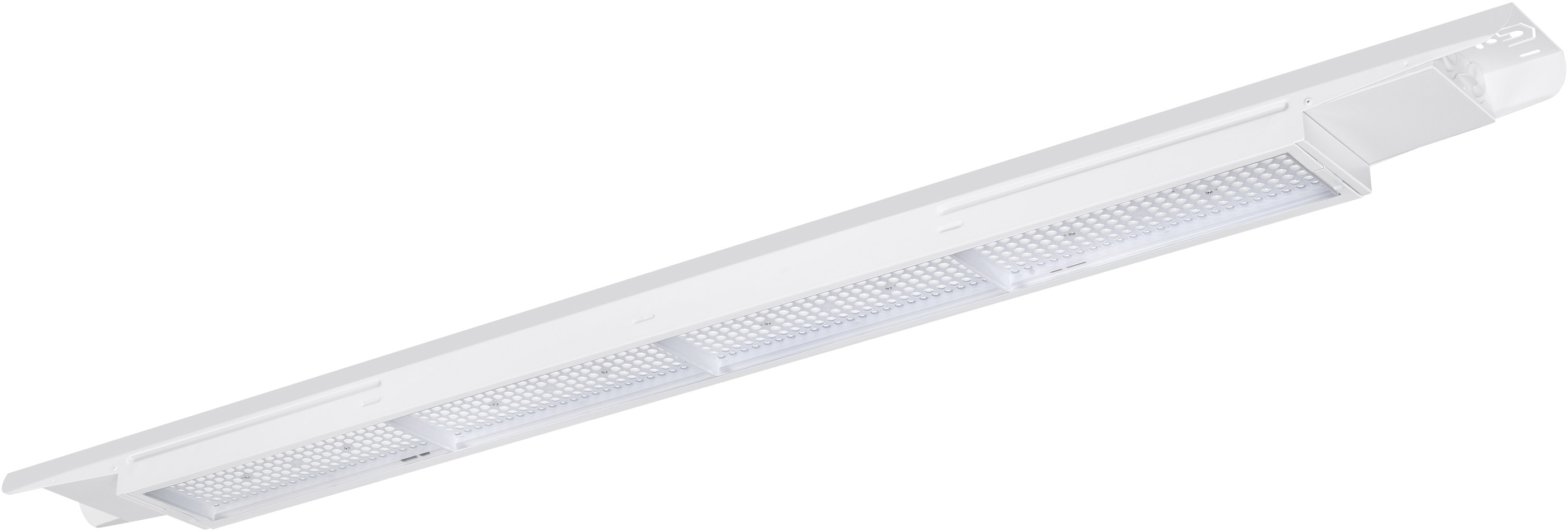

LEDVANCE LB FLEX 1500 DALI P 73W 840 VW

product advantages

High compatibility thanks to DALI-2 certification
Economical thanks to high luminaire light output of up to 160 lm/W

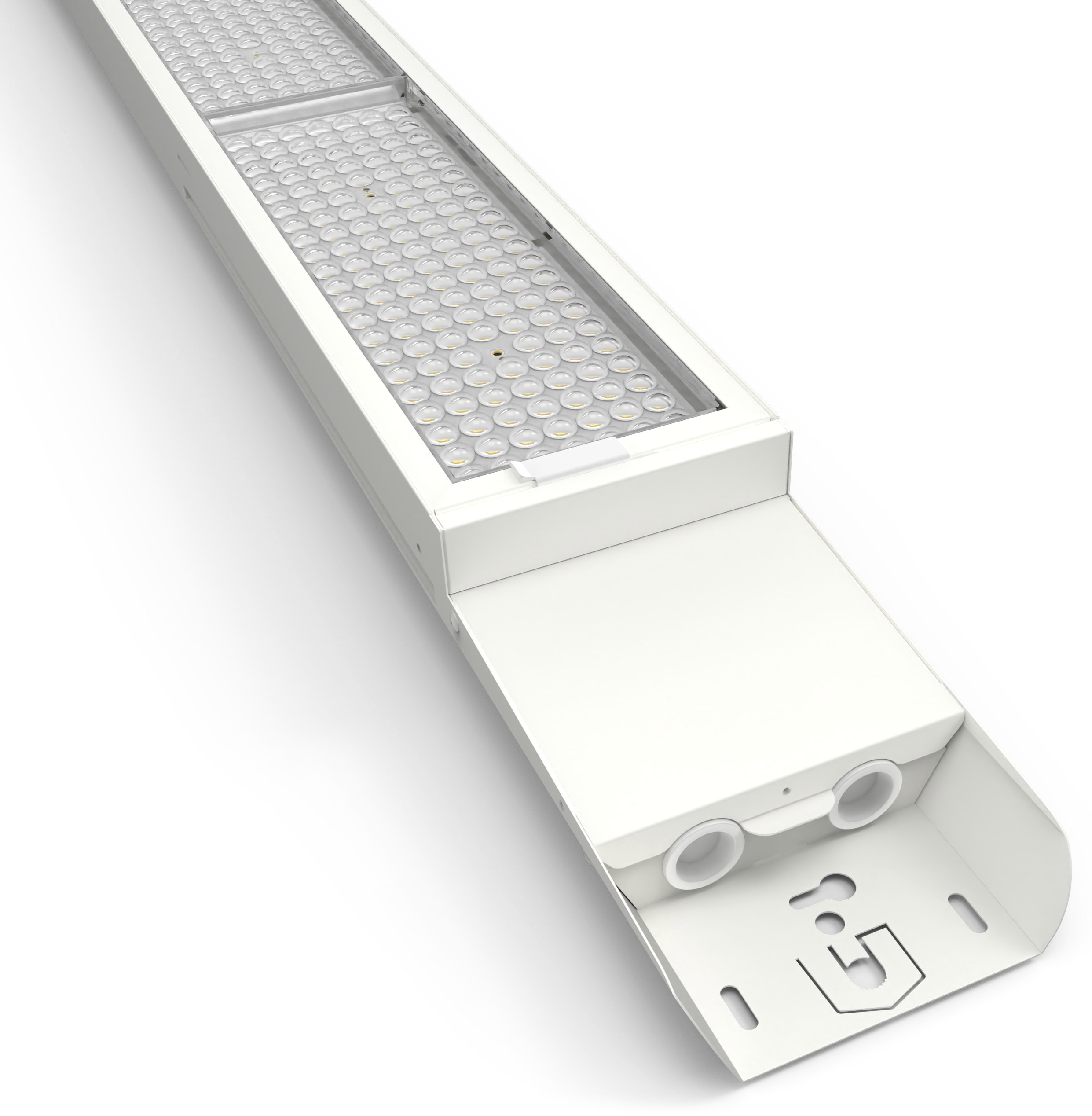

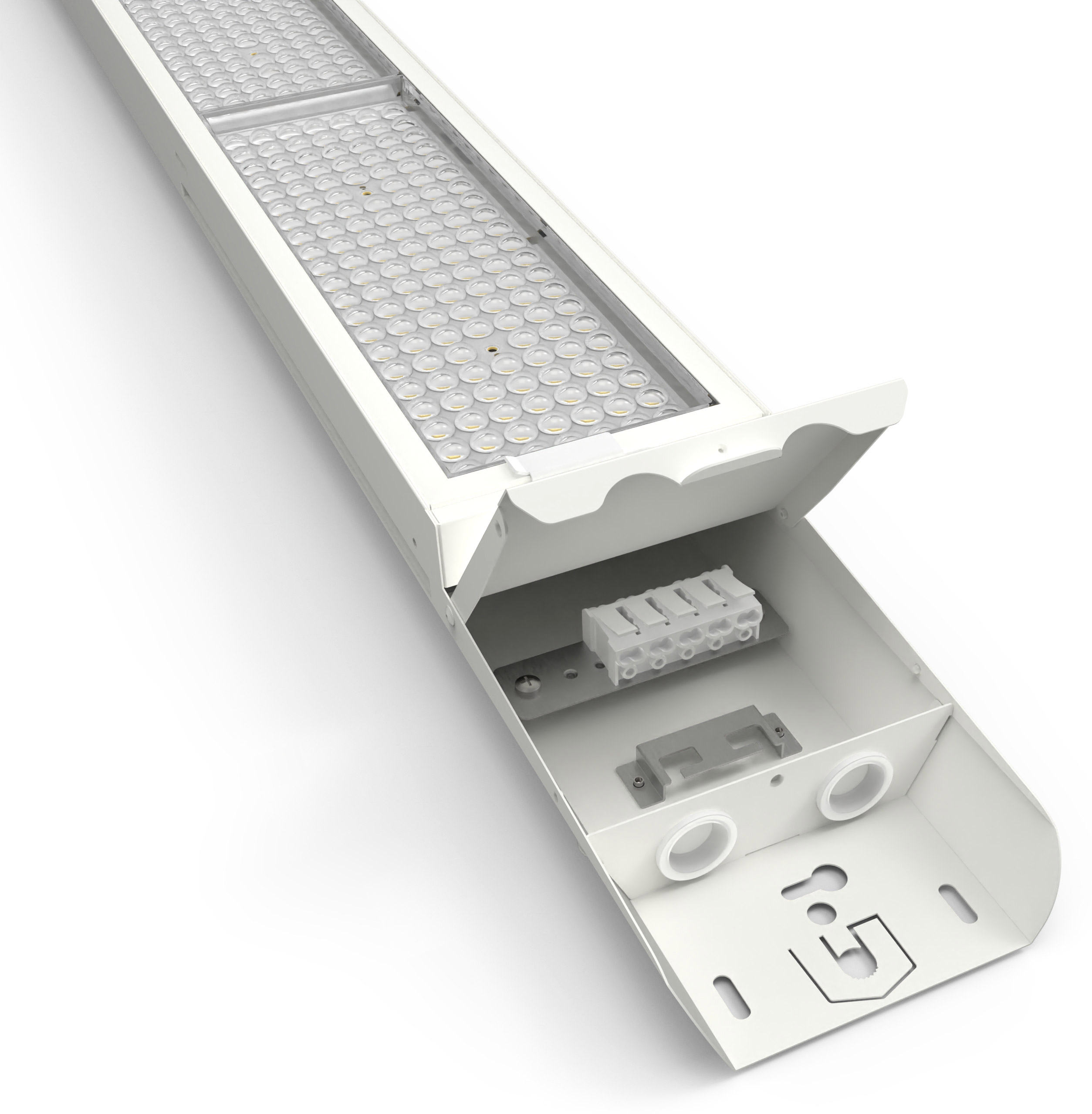

Quick and easy installation thanks to a connection box with 5- and 7-pin, tool-free connection terminal
Modern and robust design
5-year warranty

Areas of application

Replacement for luminaires with mercury vapor or metal halide lamps
warehouses
logistics warehouses
Industrial and storage areas
Discount stores, supermarkets
sports halls
indoor sports facilities

product features

DALI-2 certified
Different light outputs and beam angles for mounting heights from ~4 m to ~14 m in 4000 K
Through-wiring cable already installed
Long service life (L80/B10): up to 100,000 hours
High color consistency: = 3 SDCM

Technical equipment

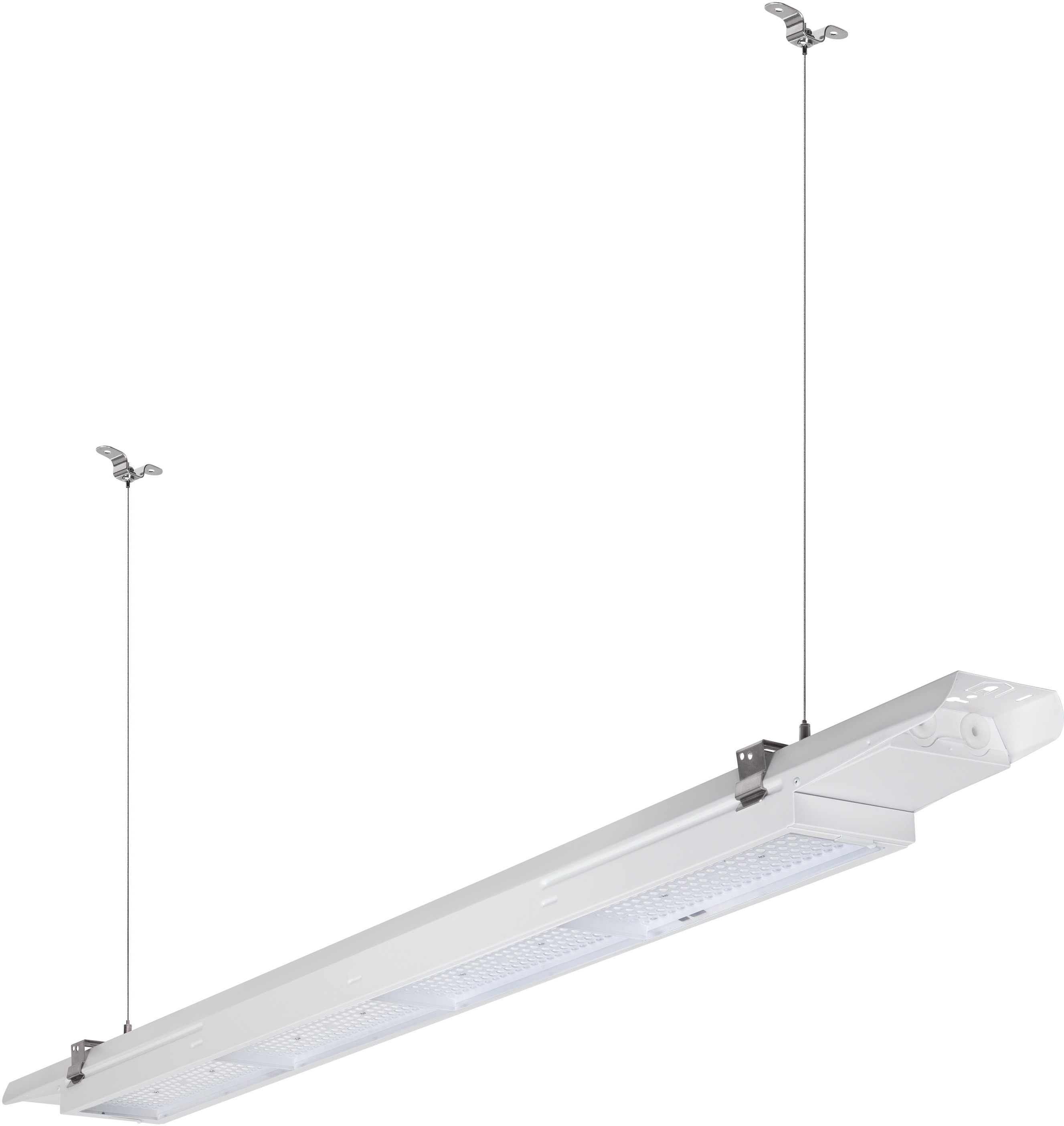

Suspension set, ball-proof cover, and angle mounting kit available as separate accessories

References / References

For warranty information, please visit www.ledvance.de/garantie.

Technical data:

Length:	1527 mm
Width:	115 mm
Height:	65 mm
Weight:	4150 g
Nominal voltage:	220-240 V
Nominal power:	73 W
Nominal current:	320 mA
Energy consumption:	73 kWh/1000
Colour temperature:	4000 K
Light colour:	White
Beam angle:	120°
Luminous flux:	11680 lm
Luminous efficacy:	160 lm/W
Colour rendering:	80-89 CRI
Dimmable:	Yes
Lifetime:	100000 h
Switching cycles:	50000
Protection class:	IP23
Light source type:	LED not exchangeable
Material:	Stahl
Colour:	White
Incl. illuminant:	Yes
Suitable for auxiliary lamp:	no
Lamp holder:	None
Voltage type:	AC
Exchangeable control gear:	no
With control gear:	yes
Dimming phase cut-off (trailing edge):	no
Dimming phase cut-on (leading edge):	no
Dimming Touch and Dim:	no
Dimming Zigbee:	no
Light distributor:	Diffuser lens/optic/panel
Light distribution:	Symmetric
Reflector:	None
Impact strength:	IK08
Ball-proof:	no
Protection class according to IEC 61140:	I
Luminaire with limited surface temperature, sign "D“ according to EN 60598-2-24:	no
Rated ambient temperature according to IEC 62722-2-1:	+50°C
Emergency power supply integrated:	no
Suitable for emergency lighting:	no
Photobiological safety according to EN 62471:	RG1
Power factor:	0.90
Constant light output (CLO):	no
Colour of light adjustable:	No
Beam angle adjustable:	No
Luminous flux adjustable:	No
Type of wiring:	Suitable for loop-through wiring
Number of poles:	7
With protective cover:	no
Max. number of luminaires per miniature circuit breaker B16 (MCB):	27
Operation by Bluetooth:	no
Max. number of luminaires per miniature circuit breaker C16 (MCB):	36
Meets min. EIA lifetime criterion L90 (at 50,000 hours at tq = 25 °C):	yes
