LEDVANCE URB LTRN V 29W SYM PS 830-840 IP66 GY
NEW
€172.81 *
Availability:
Delivery time: approx. 2-3 weeks
Delivery time: approx. 2-3 weeks
Item number: 101418720
EAN: 4099854246838
MPN: 4099854246838
NEW
LEDVANCE URB LTRN V 29W SYM PS 830-840 IP66 GY product advantages Extremely versatile thanks... more
All information about the product:
"LEDVANCE URB LTRN V 29W SYM PS 830-840 IP66 GY"
LEDVANCE URB LTRN V 29W SYM PS 830-840 IP66 GY
product advantages
Technical data:- Extremely versatile thanks to selectable CCT and wattage settings (Power Select - PS)
- Low-flicker light thanks to special electronic ballast
- Energy savings thanks to system light output of up to 139 lm/W
- Bright, robust, and durable
- Replacement for luminaires with mercury vapor or metal halide lamps
- roads
- Installations on residential buildings
- pedestrian zones
- Parks
- Public space
- Protection class: II
- Service life (L80/B10): up to 100,000 hours (at 25 °C)
- Protection class: IP66
- Impact resistance: IK10
- Symmetrical light distribution
- For warranty information, please visit www.ledvance.de/garantie.

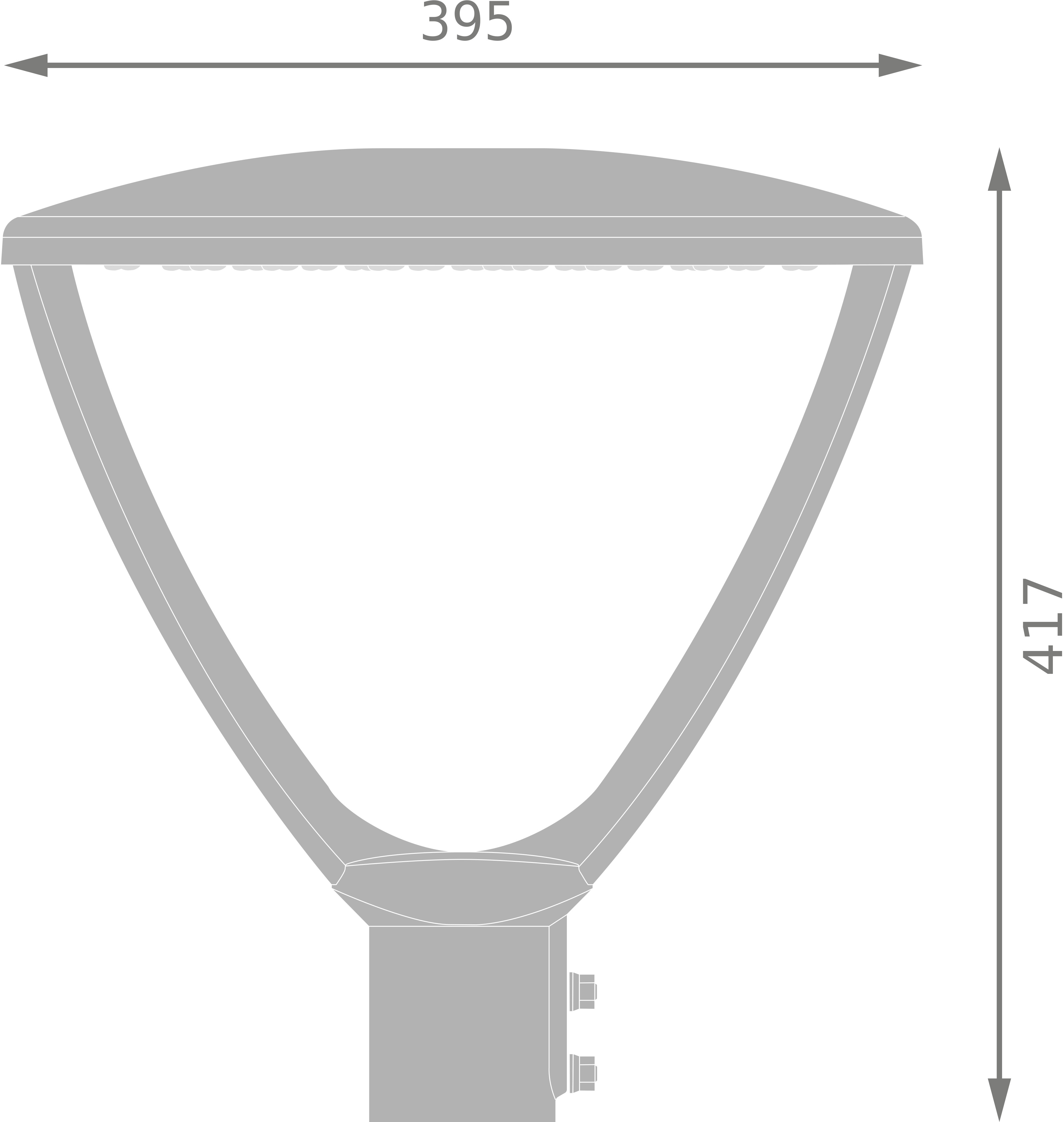

| Length: | 395 mm |
| Width: | 395 mm |
| Height: | 417 mm |
| Diameter: | 395 mm |
| Weight: | 4155 g |
| Nominal voltage: | 220-250 V |
| Nominal power: | 29 W |
| Nominal current: | 70-130 mA |
| Energy consumption: | 29 kWh/1000 |
| Colour temperature: | 3000-4000 K |
| Light colour: | White |
| Beam angle: | 145° |
| Luminous flux: | 3945 lm |
| Luminous efficacy: | 136 lm/W |
| Colour rendering: | 80-89 CRI |
| Dimmable: | No |
| Lifetime: | 100000 h |
| Switching cycles: | 100000 |
| Protection class: | IP66 |
| Light source type: | LED not exchangeable |
| Material: | Aluminium |
| Colour: | Grey |
| Incl. illuminant: | Yes |
| Mounting method: | Post top |
| Lamp holder: | None |
| Surface protection: | Powder coating |
| Material cover: | Plastic, opal |
| Voltage type: | AC |
| Type of control gear: | Electronic ballast |
| With control gear: | yes |
| Exchangeable control gear: | no |
| Dimming phase cut-off (trailing edge): | no |
| Dimming phase cut-on (leading edge): | no |
| Dimming Touch and Dim: | no |
| Dimming Zigbee: | no |
| Light distributor: | Focal lens |
| Colour consistency (McAdam ellipse): | SDCM5 |
| Max. number of luminaires per miniature circuit breaker B16 (MCB): | 8 |
| Max. number of luminaires per miniature circuit breaker C16 (MCB): | 13 |
| Adjustable optics: | no |
| Suitable for spigot size: | 60 mm |
| Impact strength: | IK10 |
| Protection class according to IEC 61140: | II |
| Luminaire with limited surface temperature, sign "D“ according to EN 60598-2-24: | no |
| Rated ambient temperature according to IEC 62722-2-1: | +50°C |
| Remote control: | None |
| With radio control: | no |
| Constant light output (CLO): | no |
| With light regulation program control: | no |
| With connection cable: | yes |
| Cable length: | 0.25m |
| Power factor: | 0.90 |
| Type of wiring: | Ending |
| Number of poles: | 2 |
| Compatible with Apple HomeKit: | no |
| Compatible with Google Assistant: | no |
| Compatible with Amazon Alexa: | no |
| IFTTT support available: | yes |
| Operation by Bluetooth: | no |
| With light sensor: | no |
