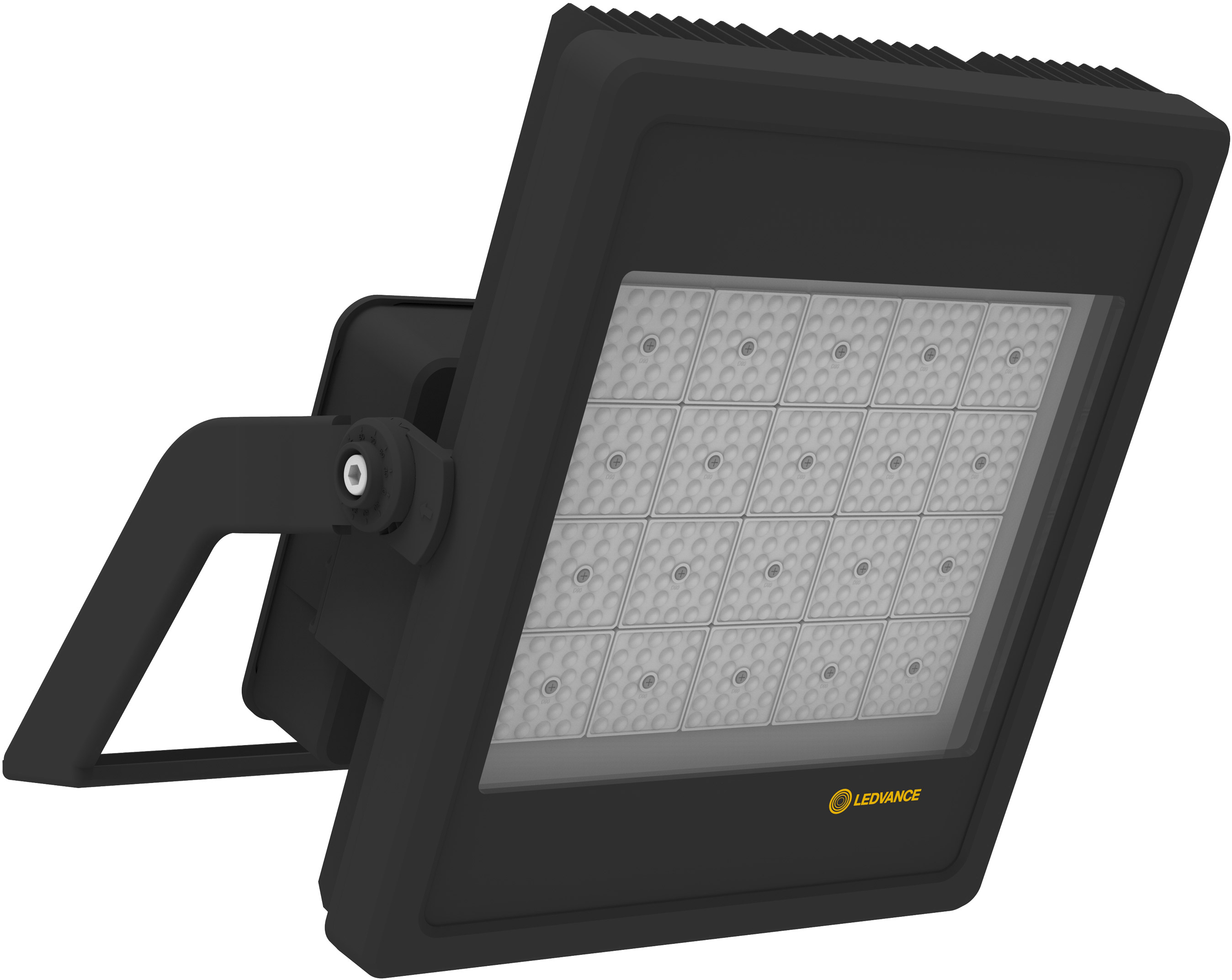

LEDVANCE FL H M LUM V 300W 730 SYM R90
NEW
€380.21 *
Availability:
Delivery time: approx. 2-3 weeks
Delivery time: approx. 2-3 weeks
Item number: 101418545
EAN: 4099854195976
MPN: 4099854195976
NEW
LEDVANCE FL H M LUM V 300W 730 SYM R90 product advantages Low-flicker light thanks to... more
All information about the product:
"LEDVANCE FL H M LUM V 300W 730 SYM R90"
LEDVANCE FL H M LUM V 300W 730 SYM R90
product advantages
Technical data:- Low-flicker light thanks to special electronic ballast
- Energy savings thanks to system light output of up to 140 lm/W
- Optimized product logistics, light heads, and separately orderable power supplies in individual packaging
- 5-year warranty
- Symmetrical and asymmetrical light distribution for a wide range of applications
- Replacement for luminaires with mercury vapor or metal halide lamps
- Outdoor use (IP66)
- Suitable for high mast applications
- Lighting for large areas
- construction sites
- industry
- Cover made of high-quality glass
- High-performance spotlight with up to 140 lm/W
- Service life (L80/B50): up to 100,000 hours (at 25 °C)
- Joint or separate installation with floodlight high mast power supply
- Cover plate made of highly transparent, tempered glass
- For warranty information, please visit www.ledvance.de/garantie.

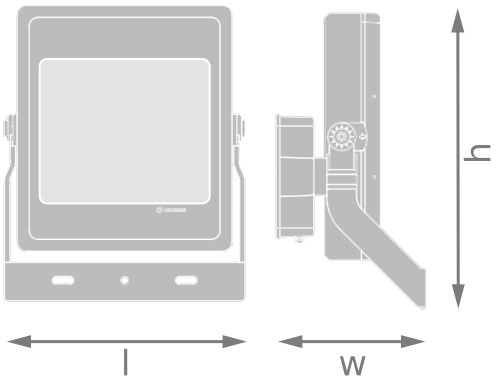

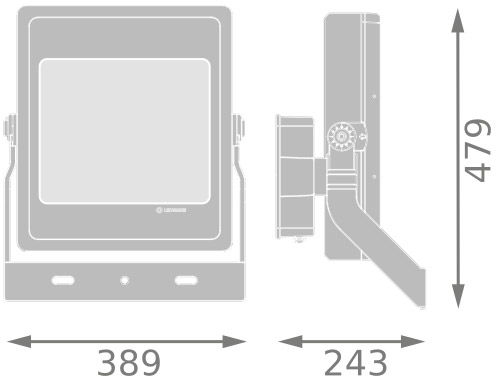

| Length: | 479 mm |
| Width: | 389 mm |
| Height: | 243 mm |
| Weight: | 8650 g |
| Nominal voltage: | 3-5 V |
| Nominal power: | 300 W |
| Nominal current: | 810 mA |
| Energy consumption: | 300 kWh/1000 |
| Colour temperature: | 3000 K |
| Light colour: | White |
| Beam angle: | 90° |
| Luminous flux: | 39600 lm |
| Light intensity: | 23000 cd |
| Luminous efficacy: | 132 lm/W |
| Colour rendering: | 70-79 CRI |
| Dimmable: | Yes |
| Lifetime: | 100000 h |
| Switching cycles: | 100000 |
| Protection class: | IP66 |
| Light source type: | LED not exchangeable |
| Material: | Aluminium |
| Colour: | Black |
| Incl. illuminant: | Yes |
| Suitable for surface mounting: | yes |
| Suitable for built-in mounting: | no |
| Suitable for wall mounting: | yes |
| Suitable for suspended mounting: | no |
| Suitable for ceiling mounting: | no |
| Suitable for traverse mounting: | yes |
| Suitable for pedestal/floor mounting: | yes |
| Suitable for light-track mounting: | no |
| Suitable for clamp-mounting: | no |
| Suitable for low voltage cable system: | no |
| Adjustability: | Swivelling |
| With movement sensor: | no |
| With light sensor: | no |
| Lamp holder: | None |
| Surface protection: | Powder coating |
| Surface brushed: | no |
| Voltage type: | DC |
| With control gear: | no |
| Exchangeable control gear: | no |
| Dimming phase cut-off (trailing edge): | no |
| Dimming phase cut-on (leading edge): | no |
| Dimming Touch and Dim: | no |
| Dimming Zigbee: | no |
| Reflector: | Matt |
| Light distributor: | Reflector |
| Light distribution: | Symmetric |
| Light outlet: | Direct |
| Constant light output (CLO): | no |
| Impact strength: | IK10 |
| Protection class according to IEC 61140: | I |
| Rated ambient temperature according to IEC 62722-2-1: | +50°C |
| Power factor: | 0.90 |
| Colour of light adjustable: | No |
| Luminous flux adjustable: | No |
| Beam angle adjustable: | No |
| Type of wiring: | Ending |
| Number of poles: | 3 |
| Luminaire with limited surface temperature, sign "D“ according to EN 60598-2-24: | no |
| Max. number of luminaires per miniature circuit breaker B16 (MCB): | 4 |
| Max. number of luminaires per miniature circuit breaker C16 (MCB): | 7 |
| Emergency power supply integrated: | no |
| Photobiological safety according to EN 62471: | RG1 |
| Suitable for workplace according to EN 12464-1: | no |
| Covering of the luminaire with thermally insulating material possible: | no |
| IFTTT support available: | yes |
| Colour consistency (McAdam ellipse): | SDCM5 |
| Compatible with Apple HomeKit: | no |
| Operation by Bluetooth: | no |
| Compatible with Google Assistant: | no |
| Compatible with Amazon Alexa: | no |
