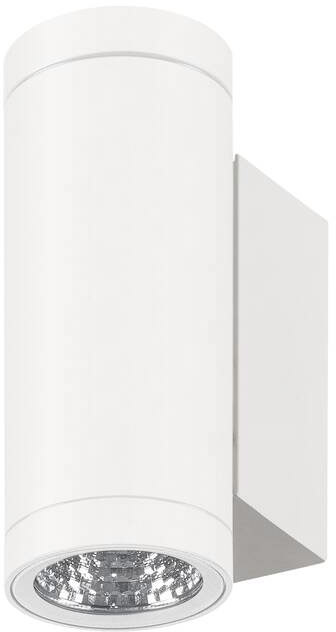

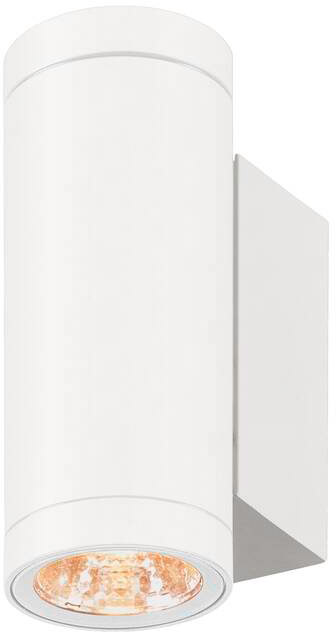

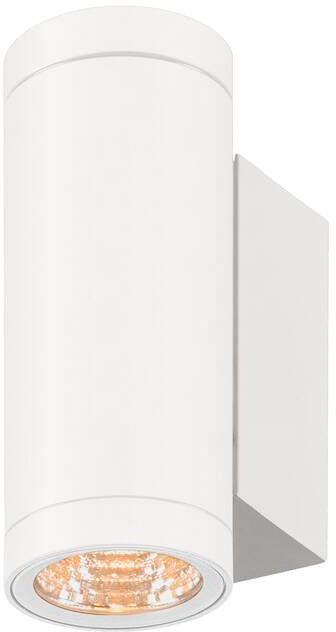

SLV HELIA PRO S, Wall-mounted light, single, DALI, P1, cylindrical, 2700 K, 3W, 24°, white
€107.97 *
Express delivery possible
Availability:
Delivery time: 1-3 days
Delivery time: 1-3 days
Item number: 110069890
EAN: 4024163318624
MPN: 1010162
The HELIA PRO wall light range offers flexible solutions for accentuating façades with two... more
All information about the product:
"SLV HELIA PRO S, Wall-mounted light, single, DALI, P1, cylindrical, 2700 K, 3W, 24°, white"
The HELIA PRO wall light range offers flexible solutions for accentuating façades with two housing sizes and two wattage classes, either as single or up/down lighting. Efficient LED technology, DALI control, precise light distribution and resistance to sea air enable high-quality architectural lighting in outdoor areas.Technical data:
| Product name: | HELIA PRO S |
| Colour: | white |
| Material: | Aluminium |
| electrical power: | 3 W |
| Luminous Flux: | 300 lm |
| Colour temperature: | 2700 Kelvin |
| Half beam angle: | 24 ° |
| CRI: | 80 |
| Different light outlets: | 1 |
| Dimmable: | Yes |
| Dimming technology: | DALI 2 |
| IP Code: | IP65 |
| Assembly: | Surface |
| Assembly details: | Wall |
| Shape: | cylindrical |

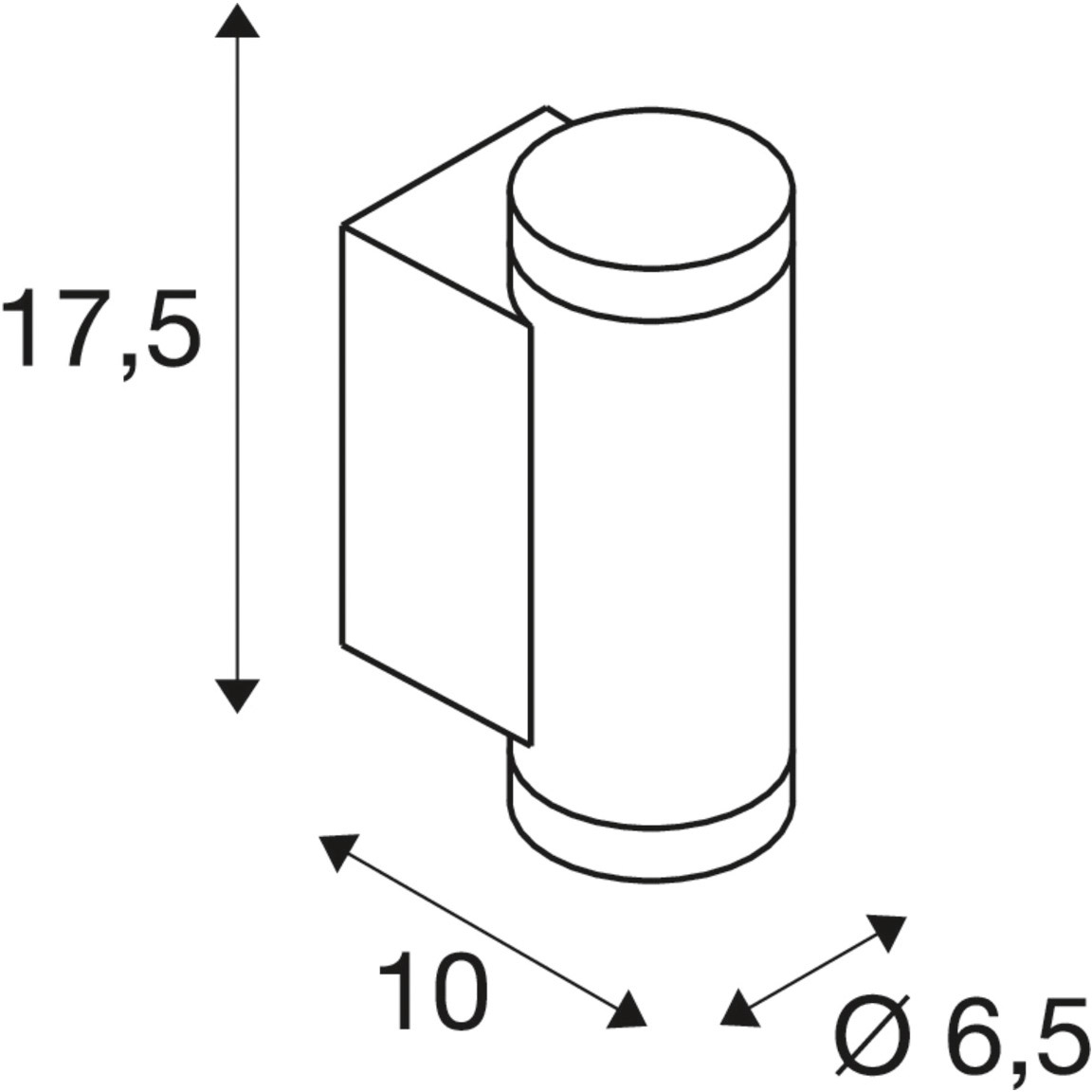

| Height: | 17.5 cm |
| Diameter: | 6.5 cm |
| Shock resistance category: | IK06 |
| Shock resistance: | 1 joule |
| Primary nominal voltage: | 220-240V ~50/60 Hz |
| Secondary power / secondary voltage: | 350 mA |
| TC point (°C): | 80 °C |
| Ambient temperature: | -25 - 45 °C |
| Net weight: | 0.77 kg |
| Weighted consumption: | 3 kWh/1.000h |
| Service life: | 50000 h |
| Number of lights on LS B16A: | 15 St. |
| Number of lights on LS C16A: | 24 St. |
| Inrush current level: | 65 A |
| Inrush current duration: | 200 μs |
| Glass temperature (light emission): | 55 °C |
| Risk group: | 1 |
