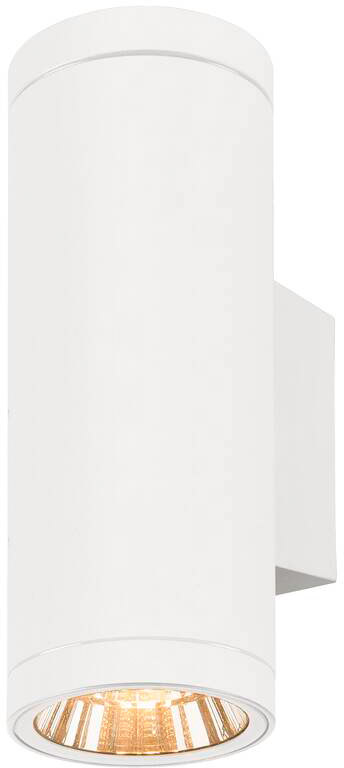

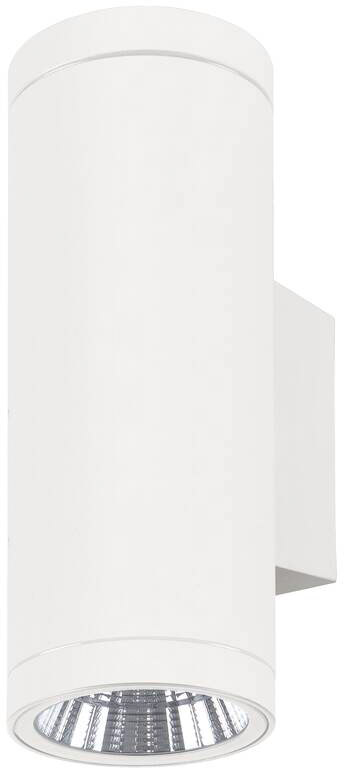

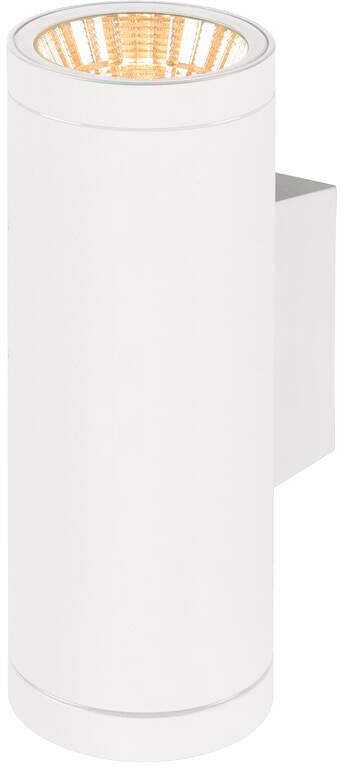

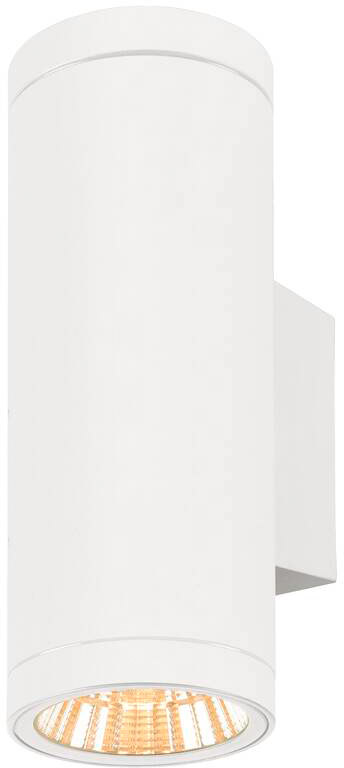

SLV HELIA PRO L, Wall-mounted light, up/down, DALI, P2, 2700 K, 30W, Touch, 24°, white
€235.38 *
Express delivery possible
Availability:
Delivery time: 1-3 days
Delivery time: 1-3 days
Item number: 110069960
EAN: 4024163318488
MPN: 1010176
The HELIA PRO wall light range offers flexible solutions for accentuating façades with two... more
All information about the product:
"SLV HELIA PRO L, Wall-mounted light, up/down, DALI, P2, 2700 K, 30W, Touch, 24°, white"
The HELIA PRO wall light range offers flexible solutions for accentuating façades with two housing sizes and two wattage classes, either as single or up/down lighting. Efficient LED technology, DALI control, precise light distribution and resistance to sea air enable high-quality architectural lighting in outdoor areas.Technical data:
| Product name: | HELIA PRO L |
| Colour: | white |
| Material: | Aluminium |
| electrical power: | 30 W |
| Luminous Flux: | 3600 lm |
| Colour temperature: | 2700 Kelvin |
| Half beam angle: | 24 / 24 ° |
| CRI: | 80 |
| Different light outlets: | 2 |
| Dimmable: | Yes |
| Dimming technology: | DALI 2 |
| IP Code: | IP65 |
| Assembly: | Surface |
| Assembly details: | Wall |
| Shape: | cylindrical |

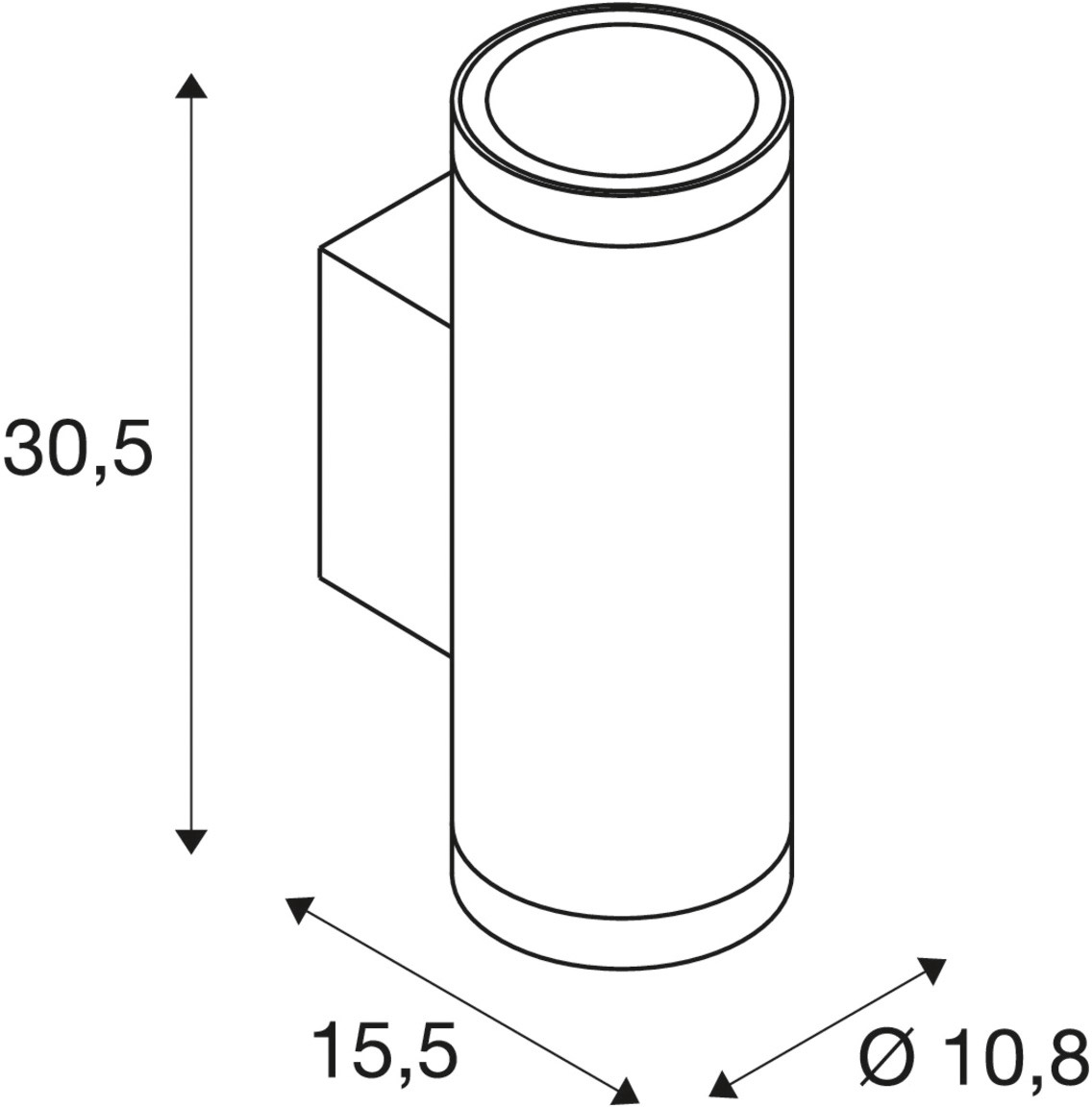

| Height: | 30.5 cm |
| Diameter: | 10.8 cm |
| Shock resistance category: | IK08 |
| Shock resistance: | 5 joule |
| Primary nominal voltage: | 220-240V ~50/60 Hz |
| Secondary power / secondary voltage: | 800 mA |
| TC point (°C): | 80 °C |
| Ambient temperature: | -20 - 45 °C |
| Net weight: | 1.91 kg |
| Weighted consumption: | 30 kWh/1.000h |
| Service life: | 50000 h |
| Number of lights on LS B16A: | 28 St. |
| Number of lights on LS C16A: | 42 St. |
| Inrush current level: | 30 A |
| Inrush current duration: | 100 μs |
| Glass temperature (light emission): | 60 °C |
| Risk group: | 1 |
Further links
- Further products by SLV
-
Information about the manufacturerObligation to provide information on product safety (GPSR)Manufacturer:SLV GmbH
Daimlerstraße 21-23
DE-52531 Übach-Palenberg
[email protected] -
Safety instructions and warningsSafety instructions and warnings (GPSR)Specific safety instructions that apply to the product can be found in the operating instructions for the product.
