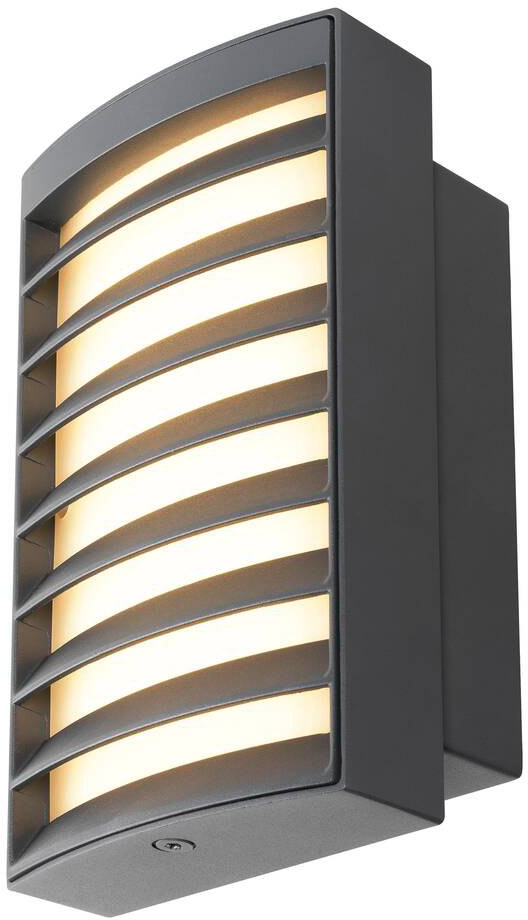

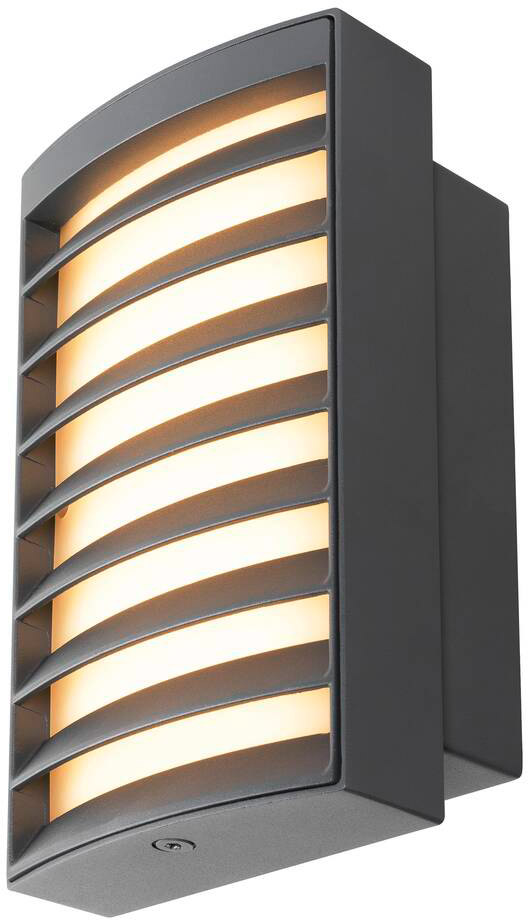

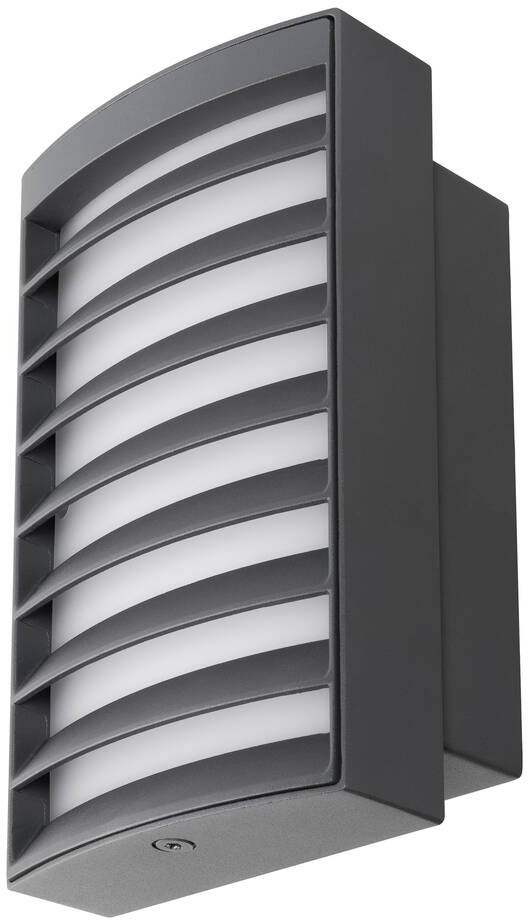

SLV RASTERLYS WL, wall-mounted light, rectangular, 2700/3000 K, 14 W, PHASE, 70°, anthracite

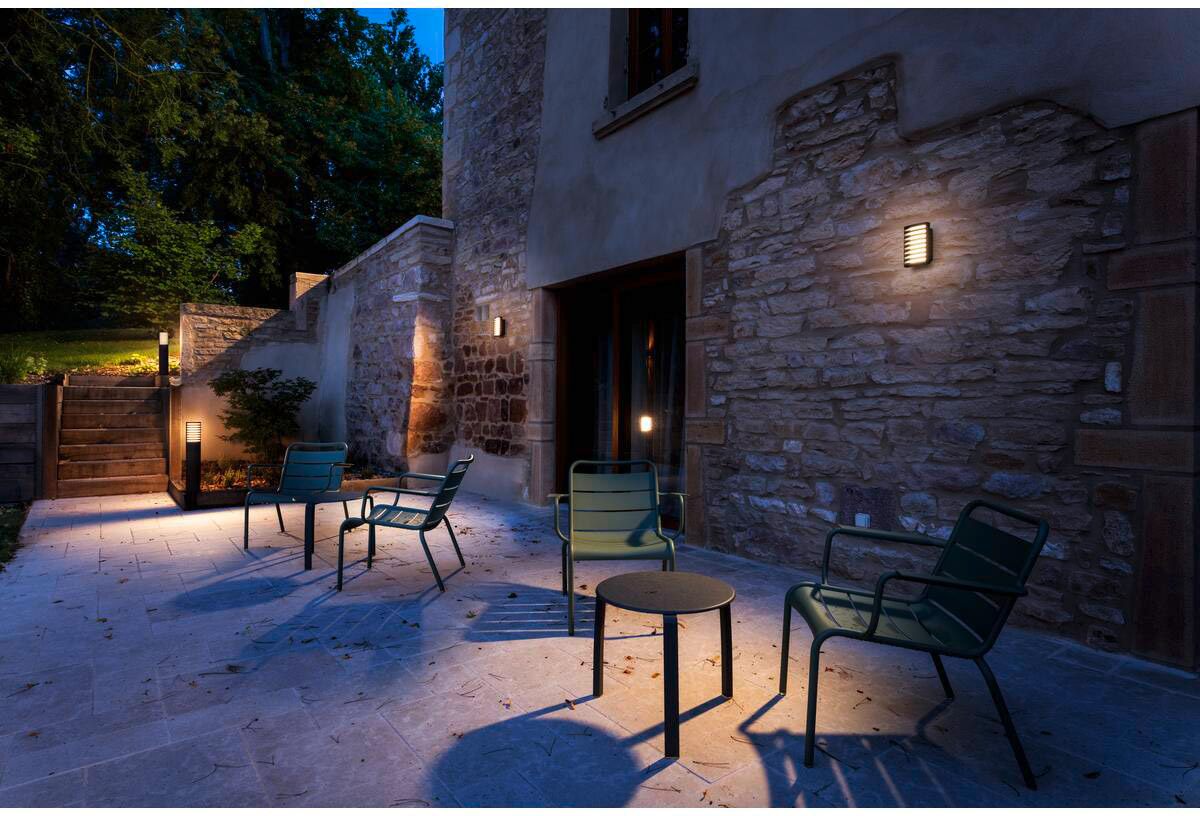

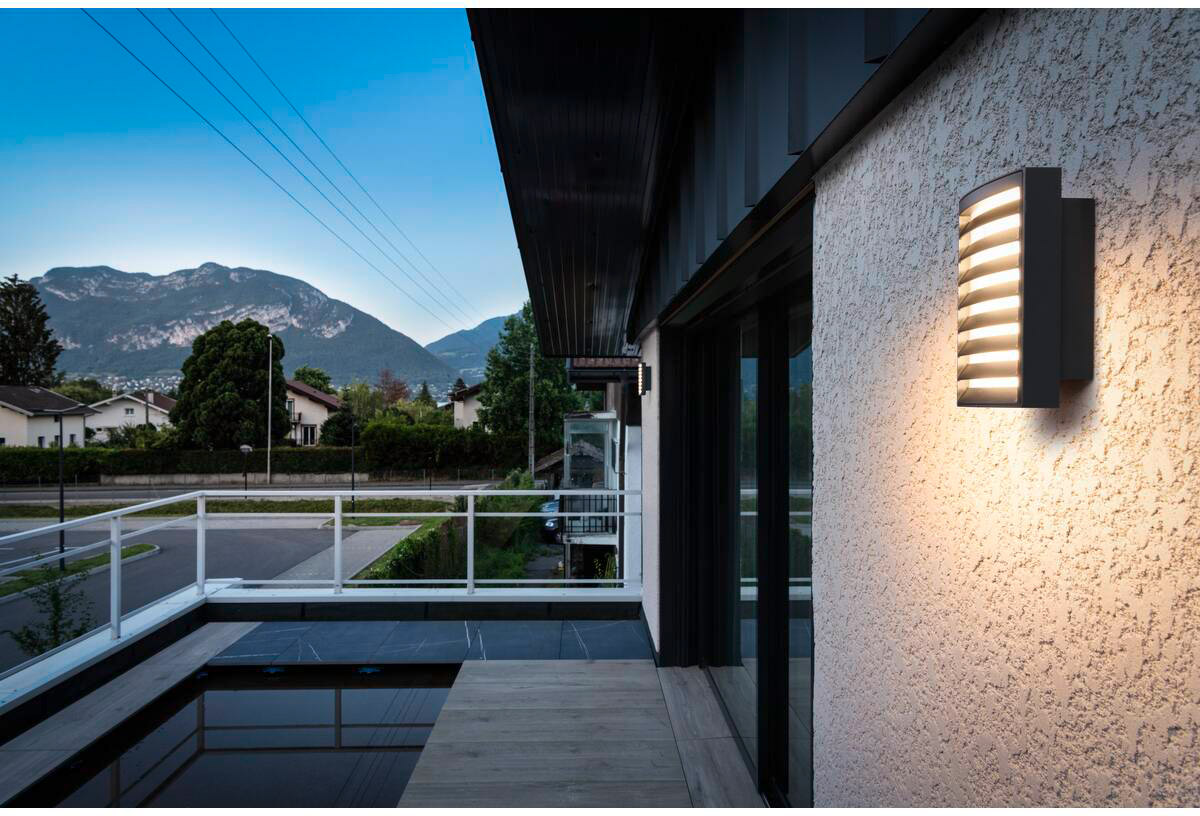

The RASTERLYS series combines modern design with high functionality. Whether mounted as a single light or in a row - the wall and bollard lights not only provide effective illumination, but also make an aesthetic statement on façades, entrances, terraces or in outdoor areas of catering establishments.with warm white light (2,700 K / 3,000 K via CCT switch), they create atmospheric accents in outdoor areas. Thanks to its IP65 and salt air-resistant surface, RASTERLYS is particularly robust and durable. The Triac dimming function and the loop-in/loop-out connection enable flexible and efficient installation.Technical data:

Product name:	RASTERLYS
Colour:	anthracite
Material:	Aluminium
electrical power:	14 W
Luminous Flux:	350 / 400 lm
Colour temperature:	2700/3000 Kelvin
Half beam angle:	70 °
CRI:	80
Different light outlets:	1
Dimmable:	Yes
Dimming technology:	Leading edge

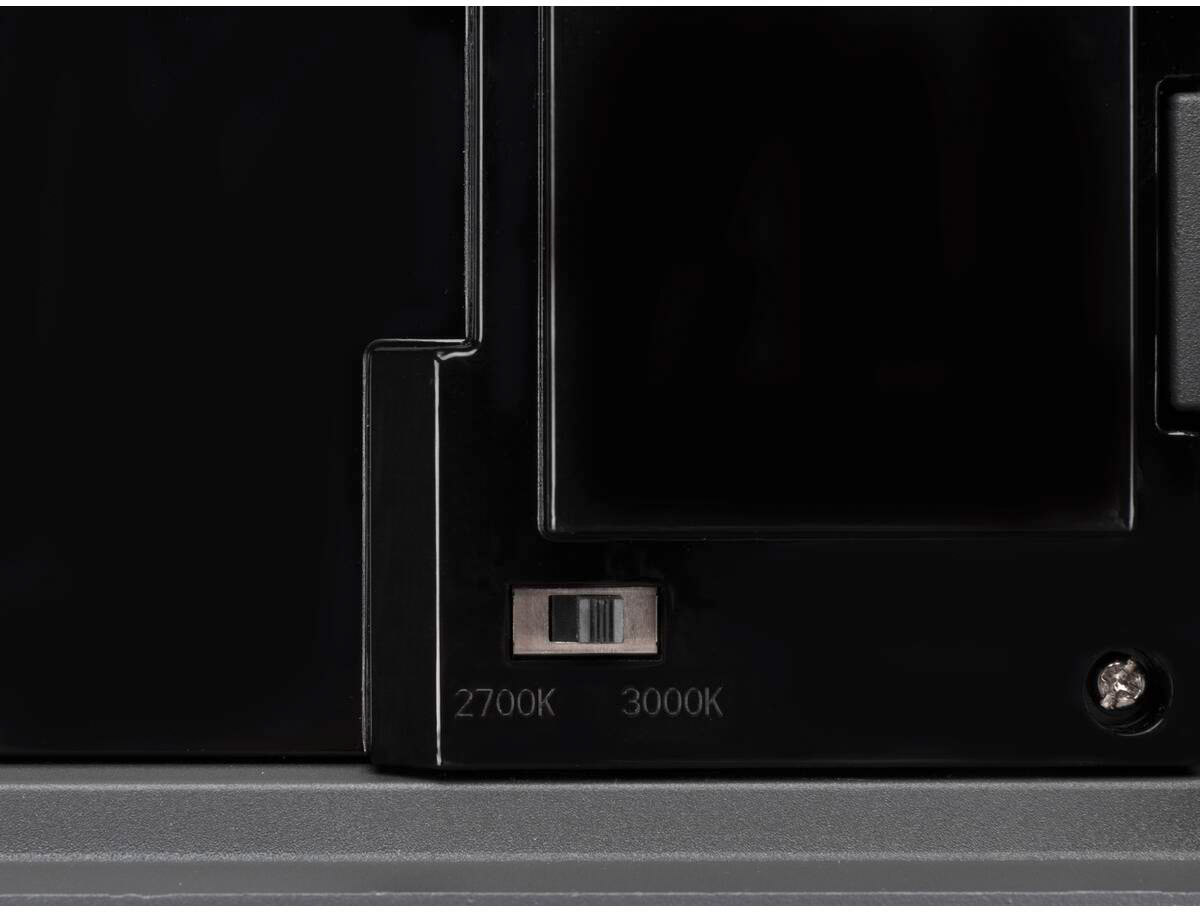

CCT Switch:	Yes
IP Code:	IP65
Assembly:	Surface
Assembly details:	Wall
Shape:	rectangular

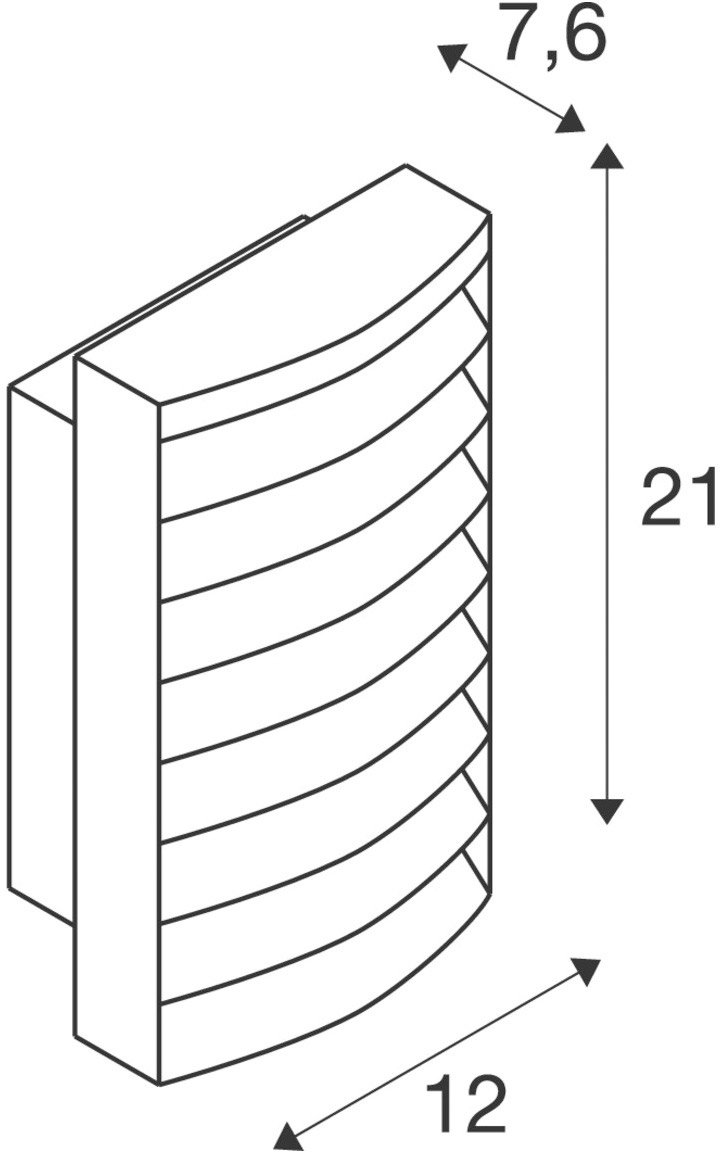

Width:	12 cm
Height:	21 cm
Depth:	7.6 cm
Shock resistance category:	IK06
Shock resistance:	1 joule
Primary nominal voltage:	220-240V ~0/50/60 Hz
Secondary power / secondary voltage:	350 mA
Ambient temperature:	-20 - 40 °C
Net weight:	1.3 kg
Weighted consumption:	14 kWh/1.000h
Service life:	50000 h
Number of lights on LS B16A:	160 St.
Number of lights on LS C16A:	160 St.
Inrush current level:	5 A
Inrush current duration:	100 μs
Glass temperature (light emission):	55 °C
