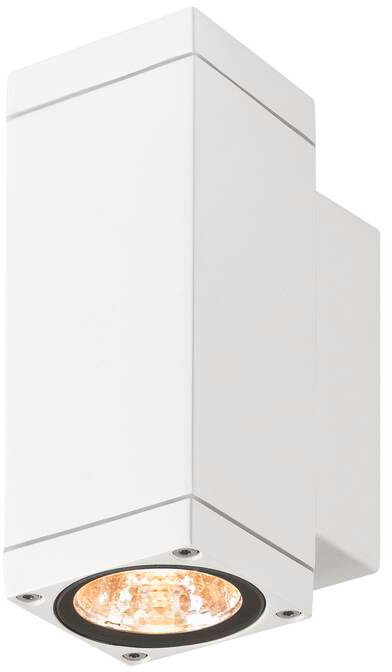

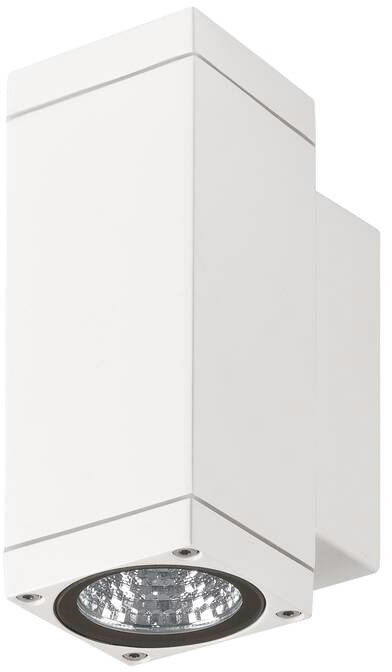

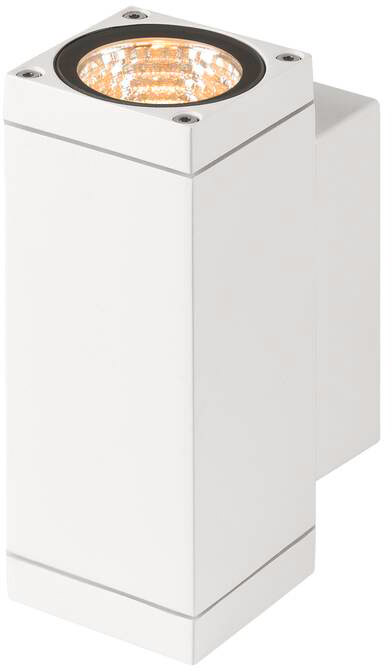

SLV THEO PRO S, Wall-mounted light, up/down, DALI, P2, rectangular, 2700 K, 12W, 24°, white
€165.38 *
Availability:
Delivery time: 3-5 days
Delivery time: 3-5 days
Item number: 110070000
EAN: 4024163318402
MPN: 1010184
The THEO PRO wall light series combines a clear, square design with modern technology for precise... more
All information about the product:
"SLV THEO PRO S, Wall-mounted light, up/down, DALI, P2, rectangular, 2700 K, 12W, 24°, white"
The THEO PRO wall light series combines a clear, square design with modern technology for precise accent lighting. Available in two sizes and performance classes, with single or up/down light, they offer versatile solutions for modern façade lighting in outdoor areas thanks to DALI control and resistance to sea air.Technical data:
| Product name: | THEO PRO S |
| Colour: | white |
| Material: | Aluminium |
| electrical power: | 12 W |
| Luminous Flux: | 1200 lm |
| Colour temperature: | 2700 Kelvin |
| Half beam angle: | 24 / 24 ° |
| CRI: | 80 |
| Different light outlets: | 2 |
| Dimmable: | Yes |
| Dimming technology: | DALI 2 |
| IP Code: | IP65 |
| Assembly: | Surface |
| Assembly details: | Wall |
| Shape: | rectangular |
| Width: | 6.5 cm |
| Height: | 17.5 cm |
| Shock resistance category: | IK06 |
| Shock resistance: | 1 joule |
| Primary nominal voltage: | 220-240V ~50/60 Hz |
| Secondary power / secondary voltage: | 300 mA |
| TC point (°C): | 80 °C |
| Ambient temperature: | -25 - 45 °C |
| Net weight: | 0.94 kg |
| Weighted consumption: | 12 kWh/1.000h |
| Service life: | 50000 h |
| Number of lights on LS B16A: | 15 St. |
| Number of lights on LS C16A: | 24 St. |
| Inrush current level: | 65 A |
| Inrush current duration: | 200 μs |
| Glass temperature (light emission): | 56 °C |
| Risk group: | 1 |
Further links
- Do you have any questions concerning this product?
- Further products by SLV
-
Information about the manufacturerObligation to provide information on product safety (GPSR)Manufacturer:SLV GmbH
Daimlerstraße 21-23
DE-52531 Übach-Palenberg
[email protected] -
Safety instructions and warningsSafety instructions and warnings (GPSR)Specific safety instructions that apply to the product can be found in the operating instructions for the product.
We will be happy to advise you!
You can reach us:
| Mon-Fri: | 08:00 am – 05:00 pm |
You can find answers to frequently asked questions here:
Service & help
Shipping free* from €69
Fast delivery
3-year guarantee
Attractive B2B conditions
Purchase on account: Buy safely!
Learn more about us!
Take a look behind the scenes at the LTT Group for an insight into our company.
Downloads
"SLV THEO PRO S, Wall-mounted light, up/down, DALI, P2, rectangular, 2700 K, 12W, 24°, white"
| Document type | File size | |
|
Operating instructions | 0.43 MB |
|
|
Data sheet | 0.65 MB |
|
|

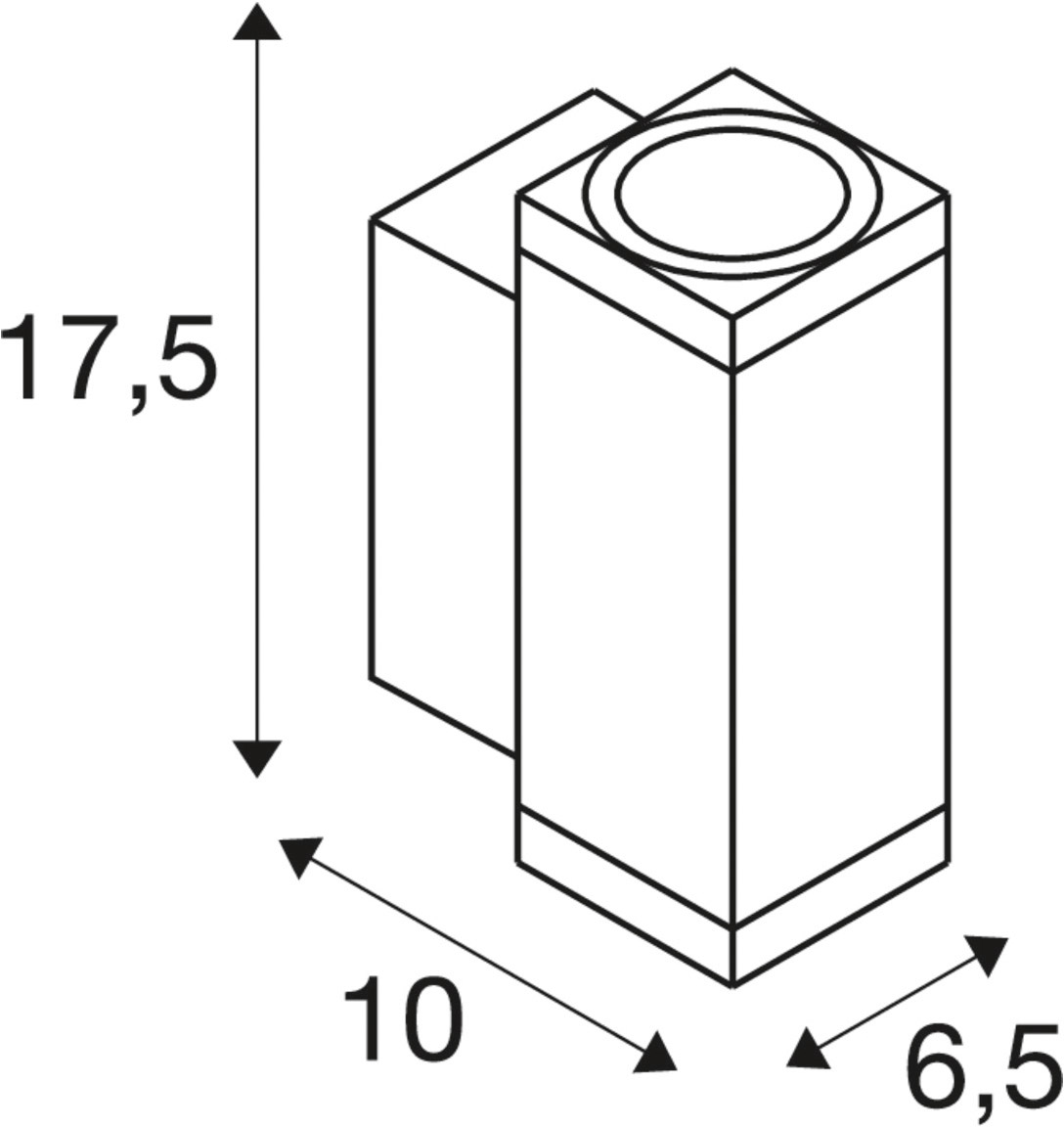

Technical drawing / illustration | 0.02 MB |
|
|
Certificate | 0.10 MB |
|
|
Certificate | 0.19 MB |
|
|
EPREL-Product data sheet |
