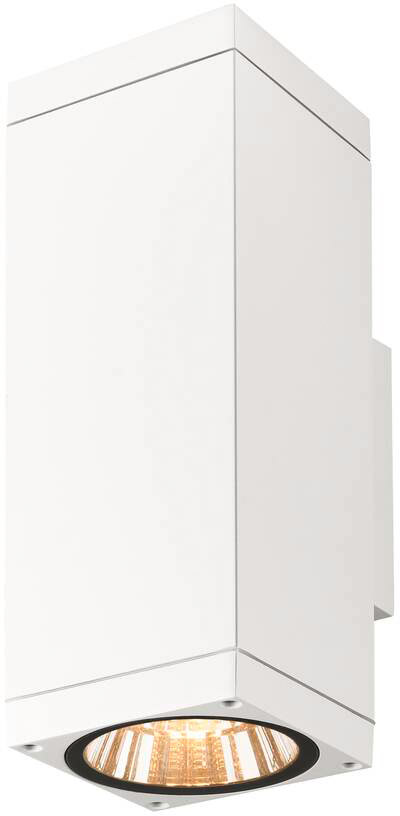

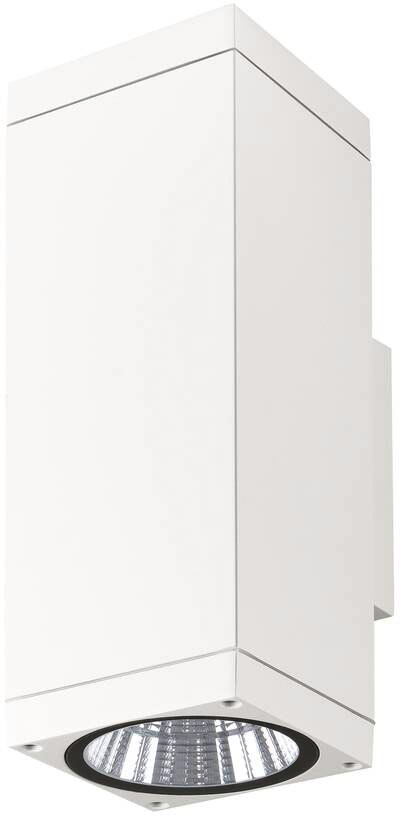

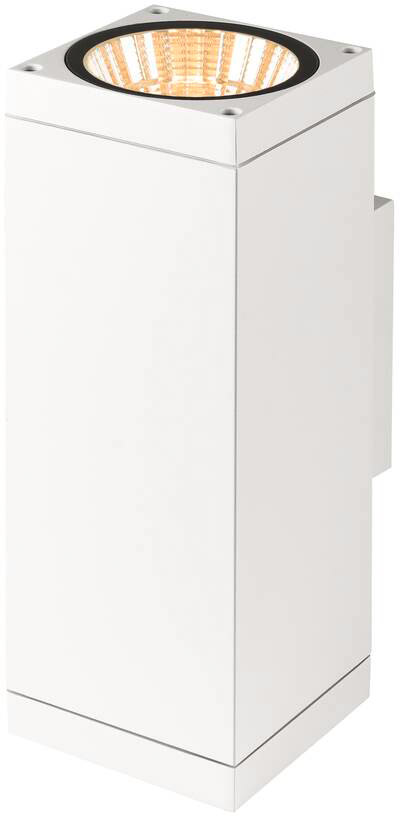

SLV THEO PRO L, Wall-mounted light, up/down, DALI, P2, 2700 K, 30W, Touch, 24°, white
€244.12 *
Availability:
Delivery time: 3-5 days
Delivery time: 3-5 days
Item number: 110070040
EAN: 4024163318327
MPN: 1010192
The THEO PRO wall light series combines a clear, square design with modern technology for precise... more
All information about the product:
"SLV THEO PRO L, Wall-mounted light, up/down, DALI, P2, 2700 K, 30W, Touch, 24°, white"
The THEO PRO wall light series combines a clear, square design with modern technology for precise accent lighting. Available in two sizes and performance classes, with single or up/down light, they offer versatile solutions for modern façade lighting in outdoor areas thanks to DALI control and resistance to sea air.Technical data:
| Product name: | THEO PRO L |
| Colour: | white |
| Material: | Aluminium |
| electrical power: | 30 W |
| Luminous Flux: | 3600 lm |
| Colour temperature: | 2700 Kelvin |
| Half beam angle: | 24 / 24 ° |
| CRI: | 80 |
| Different light outlets: | 2 |
| Dimmable: | Yes |
| Dimming technology: | DALI 2 |
| IP Code: | IP65 |
| Assembly: | Surface |
| Assembly details: | Wall |
| Shape: | rectangular |

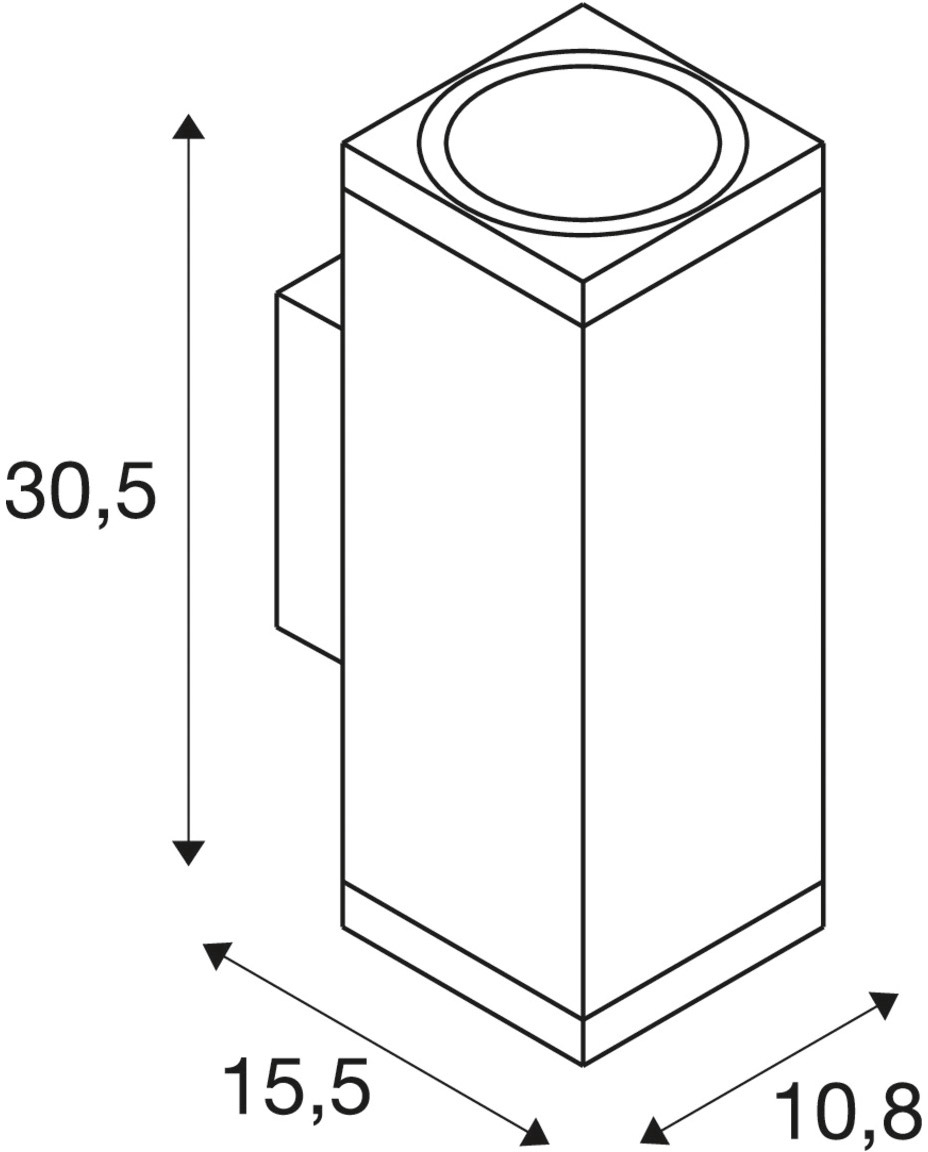

| Width: | 10.8 cm |
| Height: | 30.5 cm |
| Shock resistance category: | IK08 |
| Shock resistance: | 5 joule |
| Output voltage: | 0 0 |
| Primary nominal voltage: | 220-240V ~50/60 Hz |
| Secondary power / secondary voltage: | 800 mA |
| Ambient temperature: | -20 - 40 °C |
| Net weight: | 2.25 kg |
| Weighted consumption: | 30 kWh/1.000h |
| LXXBXX Data: | 80 | 10 |
| Service life: | 50000 h |
| Number of lights on LS B16A: | 28 St. |
| Number of lights on LS C16A: | 42 St. |
| Inrush current level: | 30 A |
| Inrush current duration: | 100 μs |
| Glass temperature (light emission): | 58 °C |
| Risk group: | 1 |
