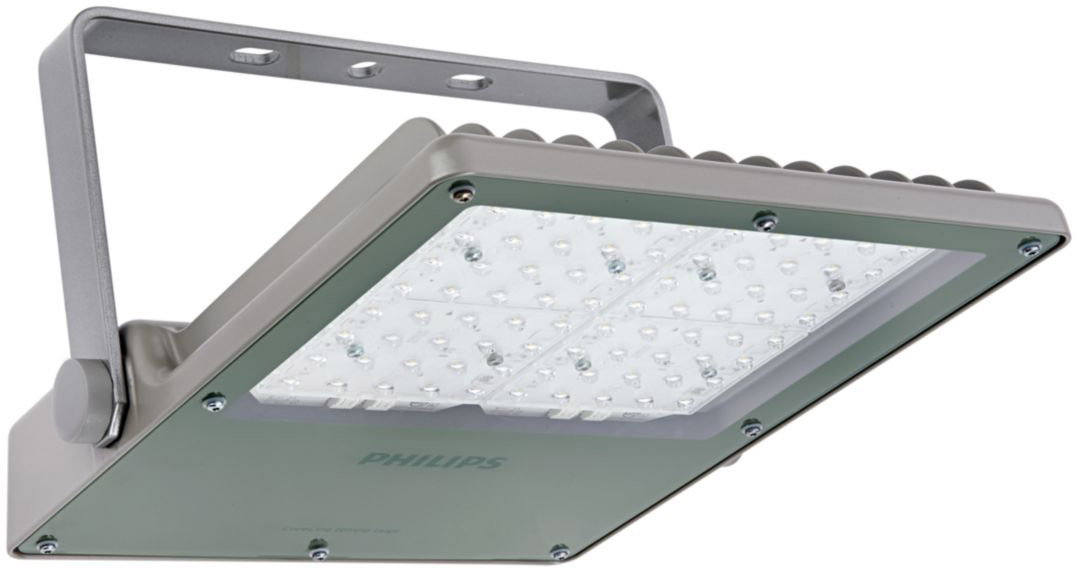

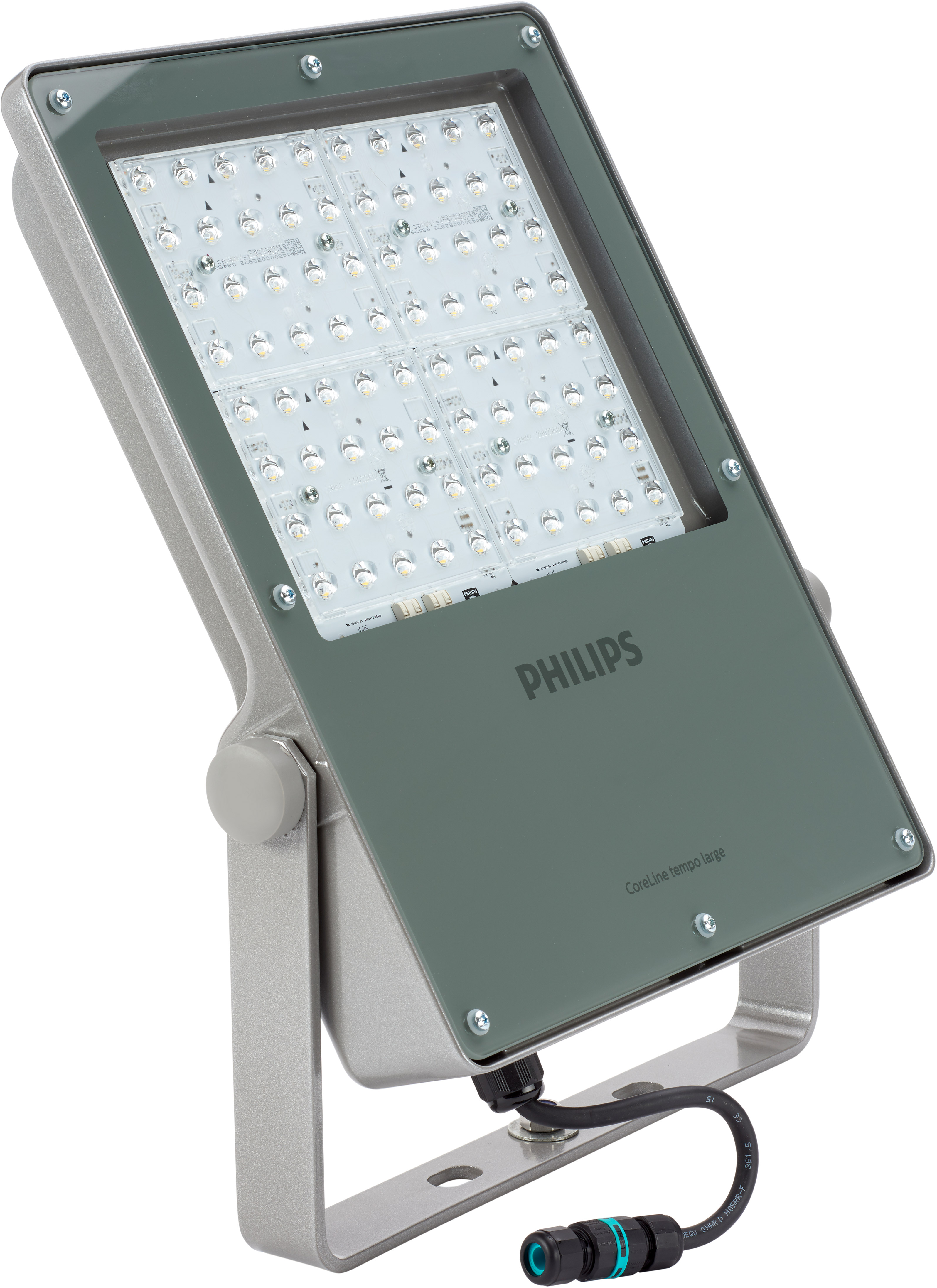

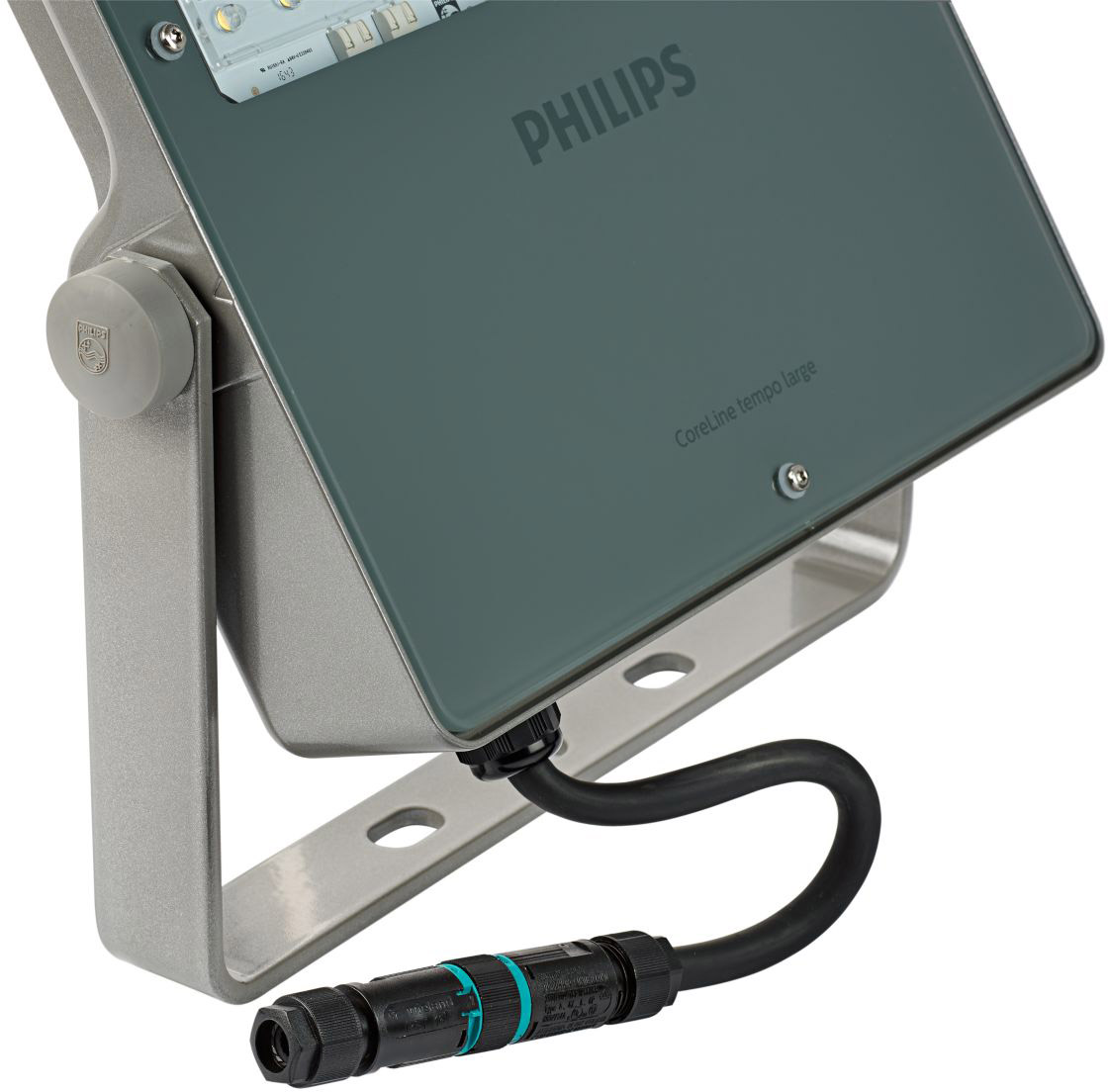

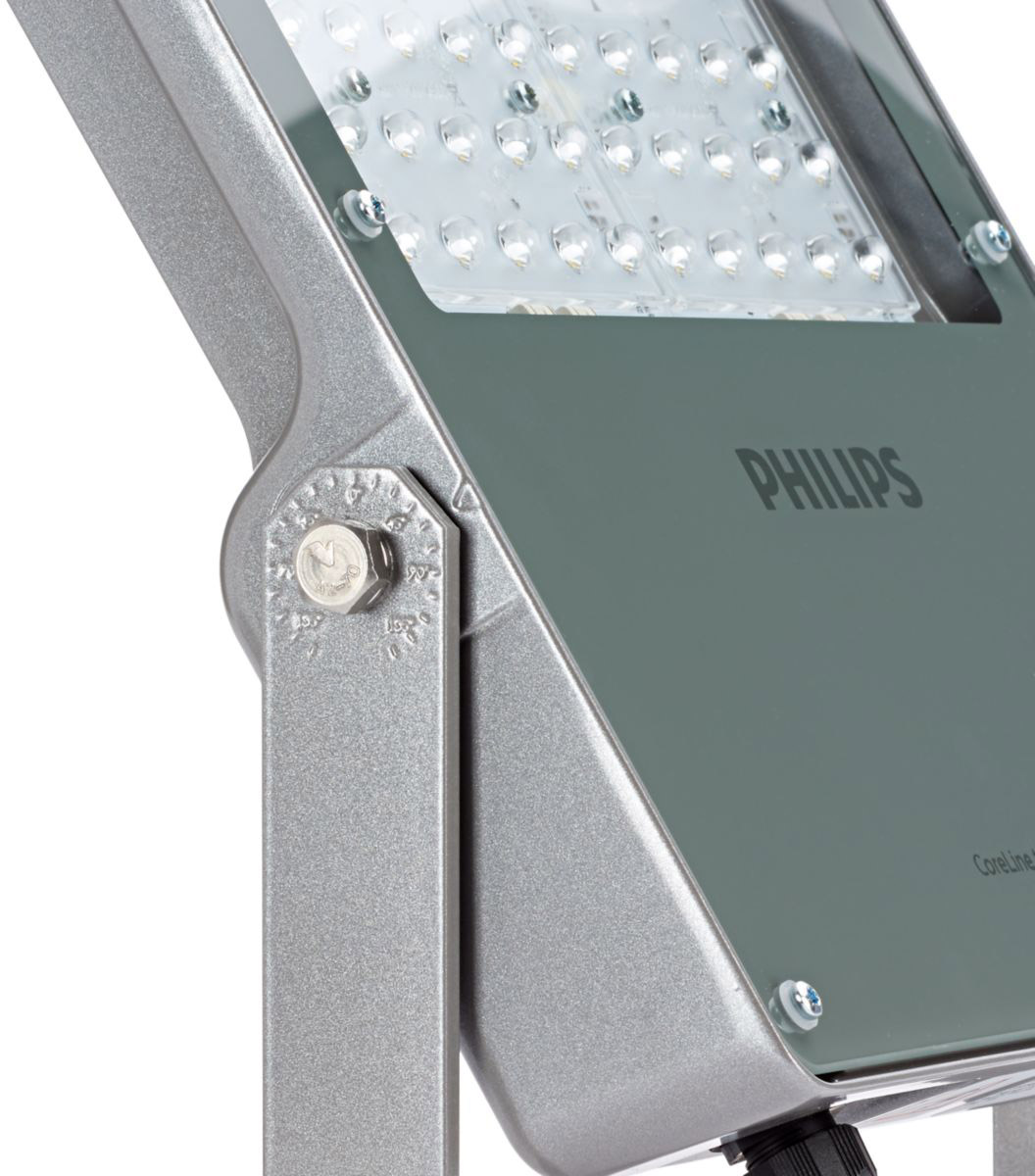

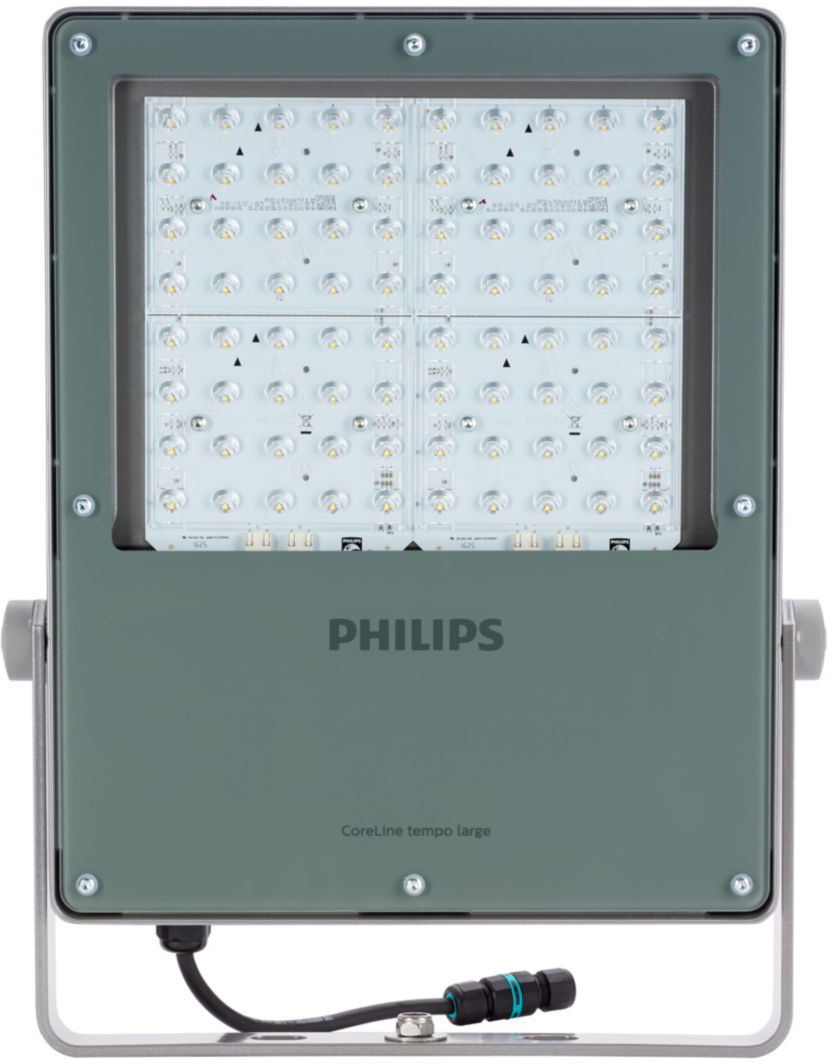

PHILIPS Coreline tempo large, Floodlight, 141 W, 21000 lm, 4000 K, CRI70, Asymmetrical, IP66
€364.23 *
Availability:
Delivery time: approx. 2-3 weeks
Delivery time: approx. 2-3 weeks
Item number: 100427010
EAN: 8718699096403
MPN: 912300023661
PHILIPS Coreline tempo large, Floodlight, 141 W, 21000 lm, 4000 K, CRI70, Asymmetrical, IP66... more
All information about the product:
"PHILIPS Coreline tempo large, Floodlight, 141 W, 21000 lm, 4000 K, CRI70, Asymmetrical, IP66"
PHILIPS Coreline tempo large, Floodlight, 141 W, 21000 lm, 4000 K, CRI70, Asymmetrical, IP66
Floodlight, Aluminum, Grey, Gray aluminum (RAL9007), Power supply unit (On/Off), 21000 lm, 141 W, 144 lm/W, 4000 K, (0.382, 0.379) SDCM 5, CRI70, Asymmetrical, IP66 | Dust penetration-protected, jet-proof, IK08 | 5 J vandal-protected, Safety class I, Luminaire surge protection level until 6 kV differential mode and 8 kV common mode, Cable 1.0 m with plug Wieland/Adels compatible 3-pole, External connector

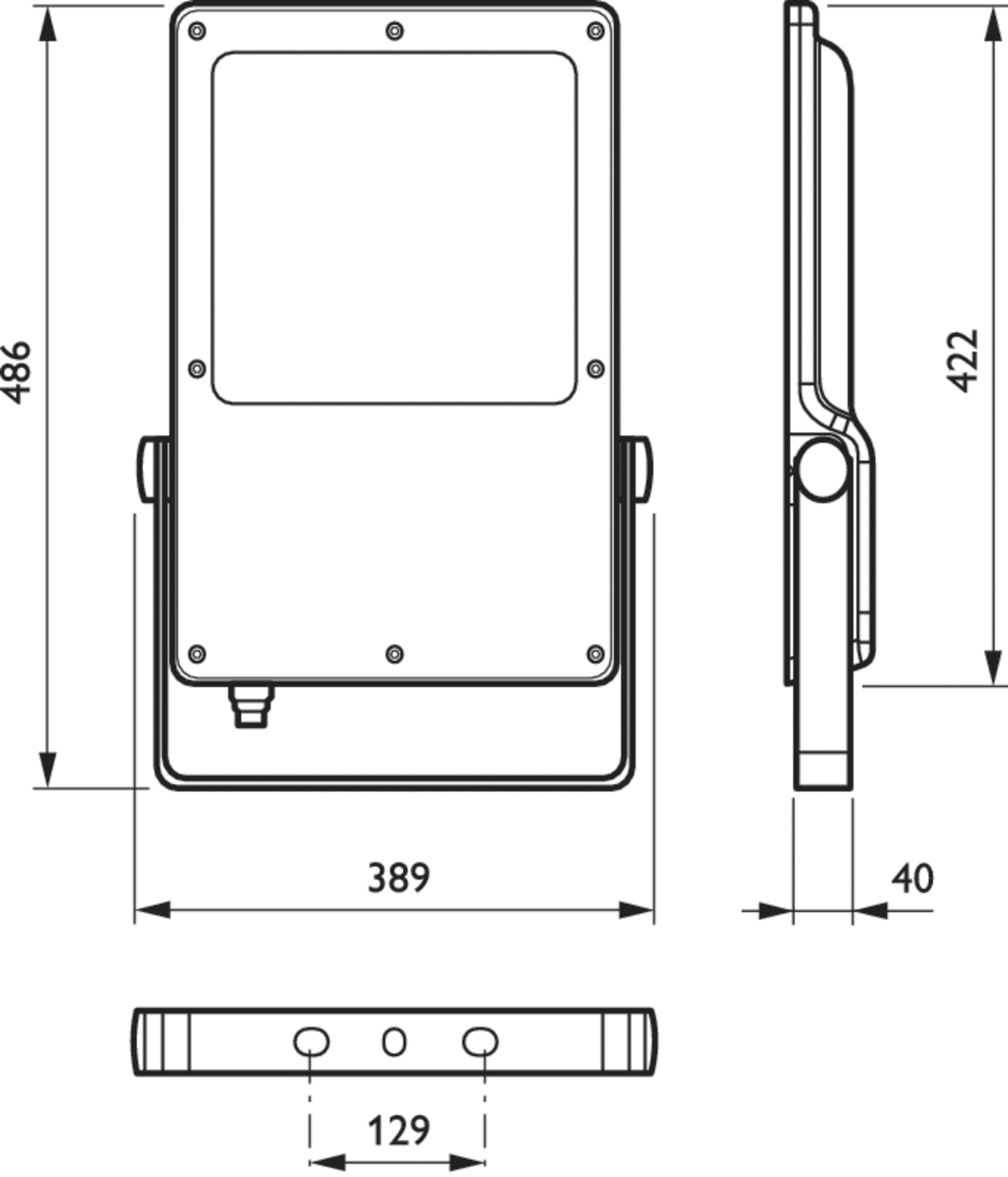

Technical data:| Length: | 340,50 mm |
| Width: | 422 mm |
| Height: | 67,40 mm |
| Nominal voltage: | 220-240 V |
| Nominal power: | 141 W |
| Nominal current: | 720 mA |
| Energy consumption: | 141 kWh/1000 |
| Colour temperature: | 4000 K |
| Light colour: | White |
| Beam angle: | 41-80° - Wide beam |
| Luminous flux: | 21000 lm |
| Light intensity: | 861 cd |
| Luminous efficacy: | 144 lm/W |
| Colour rendering: | 70-79 CRI |
| Dimmable: | No |
| Protection class: | IP66 |
| Energy efficiency class: | D |
| Light source type: | LED not exchangeable |
| Material: | Aluminium |
| Colour: | Grey |
| Incl. illuminant: | Yes |
| Suitable for surface mounting: | yes |
| Suitable for low voltage cable system: | no |
| Filament test according to IEC 60695-2-11: | 650 °C - 30 s |
| Photobiological safety according to EN 62471: | RG1 |
| Suitable for workplace according to EN 12464-1: | yes |
| Covering of the luminaire with thermally insulating material possible: | no |
| IFTTT support available: | no |
| Colour consistency (McAdam ellipse): | SDCM3 |
| Compatible with Apple HomeKit: | no |
| Operation by Bluetooth: | no |
| Adjustability: | Swivelling |
| Compatible with Google Assistant: | no |
| Compatible with Amazon Alexa: | no |
| With movement sensor: | no |
| With light sensor: | no |
| Suitable for number of light sources: | 80 |
| Lamp holder: | None |
| Surface protection: | Powder coating |
| Suitable for built-in mounting: | no |
| Material cover: | Glass transparent |
| Surface brushed: | yes |
| Voltage type: | AC |
| Type of control gear: | LED operating device current-controlled |
| With control gear: | yes |
| Exchangeable control gear: | yes |
| Suitable for wall mounting: | yes |
| Dimming phase cut-off (trailing edge): | no |
| Suitable for suspended mounting: | no |
| Dimming phase cut-on (leading edge): | no |
| Dimming Touch and Dim: | no |
| Dimming Zigbee: | no |
| Reflector: | None |
| Light distributor: | Diffuser lens/optic/panel |
| Suitable for ceiling mounting: | no |
| Light distribution: | Asymmetric |
| Light outlet: | Direct |
| Total harmonic distortion: | 5.03 |
| Lumen maintenance at median useful life of 100,000 h at 25 °C ambient (tq): | 90% |
| Suitable for traverse mounting: | yes |
| Failure rate at median useful life of 100,000 h at 25 °C ambient (tq): | 10% |
| Constant light output (CLO): | no |
| Impact strength: | IK08 |
| Protection class according to IEC 61140: | I |
| Rated ambient temperature according to IEC 62722-2-1: | 25°C |
| Suitable for pedestal/floor mounting: | yes |
| Power factor: | 0.99 |
| Flickering value Pst LM: | 0.26 |
| Colour of light adjustable: | No |
| Suitable for light-track mounting: | no |
| Luminous flux adjustable: | No |
| Beam angle adjustable: | No |
| Stroboscope effect value SVM: | 0.07 |
| Suitable for clamp-mounting: | no |
| Type of wiring: | Ending |
| Number of poles: | 3 |
| Conductor cross section: | 1.5mm² |
| Connectable conductor cross section: | 14mm² |
| Connection type: | Insulation displacement connector |
| Luminaire with limited surface temperature, sign "D“ according to EN 60598-2-24: | no |
| Max. number of luminaires per miniature circuit breaker B16 (MCB): | 7 |
| Max. number of luminaires per miniature circuit breaker C16 (MCB): | 11 |
| Emergency power supply integrated: | no |
