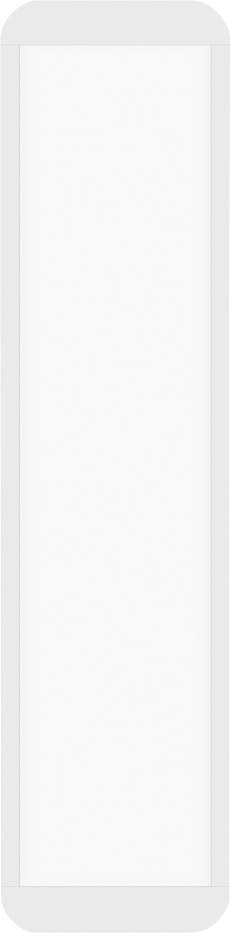

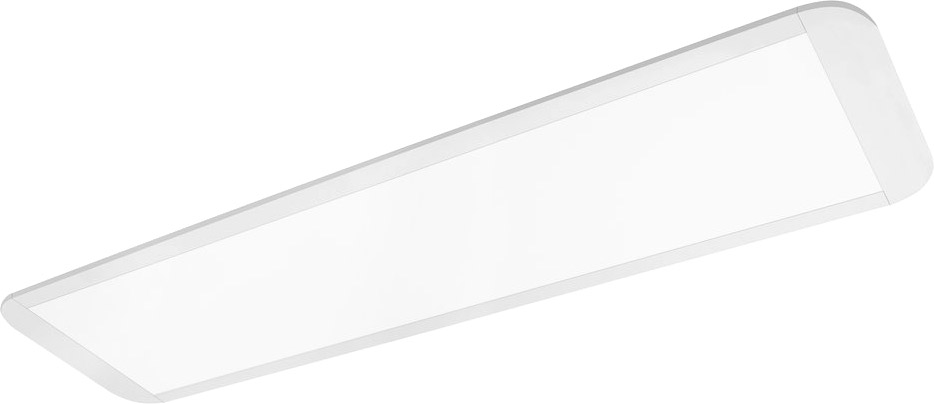

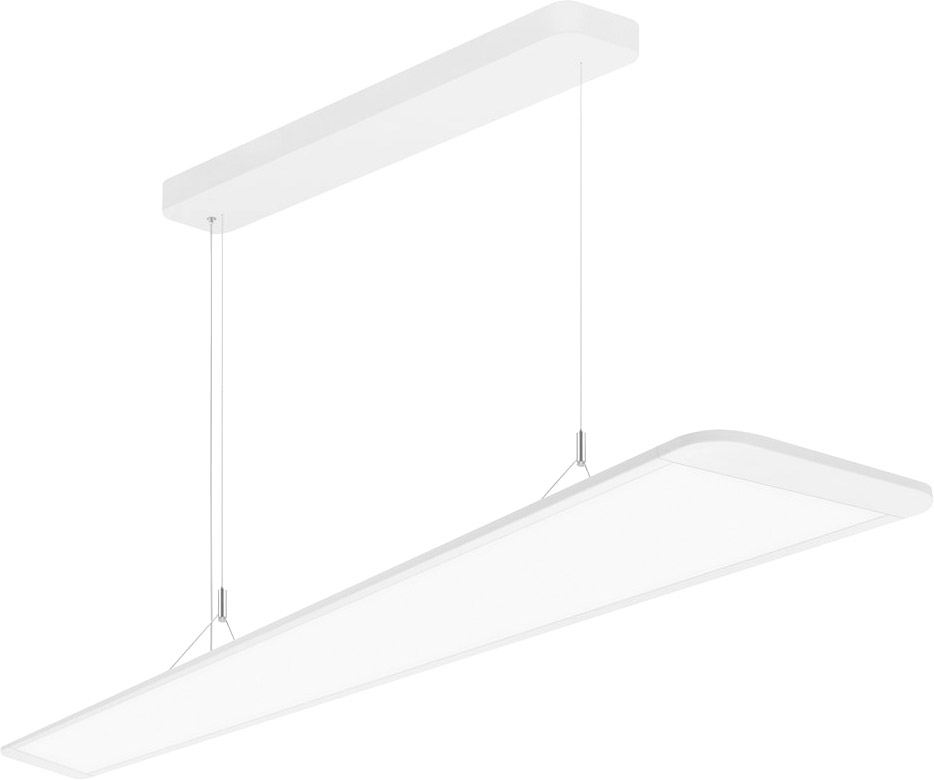

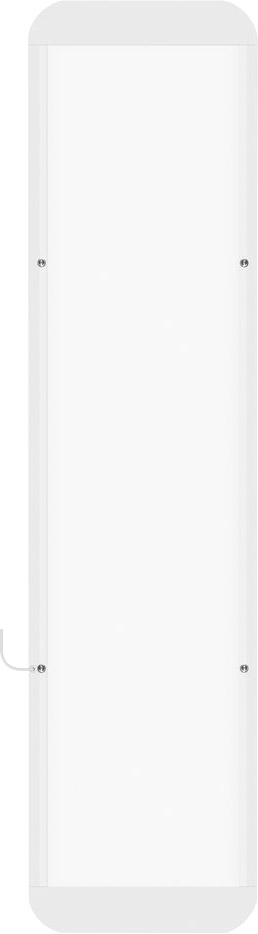

LEDVANCE PANEL DIRECT/INDIRECT 1200 UGR < 19 36 W 4000 K UGR19
€261.42 *
Availability:
Currently not available.
Expected to be available again in 3 weeks.
Expected to be available again in 3 weeks.
Currently not available
Item number: 101401060
EAN: 4058075144620
MPN: 4058075144620
Suspended edge-lit luminaires for direct and indirect light emission, low glare, 1200 mm.... more
All information about the product:
"LEDVANCE PANEL DIRECT/INDIRECT 1200 UGR < 19 36 W 4000 K UGR19"
Suspended edge-lit luminaires for direct and indirect light emission, low glare, 1200 mm. Product features:
- Rectangular (1200 mm x 300 mm) stand-alone luminaires with direct (70 %) and indirect (30 %) light emission
- Driver integrated into the remote driver box
- UGR = 19 according to EN12464-1
- High luminous efficacy: up to 110 lm/W
- Lifetime (L70/B50): 80,000 h (at 25 °C)
- Follows the unified LEDVANCE design language (SCALE design)
- Very slim aluminum housing
- Luminaire versions with IoT-ready DALI-2 driver or IoT Zigbee 3.0 technology available
- Suspended edge-lit luminaires for direct light emission (70% ) and indirect light emission (30%)
- Attractive and functional design for office applications
- Good glare reduction (UGR = 19)
- Very homogenous light
- Low maintenance and low operational costs
- External driver for extended flexibility
- Special light guide design for low-glare illumination
- Easy and quick installation
- Low flicker light thanks to special electronic control gear
- 5 years guarantee
- Efficient replacement for traditional T8 and T5 luminaires
- Offices
- Meeting rooms
- Conference rooms
- Reception areas and foyers
- Equipment / Accessories: Suspension kit included
| Length: | 1200 mm |
| Width: | 300 mm |
| Height: | 16 mm |
| Net weight: | 4525 g |
| LED type: | SMD |
| Nominal voltage: | 240 V |
| Nominal current: | 230 mA |
| Rated power: | 36 W |
| Energy consumption: | 36 kWh/1000 |
| Colour temperature: | 4000 K |
| Light colour: | Cool White |
| Beam angle: | 110 ° |
| Luminous flux: | 4000 lm |
| Colour rendering: | 80 CRI |
| Lifetime: | 80000 h |
| Switching cycles: | 100000 |
| Energy efficiency class: | D |
| Dimmable: | No |
| Material: | Aluminum |
| Colour: | White |
| EAN: | 4058075144620 |
