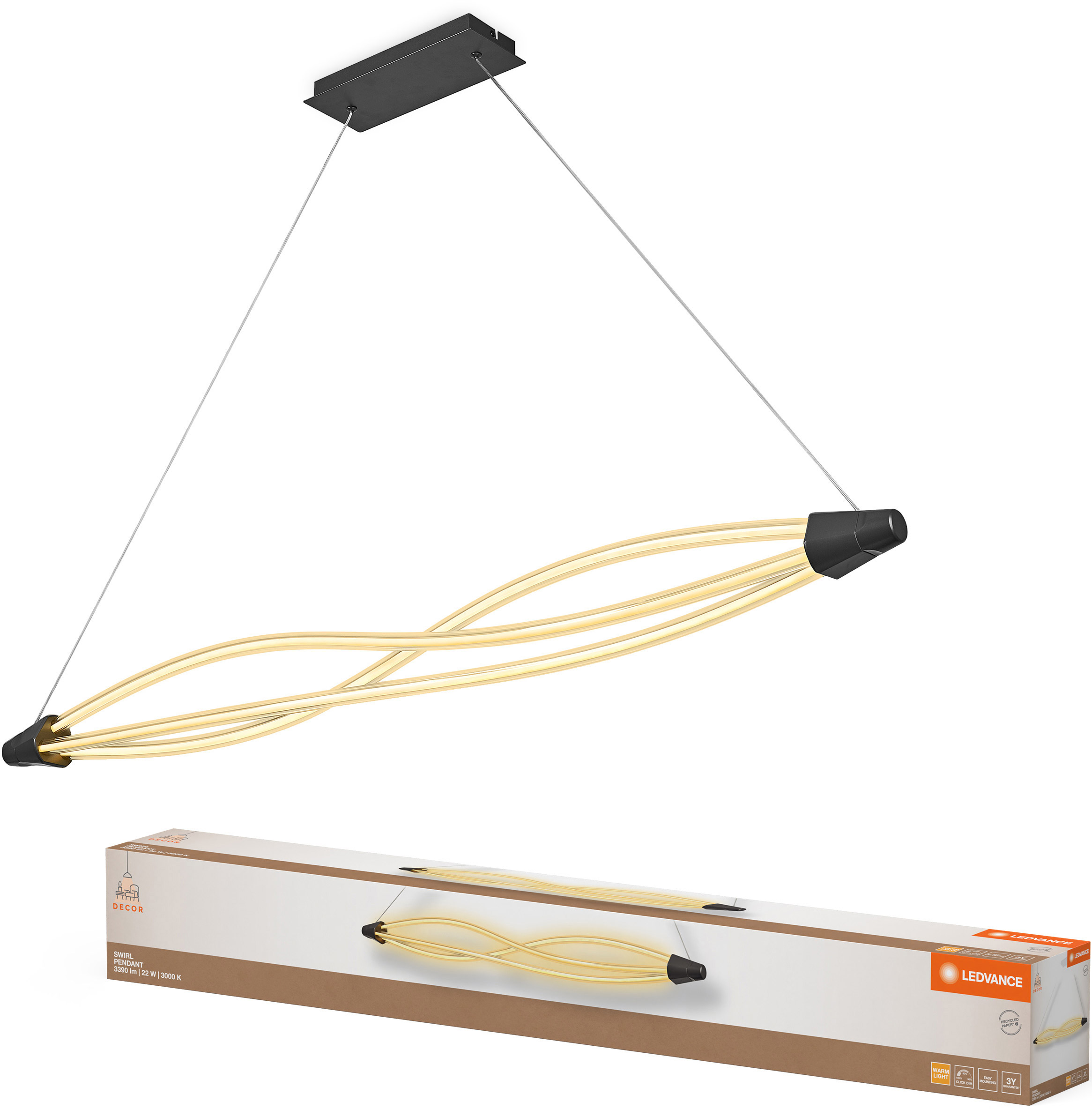

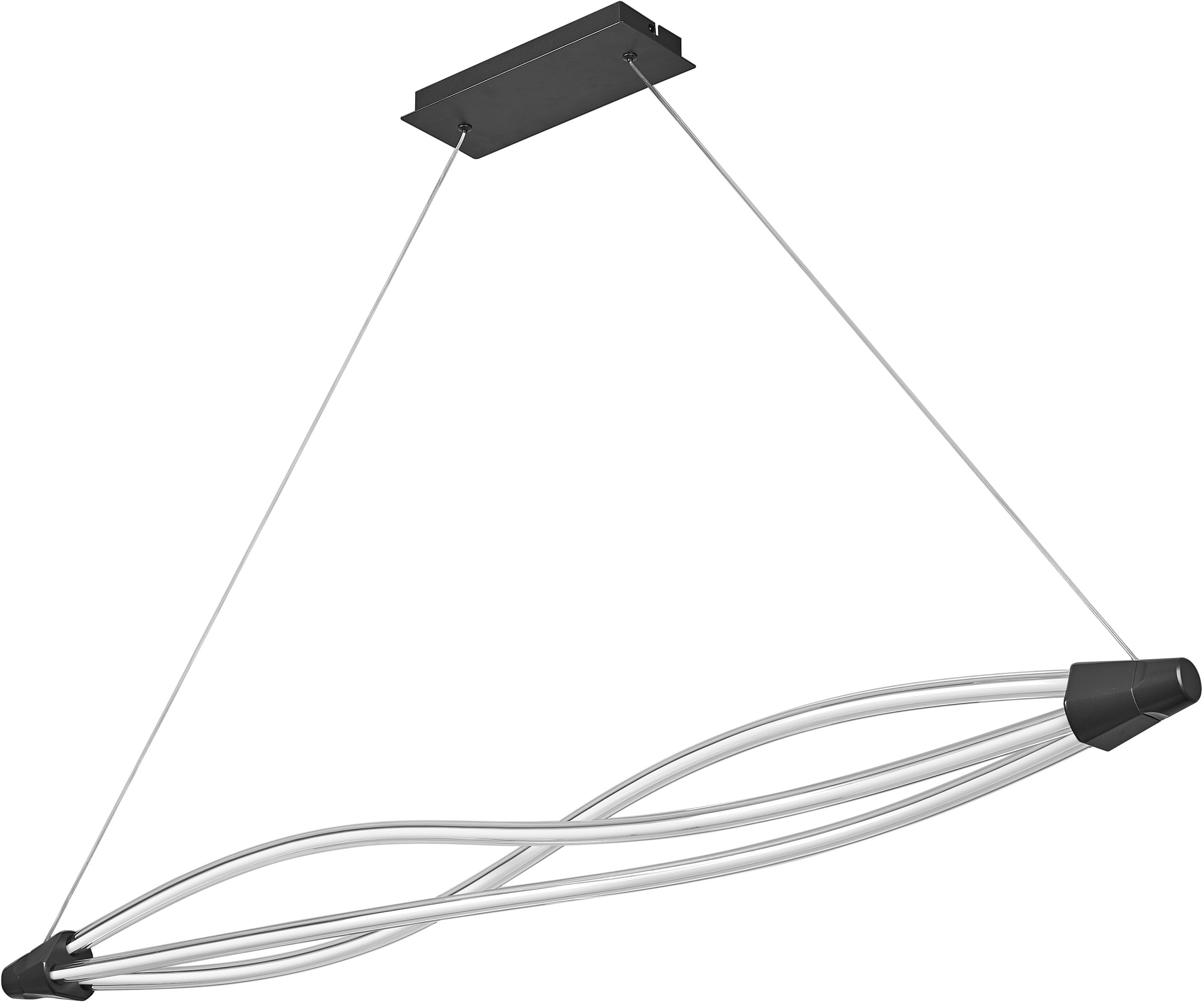

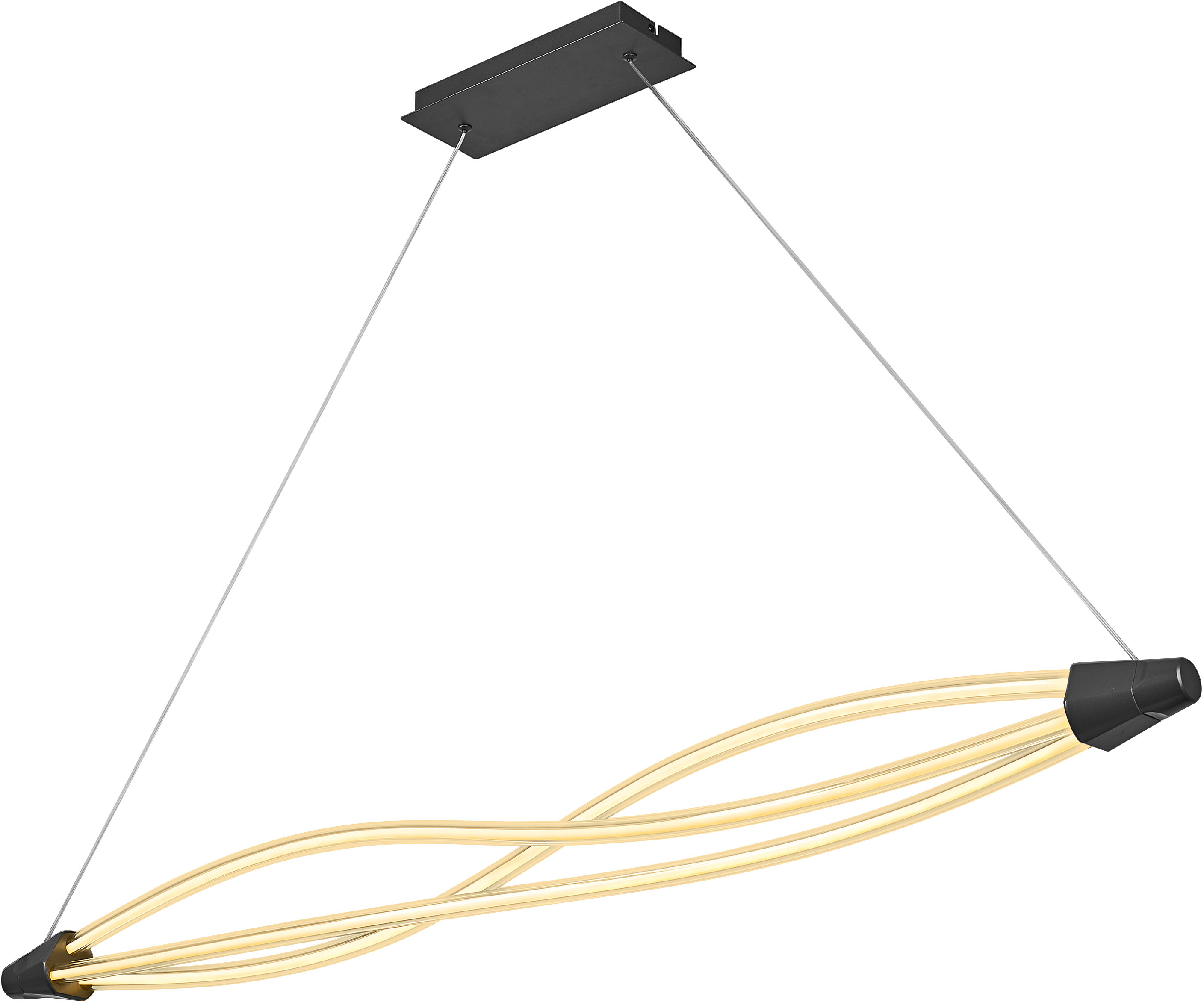

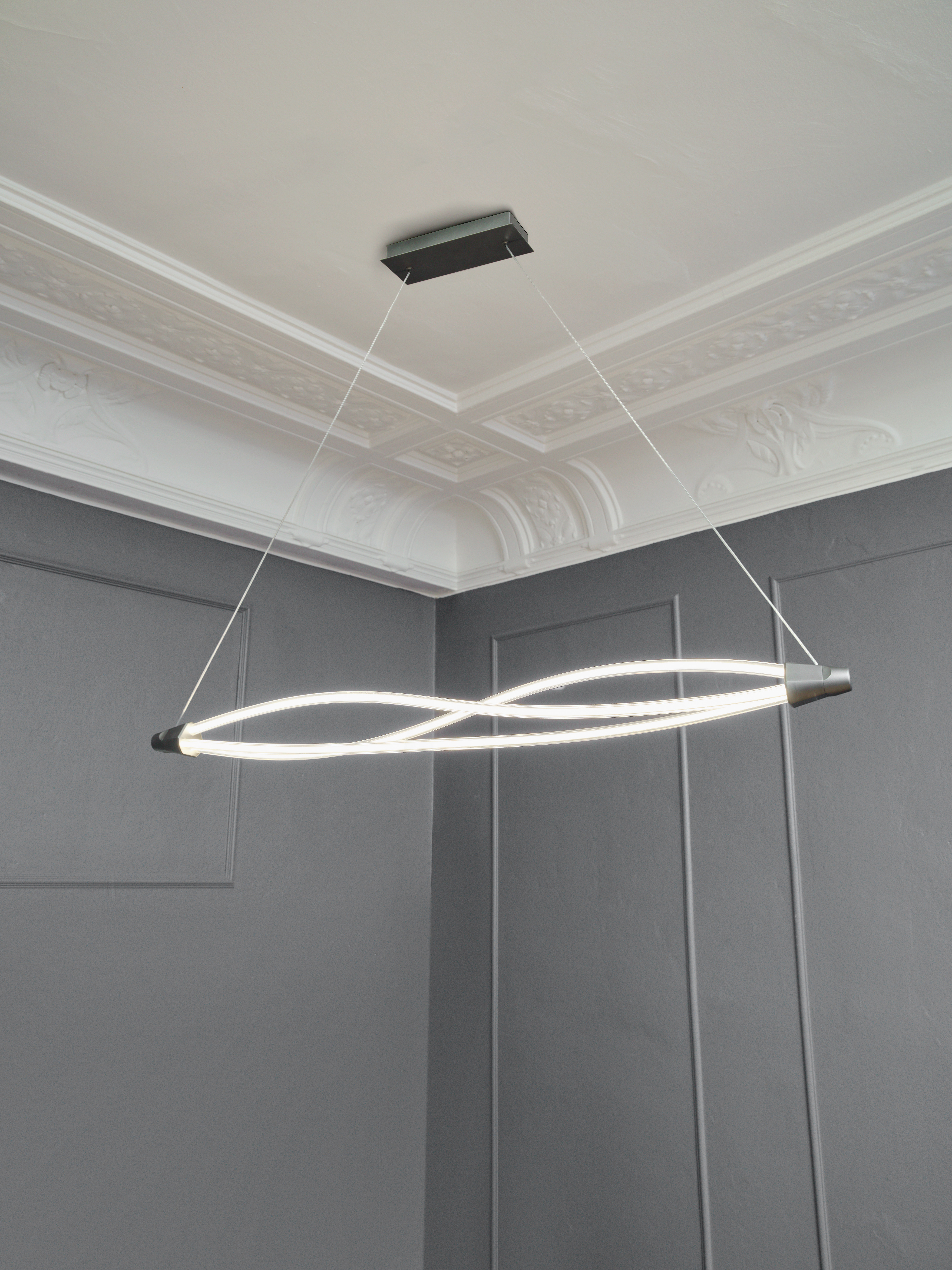

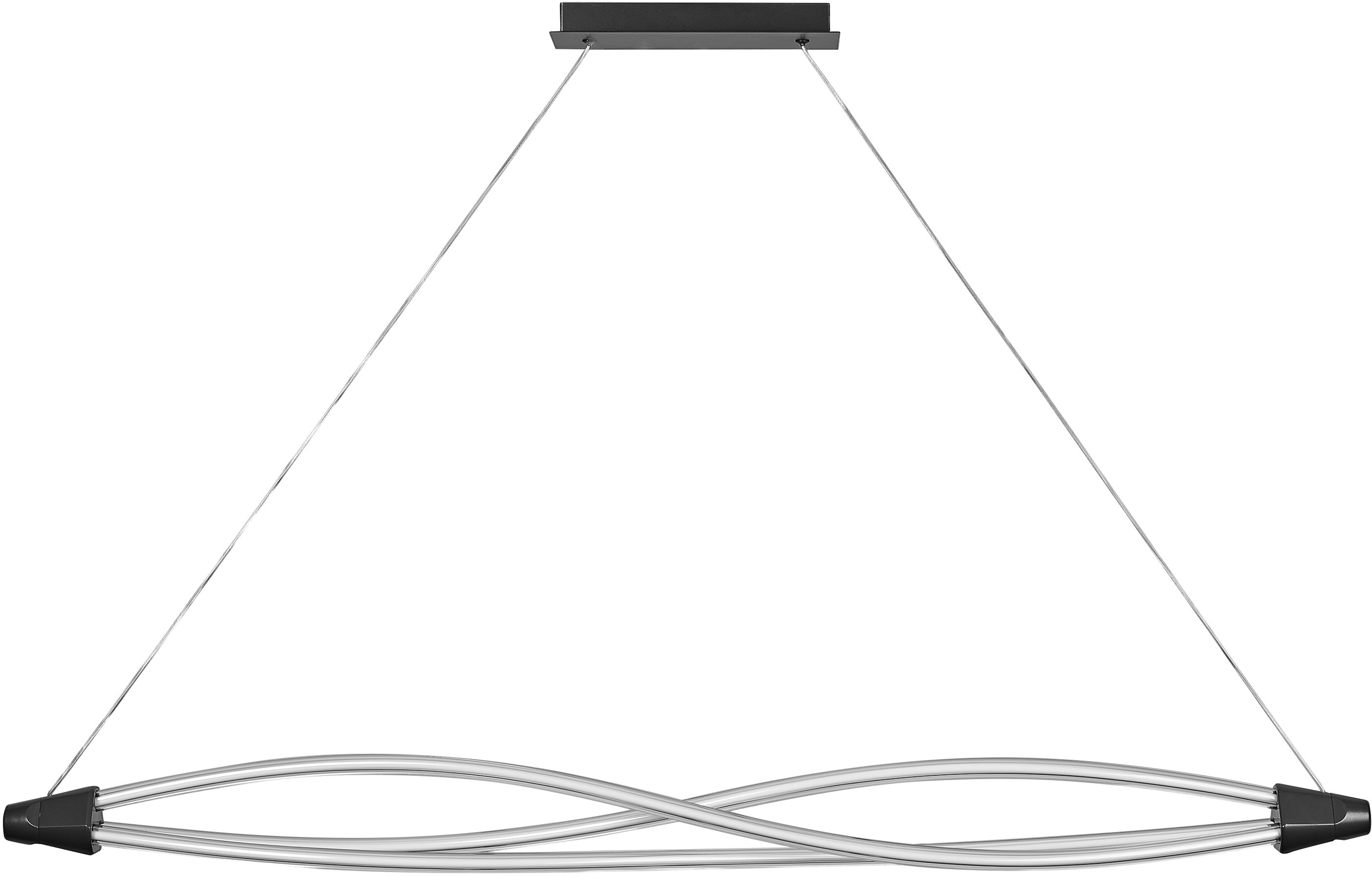

LEDVANCE Decor Swirl Pendant 22W 830 Click DIM

NEW

Preview: LEDVANCE Decor Swirl Pendelleuchte 22 W 830 Click DIM

LEDVANCE Decor Swirl Pendelleuchte 22 W 830 Click DIM

€213.68 *

incl. tax, free shipping to Germany
[International shipping costs]

Availability:

Delivery time: approx. 2-3 weeks

Delivery time: approx. 2-3 weeks

Item number: 101421270

EAN: 4058075841963

MPN: 4058075841963

NEW

LEDVANCE Decor Swirl Pendant 22W 830 Click DIM product advantages Uniform filament... more

Back to the overview

All information about the product:

"LEDVANCE Decor Swirl Pendant 22W 830 Click DIM"

LEDVANCE Decor Swirl Pendant 22W 830 Click DIM

product advantages

Uniform filament illumination
Clicking the dimming function via wall switch (only for pendant luminaires)
Different types of lights with the same design language ensure a consistent style throughout the home.
Minimalist style suits every room
On/off switch for table and floor lamps
Easy installation

Areas of application

interior applications
Corridors, entrance areas, stairwells, living rooms, basements

product features

Housing material: Polycarbonate (PC)
high-performance LED

safety instructions

All electrical connections must only be carried out by qualified personnel.
Caution, risk of electric shock.
Product of protection class I. All electrically conductive, metallic housing parts that may become live during operation or maintenance in the event of a fault must be connected to the protective conductor throughout.
Check the wall/ceiling to ensure it is suitable. If you are unsure, seek professional advice.

Technical data:

Length:	1282 mm
Width:	127 mm
Height:	1282 mm
Weight:	2000 g
Nominal voltage:	220-240 V
Nominal power:	22 W
Nominal current:	100 mA
Energy consumption:	22 kWh/1000
Colour temperature:	3000 K
Light colour:	White
Beam angle:	360°
Luminous flux:	2400 lm
Luminous efficacy:	109 lm/W
Colour rendering:	80-89 CRI
Dimmable:	Yes
Lifetime:	25000 h
Protection class:	IP20
Light source type:	LED not exchangeable
Material:	Plastic
Colour:	Grey
Incl. illuminant:	Yes
Suitable for light line configuration:	no
Suitable for workplace according to EN 12464-1:	no
Lamp holder:	None
Material cover:	Plastic, opal
Voltage type:	AC
With control gear:	yes
Exchangeable control gear:	no
Dimming phase cut-off (trailing edge):	no
Dimming phase cut-on (leading edge):	no
Dimming Touch and Dim:	no
Dimming Zigbee:	no
Light distributor:	None
Reflector:	None
Light distribution:	Symmetric
Colour consistency (McAdam ellipse):	SDCM6
Light outlet:	Direct
Direct-/indirect proportion separately controllable:	no
Max. number of luminaires per miniature circuit breaker B16 (MCB):	31
Max. number of luminaires per miniature circuit breaker C16 (MCB):	42
Impact strength:	IK03
Protection class according to IEC 61140:	I
Luminaire with limited surface temperature, sign "D“ according to EN 60598-2-24:	no
Suitable for emergency lighting:	no
Emergency power supply integrated:	no
Power factor:	0.5
Constant light output (CLO):	no
Colour of light adjustable:	No
Luminous flux adjustable:	No
Beam angle adjustable:	No
With suspension:	yes
Pendant length:	1000 mm
Type of wiring:	Ending
Number of poles:	3
Connection type:	Push-in clamp
Compatible with Apple HomeKit:	no
Compatible with Google Assistant:	no
Compatible with Amazon Alexa:	no
IFTTT support available:	yes
Operation by Bluetooth:	no
