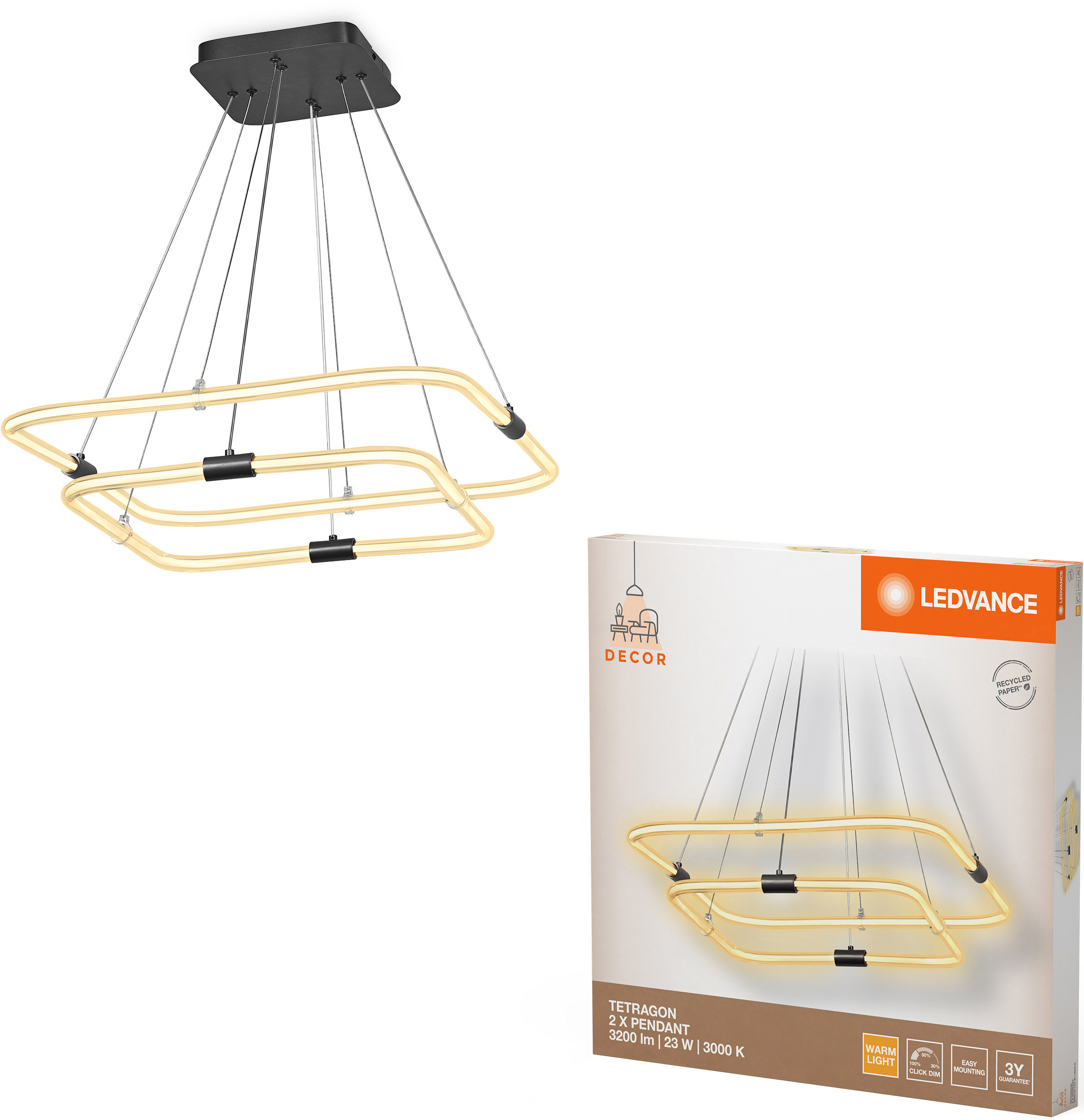

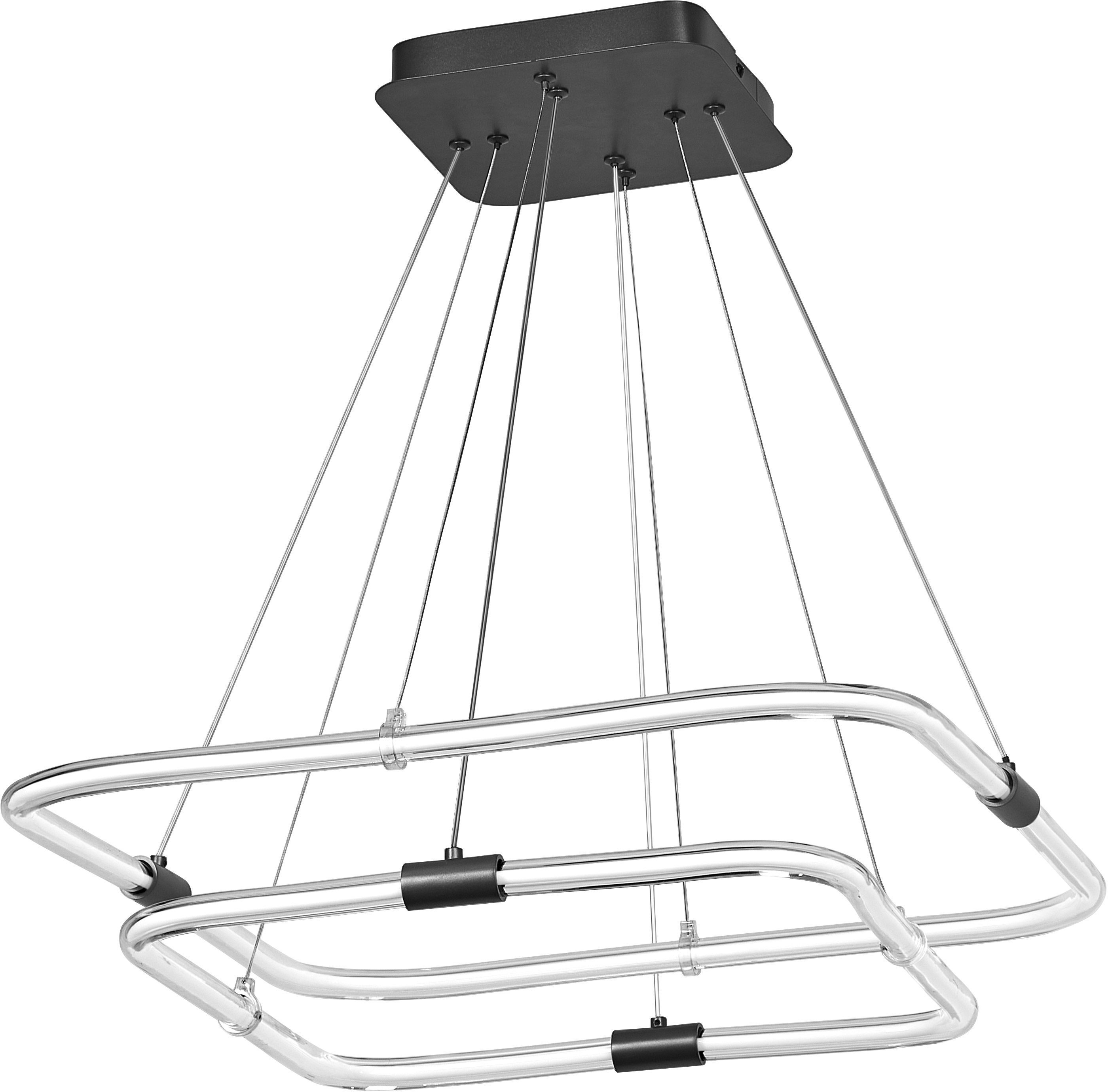

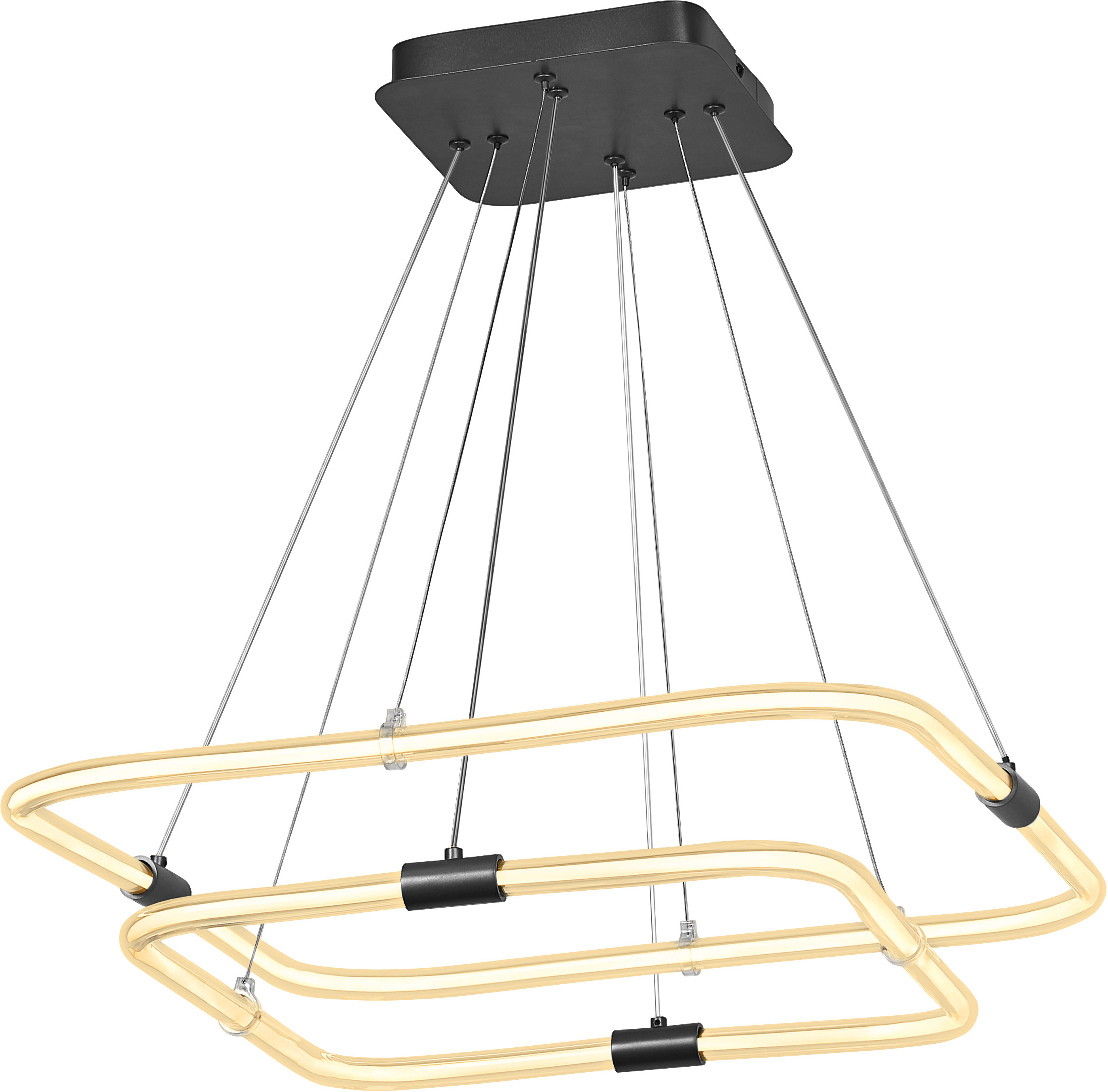

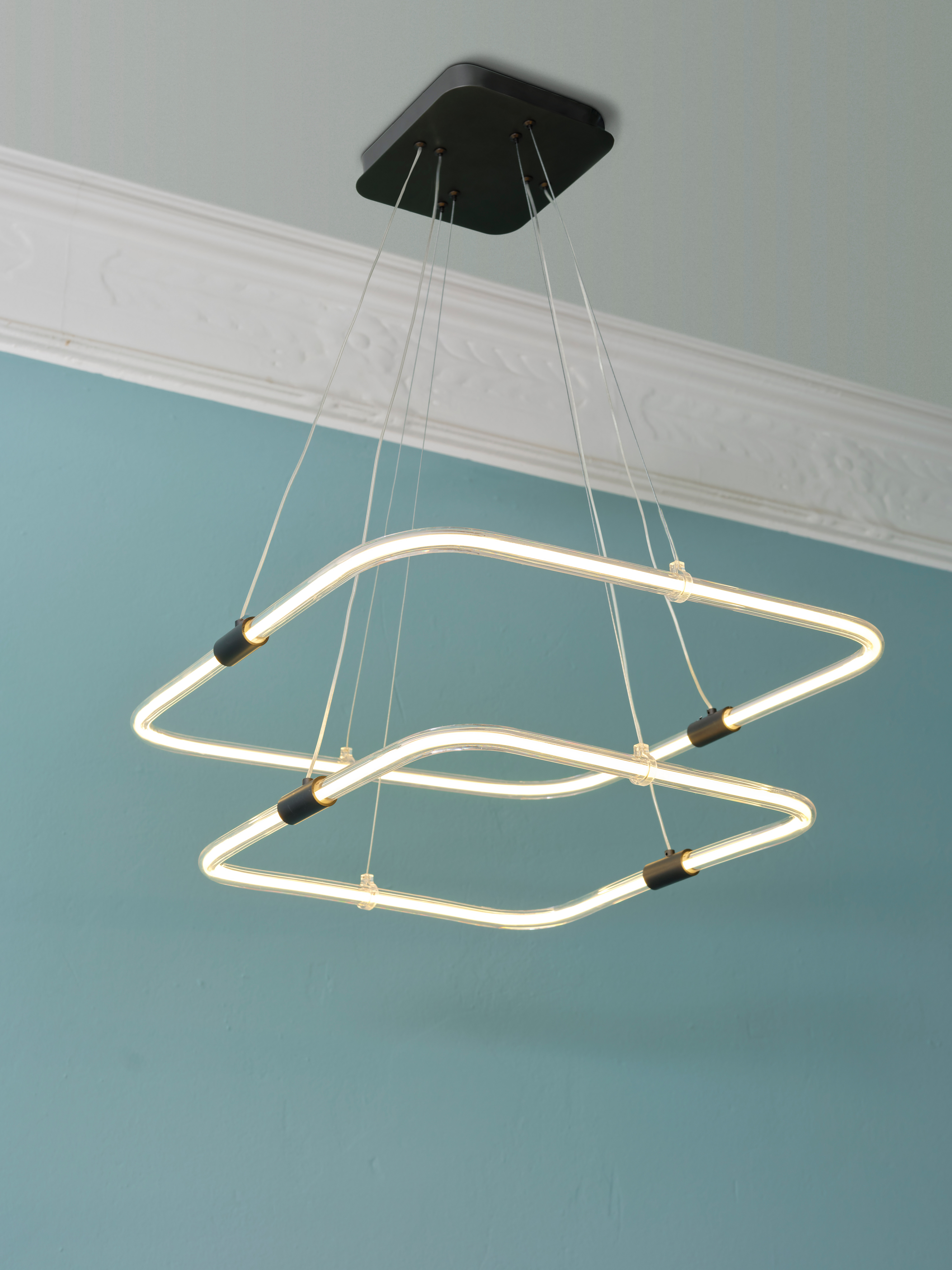

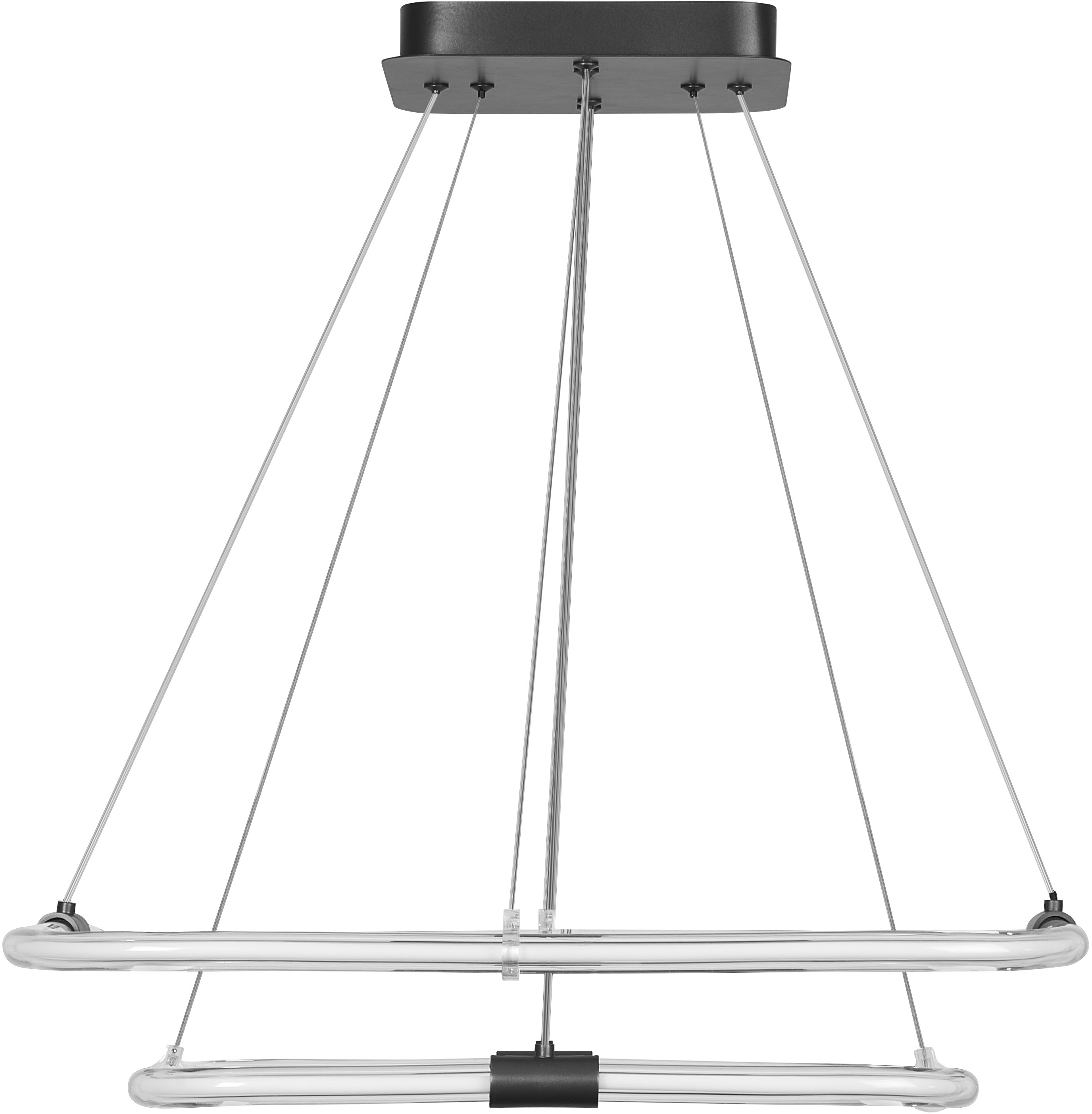

LEDVANCE Decor Tetragon 2XPendant 23W 830 Click DIM

NEW

Preview: LEDVANCE Decor Tetragon 2XPendant 23W 830 Klick DIM

LEDVANCE Decor Tetragon 2XPendant 23W 830 Klick DIM

€213.68 *

incl. tax, free shipping to Germany
[International shipping costs]

Availability:

Delivery time: approx. 2-3 weeks

Delivery time: approx. 2-3 weeks

Item number: 101421300

EAN: 4058075842205

MPN: 4058075842205

NEW

LEDVANCE Decor Tetragon 2XPendant 23W 830 Click DIM product advantages Uniform filament... more

Back to the overview

All information about the product:

"LEDVANCE Decor Tetragon 2XPendant 23W 830 Click DIM"

LEDVANCE Decor Tetragon 2XPendant 23W 830 Click DIM

product advantages

Uniform filament illumination
Clicking the dimming function via wall switch
Different types of lights with the same design language ensure a consistent style throughout the home.
Minimalist style suits every room
Easy installation

Areas of application

interior applications
Corridors, entrance areas, stairwells, living rooms, basements

product features

Housing material: Polycarbonate (PC)
high-performance LED

safety instructions

All electrical connections must only be carried out by qualified personnel.
Caution, risk of electric shock.
Product of protection class I. All electrically conductive, metallic housing parts that may become live during operation or maintenance in the event of a fault must be connected to the protective conductor throughout.
Check the wall/ceiling to ensure it is suitable. If you are unsure, seek professional advice.

Technical data:

Length:	567 mm
Width:	566 mm
Height:	800 mm
Weight:	2100 g
Nominal voltage:	220-240 V
Nominal power:	23 W
Nominal current:	100 mA
Energy consumption:	23 kWh/1000
Colour temperature:	3000 K
Light colour:	White
Beam angle:	360°
Luminous flux:	2500 lm
Luminous efficacy:	108 lm/W
Colour rendering:	80-89 CRI
Dimmable:	Yes
Lifetime:	25000 h
Protection class:	IP20
Light source type:	LED not exchangeable
Material:	Plastic
Colour:	Grey
Incl. illuminant:	Yes
Suitable for light line configuration:	no
Suitable for workplace according to EN 12464-1:	no
Lamp holder:	None
Material cover:	Plastic, opal
Voltage type:	AC
With control gear:	yes
Exchangeable control gear:	no
Dimming phase cut-off (trailing edge):	no
Dimming phase cut-on (leading edge):	no
Dimming Touch and Dim:	no
Dimming Zigbee:	no
Light distributor:	None
Reflector:	None
Light distribution:	Symmetric
Colour consistency (McAdam ellipse):	SDCM6
Light outlet:	Direct
Direct-/indirect proportion separately controllable:	no
Max. number of luminaires per miniature circuit breaker B16 (MCB):	31
Max. number of luminaires per miniature circuit breaker C16 (MCB):	42
Impact strength:	IK03
Protection class according to IEC 61140:	I
Luminaire with limited surface temperature, sign "D“ according to EN 60598-2-24:	no
Suitable for emergency lighting:	no
Emergency power supply integrated:	no
Power factor:	0.5
Constant light output (CLO):	no
Colour of light adjustable:	No
Luminous flux adjustable:	No
Beam angle adjustable:	No
With suspension:	yes
Pendant length:	800 mm
Type of wiring:	Ending
Number of poles:	3
Connection type:	Push-in clamp
Compatible with Apple HomeKit:	no
Compatible with Google Assistant:	no
Compatible with Amazon Alexa:	no
IFTTT support available:	yes
Operation by Bluetooth:	no
