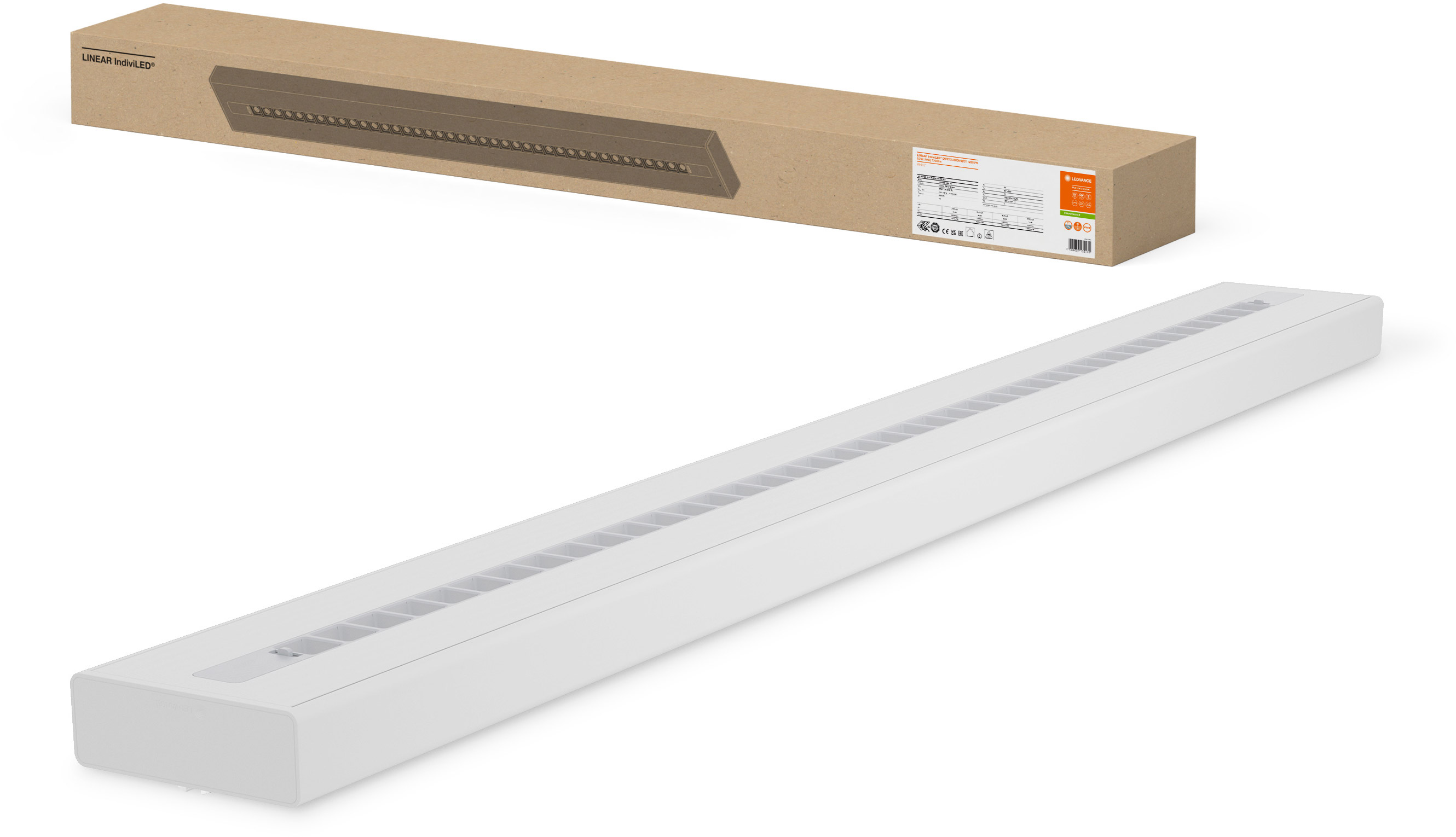

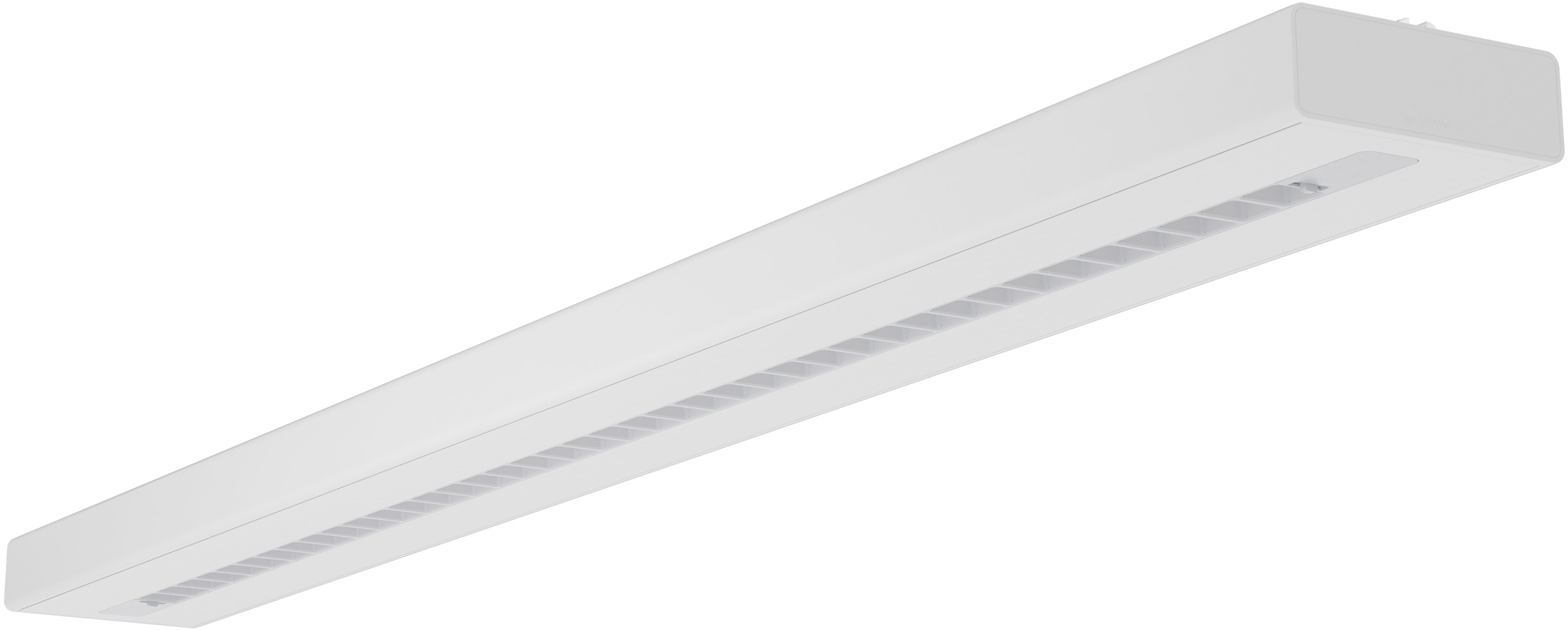

LEDVANCE LN INV DI 1200 P 55W 940 PS WT
NEW
€299.56 *
Availability:
Delivery time: approx. 2-3 weeks
Delivery time: approx. 2-3 weeks
Item number: 101417760
EAN: 4099854135170
MPN: 4099854135170
NEW
LEDVANCE LN INV DI 1200 P 55W 940 PS WT product advantages Easy upgradeability of light... more
All information about the product:
"LEDVANCE LN INV DI 1200 P 55W 940 PS WT"
LEDVANCE LN INV DI 1200 P 55W 940 PS WT
product advantages
Technical data:- Easy upgradeability of light source and driver (EVERLOOP design)
- Homogeneous light distribution and reduced glare (UGR = 19) thanks to IndiviLED® optics

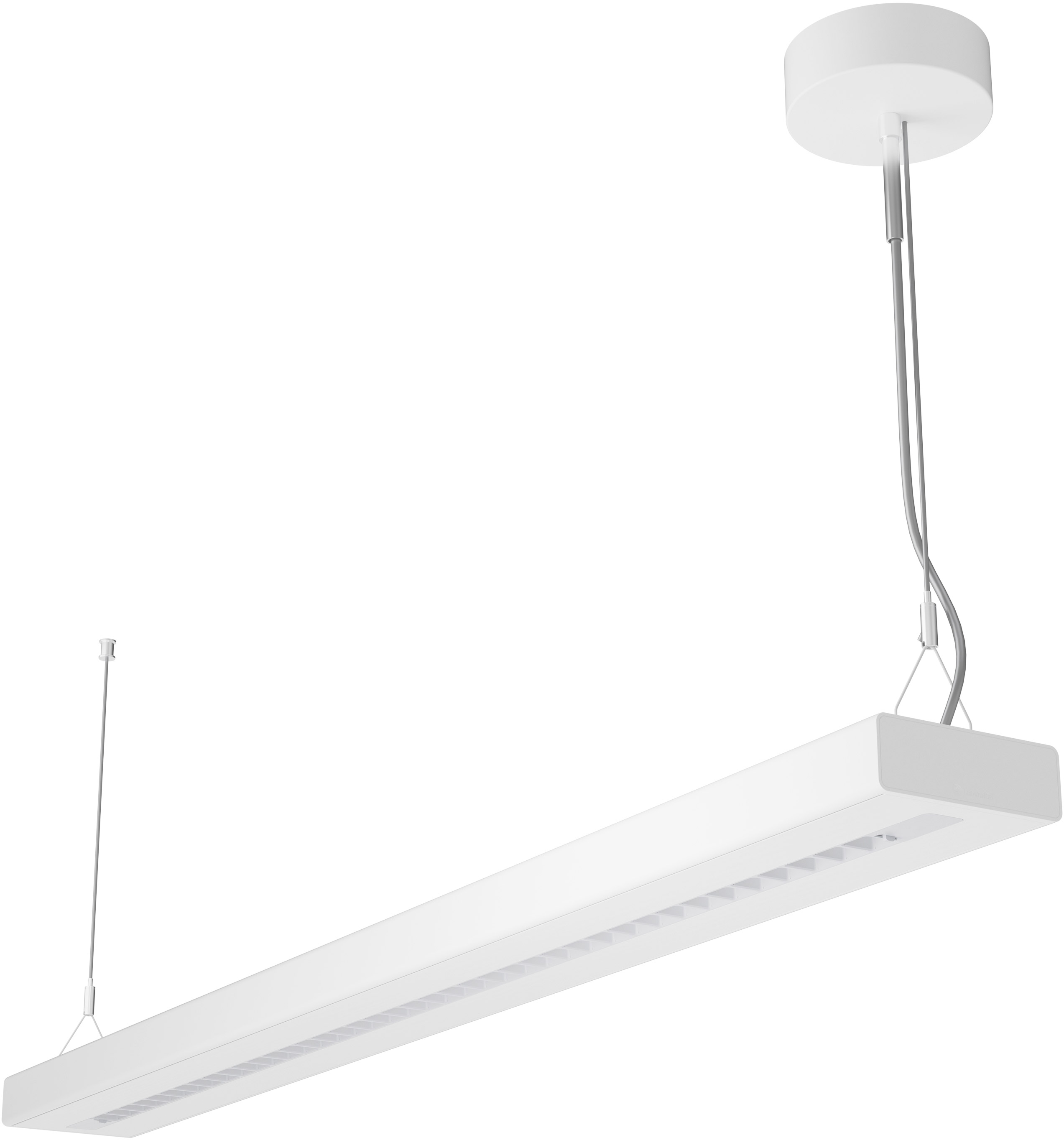

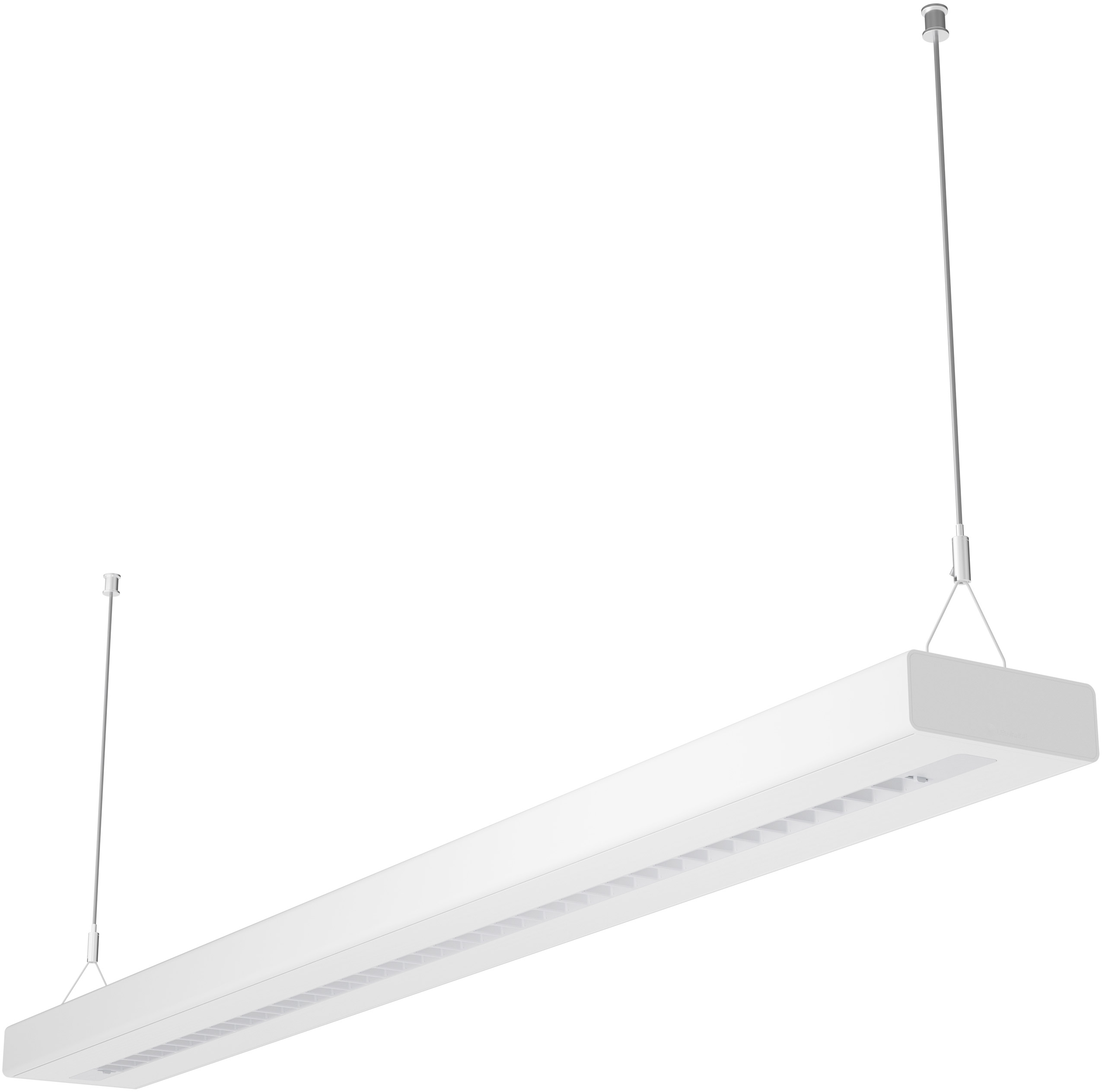

- Pendant lamps with direct (70%) and indirect lighting (30%)
- High technical performance with CRI90 and up to 133 lm/W
- Extremely versatile thanks to a wattage setting that can be selected on the driver (Power Select - PS)
- High color consistency with SDCM 3
- Easy installation
- Low-flicker light thanks to special electronic ballast
- Various mounting options thanks to different accessories
- Direct replacement for luminaires with fluorescent lamps
- Offices, educational institutions, public institutions
- Individual application or combined as a light strip
- Direct and indirect lighting
- Minimalist LEDVANCE SCALE design in an extruded aluminum housing, available in white and black
- Includes EVERLOOP: Easy replacement of light source and LED driver
- Can be connected to form a continuous light strip with accessories (surface-mounted or suspended mounting)
- Suspended mounting with suspension kit (to be ordered separately)
- Glow wire test according to IEC 60695-2-12: 850 °C
- 5-pin connection terminal, cable cross-section up to 5 x 2.5 mm²
- Service life (L80/B10): 70,000 hours (at 25 °C)
- Suspension set for pendant lamp version available (to be ordered separately)
- Inline, corner, and infill connectors available as separate accessories
- Through-wiring set available
- For warranty information, please visit www.ledvance.de/garantie.
| Length: | 1210 mm |
| Width: | 125 mm |
| Height: | 43 mm |
| Weight: | 3700 g |
| Nominal voltage: | 220-240 V |
| Nominal power: | 55 W |
| Nominal current: | 167-255 mA |
| Energy consumption: | 55 kWh/1000 |
| Colour temperature: | 4000 K |
| Light colour: | White |
| Luminous flux: | 7200 lm |
| Luminous efficacy: | 126 lm/W |
| Colour rendering: | 90-100 CRI |
| Dimmable: | No |
| Lifetime: | 100000 h |
| Switching cycles: | 25000 |
| Protection class: | IP20 |
| Material: | Aluminium |
| Colour: | White |
| Incl. illuminant: | Yes |
| Suitable for light line configuration: | no |
| Suitable for workplace according to EN 12464-1: | no |
| Material cover: | Plastic, transparent |
| Voltage type: | AC |
| With control gear: | yes |
| Exchangeable control gear: | yes |
| Dimming phase cut-off (trailing edge): | no |
| Dimming phase cut-on (leading edge): | no |
| Dimming Touch and Dim: | no |
| Dimming Zigbee: | no |
| Light distribution: | Symmetric |
| Colour consistency (McAdam ellipse): | SDCM3 |
| Light outlet: | Direct/indirect |
| Direct-/indirect proportion separately controllable: | yes |
| Max. number of luminaires per miniature circuit breaker B16 (MCB): | 47 |
| Max. number of luminaires per miniature circuit breaker C16 (MCB): | 47 |
| Degree of protection (NEMA): | 1 |
| Impact strength: | IK06 |
| Protection class according to IEC 61140: | I |
| Luminaire with limited surface temperature, sign "D“ according to EN 60598-2-24: | no |
| Suitable for emergency lighting: | no |
| Emergency power supply integrated: | no |
| Unified Glare Ratio (UGR): | 19 |
| Power factor: | 0.90 |
| Constant light output (CLO): | no |
| Colour of light adjustable: | No |
| Luminous flux adjustable: | Positions |
| Beam angle adjustable: | No |
| With suspension: | yes |
| Pendant length: | 1500 mm |
| Type of wiring: | Suitable for loop-through wiring |
| Number of poles: | 5 |
| Connection type: | Push-in clamp |
| Compatible with Apple HomeKit: | no |
| Compatible with Google Assistant: | no |
| Compatible with Amazon Alexa: | no |
| IFTTT support available: | yes |
| Operation by Bluetooth: | no |
