LEDVANCE LN INV DI 1500 P 69W 930 DAVR WT

NEW

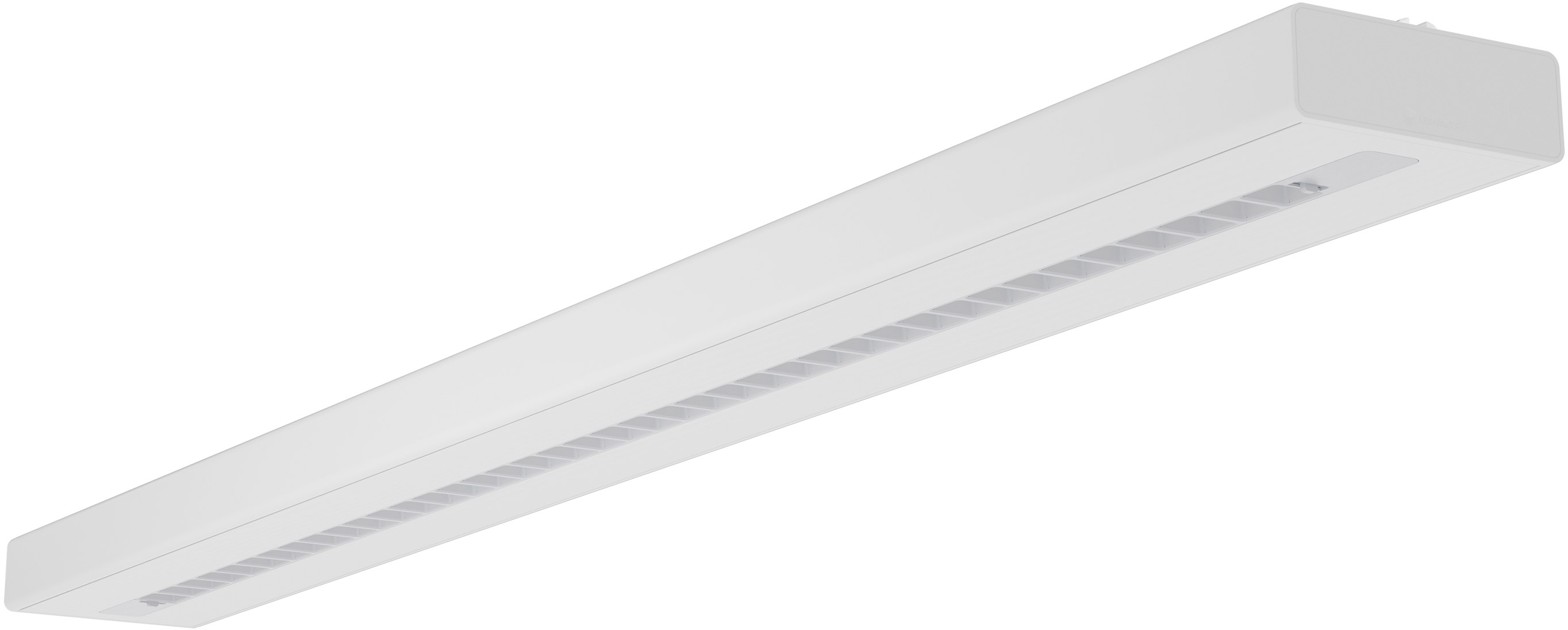

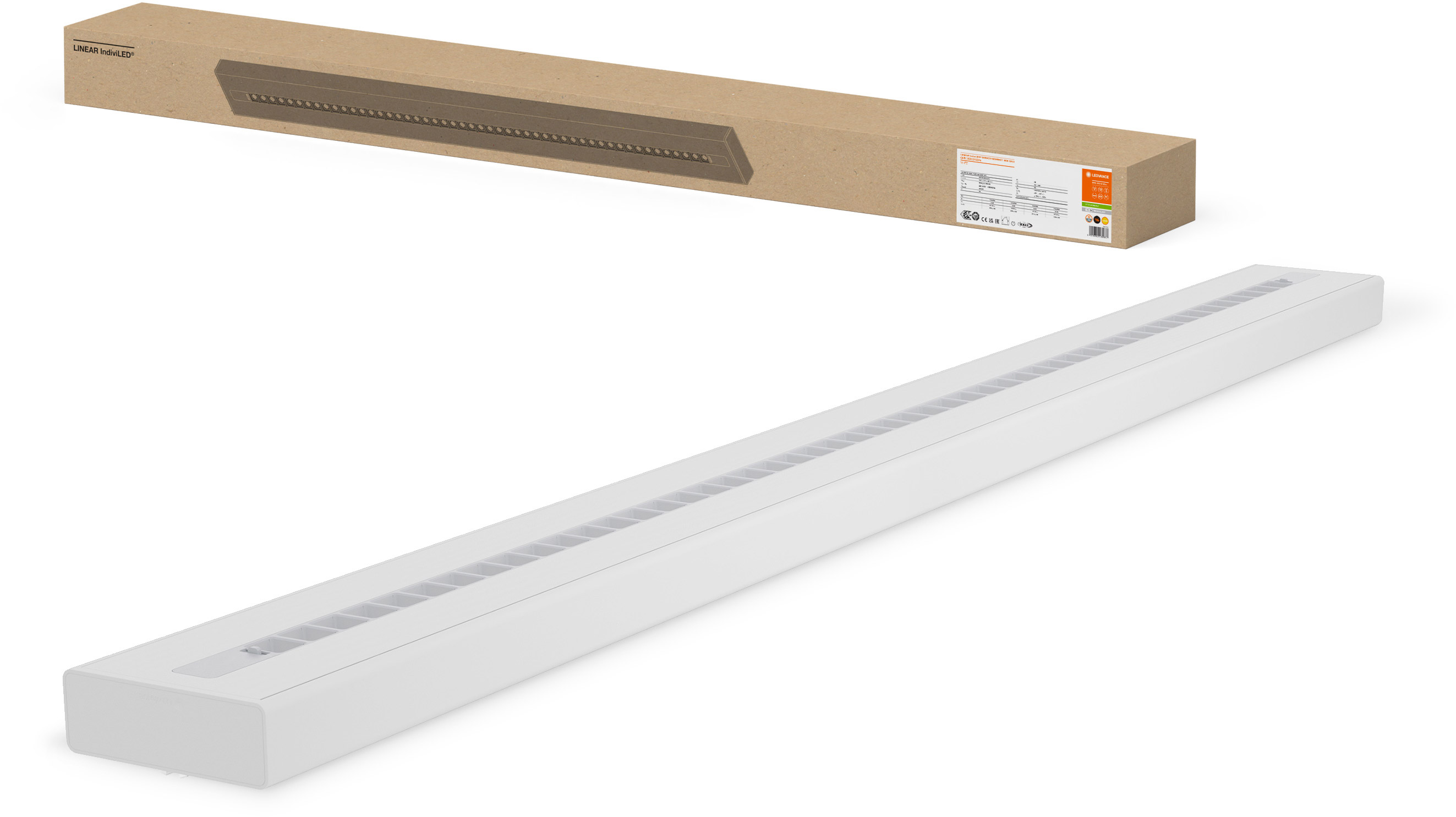

LEDVANCE LN INV DI 1500 P 69W 930 DAVR WT Pendelleuchte

€395.18 *

incl. tax, free shipping to Germany
[International shipping costs]

Availability:

Delivery time: approx. 2-3 weeks

Delivery time: approx. 2-3 weeks

Item number: 101417780

EAN: 4099854135637

MPN: 4099854135637

NEW

LEDVANCE LN INV DI 1500 P 69W 930 DAVR WT product advantages Easy upgradeability of light... more

Back to the overview

All information about the product:

"LEDVANCE LN INV DI 1500 P 69W 930 DAVR WT"

LEDVANCE LN INV DI 1500 P 69W 930 DAVR WT

product advantages

Easy upgradeability of light source and driver (EVERLOOP design)

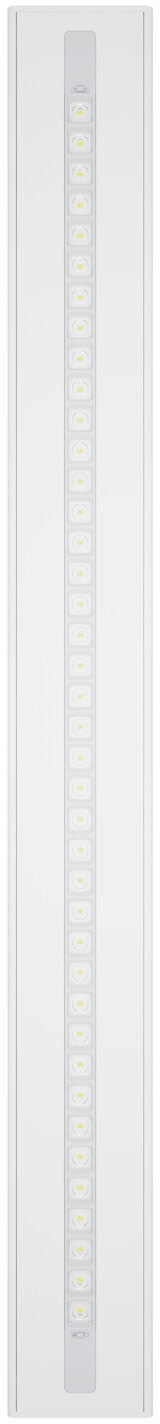

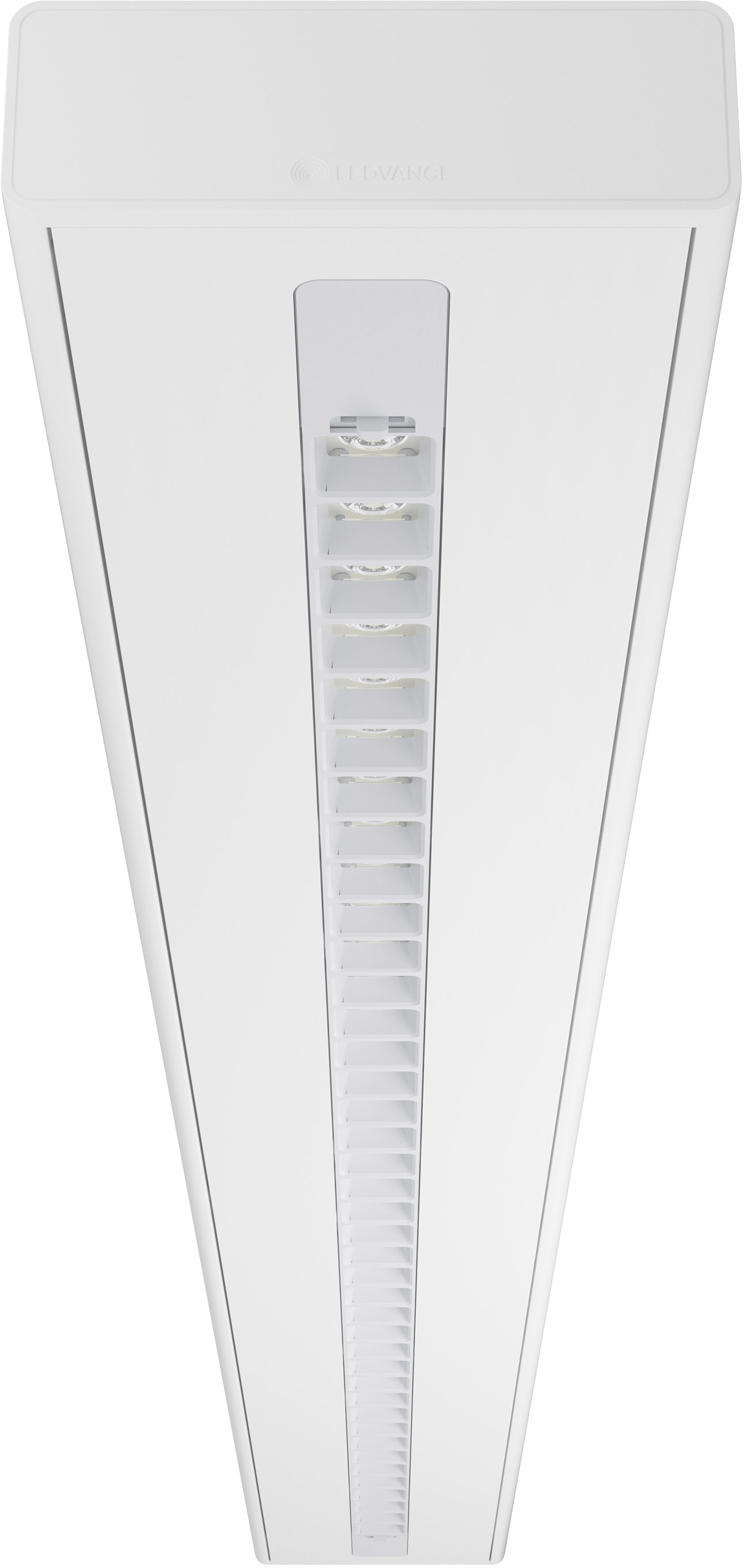

Homogeneous light distribution and reduced glare (UGR = 19) thanks to IndiviLED® optics
Pendant lamps with direct (70%) and indirect lighting (30%)
High technical performance with CRI90 and up to 131 lm/W
IoT-enabled luminaire with DALI-2 driver suitable for VIVARES and other light management systems
Advanced services such as power consumption monitoring and remote maintenance available for DALI versions
High color consistency with SDCM 3
Easy installation
Low-flicker light thanks to special electronic ballast
Suitable for use in emergency lighting applications in accordance with EN 60598-2-22
Various mounting options thanks to different accessories

Areas of application

Direct replacement for luminaires with fluorescent lamps
Offices, educational institutions, public institutions
Individual application or combined as a continuous row of lights
Direct and indirect lighting

product features

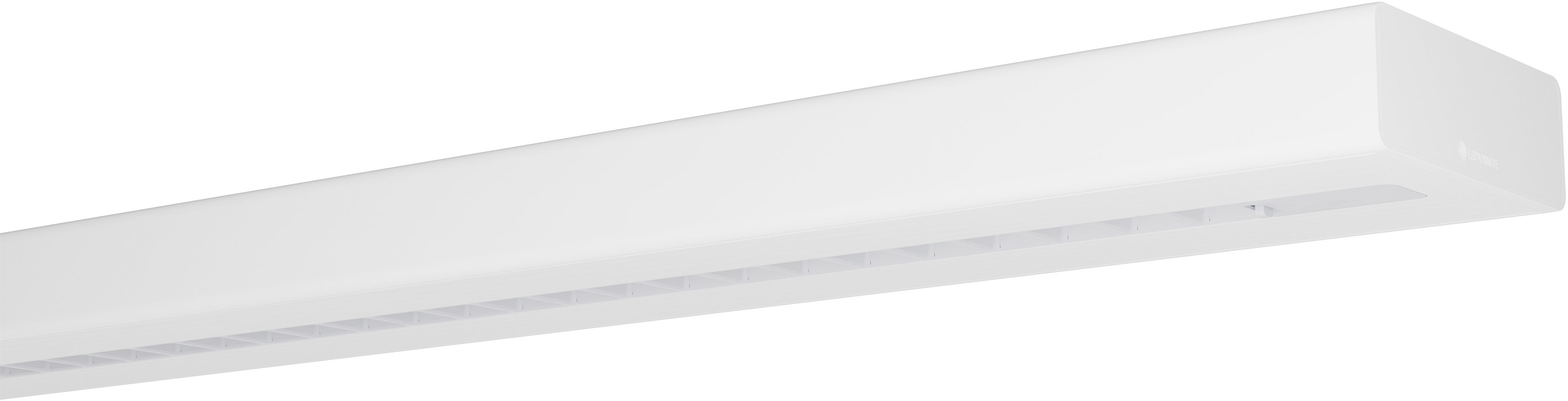

Minimalist LEDVANCE SCALE design in an extruded aluminum housing, available in white and black
Includes EVERLOOP: Convenient replacement of light source and LED driver
Can be connected to form a seamless light strip with accessories (surface-mounted or suspended installation)

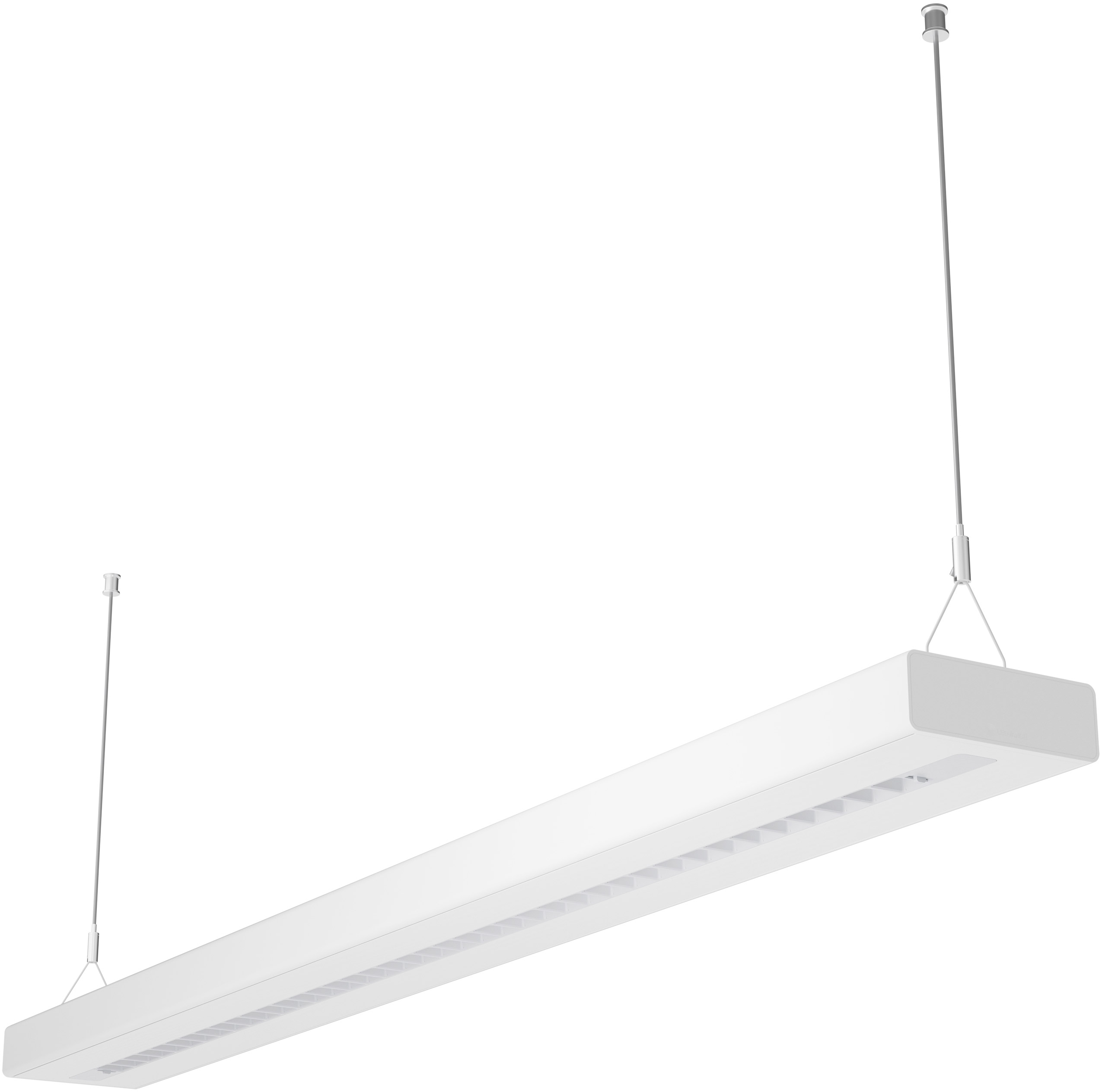

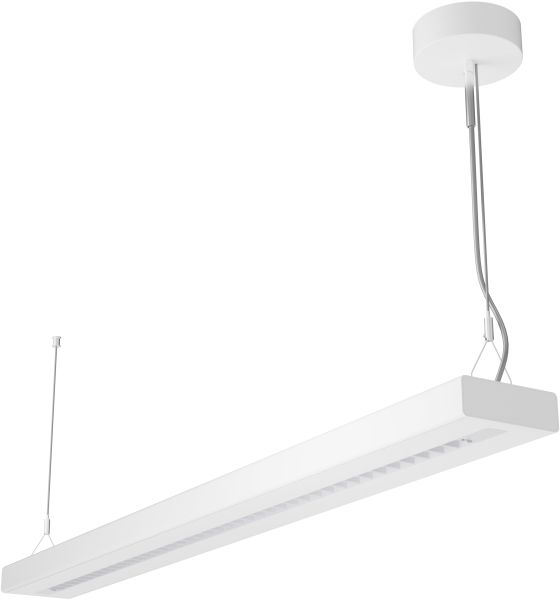

Suspended mounting with suspension kit (to be ordered separately)
Glow wire test according to IEC 60695-2-12: 850 °C
5-pin connection terminal, cable cross-section up to 5 x 2.5 mm²
Service life (L80/B10): 70,000 hours (at 25 °C)

Technical equipment

Suspension set for pendant lamp version available (to be ordered separately)
Inline, corner, and infill connectors available as separate accessories
Through-wiring set available

References / References

For warranty information, please visit www.ledvance.de/garantie.

Technical data:

Length:	1475 mm
Width:	125 mm
Height:	43 mm
Weight:	4160 g
Nominal voltage:	220-240 V
Nominal power:	69 W
Nominal current:	240-308 mA
Energy consumption:	69 kWh/1000
Colour temperature:	3000 K
Light colour:	White
Luminous flux:	8150 lm
Luminous efficacy:	118 lm/W
Colour rendering:	90-100 CRI
Dimmable:	Yes
Lifetime:	100000 h
Switching cycles:	25000
Protection class:	IP20
Material:	Aluminium
Colour:	White
Incl. illuminant:	Yes
Suitable for light line configuration:	no
Suitable for workplace according to EN 12464-1:	no
Material cover:	Plastic, transparent
Voltage type:	AC
With control gear:	yes
Exchangeable control gear:	yes
Dimming phase cut-off (trailing edge):	no
Dimming phase cut-on (leading edge):	no
Dimming Touch and Dim:	no
Dimming Zigbee:	no
Light distribution:	Symmetric
Colour consistency (McAdam ellipse):	SDCM3
Light outlet:	Direct/indirect
Direct-/indirect proportion separately controllable:	yes
Max. number of luminaires per miniature circuit breaker B16 (MCB):	23
Max. number of luminaires per miniature circuit breaker C16 (MCB):	32
Degree of protection (NEMA):	1
Impact strength:	IK06
Protection class according to IEC 61140:	I
Luminaire with limited surface temperature, sign "D“ according to EN 60598-2-24:	no
Suitable for emergency lighting:	yes
Emergency power supply integrated:	no
Unified Glare Ratio (UGR):	19
Power factor:	0.90
Constant light output (CLO):	no
Colour of light adjustable:	No
Luminous flux adjustable:	Continuously variable
Beam angle adjustable:	No
With suspension:	yes
Pendant length:	1500 mm
Type of wiring:	Suitable for loop-through wiring
Number of poles:	5
Connection type:	Push-in clamp
Compatible with Apple HomeKit:	no
Compatible with Google Assistant:	no
Compatible with Amazon Alexa:	no
IFTTT support available:	yes
Operation by Bluetooth:	no
