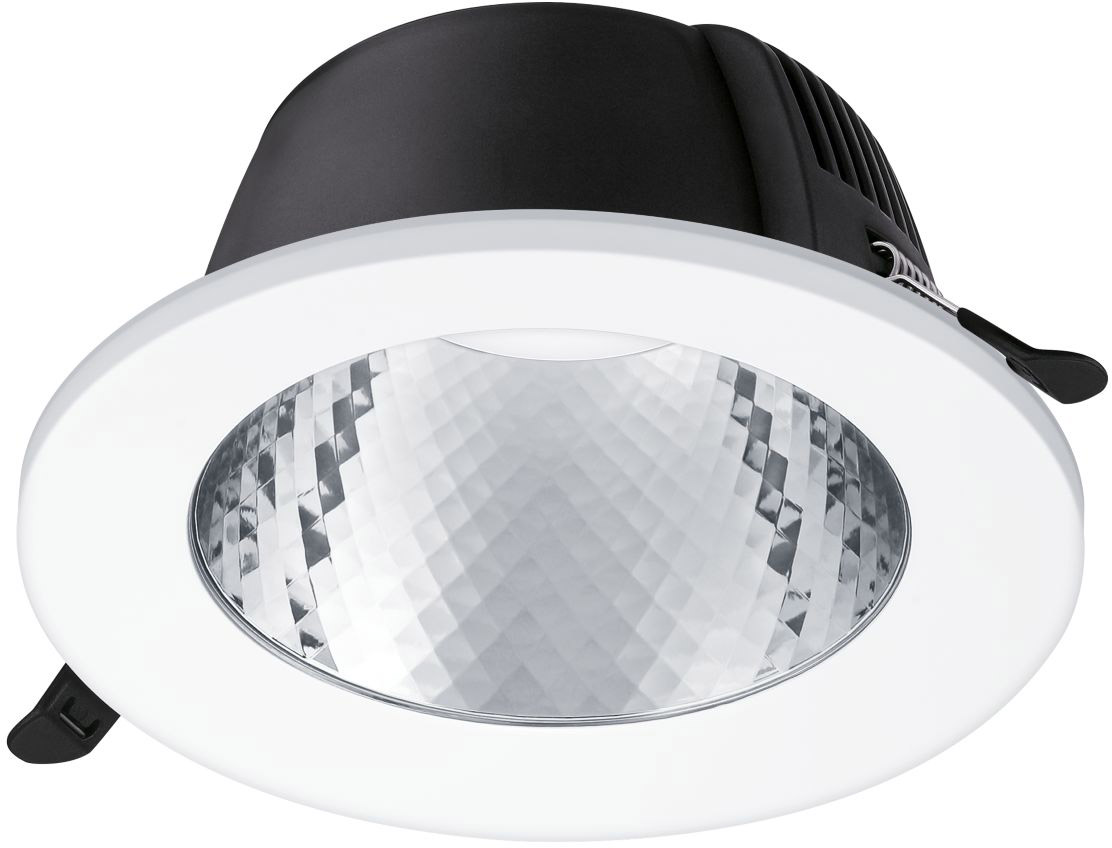

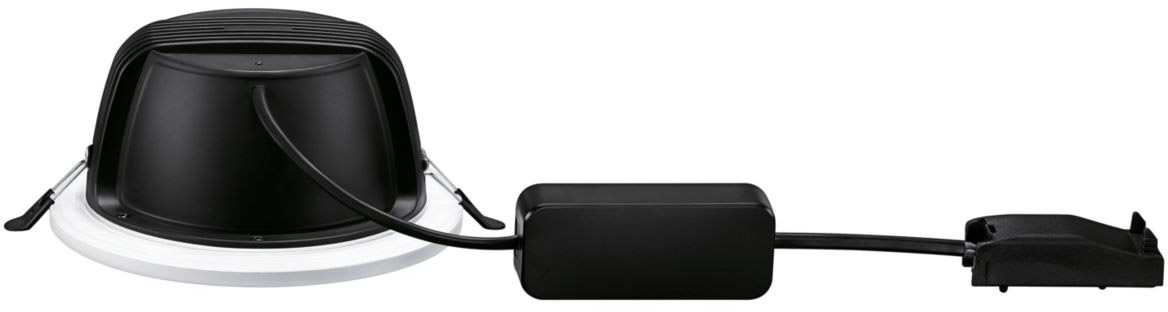

PHILIPS Ledinaire Recessed Downlight - Downlight/spot/floodlight - Power Consumption: 12 W
€15.45 *
incl. tax,
plus shipping costs
Availability:
Delivery time: approx. 2-3 weeks
Delivery time: approx. 2-3 weeks
Item number: 100427135
EAN: 8719514354005
MPN: 929003165432
PHILIPS Ledinaire Recessed Downlight - Downlight/spot/floodlight - Power Consumption: 12 W -... more
All information about the product:
"PHILIPS Ledinaire Recessed Downlight - Downlight/spot/floodlight - Power Consumption: 12 W"
PHILIPS Ledinaire Recessed Downlight - Downlight/spot/floodlight - Power Consumption: 12 W -
D150 mm, Metal–Plastic, Black, Power supply unit (On/Off), 1200 lm, 12 W, 96.00 lm/W, 4000 K, (0.3795, 0.3827) 5SDCM, Beam angle 60°, Matte, Polycarbonate, IP20/54 | Finger-protected; dust accumulation-protected, splash-proof, IK03 | 0.3 J, Safety class II, Connection unit 2-pole

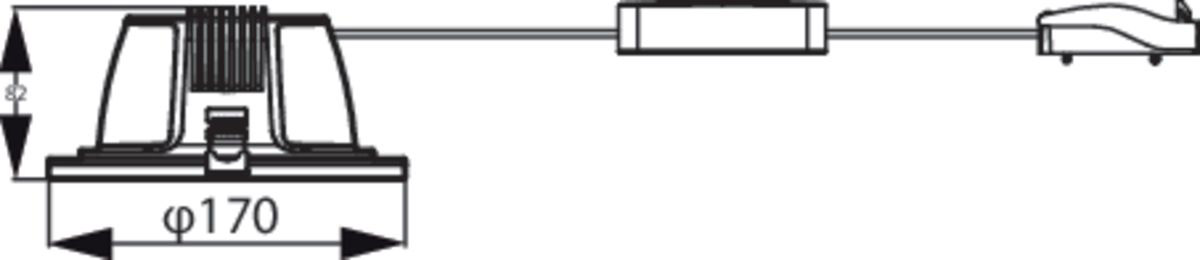

Technical data:| Length: | 170 mm |
| Width: | 170 mm |
| Height: | 82 mm |
| Diameter: | 170 mm |
| Nominal voltage: | 220-240 V |
| Nominal power: | 12 W |
| Nominal current: | 60 mA |
| Energy consumption: | 12 kWh/1000 |
| Colour temperature: | 4000 K |
| Light colour: | White |
| Beam angle: | 41-80° - Wide beam |
| Luminous flux: | 1152 lm |
| Light intensity: | 1262,50 cd |
| Luminous efficacy: | 96 lm/W |
| Colour rendering: | 80-89 CRI |
| Dimmable: | No |
| Lifetime: | 30000 h |
| Protection class: | IP20 |
| Energy efficiency class: | F |
| Light source type: | LED not exchangeable |
| Material: | Other |
| Colour: | Black |
| Incl. illuminant: | Yes |
| Suitable for surface mounting: | no |
| Suitable for low voltage cable system: | no |
| Filament test according to IEC 60695-2-11: | 650 °C - 30 s |
| Photobiological safety according to EN 62471: | RG1 |
| Suitable for workplace according to EN 12464-1: | yes |
| Covering of the luminaire with thermally insulating material possible: | no |
| IFTTT support available: | no |
| Colour consistency (McAdam ellipse): | SDCM5 |
| Unified Glare Ratio (UGR): | 19 |
| Compatible with Apple HomeKit: | no |
| Operation by Bluetooth: | no |
| Adjustability: | Not adjustable |
| Compatible with Google Assistant: | no |
| Compatible with Amazon Alexa: | no |
| With movement sensor: | no |
| With light sensor: | no |
| Suitable for number of light sources: | 1 |
| Surface protection: | Plastic-coated |
| Suitable for built-in mounting: | yes |
| Material cover: | Plastic matt/satinized |
| Surface brushed: | no |
| Voltage type: | AC |
| Type of control gear: | LED operating device current-controlled |
| With control gear: | yes |
| Exchangeable control gear: | no |
| Suitable for wall mounting: | no |
| Dimming phase cut-off (trailing edge): | no |
| Suitable for suspended mounting: | no |
| Dimming phase cut-on (leading edge): | no |
| Dimming Touch and Dim: | no |
| Dimming Zigbee: | no |
| Light distributor: | Reflector |
| Suitable for ceiling mounting: | no |
| Light distribution: | Symmetric |
| Reflector colour: | Silver |
| Light outlet: | Direct |
| Total harmonic distortion: | 0.20 |
| Suitable for traverse mounting: | no |
| Constant light output (CLO): | no |
| Impact strength: | IK03 |
| Protection class according to IEC 61140: | II |
| Rated ambient temperature according to IEC 62722-2-1: | 40°C |
| Suitable for lamp power: | 13,2 W |
| Suitable for pedestal/floor mounting: | no |
| Power factor: | 0.9 |
| Flickering value Pst LM: | 0.1 |
| Colour of light adjustable: | No |
| Suitable for light-track mounting: | no |
| Luminous flux adjustable: | No |
| Beam angle adjustable: | No |
| Stroboscope effect value SVM: | 0.1 |

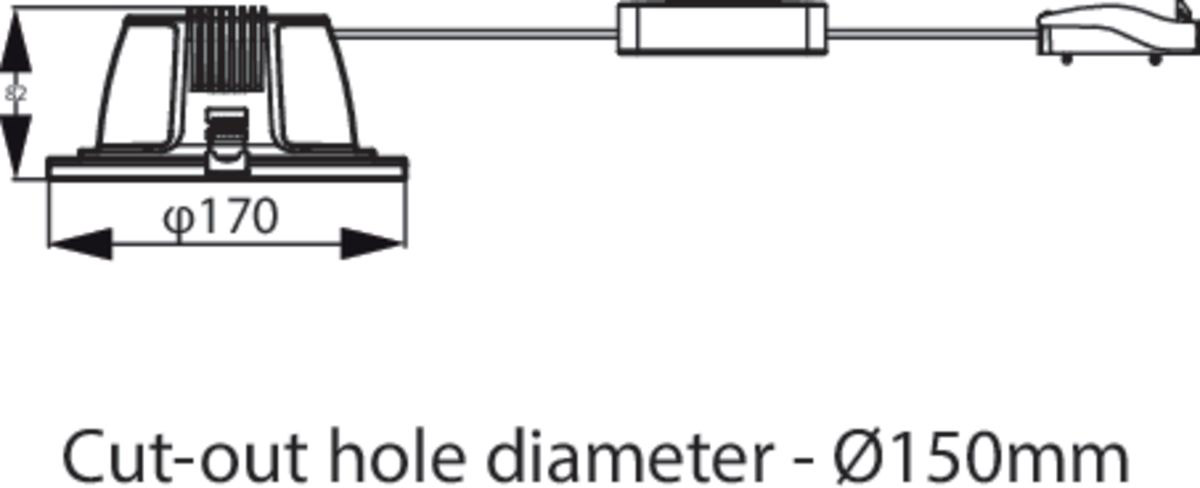

| Built-in height/depth: | 220 mm |
| Suitable for clamp-mounting: | no |
| Built-in diameter: | 155 mm |
| Type of wiring: | Suitable for loop-through wiring |
| Number of poles: | 1 |
| Conductor cross section: | 0.75mm² |
| Connectable conductor cross section: | 0.75mm² |
| Connection type: | Insulation displacement connector |
| Luminaire with limited surface temperature, sign "D“ according to EN 60598-2-24: | no |
| Max. number of luminaires per miniature circuit breaker B16 (MCB): | 245 |
| Max. number of luminaires per miniature circuit breaker C16 (MCB): | 245 |
| Emergency power supply integrated: | no |
